Mitsubishi BC186A166H03 Service-Ready Spare Part

Mitsubishi BC186A166H03 Service-Ready Spare Part for Industrial Maintenance

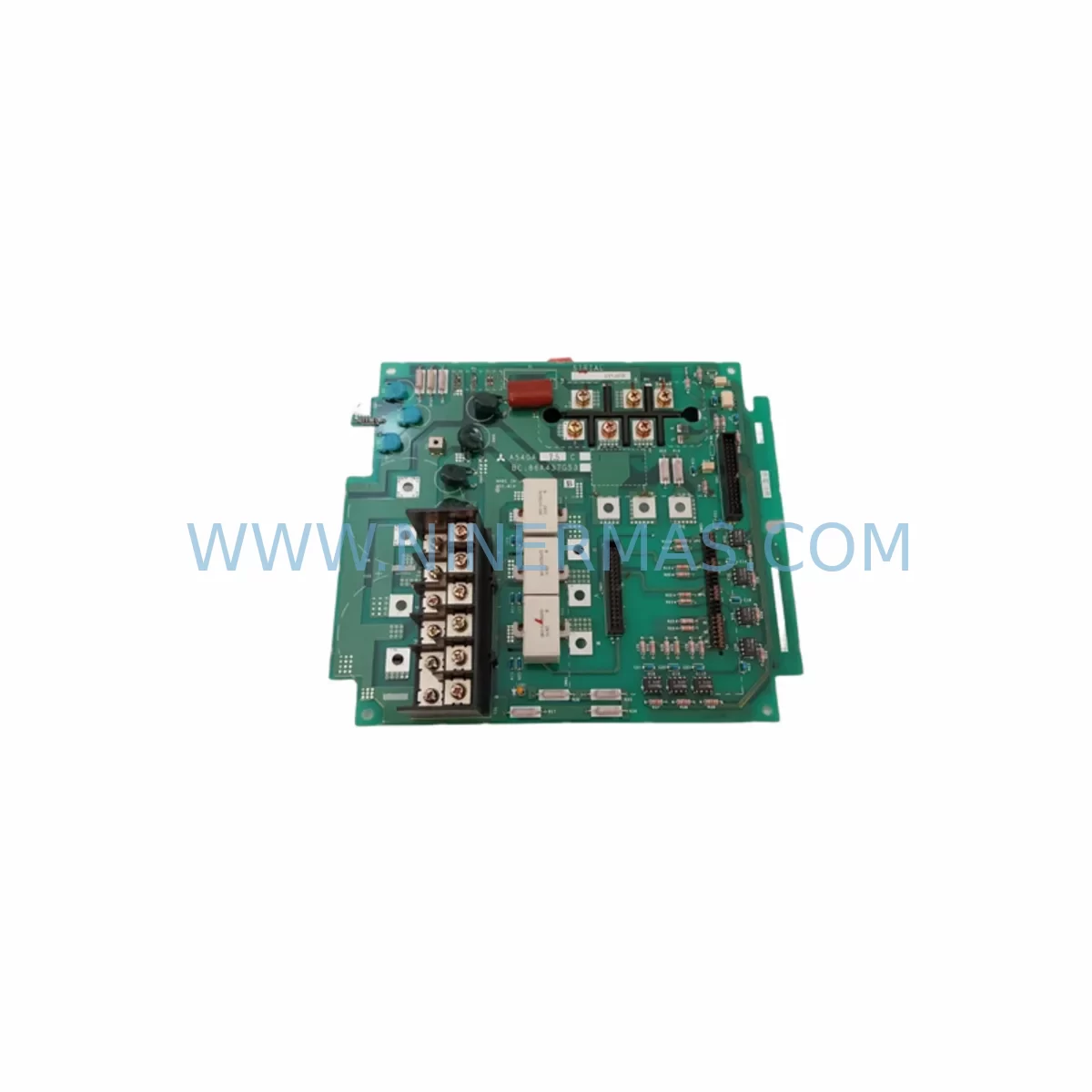

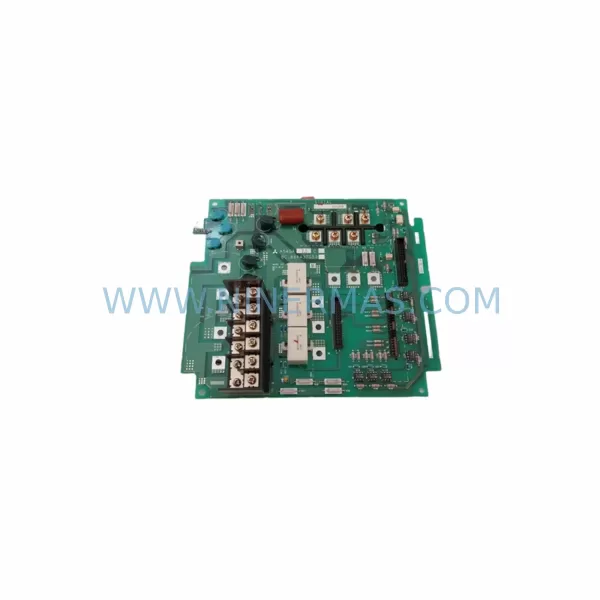

The Mitsubishi BC186A166H03 is a ruggedized safety circuit board module engineered for continuous-duty industrial environments. Designed for integration within Mitsubishi MELSEC programmable logic controller (PLC) systems, this board plays a critical role in safety interlock circuits, fault detection loops, and emergency shutdown (ESD) sequences across process and discrete manufacturing facilities. When a BC186A166H03 fails or degrades, the downstream impact is immediate: safety logic becomes unreliable, production lines halt, and maintenance teams face unplanned downtime that can extend from hours to days without a verified replacement on hand.

At NINERMAS, every BC186A166H03 unit is sourced from authorized supply channels, subjected to pre-shipment functional testing, and shipped with full documentation. Our 12-month warranty covers verified original parts, giving procurement engineers and maintenance planners the confidence to commit to long-term spare parts programs without quality risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the BC186A166H03 in a live MELSEC control system is rarely an isolated task. Maintenance engineers conducting a scheduled annual overhaul or responding to an unplanned fault should treat this board replacement as a trigger for a broader cabinet inspection. The safety circuit board interfaces directly with the PLC backplane — in BC186A series configurations, the backplane bus connector integrity must be verified before re-seating any board-level component. Damaged bus pins or oxidized contacts on the backplane can cause intermittent faults that are misdiagnosed as board failures.

The power supply feeding the BC186A166H03’s logic rail is equally critical. Mitsubishi MELSEC power supply modules such as the Q61P or equivalent series units should be load-tested during the same maintenance window. An aging power supply with marginal output voltage regulation is a common root cause of premature circuit board failure and should be replaced proactively when the BC186A166H03 is swapped.

I/O modules connected to the safety circuit — particularly digital input modules handling emergency stop signals and safety relay feedback — should be inspected for contact wear and signal integrity. Mitsubishi QX40 or QX41 series digital input modules are frequently found in the same safety loop and are worth including in the annual spare parts checklist. Similarly, output modules driving safety relays, such as the QY10 series, should be verified for coil drive capacity and contact bounce characteristics.

Communication modules linking the MELSEC PLC to supervisory SCADA or DCS systems — for example, QJ71E71 Ethernet interface modules or QJ71C24 serial communication modules — should be checked for firmware version compatibility after any board-level replacement, as safety logic updates may require coordinated firmware alignment across the communication stack.

Terminal blocks and wiring harnesses connected to the safety circuit board should be inspected for insulation degradation, loose ferrules, and correct torque on screw terminals. In high-vibration environments, Phoenix Contact or equivalent DIN-rail terminal blocks adjacent to the BC186A166H03 installation zone are a common source of intermittent faults that surface only after board replacement.

Signal isolators protecting analog inputs feeding into the safety logic — such as MTL or P+F series galvanic isolators — should be tested for isolation resistance and signal accuracy. A degraded isolator can inject noise into the safety circuit, causing nuisance trips or masking genuine fault conditions.

Finally, HMI panels displaying safety system status should be verified for alarm acknowledgment functionality and communication link integrity after the BC186A166H03 is replaced. Mitsubishi GOT2000 series HMI units connected to the MELSEC network should be tested for correct alarm display and operator interface response before the system is returned to service.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout (LOTO): Before removing the BC186A166H03, follow site-specific LOTO procedures. Confirm that the safety circuit is de-energized and that all downstream actuators are in a safe state. Document the current system status and any active alarms.

Step 2 — Configuration Backup: If the BC186A166H03 carries any programmable parameters or DIP switch settings, record these before removal. Photograph the board orientation, connector positions, and any jumper configurations. This documentation is essential for restoring the replacement unit to the correct operating state.

Step 3 — Board Removal and Inspection: Remove the faulty board carefully, avoiding static discharge. Inspect the slot, backplane connector, and surrounding components for signs of heat damage, corrosion, or mechanical stress. Clean the slot with appropriate contact cleaner if contamination is present.

Step 4 — Replacement Installation: Install the new BC186A166H03, confirming correct slot assignment per the OEM wiring diagram. Apply correct torque to any retaining screws. Verify that all connectors are fully seated and that no wiring harnesses are pinched or strained.

Step 5 — Power-Up and Functional Test: Restore power in sequence per the OEM startup procedure. Monitor the PLC diagnostic display for fault codes. Verify that the safety circuit performs a successful self-test and that all safety interlocks respond correctly to simulated fault conditions before returning the system to automatic operation.

Step 6 — Documentation and Spare Parts Replenishment: Record the replacement in the maintenance log with date, technician name, and part serial number. Immediately initiate a replenishment order for the consumed BC186A166H03 spare to maintain minimum stock levels. Contact NINERMAS to confirm lead time and reserve stock under a long-term supply agreement.

Spare Parts Support FAQ

Q1: Is the BC186A166H03 available as a long-term supply commitment?
Yes. NINERMAS offers spare parts commitment programs for Mitsubishi MELSEC components including the BC186A166H03. These programs provide reserved stock, fixed lead times, and priority allocation for customers managing aging control systems or multi-site maintenance contracts. Contact our team to discuss minimum order quantities and commitment terms.

Q2: How is the BC186A166H03 tested before shipment?
Every unit undergoes pre-shipment functional testing to verify board-level integrity, connector condition, and basic operational parameters. A test report is available upon request. Units are packed in anti-static packaging with physical protection appropriate for international freight. Our 12-month warranty covers defects in materials and workmanship from the shipment date.

Q3: Can the BC186A166H03 replace older revision boards in the same series?
Compatibility between board revisions within the BC186A series depends on the specific hardware revision and firmware version of the host PLC system. We recommend confirming the target system’s hardware revision with your OEM documentation or Mitsubishi technical support before ordering. NINERMAS technical staff can assist with compatibility verification based on your system configuration details.

Q4: What is the recommended minimum stock level for the BC186A166H03?
For facilities operating a single MELSEC system with BC186A series boards, a minimum of one spare unit is recommended. Multi-line or multi-site operations should maintain two to three units per site to cover concurrent failure scenarios and extended lead times during peak demand periods. NINERMAS can advise on inventory optimization based on your installed base and criticality classification.
