Mitsubishi BC186A512G53 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

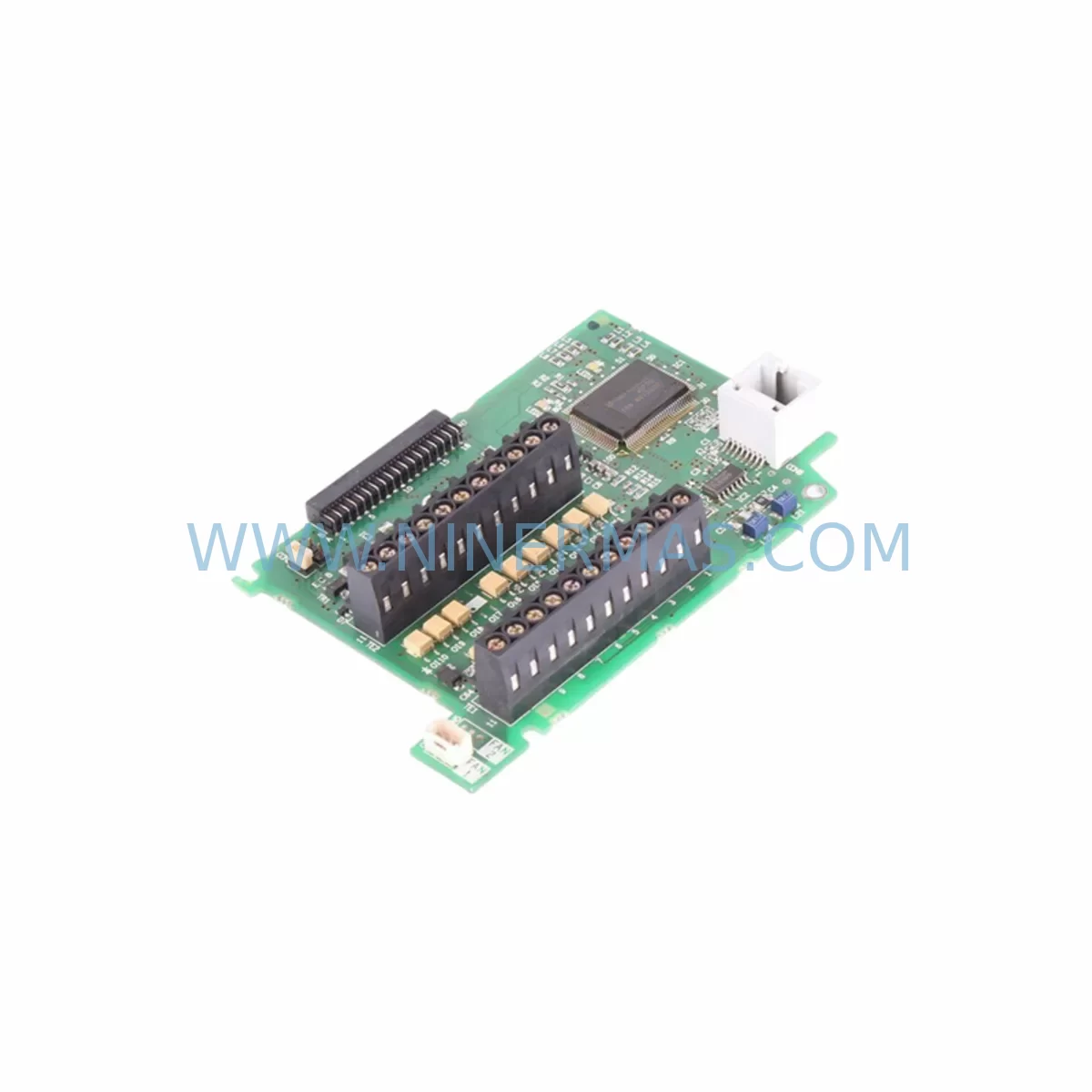

The Mitsubishi BC186A512G53 is an original spare circuit board designed for use within Mitsubishi MELSEC programmable logic controller (PLC) systems and associated industrial control cabinets. For maintenance engineers managing aging automation infrastructure, sourcing a verified, service-ready BC186A512G53 is a critical step in minimizing unplanned downtime and sustaining production continuity. This board supports retrofit-ready replacement strategies, enabling facilities to extend the operational life of legacy Mitsubishi control systems without full panel redesign or costly system migration.

Each BC186A512G53 unit supplied by NINERMAS COMPANY LIMITED undergoes pre-shipment functional inspection to confirm electrical integrity and compatibility before dispatch. A 12-month warranty is included as standard, providing procurement engineers with the assurance needed for long-term spare parts planning and capital expenditure justification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the BC186A512G53 in a Mitsubishi MELSEC control cabinet, a thorough site inspection of adjacent components is essential to prevent repeat failures and ensure system stability. Maintenance engineers should begin by verifying the integrity of the 24VDC power supply module feeding the CPU rack — a degraded power module is a common root cause of board-level failures and should be replaced proactively if voltage ripple or output deviation is detected.

I/O modules connected to the same backplane as the BC186A512G53 should be inspected for contact oxidation, loose terminal connections, and signal drift. Mitsubishi QX and QY series I/O modules sharing the same rack are particularly susceptible to cross-contamination from a failed board and warrant individual channel verification after replacement. Terminal blocks and wiring harnesses within the control cabinet should be checked for insulation degradation, especially in high-temperature or high-humidity environments.

Communication modules — including CC-Link, MELSECNET, and Ethernet interface cards — should be confirmed operational after board replacement, as firmware handshake sequences may require re-initialization. If the system includes a GOT series HMI panel, verify that the HMI communication parameters remain aligned with the restored PLC configuration. Signal isolators and analog input conditioning modules connected to the BC186A512G53’s I/O channels should be tested for output accuracy, as board replacement may affect calibration references.

Relay output modules and protective fuses within the same electrical circuit should be inspected and replaced if showing signs of wear. Surge protection devices on incoming power lines and I/O signal lines are often overlooked during board-level maintenance but are critical for long-term reliability. Procurement engineers building a comprehensive spare parts kit for MELSEC-based systems should consider stocking the BC186A512G53 alongside compatible CPU modules, memory cassettes, and battery backup units to ensure rapid recovery across multiple failure scenarios.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the control cabinet following site LOTO procedures. Confirm zero-energy state on all power rails before opening the enclosure.

Step 2 — Documentation: Photograph existing wiring, connector positions, and DIP switch or jumper settings on the BC186A512G53 and adjacent boards before removal. Record firmware version and parameter settings from the HMI or programming terminal if accessible.

Step 3 — Board Removal: Release retaining clips or screws securing the BC186A512G53 to the backplane. Disconnect all connectors in sequence, labeling each for reinstallation reference. Handle the board using ESD-safe procedures.

Step 4 — Replacement Installation: Seat the new BC186A512G53 firmly into the backplane slot, ensuring all connector pins are fully engaged. Restore DIP switch or jumper settings to match the documented configuration. Reconnect all wiring harnesses in reverse removal order.

Step 5 — Power-Up & Verification: Re-energize the cabinet in stages. Confirm PLC CPU status LEDs indicate normal operation. Verify I/O channel status via the programming terminal or HMI. Run a functional test cycle before returning the system to production.

Step 6 — Documentation Update: Record the replacement in the site maintenance log, including the new board serial number, installation date, and technician sign-off. Update the spare parts inventory to trigger reorder of a replacement BC186A512G53 for future contingency stock.

Spare Parts Support FAQ

Q1: Is the BC186A512G53 compatible with all MELSEC series control systems?
The BC186A512G53 is designed for use within specific Mitsubishi MELSEC PLC configurations. Compatibility should be verified against the original system BOM and OEM documentation before installation. NINERMAS technical support can assist with compatibility confirmation based on your system model and rack configuration.

Q2: What pre-shipment testing is performed on each BC186A512G53 unit?
Every BC186A512G53 dispatched by NINERMAS undergoes a functional electrical inspection prior to shipment. This includes power-on verification and basic signal integrity checks. Units that do not pass inspection are not dispatched. A 12-month warranty covers all supplied units against manufacturing defects and functional failure under normal operating conditions.

Q3: How should the BC186A512G53 be stored as a long-term spare?
Store the BC186A512G53 in its original ESD-protective packaging in a dry, temperature-controlled environment (recommended: 10–30°C, relative humidity below 70%, non-condensing). Avoid exposure to direct sunlight, corrosive atmospheres, or strong electromagnetic fields. Inspect the board annually if held in long-term storage and replace the packaging if signs of moisture ingress are detected.

Q4: Can NINERMAS support long-term or repeat supply of the BC186A512G53?
Yes. NINERMAS maintains dedicated stock of legacy Mitsubishi spare parts including the BC186A512G53 to support ongoing maintenance programs and annual inspection schedules. Procurement engineers managing multi-site or multi-system inventories are encouraged to contact NINERMAS to discuss volume pricing, lead time commitments, and consignment stock arrangements.
