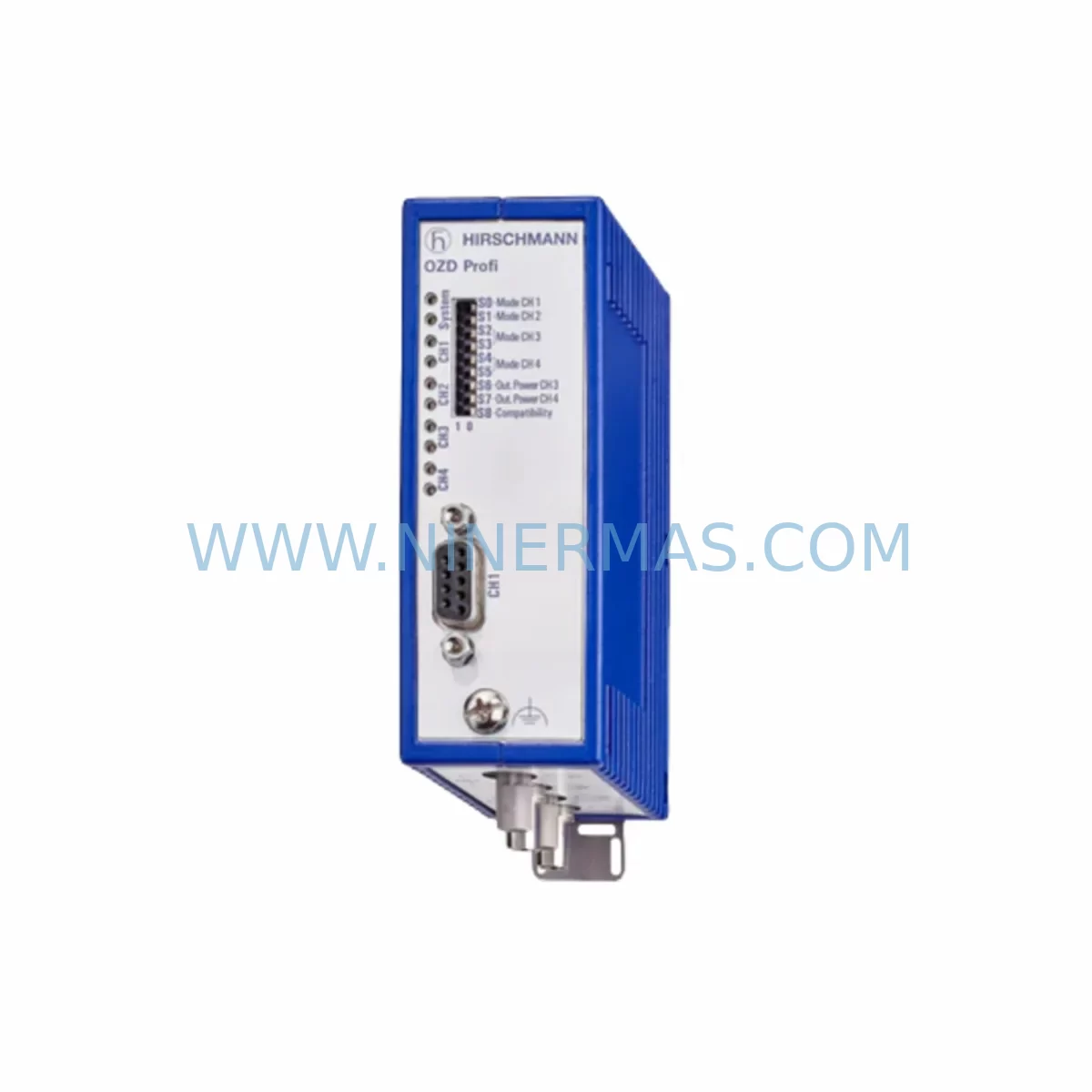

The Hirschmann OZDPROFI12MG12 is a ruggedized fiber optic PROFIBUS repeater module from the OZD PROFI series, engineered to extend PROFIBUS DP bus segments over optical fiber links in electrically hostile and physically demanding industrial environments. For maintenance engineers managing aging PROFIBUS-based control architectures — whether in continuous process plants, power distribution substations, or heavy manufacturing lines — the OZDPROFI12MG12 represents a critical spare that directly determines whether a bus segment can be restored within a planned maintenance window or whether an unplanned outage extends into a costly production loss event.

The OZD PROFI series was developed by Hirschmann (now part of Belden) specifically to address the limitations of RS-485 copper-based PROFIBUS in environments where electromagnetic interference, ground potential differences, long cable runs, or explosion-proof zone separation make direct electrical bus connections impractical or unsafe. The OZDPROFI12MG12 converts the RS-485 electrical PROFIBUS signal to a fiber optic signal, providing galvanic isolation between bus segments, immunity to EMI and surge events, and the ability to span distances far beyond the 1,200-meter copper limit. In facilities such as chemical plants, offshore platforms, steel mills, and water treatment stations, this capability is not optional — it is a fundamental requirement of the control architecture.

From a maintenance planning perspective, the OZDPROFI12MG12 occupies a position in the control cabinet that is easy to overlook during routine inspections but catastrophic when it fails. A single failed OZD PROFI module can isolate an entire PROFIBUS DP segment, taking offline every slave device — variable frequency drives, remote I/O stations, valve positioners, and motor starters — connected to that fiber link. Because the module operates transparently within the bus topology, its failure may initially present as a general communication fault rather than a component-specific alarm, making rapid spare availability essential for efficient fault isolation and recovery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer evaluates the OZDPROFI12MG12 as a replacement spare, the scope of inspection should extend well beyond the module itself. The OZD PROFI module sits at the intersection of the electrical bus and the fiber infrastructure, and its reliable operation depends on the health of several adjacent components in the same control cabinet and field wiring system.

Starting with the power supply side: the OZDPROFI12MG12 requires a stable 24 V DC rail. If the module has failed due to voltage transients or ripple rather than end-of-life wear, the root cause may lie in the cabinet’s SITOP PSU100S 24V power supply unit or equivalent industrial DIN rail power supply. Replacing the OZD PROFI module without inspecting the supply rail for voltage sag, ripple, or surge damage risks a repeat failure within weeks. A surge protection device — such as a Phoenix Contact TRABTECH or Weidmüller VSSC4 surge arrester — installed on the 24 V feed line provides an additional layer of protection that is frequently absent in older cabinet builds.

On the RS-485 bus side, the PROFIBUS cable termination resistors and bus connectors — typically Siemens 6ES7 972-series PROFIBUS connectors or equivalent — should be inspected for oxidation, mechanical damage, or incorrect termination settings. A missing or double-terminated bus segment is a common cause of intermittent communication faults that are misdiagnosed as module failures. The PROFIBUS cable itself, particularly in high-vibration or high-temperature zones, should be checked for insulation degradation.

On the fiber side, the ST/BFOC fiber connectors and the multimode fiber patch cables connecting the OZDPROFI12MG12 to remote OZD PROFI modules or fiber-capable PROFIBUS masters should be cleaned and inspected for bend radius violations, connector contamination, or physical damage. Optical power budget verification using a fiber optic power meter is recommended before commissioning a replacement module, as a degraded fiber link can cause intermittent bus errors even with a new module installed.

For the PROFIBUS master side, the DP master interface card — whether a Siemens CP 342-5 communications processor, a Hilscher CIFX 50-DP PCI card, or an integrated DP port on a Siemens S7-300/400 CPU — should be checked for firmware currency and diagnostic buffer entries that may reveal pre-existing bus errors. In systems where the OZD PROFI module bridges segments between a control room cabinet and a remote field junction box, the remote cabinet’s terminal blocks, cable glands, and grounding connections should also be verified as part of the replacement workflow.

Finally, if the PROFIBUS segment connects to remote I/O stations such as Siemens ET 200M or ET 200S distributed I/O racks, or to intelligent field devices such as Endress+Hauser Fieldgate or Pepperl+Fuchs DP/PA segment couplers, these devices should be brought back online sequentially after the OZD PROFI replacement to confirm bus address integrity and eliminate address conflicts introduced during the fault period.

Site Replacement Workflow

The OZDPROFI12MG12 is a direct replacement for earlier OZD PROFI variants used in PROFIBUS DP fiber topologies. Its auto-baud-rate detection eliminates the need for manual baud rate configuration, which simplifies the replacement process significantly compared to older fixed-baud repeater modules. The replacement procedure for a maintenance engineer on site follows a structured sequence designed to minimize bus disruption and confirm full segment restoration before returning the system to automatic control.

Before removing the failed module, the engineer should document the current bus topology — number of active slaves, baud rate in use, and fiber port assignments — using the PROFIBUS master’s diagnostic tools or a PROFIBUS tester such as the Softing PB-T3 or ProfiTrace 2. This baseline record is essential for verifying that the replacement module has correctly re-established all slave connections after installation.

The module should be powered down by isolating the 24 V DC supply to the cabinet section, not by simply disconnecting the module under power, as hot-swap capability is not guaranteed for all OZD PROFI variants. The fiber connectors should be capped immediately upon disconnection to prevent contamination. The replacement OZDPROFI12MG12 should be installed on the DIN rail, fiber connectors cleaned and reconnected, and the RS-485 bus connector reattached with correct termination settings verified. Power restoration should be followed by a bus diagnostic scan to confirm all previously active slaves have returned to data exchange state.

For facilities operating legacy PROFIBUS architectures where the OZD PROFI series is no longer in active production by the original manufacturer, maintaining a minimum stock of one to two OZDPROFI12MG12 units per critical bus segment is a standard risk mitigation practice. The lead time for sourcing discontinued or end-of-life industrial communication modules from the open market can range from days to weeks depending on global inventory levels, making on-site spare stock the only reliable guarantee of same-shift recovery capability.
