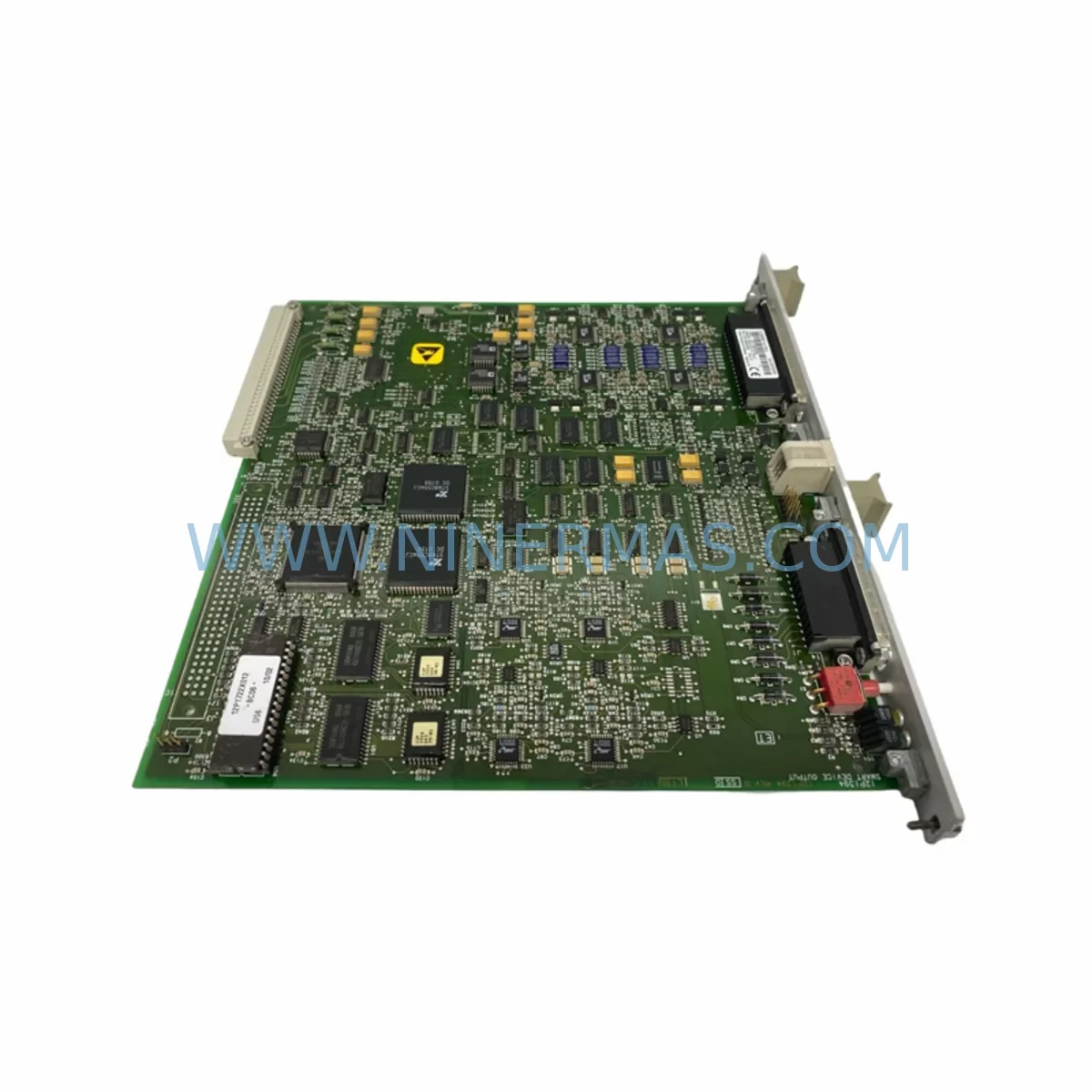

FISHER CL6828X1-A1 12P1395X062 Retrofit Output Module

FISHER CL6828X1-A1 12P1395X062 Retrofit-Compatible Output Module for Legacy Systems

The FISHER CL6828X1-A1 (part reference 12P1395X062) is a retrofit-compatible digital output module engineered to serve as a reliable drop-in replacement within legacy Fisher Controls and Emerson Process Management distributed control architectures. As aging DCS platforms approach end-of-life and original spare parts become increasingly scarce, the CL6828X1-A1 provides a proven upgrade path that preserves existing wiring infrastructure, backplane slot assignments, and field device addressing — dramatically reducing the engineering effort and downtime risk associated with control system modernization.

Designed for seamless integration into Fisher PROVOX and compatible control cabinet configurations, this output module supports the signal conditioning, channel isolation, and load-driving requirements typical of continuous process industries. Whether you are replacing a failed module on an active production line or pre-positioning critical spares for a planned turnaround, the CL6828X1-A1 delivers the electrical compatibility and mechanical form factor needed to restore control loop integrity without structural redesign of the control cabinet.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FISHER CL6828X1-A1 12P1395X062 into an existing control system requires a structured pre-installation review. Before removing the failed or obsolete module, engineers should document the current DIP switch or rotary address settings, photograph the terminal wiring layout, and verify the slot position within the PROVOX card cage or equivalent chassis. The backplane connector pins should be inspected for corrosion or mechanical damage — a common issue in marshalling cabinets exposed to humidity or chemical vapors over extended service periods.

Power budget verification is a critical step often overlooked during emergency replacements. The control cabinet’s 24 VDC power supply — such as a Fisher PROVOX PS6100 or equivalent regulated DC supply — must have sufficient headroom to support the output module’s inrush and steady-state load. If the cabinet also houses a CL6721X1-A4 discrete I/O module, a CL6801 analog input module, or a CL6811 analog output module, the cumulative current draw must be recalculated against the power supply’s rated output before commissioning the replacement module.

For sites running mixed I/O architectures, the PROVOX MUX multiplexer modules and associated data highway interface cards should be confirmed as operational before the output module swap, since a faulty communication link can mask successful module installation and generate false diagnostic alarms. Similarly, if the control system includes a PROVOX redundant controller pair, the switchover logic should be tested post-installation to confirm that the new output module responds correctly during a controller failover event.

Terminal block adapters and marshalling panel wiring harnesses from the original installation should be reused wherever possible to avoid re-termination errors. If the site uses signal isolators or intrinsic safety barriers between the output module and field devices in hazardous areas, these should be verified for compatibility with the output module’s drive current and voltage characteristics. Programming cable access to the PROVOX workstation or DeltaV migration gateway may be required if firmware version alignment is needed after module replacement.

For plants transitioning from PROVOX to DeltaV S-series controllers, the CL6828X1-A1 can serve as a bridge spare — maintaining output loop continuity on legacy racks while the migration project proceeds in phases, avoiding the need for a full cutover shutdown.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing output modules in active process control environments. The FISHER CL6828X1-A1 12P1395X062 supports a hot-swap-compatible installation procedure within PROVOX architectures that support online module replacement — allowing field output signals to be restored within minutes of module insertion, provided the address configuration and wiring are correctly preserved.

Prior to the swap, the control system operator should place the affected output channels in manual mode at the DCS workstation, ensuring that field actuators — including control valves, motor starters, and solenoid outputs — are held at their last safe state. This prevents uncontrolled process excursions during the brief period when the output module is physically absent from the backplane. Once the replacement CL6828X1-A1 is seated and the system has completed its self-diagnostic cycle, channels can be returned to automatic control sequentially, with process variable confirmation at each step.

For sites where redundant output modules are not installed, pre-positioning a tested spare CL6828X1-A1 in the control room — verified against the site’s I/O list and address schedule — reduces mean time to repair (MTTR) from hours to under 30 minutes. NINERMAS provides pre-shipment functional testing on all output modules, with test records available upon request, ensuring that the replacement unit is confirmed operational before it reaches the site.

Where the migration involves protocol changes — for example, transitioning from PROVOX proprietary bus to FOUNDATION Fieldbus H1 or HART-over-IP — the CL6828X1-A1 allows the legacy output infrastructure to remain active during the parallel-run commissioning phase, protecting original program logic and HMI tag mappings until the new architecture is fully validated.

Critical Industrial Safety Applications

The FISHER CL6828X1-A1 12P1395X062 output module is deployed across a broad range of continuous process and heavy industrial environments where control loop reliability is non-negotiable. In petrochemical and refinery applications, it drives solenoid valves and motor control relays within emergency shutdown (ESD) and process control panels, where output signal integrity directly affects process safety system response. In power generation facilities, it supports turbine control and boiler management systems where output module failure can trigger unplanned unit trips.

In water and wastewater treatment plants, the module controls pump sequencing, valve positioning, and chemical dosing outputs — applications where a failed output card can disrupt treatment compliance. Mining and mineral processing operations rely on PROVOX-based output modules to manage conveyor drives, crusher controls, and flotation cell actuators in environments with high vibration, dust ingress, and wide temperature variation. Pulp and paper mills and metallurgical processing plants similarly depend on legacy PROVOX output infrastructure for coordinated drive and valve control across multi-zone production lines.

In all these applications, the ability to source a verified, in-stock replacement for the CL6828X1-A1 — backed by a 12-month warranty and pre-shipment testing — directly supports plant reliability programs and spare parts lifecycle management strategies.

Retrofit Support FAQ

Q1: Is the FISHER CL6828X1-A1 12P1395X062 a direct replacement for the original module?
Yes. The CL6828X1-A1 is a form-fit-function compatible replacement for the original FISHER PROVOX output module of the same part number. No backplane modification, wiring change, or software reconfiguration is required for a like-for-like swap, provided the address switch settings are matched to the original module before installation.

Q2: What pre-installation checks are required before fitting the replacement module?
Verify the slot address (DIP/rotary switch settings), confirm the terminal wiring layout against the original I/O schedule, check the cabinet power supply headroom, and inspect the backplane connector for damage. Place affected output channels in manual mode at the DCS workstation before removing the old module. NINERMAS can provide a pre-installation checklist upon request.

Q3: Does NINERMAS perform functional testing before shipment?
Yes. All FISHER CL6828X1-A1 12P1395X062 output modules are subject to pre-shipment functional testing to verify output channel operation, signal integrity, and backplane interface continuity. Test records are available upon request. Each unit is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Q4: Can NINERMAS support long-term spare parts supply for legacy PROVOX systems?
Yes. NINERMAS maintains inventory of critical PROVOX-series spare parts including output modules, analog I/O cards, power supplies, and communication interface modules to support long-term plant reliability programs. We offer procurement planning support for customers managing multi-year spare parts strategies for legacy DCS platforms, with consistent supply and 12-month warranty coverage on all units.
