Fisher CL6821X1-A5 41B5222X422 Service-Ready Spare Part

Fisher CL6821X1-A5 41B5222X422 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

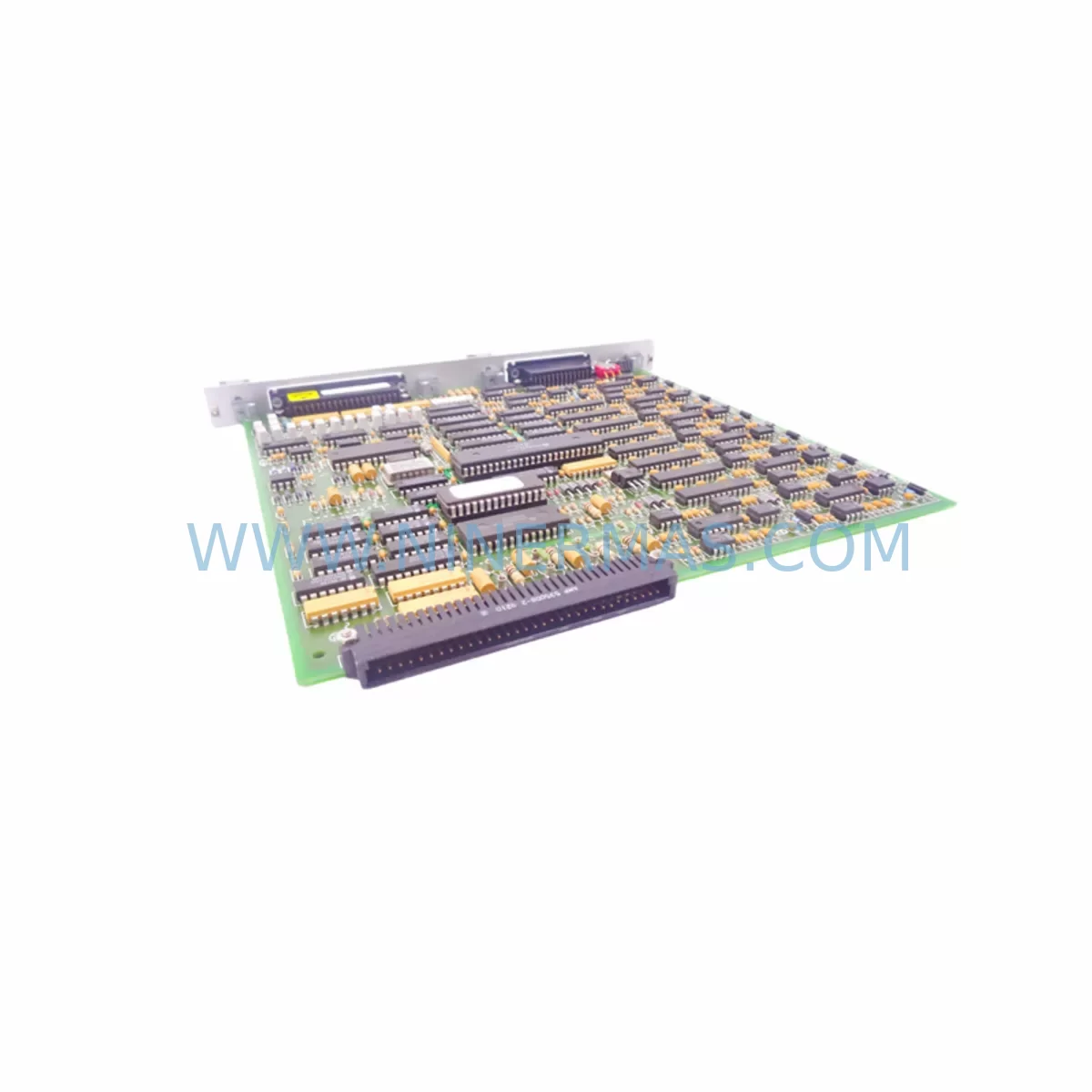

The Fisher CL6821X1-A5 41B5222X422 is a service-ready DCS analog I/O card engineered for continuous industrial process control environments. As a critical signal interface component within Fisher and Emerson DeltaV-compatible distributed control architectures, this module handles analog input and output signal conditioning between field instruments and the control system backplane. When a process plant faces an unplanned shutdown caused by I/O card failure, every hour of downtime translates directly into production loss and safety risk. Sourcing a verified, tested replacement unit from a reliable spare parts supplier is the fastest path to restoring normal operation.

NINERMAS maintains ready stock of the CL6821X1-A5 41B5222X422 to support emergency replacement, planned annual maintenance, and long-term spare parts inventory programs. Each unit is pre-shipment tested, ships with a 12-month warranty, and is traceable to original Fisher manufacturing specifications. Whether you are a maintenance engineer executing an emergency swap or a procurement engineer building a multi-year MRO agreement, this listing provides the sourcing assurance your operation requires.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CL6821X1-A5 41B5222X422 analog I/O card in isolation is rarely sufficient for a complete maintenance intervention. Experienced maintenance engineers understand that an I/O card failure is frequently a symptom of broader electrical stress within the control cabinet. A thorough site inspection should accompany any analog I/O card replacement to prevent repeat failures and ensure system stability.

Begin by inspecting the DCS backplane chassis for signs of corrosion, loose card-edge connectors, or mechanical damage to the card slot. A compromised backplane can cause premature failure of a newly installed I/O card. Next, verify the 24 VDC power supply module feeding the I/O rack — voltage ripple or under-voltage conditions are a leading cause of analog signal instability and card damage. If the plant uses a redundant power supply configuration, test both primary and secondary units.

Check all field wiring terminal blocks connected to the analog channels on this card. Loose terminations, corroded lugs, or incorrect shielding grounding will introduce noise into the 4–20 mA signal loop and may be misdiagnosed as card failure. Inspect signal isolators or signal conditioners installed between field transmitters and the I/O card — these components absorb electrical transients and their degradation often precedes I/O card failure.

Review the status of fuse modules and circuit protection devices within the same I/O cabinet section. A blown fuse on a channel group may indicate a field wiring fault that, if uncorrected, will damage the replacement card. Inspect relay output modules and digital I/O cards in adjacent slots — shared backplane power rails mean that a fault in one card can stress neighboring modules.

For systems using HART communication over the analog loop, verify that the HART multiplexer or HART-enabled I/O card firmware is compatible with the replacement unit. Confirm that communication modules — such as Profibus DP, FOUNDATION Fieldbus, or Modbus RTU interface cards — installed in the same DCS chassis are operating within specification, as communication bus errors can mask I/O card diagnostics.

If the plant operates an HMI (Human-Machine Interface) connected to this DCS node, validate that analog channel tag assignments and engineering unit scaling are correctly restored after card replacement. Finally, inspect the cabinet ventilation system, including cooling fans and air filters — elevated ambient temperature inside the control cabinet accelerates electronic component aging and is a preventable root cause of I/O card failure.

A structured spare parts inventory for this control system should include: the CL6821X1-A5 analog I/O card itself, compatible 24 VDC DCS power supply modules, signal isolator modules for critical analog loops, terminal block assemblies for field wiring, HART communication interface cards, backplane connector assemblies, fuse holders and replacement fuses rated for the I/O cabinet, and digital I/O cards from the same Fisher DCS series to cover adjacent slot failures.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement unit part number CL6821X1-A5 41B5222X422 matches the installed card label exactly. Cross-reference the Fisher DCS system documentation to verify backplane slot compatibility and firmware revision requirements.

Step 2 — Safe Isolation: Follow plant lock-out/tag-out (LOTO) procedures for the affected I/O card slot. For hot-swap capable DCS architectures, confirm whether the card supports live replacement without full rack power-down. If not, coordinate a controlled shutdown window with operations.

Step 3 — Physical Replacement: Remove the failed card by releasing the card ejector levers. Insert the replacement CL6821X1-A5 41B5222X422 firmly into the backplane slot until the connector seats fully. Secure the card retention mechanism.

Step 4 — Channel Commissioning: Power up the I/O rack and verify that the DCS controller recognizes the new card. Confirm all analog channel diagnostics show healthy status. Perform a loop check on each active channel — inject a known 4 mA and 20 mA signal from the field side and verify correct engineering unit readback at the HMI.

Step 5 — Documentation: Record the replacement in the plant maintenance management system (CMMS) with the new card serial number, installation date, and loop check results. Update the spare parts inventory to trigger reorder of a replacement unit, maintaining minimum stock levels for this critical component.

This workflow minimizes downtime, ensures system compatibility, and creates an auditable maintenance record — all essential for ISO 55001 asset management compliance and insurance documentation.

Spare Parts Support FAQ

Q1: Is the CL6821X1-A5 41B5222X422 compatible with my existing Fisher DCS system without firmware modification?
In most cases, yes. The CL6821X1-A5 41B5222X422 is designed as a direct replacement within compatible Fisher DCS backplane architectures. However, we recommend verifying the firmware revision of your DCS controller against Fisher’s compatibility matrix before installation. Contact our technical team with your system configuration details and we will confirm compatibility prior to shipment.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, electrical overstress, or environmental conditions outside the card’s rated specifications. To initiate a warranty claim, contact sale@ninermas.com with your order number, a description of the failure, and photographic evidence. We will arrange return shipping and provide a replacement or refund within the agreed service timeline.

Q3: Can NINERMAS support long-term supply agreements for this part number?
Yes. NINERMAS specializes in long-term spare parts programs for industrial automation components, including legacy and end-of-life Fisher DCS modules. We can structure blanket purchase orders, consignment stock arrangements, or annual supply agreements to ensure your plant maintains uninterrupted access to critical spare parts. Contact our procurement team to discuss volume pricing and delivery scheduling.

Q4: How is the unit tested before shipment?
Every CL6821X1-A5 41B5222X422 unit undergoes functional verification testing prior to dispatch. This includes power-on self-test confirmation, analog channel signal integrity checks, and visual inspection for physical damage. A test report is available upon request. Units are packed in anti-static ESD-safe packaging with appropriate cushioning to prevent transit damage.
