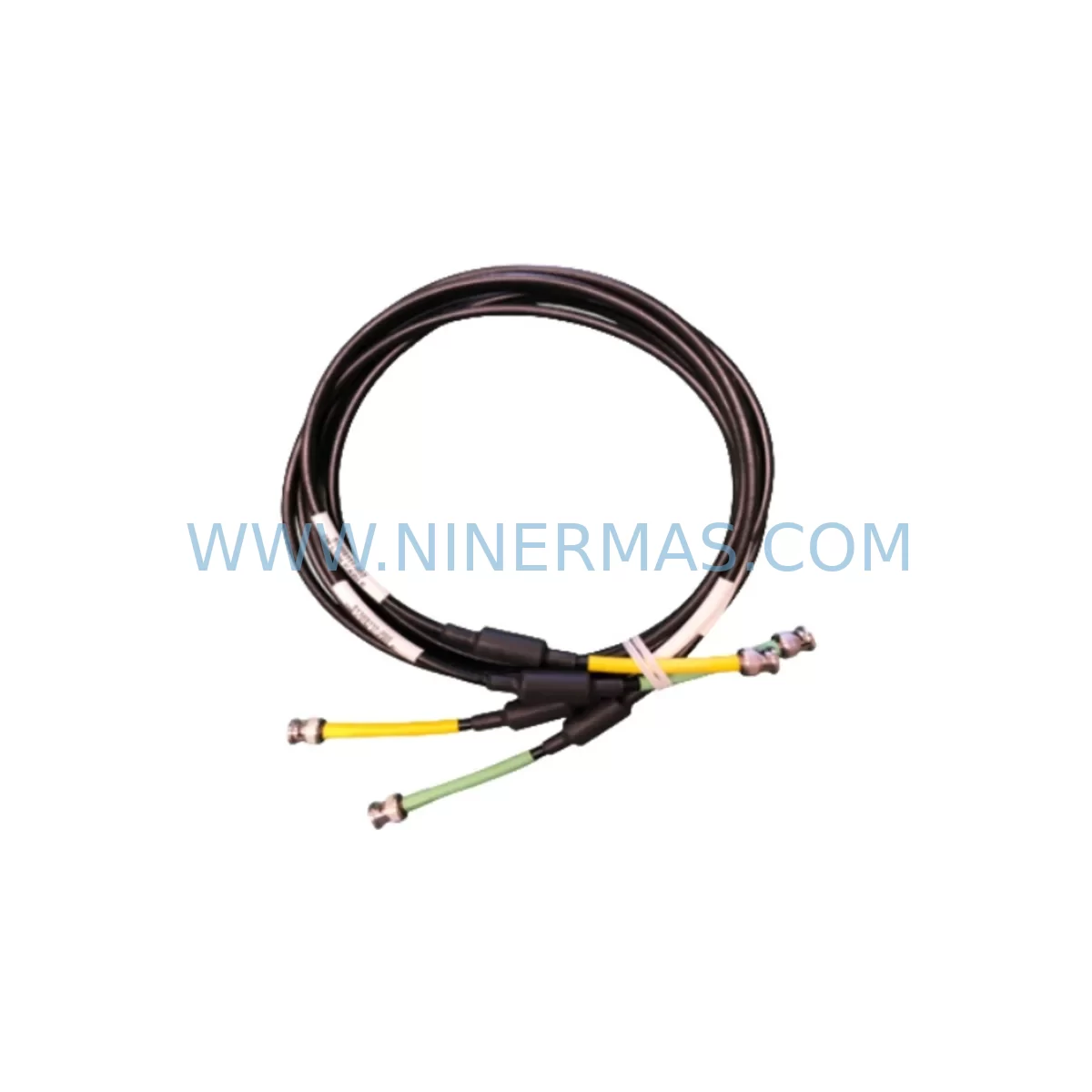

The Honeywell 51308111-002 is a ruggedized Local Control Network (LCN) coaxial cable engineered for the demanding signal integrity requirements of Honeywell TDC 2000, TDC 3000, and Experion PKS distributed control systems. As legacy automation infrastructure ages beyond its original design life, the 51308111-002 remains a critical retrofit component for maintenance engineers and system integrators tasked with sustaining plant-wide control continuity without full platform replacement. Its robust construction — featuring a 75-ohm impedance characteristic, double-shielded coaxial geometry, and ruggedized outer jacket — makes it the preferred replacement cable for harsh industrial environments including petrochemical, refining, power generation, and pulp-and-paper facilities.

When a legacy LCN segment begins exhibiting intermittent communication faults, increased bit-error rates, or physical jacket degradation, the 51308111-002 provides a direct, pin-compatible replacement path. Unlike generic coaxial alternatives, this Honeywell-specified cable maintains the exact electrical characteristics required by the LCN highway protocol, ensuring that node-to-node communication between High-Performance Managers (HPMs), Application Modules (AMs), and History Modules (HMs) remains stable throughout the retrofit window.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful LCN cable retrofit begins well before the maintenance window opens. Engineers must audit the full LCN highway topology — mapping every node, junction box, and termination point — to determine how many cable runs require replacement and whether the existing conduit infrastructure can accommodate the 51308111-002’s outer diameter without exceeding fill limits. In multi-drop LCN configurations, it is common to find that cable degradation is localized to specific segments near high-vibration equipment or areas with elevated ambient temperature, making targeted replacement both practical and cost-effective.

During the planning phase, procurement teams should simultaneously source associated LCN infrastructure components. The 51308111-001, the standard-length variant in the same LCN coax family, is frequently required alongside the 51308111-002 to complete longer highway runs that span multiple control room cabinets. LCN node interface cards such as the 51309276-150 must be inspected for connector wear, as degraded BNC receptacles on the node card can cause signal reflection even when the cable itself is new. Similarly, the 51309152-175 Network Interface Module (NIM) should be tested for communication stability before the new cable is terminated, since NIM firmware faults can mask cable-related diagnostics.

Power supply integrity is equally critical during an LCN retrofit. The 51195479-200 power supply module, commonly installed in TDC 3000 cabinets, should be load-tested prior to the maintenance window to confirm it can sustain the full LCN node count without voltage droop during the re-initialization sequence that follows cable replacement. If the control cabinet also houses High-Performance Manager I/O cards such as the 51304485-100, engineers should verify that the HPM backplane connectors are seated correctly, as vibration-induced backplane loosening is a frequent co-failure mode discovered during LCN cable replacement projects.

For plants migrating from TDC 3000 toward Experion PKS, the LCN cable retrofit often coincides with the installation of UCN interface modules such as the 51305348-100, which bridges the legacy LCN highway to the newer Universal Control Network. In these hybrid migration scenarios, the 51308111-002 continues to serve the legacy LCN segments while new fiber or copper UCN cabling is installed in parallel, allowing a phased cutover that avoids a full plant shutdown. Process Manager controllers like the 51305865-100 PM controller and Application Modules such as the 51304362-300 AM module remain online throughout this parallel-run period, maintaining regulatory control loops without interruption.

HMI screen continuity is another consideration that is frequently underestimated. When LCN nodes are taken offline for cable replacement, Experion PKS operator stations may lose real-time data for the affected process areas. Pre-configuring display substitution pages and alarm suppression lists before the maintenance window prevents operator confusion and reduces the risk of spurious process trips during the cable swap. The 51304516-200 IOP (Input/Output Processor) cards connected to the HPM should also be documented with their current module addresses and I/O assignments, as address conflicts can arise if cards are inadvertently reseated in a different slot during cabinet access.

Downtime Control During System Migration

Minimizing unplanned downtime during an LCN cable replacement requires a structured pre-work protocol. Before any cable is disconnected, a full LCN diagnostic snapshot should be captured using Honeywell’s built-in network diagnostic utilities, recording current bit-error rates, node response times, and communication retry counts for every active node on the affected segment. This baseline data serves as the acceptance criterion for post-installation verification — if the new 51308111-002 cable does not improve BER to within specification, the root cause may lie in a terminator, connector, or node card rather than the cable itself.

Program logic protection is non-negotiable. All HPM control strategies, AM calculations, and History Module trend configurations should be backed up to the Honeywell Engineering Workstation immediately before the maintenance window begins. In TDC 3000 environments, this means exporting CL (Control Language) programs and verifying that the backup files are readable before proceeding. For Experion PKS systems, a full Control Builder project backup should be archived to a network-accessible location that is independent of the LCN highway being serviced.

Field control continuity can be maintained during short cable replacement windows by placing affected HPM control modules in manual mode and communicating clearly with field operators about which loops are temporarily under manual supervision. For critical regulatory loops — particularly those governing pressure, temperature, or flow in hazardous service — a dedicated field operator should be stationed at the local control panel for the duration of the cable replacement to provide manual override capability if process conditions deviate from setpoint.

Post-installation commissioning should follow a structured sequence: first, verify physical connector integrity at both ends of the new cable run; second, restore LCN terminators to their correct impedance values; third, power up the affected LCN segment and monitor node re-registration; fourth, run a 15-to-30-minute BER monitoring period before returning HPM modules to automatic control. All commissioning steps, test results, and as-found/as-left cable conditions should be documented in the plant’s maintenance management system to support future reliability analysis and warranty claims.

Retrofit Support FAQ

Q: Is the Honeywell 51308111-002 a direct replacement for all LCN coaxial cable variants used in TDC 3000 systems?
A: The 51308111-002 is the ruggedized variant designed for harsh-environment installations. For standard indoor control room applications, the 51308111-001 may be the appropriate selection. Engineers should verify the original cable part number from the as-built documentation before ordering to ensure the correct jacket rating and connector configuration.

Q: What pre-shipment testing does NINERMAS perform on the 51308111-002?
A: Each unit undergoes functional continuity testing, impedance verification, and visual inspection before shipment. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment, providing assurance for both immediate installation and strategic spare parts inventory.

Q: How do I confirm compatibility with my existing LCN node cards and terminators?
A: The 51308111-002 is compatible with all standard Honeywell LCN BNC-terminated node interfaces, including those on the 51309276-150 LCN node card and the 51309152-175 NIM. Confirm that your existing terminators are rated for 75-ohm impedance and that the total cable run length does not exceed the LCN highway distance specification for your node count.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains dedicated inventory of the 51308111-002 to support urgent maintenance and planned retrofit projects. Standard orders ship within 3–5 business days. For large-volume or long-term supply agreements, contact our team to discuss reserved inventory arrangements that guarantee availability for multi-phase retrofit programs.
