ABB TU812V1 3BSE013232R1 Retrofit-Compatible Termination Unit

ABB TU812V1 3BSE013232R1 Retrofit-Compatible Termination Unit for Legacy Systems

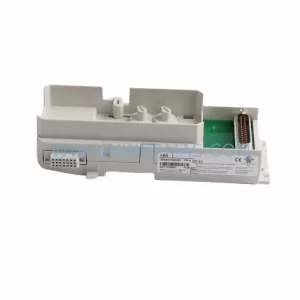

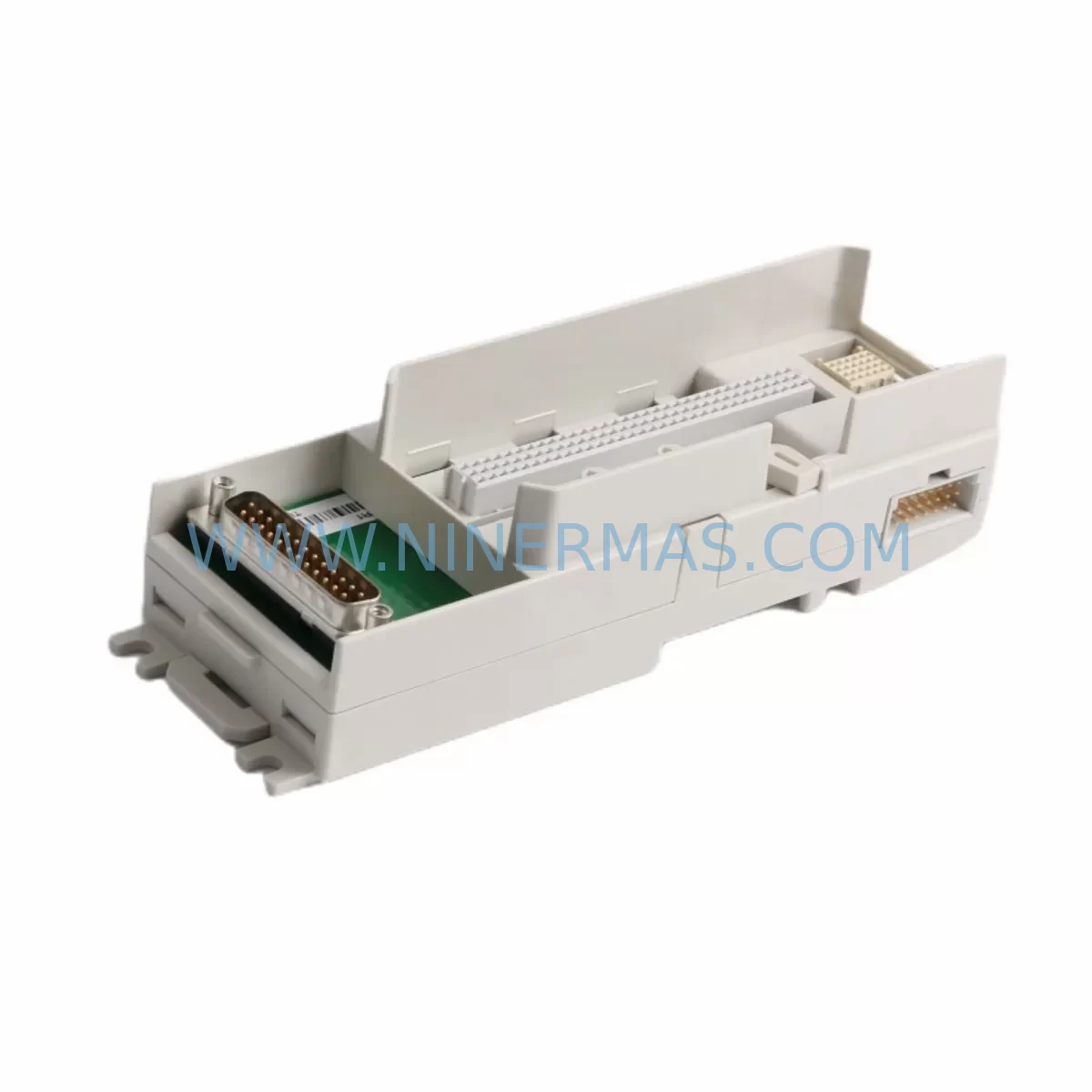

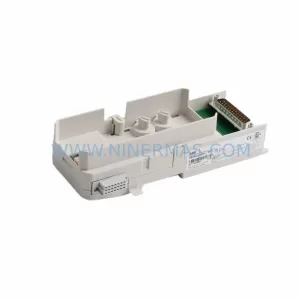

The ABB TU812V1 (catalog reference 3BSE013232R1) is a field-proven termination unit designed for the ABB S800 I/O series, widely deployed across process automation, power generation, oil & gas, and chemical plant environments. As legacy DCS installations age and original termination hardware reaches end-of-life, the TU812V1 provides a direct retrofit path that preserves existing field wiring, minimizes cabinet rework, and eliminates the need for costly re-engineering of I/O marshalling layouts.

For maintenance engineers managing aging AC800M or AC800F controller platforms, the TU812V1 is a critical stocking item. Its compact DIN-rail mounting footprint and standard 24 VDC field power compatibility make it straightforward to integrate into existing control cabinets without structural modification. When planning a retrofit, engineers should verify that the replacement termination unit matches the original module address configuration and that the associated AI810, AO810V2, or DI810 I/O modules are seated correctly on the new unit before powering up.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the TU812V1 requires a structured review of the surrounding control architecture. In most S800 I/O installations, the termination unit sits at the heart of the field wiring interface, connecting process signals directly to the I/O module above it. Before replacing a failed or aging TU812V1, the maintenance team should document all terminal assignments and verify continuity of the field cables.

Beyond the termination unit itself, a thorough retrofit plan should address the following components in the same control loop or cabinet:

• S800 I/O Modules (AI810 / DI810 / AO810V2): Inspect for corrosion, contact wear, or firmware obsolescence. A degraded I/O module will undermine the performance of a new termination unit.
• TB820V2 ModuleBus Modem: If the S800 cluster communicates over a ModuleBus segment, verify the TB820V2 is functioning correctly and that bus termination resistors are in place.
PM866 / PM891 Controller Modules: Confirm that the AC800M controller firmware supports the I/O configuration being restored. Outdated firmware may cause address conflicts after module replacement.
• SD833 / SD834 Power Supply Modules: Measure output voltage under load. An aging power supply delivering marginal voltage is a common root cause of intermittent I/O faults that are mistakenly attributed to the termination unit.
• CI854 / CI857 Communication Interface Modules: If the cabinet includes PROFIBUS DP or FOUNDATION Fieldbus segments, verify that the communication interface modules are not generating bus errors that could mask I/O faults.
• Signal Isolators and Zener Barriers: For intrinsically safe loops, inspect all associated apparatus (Zener barriers or galvanic isolators) mounted on the termination unit side. Replace any units showing drift or insulation degradation.
• Terminal Blocks and Ferrules: Re-torque all screw terminals on the TU812V1 and adjacent marshalling strips. Loose connections are a leading cause of signal noise and intermittent faults in retrofit projects.
• Cable Shields and Grounding: Verify that cable shields are terminated correctly at the cabinet earth bar and that no ground loops have been introduced during previous maintenance activities.
• HMI Configuration (ABB 800xA / Freelance): After replacing the termination unit and associated I/O module, confirm that the HMI faceplates and alarm limits reflect the restored signal ranges. Update any hardcoded engineering unit conversions if the replacement module has a different default range.

Procurement engineers should note that the TU812V1 is a long-lifecycle ABB component with broad compatibility across S800 I/O generations. Stocking two to four units per production line significantly reduces mean time to repair (MTTR) during unplanned outages.

Downtime Control During System Migration

Minimizing production downtime during a TU812V1 replacement requires preparation before the maintenance window opens. The following workflow has been validated across multiple process plant retrofit projects:

1. Pre-Shutdown Documentation: Export the current I/O configuration from the AC800M engineering tool (Control Builder M). Record all module addresses, signal tags, and alarm setpoints associated with the affected termination unit cluster.
2. Spare Unit Bench Test: Before bringing the replacement TU812V1 to site, verify it powers up correctly with a known-good I/O module in a bench environment. Confirm that the module address jumpers are set to match the original unit.
3. Controlled Isolation: Place the affected I/O cluster in manual mode at the DCS level. Inform the control room operator and document the bypass in the permit-to-work system before de-energizing the cabinet section.
4. Field Wiring Transfer: Photograph the original terminal layout before disconnecting any wires. Transfer field cables to the new TU812V1 terminal by terminal, using the original documentation as a reference. Re-torque all connections to the manufacturer’s specified torque value.
5. Power-Up and Verification: Re-energize the cabinet section and confirm that the I/O module communicates correctly with the AC800M controller. Check all signal values against field instrument readings before releasing the loop from manual mode.
6. HMI Handback: Confirm with the control room operator that all affected signals are displaying correctly and that no spurious alarms have been generated. Close the permit-to-work and update the maintenance record.

With adequate preparation, a single TU812V1 replacement can typically be completed within a two-to-four-hour maintenance window, even in complex multi-loop installations. NINERMAS ships all units with a pre-shipment functional test report, reducing the risk of receiving a defective spare and extending the downtime window unexpectedly.

Retrofit Support FAQ

Q1: Is the TU812V1 a direct drop-in replacement for the original TU812?
The TU812V1 is the current production revision of the TU812 termination unit and is mechanically and electrically compatible with the same S800 I/O modules. Field wiring connections are preserved. However, engineers should verify that the module address jumper settings on the replacement unit match the original before powering up, as incorrect addressing will cause the AC800M controller to report a configuration mismatch.

Q2: What I/O modules are compatible with the TU812V1?
The TU812V1 supports a wide range of S800 I/O modules including AI810, AO810V2, DI810, DO810, DI811, AI820, and AO820. Compatibility with specific module revisions should be confirmed against the ABB S800 I/O product compatibility matrix. NINERMAS technical support can assist with compatibility verification prior to order placement.

Q3: How does NINERMAS verify units before shipment?
Every TU812V1 unit supplied by NINERMAS undergoes a pre-shipment functional test that includes power-up verification, terminal continuity check, and visual inspection for physical damage or contact corrosion. A test report is included with each shipment. All units are covered by a 12-month warranty from the date of delivery.

Q4: Can NINERMAS support long-term supply for ongoing maintenance programs?
Yes. NINERMAS maintains stock of TU812V1 and related S800 I/O components to support planned maintenance programs, annual shutdowns, and emergency replacement requirements. Customers with recurring demand are encouraged to contact our sales team to discuss framework agreements and priority allocation arrangements.
