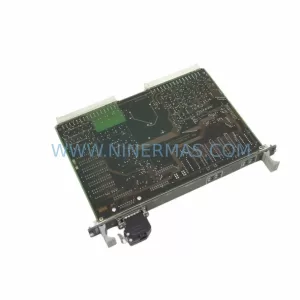

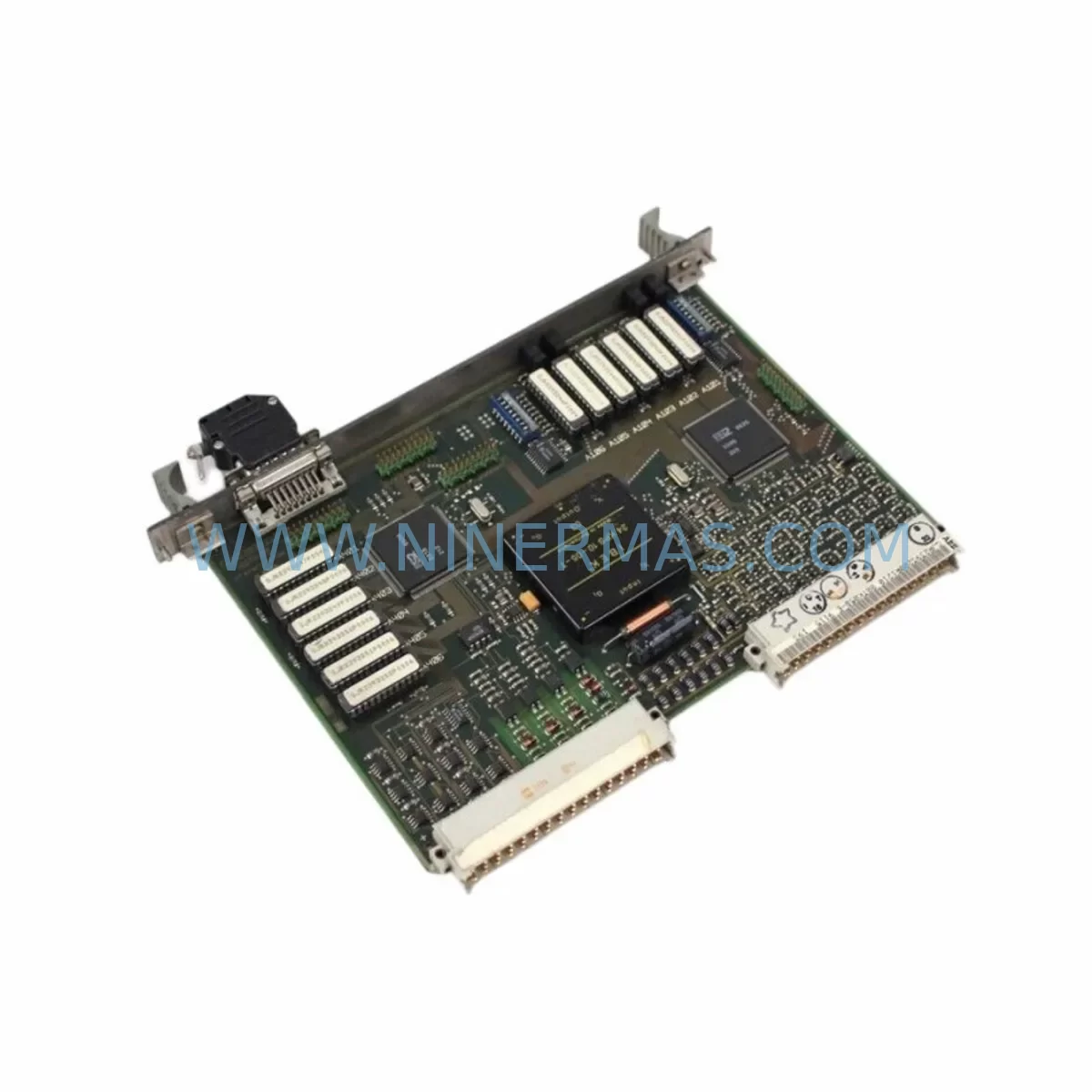

ABB GJR2389800R1210 81ET03M-E Retrofit Module for Legacy Systems

ABB GJR2389800R1210 81ET03M-E Retrofit Module for Legacy Systems

The ABB GJR2389800R1210 81ET03M-E is a retrofit-compatible I/O communication module engineered for the ABB AC 31 / Advant OCS control platform — one of the most widely deployed legacy automation architectures in process industries, utilities, and discrete manufacturing. As ABB progressively phases out the 81ET03M series, maintenance engineers and procurement teams face increasing pressure to source verified replacement units that preserve system compatibility without triggering full-scale controller migrations.

At NINERMAS, we stock the GJR2389800R1210 81ET03M-E as a service-ready, tested spare part with a 12-month warranty, supporting customers who need to extend the operational life of their existing AC 31 installations while planning a phased migration to ABB’s AC500 or AC500-S platform.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the GJR2389800R1210 81ET03M-E in an active AC 31 installation requires a structured approach that goes beyond simply swapping the module. Maintenance engineers should treat this replacement as a mini-retrofit event, auditing the surrounding control cabinet components to prevent cascading failures after the module is restored to service.

Begin with the power supply rail. The AC 31 rack relies on a dedicated 24 V DC bus — verify that the existing ABB CP-E 24/5.0 or CP-E 24/10.0 power supply is delivering stable voltage within ±1% tolerance before inserting the replacement module. A degraded power supply is one of the most common root causes of repeated I/O module failures in aging control cabinets.

Next, inspect the CS31 fieldbus cabling. The 81ET03M-E communicates over ABB’s proprietary CS31 serial bus. Check the bus termination resistors at both ends of the CS31 segment and verify that the shielded twisted-pair cable connecting the CPU module (such as the ABB 07KT98 or 07KT97 AC 31 CPU) to the I/O rack is intact and properly grounded. Damaged bus cables are frequently overlooked during module-level troubleshooting.

Review the rack backplane and slot addressing. The AC 31 system assigns I/O addresses based on physical slot position and module type. Before removing the failed GJR2389800R1210, photograph or document the existing address jumper settings on the module. The replacement unit must be configured identically to avoid I/O mapping conflicts in the PLC program. If the original jumper configuration is unknown, retrieve the I/O list from the engineering documentation or read the address map from the ABB Advant Builder / Control Builder project file.

Inspect adjacent modules in the same rack. It is common for a failing 81ET03M-E to stress neighboring components. Check the ABB 81DI16-E digital input module and ABB 81DO16-E digital output module in adjacent slots for error LEDs or abnormal heat signatures. If the rack includes an ABB 81AI04-E analog input module, verify that its signal ranges and scaling parameters are still intact in the controller program — analog modules are sensitive to power fluctuations caused by a failing digital I/O module.

For installations that include PROFIBUS DP or Modbus RTU communication alongside the CS31 bus, confirm that the ABB CI626 or CI627 communication interface module is still responding correctly after the I/O module swap. A module replacement that causes a brief bus interruption can trigger a communication timeout that requires a manual reset of the fieldbus master.

If the control cabinet also houses an ABB Panel 800 / PP845 HMI or a legacy ABB OP7 operator panel, verify that the HMI tag database still maps correctly to the restored I/O addresses after the replacement. HMI screens that reference I/O tags by absolute address may display incorrect values if the module slot address was inadvertently changed during the swap.

Finally, check the terminal blocks and wiring ferrules on the field-side connector of the 81ET03M-E. Phoenix Contact or Weidmüller terminal blocks adjacent to the module should be inspected for loose connections, oxidation, or thermal discoloration — all indicators of intermittent contact that can cause false I/O readings even after a successful module replacement.

Downtime Control During System Migration

For sites planning a phased migration from the AC 31 platform to ABB’s AC500 or AC500-S safety controller, the GJR2389800R1210 81ET03M-E serves as a critical bridge component — keeping the legacy system operational while the migration project is scoped, budgeted, and scheduled.

The recommended approach is to maintain at least one spare GJR2389800R1210 81ET03M-E on-site for every AC 31 rack that contains this module type. This eliminates the mean-time-to-repair (MTTR) contribution from procurement lead time, which for discontinued ABB modules can range from 4 to 16 weeks through standard distribution channels. NINERMAS maintains buffer stock of the 81ET03M-E specifically to support customers with multi-site AC 31 installations who require guaranteed availability under long-term supply agreements.

When executing the physical swap, follow a hot-standby or controlled shutdown sequence: notify the process control room, place the affected I/O zone in manual override if the process permits, remove the failed module, insert the pre-configured replacement, and restore automatic control. The entire swap sequence for a single 81ET03M-E module should take no more than 15–30 minutes for a prepared maintenance team, provided the replacement unit has been pre-configured with the correct address jumpers and the field wiring connector has been pre-labeled.

For sites where the AC 31 CPU program logic references the 81ET03M-E I/O addresses in structured text or ladder logic, retain a backup copy of the Advant Builder project file on a dedicated engineering laptop before performing any module swap. This ensures that if a program reload is required after the replacement, the correct I/O configuration can be restored without delay.

NINERMAS provides pre-shipment functional testing on all GJR2389800R1210 81ET03M-E units, including bus communication verification and I/O channel continuity checks. Each unit ships with a test report, reducing the risk of receiving a non-functional spare during a critical maintenance window.

Retrofit Support FAQ

Q1: Is the GJR2389800R1210 81ET03M-E a direct drop-in replacement for the original 81ET03M-E?
Yes. The GJR2389800R1210 is the ABB part number for the 81ET03M-E module. It is slot-compatible with the AC 31 rack and uses the same CS31 bus interface. The only configuration step required is to match the address jumper settings to the original module before installation. No firmware update or program modification is required for a like-for-like replacement.

Q2: How do I verify compatibility before ordering?
Provide your AC 31 rack model number, the slot position of the failed module, and the CS31 node address from your engineering documentation. NINERMAS will cross-reference these against the 81ET03M-E specification to confirm compatibility. If you have access to the Advant Builder project file, the I/O configuration report will list the exact module type and address for each slot.

Q3: What testing is performed before shipment?
Every GJR2389800R1210 81ET03M-E unit undergoes a full functional test on an AC 31 test rack, including CS31 bus communication, digital I/O channel verification, and power consumption measurement. A test report is included with each shipment. Units that fail any test parameter are quarantined and not shipped.

Q4: What does the 12-month warranty cover, and what are the long-term supply options?
The NINERMAS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or environmental contamination. For customers with multiple AC 31 installations, NINERMAS offers long-term supply agreements with reserved stock allocation, priority shipment, and fixed pricing — contact our team to discuss a tailored spare parts program for your site.
