ABB 3HAC031936-001/03 Retrofit Controller for Legacy Systems

ABB 3HAC031936-001/03 Retrofit Controller for Legacy Systems: Seamless Legacy System Compatibility and Smooth Upgrade

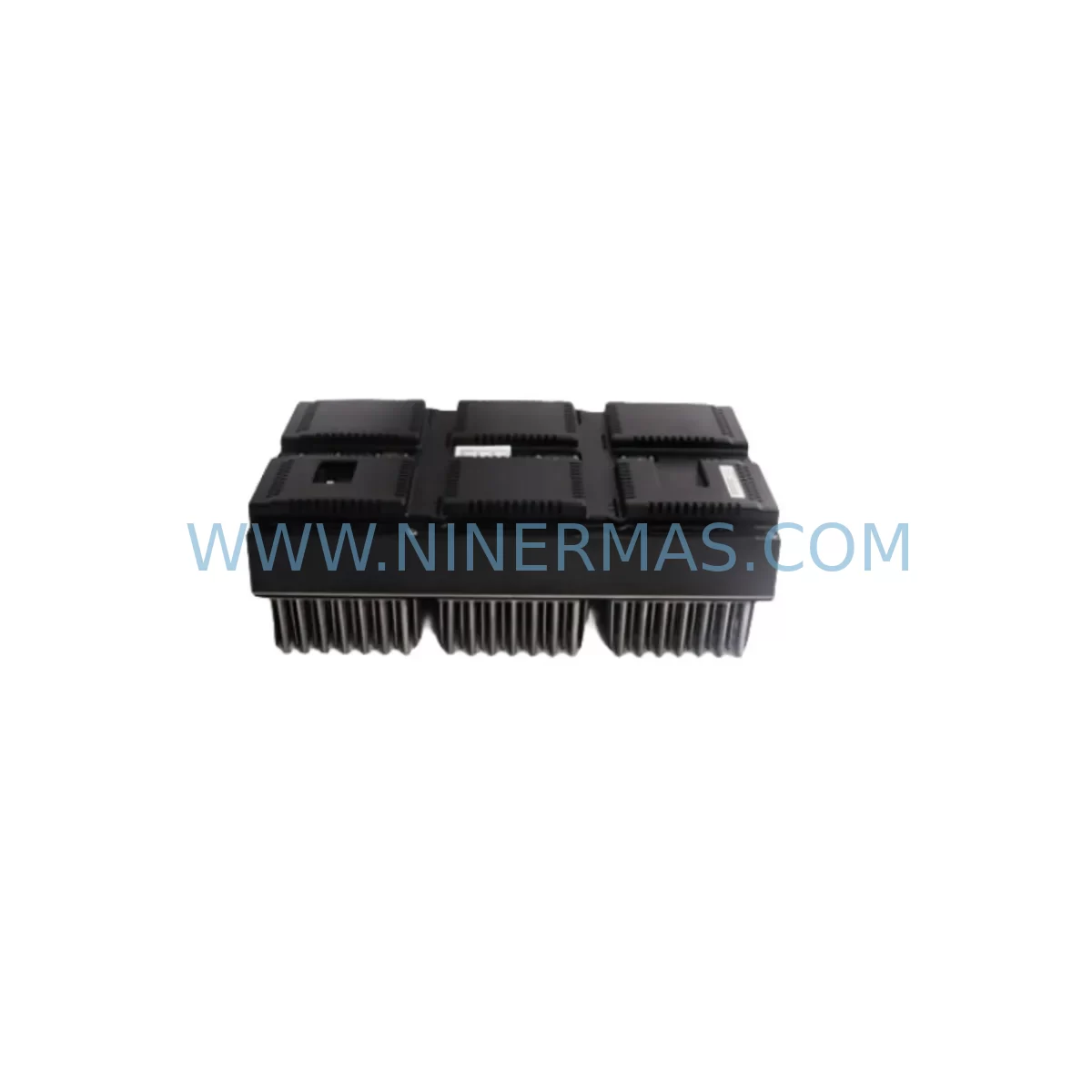

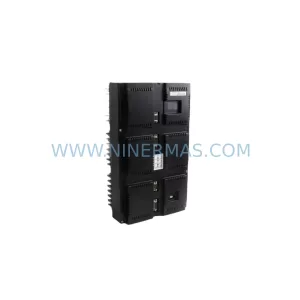

The ABB 3HAC031936-001/03, paired with companion modules 3HNA012841-001/04 and 3HAC044515-001/00, represents a ruggedized robot controller assembly engineered for demanding industrial environments. As ABB’s IRC5 platform continues to evolve, many facilities operating legacy IRB robot cells face the challenge of sourcing discontinued controller hardware without disrupting production. This page addresses the full retrofit workflow — from initial compatibility assessment through final commissioning — for engineers and maintenance teams planning a controlled upgrade or emergency replacement of end-of-life IRC5 controller components.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the 3HAC031936-001/03 within an active IRC5 robot cell requires a structured pre-outage assessment. Begin by auditing the full controller cabinet inventory: document the installed revision of the 3HAC031851-001 DSQC 639 Main Computer, which governs the primary motion control logic and must remain firmware-compatible with the replacement module. Cross-reference the axis computer board 3HAC030923-001 to confirm that servo loop timing parameters will not require recalibration after the swap.

Power architecture is a critical checkpoint. The 3HAC044168-001 DSQC 668 Power Supply must deliver sufficient current headroom to support the replacement module alongside existing I/O loads. If the cabinet also houses a 3HAC025917-001 DSQC 652 Servo Drive, verify that the combined inrush current during startup does not exceed the PSU’s rated output. Undersized power rails are a common root cause of intermittent faults following controller module replacements.

For facilities running DeviceNet or PROFIBUS fieldbus topologies, the 3HNA024871-001 DeviceNet I/O Module node address must be preserved or re-assigned in the network configuration tool before the robot is returned to automatic mode. Similarly, if the cell communicates with a supervisory SCADA or DCS via the 3HNE00313-1 communication interface, confirm that the IP address and gateway settings are documented prior to the outage window.

The IRC5 backplane — specifically the 3HAC041443-003 assembly — should be visually inspected for oxidation on the edge connectors before the new module is seated. Corroded backplane contacts are a frequent source of intermittent communication errors that are difficult to diagnose after reassembly. Clean contacts with isopropyl alcohol and allow full drying before insertion.

Operator interface continuity is equally important. The 3HAC026253-001 DSQC 658 FlexPendant stores no persistent program data, but its teach pendant cable connector should be inspected for pin damage during the module swap. If the cell uses a safety-rated stop circuit, the 3HAC044075-001 Safety Module configuration must be validated against the original safety function documentation before the robot is re-enabled. The companion module 3HAC044515-001/00 included in this assembly handles ruggedized environmental sealing and should be installed as a matched set with 3HAC031936-001/03 and 3HNA012841-001/04 to maintain the original IP rating and vibration tolerance of the controller assembly.

Finally, confirm that the DSQC 663 (3HAC029157-001) I/O unit signal mapping is preserved in the system parameters backup. Any changes to the I/O unit address table will require corresponding updates to the RAPID program’s I/O signal declarations before production can resume.

Downtime Control During System Migration

Minimizing unplanned downtime during an IRC5 controller module replacement begins with preparation, not execution. Before the maintenance window opens, use RobotStudio to create a full system backup — including RAPID modules, system parameters, EIO configuration, and safety controller data. Store this backup on an external drive independent of the controller cabinet.

During the physical swap, follow a strict sequence: power down the cabinet via the main disconnect, discharge the capacitor bank on the DSQC 668 power supply (allow a minimum of 5 minutes), then remove the 3HAC031936-001/03 from its backplane slot. Install the replacement module, reseat all connectors, and restore power incrementally — first the 24 VDC logic rail, then the servo power stage.

Restore the system backup immediately after the module initializes. Verify that all RAPID programs load without modification errors and that the I/O signal table matches the pre-outage configuration. Run a dry-cycle (motors off, program execution enabled) to confirm that the program logic executes without fault codes before re-engaging the servo drives. This approach typically reduces total commissioning time to under two hours for a single-robot cell, preserving production continuity and reducing the risk of introducing new faults during the migration.

Retrofit Support FAQ

Q1: Is the 3HAC031936-001/03 a direct drop-in replacement for the original IRC5 controller module?
Yes. The 3HAC031936-001/03 is designed as a form-fit-function replacement for the original IRC5 ruggedized controller module. No mechanical modification to the cabinet is required. Retain the original wiring harness and terminal block connections. A full functional test is performed prior to shipment, and a test certificate is included with each unit.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, restore the pre-outage system backup via RobotStudio. Verify I/O signal mapping, re-confirm fieldbus node addresses (DeviceNet or PROFIBUS), and validate the safety controller configuration. Run a dry-cycle test before enabling servo power. Total commissioning time for a standard IRC5 single-cabinet cell is typically 1–2 hours.

Q3: How do I verify wiring compatibility before the replacement?
Document all terminal block assignments on the existing module before removal. The 3HAC031936-001/03 uses the same terminal layout as the original IRC5 module. Cross-reference the ABB IRC5 Product Manual (document 3HAC021313-001) for terminal pinout diagrams. If the existing wiring harness shows insulation degradation, replace affected conductors during the same maintenance window to avoid secondary faults.

Q4: What is the warranty coverage and stock availability?
Each 3HAC031936-001/03 unit supplied by NINERMAS carries a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained for prompt dispatch. Contact our team for lead time confirmation on volume orders or urgent replacement requirements.
