Siemens 6ES7521-1BH00-0AB0 Retrofit-Compatible DI Module for Legacy S7

Siemens 6ES7521-1BH00-0AB0 Retrofit-Compatible DI Module for Legacy S7 Systems

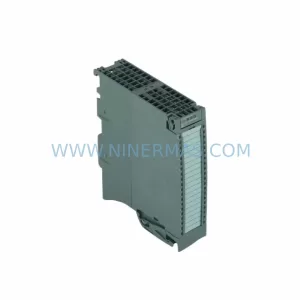

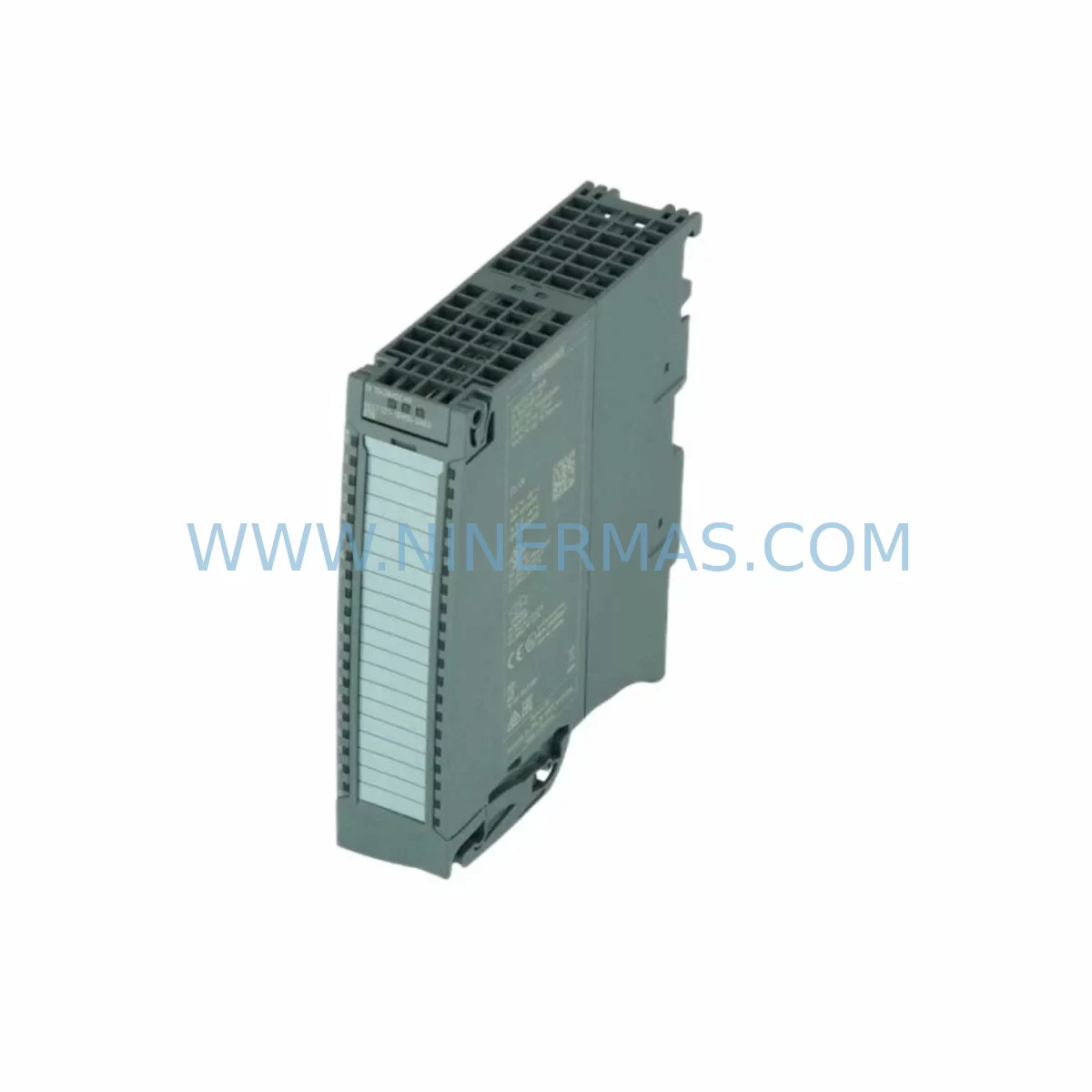

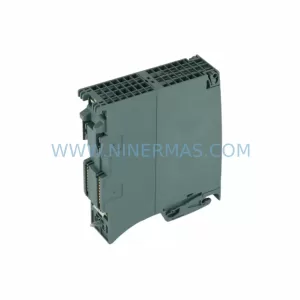

The Siemens 6ES7521-1BH00-0AB0 is a 16-channel digital input module designed for the SIMATIC S7-1500 controller platform. As legacy automation systems reach end-of-life and spare parts become increasingly difficult to source, this module serves as a critical retrofit component for engineers tasked with modernizing aging production lines, upgrading control cabinets, and extending the operational lifespan of existing PLC infrastructure. Whether you are replacing a discontinued S7-300 or S7-400 input module, migrating from an older SIMATIC platform, or expanding I/O capacity within an existing S7-1500 rack, the 6ES7521-1BH00-0AB0 delivers the signal integrity, diagnostic capability, and installation compatibility required for smooth, low-risk system transitions.

This module supports 24 V DC input signals across 16 channels, with configurable input delay times and integrated channel-level diagnostics that simplify fault isolation during commissioning and ongoing operation. Its compact form factor fits standard S7-1500 mounting rails and backplane interfaces, making it a direct fit for control cabinets originally designed around the S7-1500 architecture. For retrofit projects involving older backplane configurations, engineers should verify slot addressing, rack power budget, and terminal wiring compatibility before installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6ES7521-1BH00-0AB0 into an existing control system begins with a thorough pre-retrofit assessment. Engineers should start by auditing the current rack configuration, identifying the CPU module in use — typically a SIMATIC S7-1500 CPU such as the CPU 1511-1 PN or CPU 1515-2 PN — and confirming the available power budget on the active bus. The S7-1500 power supply modules, including the PM 70W 120/230V AC and the PS 60W 24/48/60V DC, must be verified to support the additional load introduced by the new DI module before installation proceeds.

Terminal wiring is one of the most common sources of delay during retrofit projects. The 6ES7521-1BH00-0AB0 uses a 40-pin push-in front connector, which differs from the screw-terminal front connectors used on many S7-300 digital input modules. If the existing field wiring was terminated on legacy connectors, a rewiring or adapter strategy must be planned in advance. Cable labeling, wire gauge compatibility, and terminal torque specifications should all be documented before the cutover window begins.

For systems migrating from PROFIBUS DP to PROFINET, the communication module infrastructure must also be updated. In mixed environments, a CP 1543-1 communications processor or an IE/PB Link PN IO gateway may be required to bridge legacy PROFIBUS field devices with the new PROFINET backbone. This is particularly relevant in plants where distributed I/O — such as ET 200SP or ET 200M stations — remains on PROFIBUS while the main CPU has already been upgraded to S7-1500.

HMI screen updates are another critical element of the retrofit plan. If the existing operator interface was built on a SIMATIC Panel PC or an older TP/MP series HMI running WinCC flexible, the tag addresses and I/O mappings linked to the replaced DI module must be updated to reflect the new hardware configuration in TIA Portal. Failure to update HMI tag bindings is a frequent cause of post-retrofit alarm floods and operator confusion during the first production shift after cutover.

Signal isolators and intrinsic safety barriers connected upstream of the DI module inputs should also be reviewed. In hazardous area applications, the input signal conditioning chain — including Zener barriers or galvanic isolators — must be confirmed compatible with the 6ES7521-1BH00-0AB0 input threshold voltages and current consumption specifications. Where the legacy module had different input impedance characteristics, signal levels at the new module terminals may require adjustment.

Finally, a programming cable and laptop loaded with TIA Portal should be on-site during the cutover. The SIMATIC S7-USB programming cable or a standard PROFINET Ethernet connection to the CPU is required to download the updated hardware configuration and perform online diagnostics immediately after module installation. Having a pre-tested, pre-compiled project backup ready to restore minimizes recovery time if unexpected issues arise during the live cutover.

Downtime Control During System Migration

Minimizing production downtime during a DI module replacement requires careful pre-staging and a clearly defined cutover sequence. Before the maintenance window opens, the replacement 6ES7521-1BH00-0AB0 should be pre-configured offline in TIA Portal, with the hardware configuration compiled and saved to a USB memory card or programming device ready for immediate download. This eliminates the need for online configuration work during the cutover window itself.

The original PLC program logic should be exported and archived before any hardware changes are made. In S7-1500 systems, the CPU’s internal memory card — typically a SIMATIC Memory Card — stores the complete project, and a verified backup copy should be held separately on a programming device or secure network location. If the retrofit involves replacing multiple modules simultaneously, a phased approach — replacing one module per maintenance window — significantly reduces the risk of cascading faults and simplifies fault isolation if a problem occurs.

During the cutover, field signals connected to the module being replaced should be documented and, where possible, temporarily bypassed or held at safe states using the process control system’s force table or safe-state logic. This protects downstream equipment and prevents spurious actuator movements while the new module is being installed and commissioned. Once the 6ES7521-1BH00-0AB0 is physically installed and the front connector is secured, the CPU can be brought online and the new hardware configuration downloaded. Channel-by-channel I/O testing using the TIA Portal’s watch table or force function confirms correct signal mapping before the system is returned to automatic control.

NINERMAS ships every 6ES7521-1BH00-0AB0 unit with pre-shipment functional testing completed, reducing the risk of receiving a non-functional module during a time-critical retrofit. All units are covered by a 12-month warranty from the date of shipment, providing assurance throughout the post-retrofit stabilization period.

Retrofit Support FAQ

Q: Is the 6ES7521-1BH00-0AB0 a direct drop-in replacement for S7-300 digital input modules?
A: Not mechanically. The 6ES7521-1BH00-0AB0 is designed for the S7-1500 backplane and uses a different front connector and bus interface than S7-300 modules. A full rack migration to S7-1500 is required, but the module’s 16-channel 24 V DC input functionality is functionally equivalent to many S7-300 DI modules such as the SM 321.

Q: What wiring changes are needed when installing this module?
A: The 6ES7521-1BH00-0AB0 uses a 40-pin push-in or screw-type front connector. If your existing field wiring was terminated on a legacy S7-300 20-pin connector, rewiring to the new connector format is required. Terminal assignments should be verified against the module’s wiring diagram in the TIA Portal hardware catalog before the cutover.

Q: Does NINERMAS provide pre-shipment testing and warranty coverage?
A: Yes. Every unit undergoes functional testing before shipment. All 6ES7521-1BH00-0AB0 modules supplied by NINERMAS are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: Is stock available for immediate shipment?
A: NINERMAS maintains inventory of the 6ES7521-1BH00-0AB0 to support urgent retrofit and breakdown replacement requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and lead times.
