Fisher 57C493-ES371AMB Service-Ready Industrial Spare Part

Fisher 57C493-ES371AMB Service-Ready Industrial Spare Part: Spare Parts Replacement and Downtime Risk Control

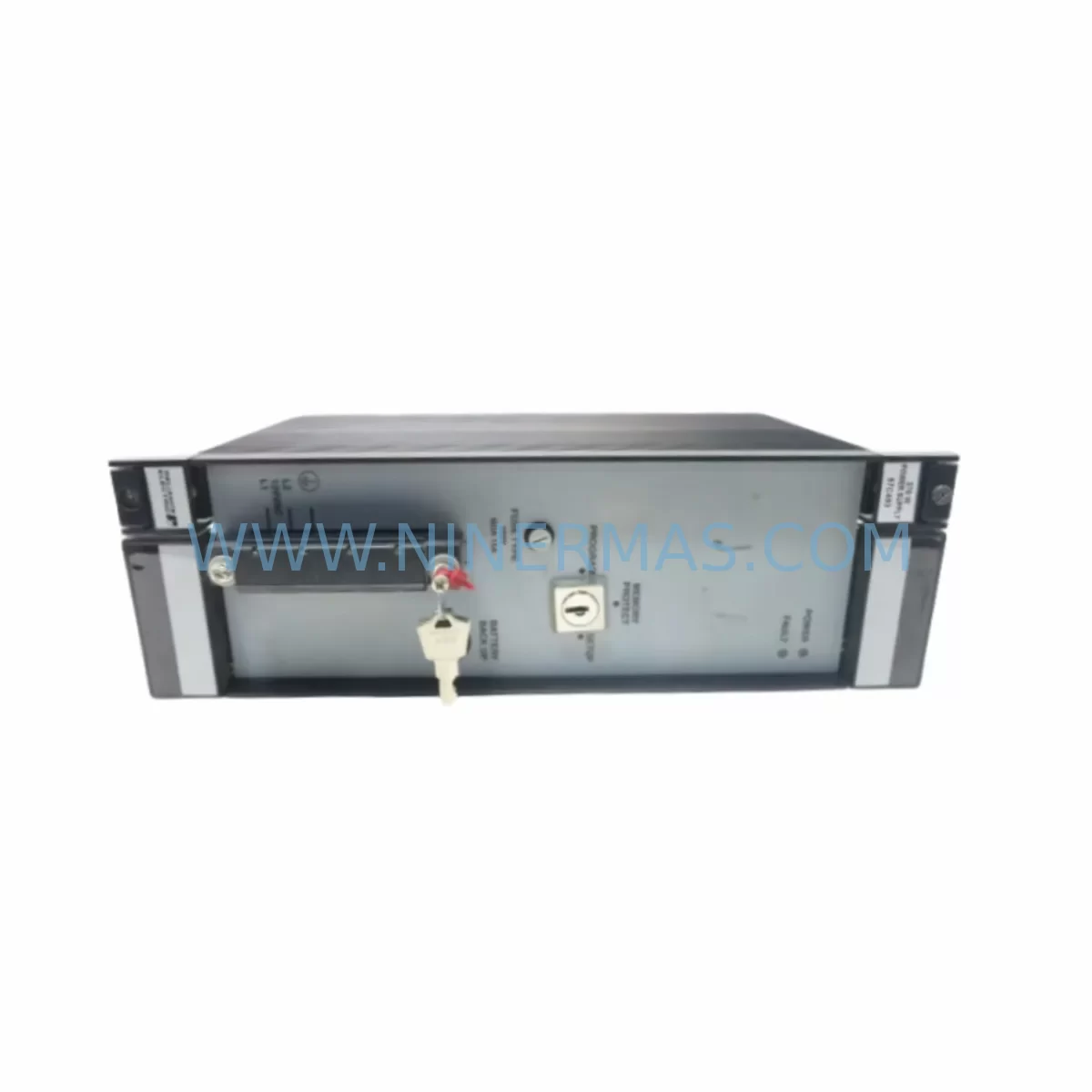

The Fisher 57C493-ES371AMB is a ruggedized power supply module engineered for demanding industrial environments, widely deployed within Emerson DeltaV distributed control systems and associated process automation architectures. As a critical power distribution component, this module provides stable, conditioned DC power to I/O subsystems, field device interfaces, and controller backplanes. When this unit fails or degrades, the downstream impact can cascade across multiple control loops, triggering unplanned shutdowns and costly production interruptions. Maintaining a verified, service-ready spare of the 57C493-ES371AMB is therefore a fundamental requirement for any maintenance strategy targeting high system availability.

At NINERMAS, every 57C493-ES371AMB unit is sourced from authorized channels, subjected to pre-shipment functional testing, and shipped with a 12-month warranty. Our inventory is maintained specifically to support emergency replacement, scheduled annual overhauls, and long-term spare parts programs for facilities operating legacy and end-of-life Emerson DeltaV infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 57C493-ES371AMB power supply module is rarely an isolated task. In a DeltaV control cabinet, the power supply is the foundation upon which every downstream component depends. A thorough maintenance plan should address the entire power distribution chain and associated signal infrastructure to prevent repeat failures and ensure a complete, reliable restoration.

Begin with the KJ3221X1-BA1 DeltaV I/O carrier — the backplane assembly that interfaces directly with the power supply output. Inspect for signs of thermal stress, connector oxidation, or mechanical damage caused by the original power fault. Similarly, the KJ4001X1-BE1 controller module should be verified for correct boot sequence and firmware integrity after any power interruption, as uncontrolled power loss can corrupt volatile configuration memory.

On the field side, review the SE4002S1T2B6 analog input module and VE4035S2B1 analog output module for calibration drift introduced by the power event. These modules are particularly sensitive to supply voltage fluctuations and may require re-zeroing or full recalibration before returning the loop to automatic control. The CE4003S2B2 communications module should also be inspected — power transients frequently corrupt HART or FOUNDATION Fieldbus communication parameters stored in non-volatile memory.

At the cabinet level, check all terminal blocks and DIN rail wiring harnesses for heat damage or loose terminations caused by the power fault. Inspect 24 VDC distribution fuses and miniature circuit breakers protecting individual I/O segments — a failed power supply often causes downstream fuses to blow, and these must be replaced before re-energizing. The KJ3002X1-BG1 redundant power supply module, if installed, should be tested independently to confirm it can carry full load before the primary 57C493-ES371AMB is removed.

For facilities running signal isolation between field instruments and the DCS, verify that signal isolators and loop-powered barriers (such as those in the MTL or P+F series commonly paired with DeltaV systems) have not been damaged by the power event. Finally, confirm that the DeltaV HMI workstation and any OPC server connections have re-established communication with all I/O nodes before releasing the system to operations. A structured walk-through of these components — documented in your CMMS — ensures that the replacement of the 57C493-ES371AMB translates into a fully verified, production-ready system rather than a partial restoration.

Site Replacement Workflow

Step 1 — Isolation and Safety: Coordinate with operations to place the affected control loop in manual mode. De-energize the cabinet section containing the 57C493-ES371AMB following your site’s LOTO (Lockout/Tagout) procedure. Verify zero energy state with a calibrated multimeter before opening the enclosure.

Step 2 — Documentation: Photograph the existing wiring, connector positions, and module orientation before removal. Record the current firmware revision label if visible. This documentation is critical for systems where the power supply interfaces with a specific backplane slot assignment.

Step 3 — Module Removal: Release the module retention latch and slide the 57C493-ES371AMB clear of the carrier. Inspect the backplane connector pins for damage or contamination. Clean with isopropyl alcohol if required before installing the replacement unit.

Step 4 — Replacement Installation: Seat the new 57C493-ES371AMB firmly into the carrier slot until the retention latch engages. Reconnect all AC input wiring to the correct terminals, observing polarity and torque specifications from the Fisher/Emerson installation manual.

Step 5 — Energization and Verification: Re-energize the cabinet section and measure the DC output voltage under load. Confirm output is within specification (typically 24 VDC ±1%). Monitor the DeltaV system diagnostics for I/O node health status. Verify all field devices have returned to normal communication before transferring loops back to automatic control.

Step 6 — Documentation and Spare Replenishment: Update your CMMS with the replacement date, new module serial number, and test results. Initiate a purchase order for a replacement spare to restore your on-hand inventory to the required buffer level.

Spare Parts Support FAQ

Q1: Is the 57C493-ES371AMB compatible with all DeltaV S-Series controller configurations?
The 57C493-ES371AMB is designed for DeltaV S-Series carrier assemblies and is compatible with the standard power supply slot in these configurations. Compatibility with specific carrier revisions should be confirmed against the Emerson DeltaV hardware compatibility matrix for your installed firmware version. NINERMAS technical support can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing does NINERMAS perform on the 57C493-ES371AMB?
Each unit undergoes functional power-on testing, output voltage verification under rated load, and visual inspection for connector integrity and component condition. Units that do not meet specification are quarantined and not shipped. A test record is available upon request for quality-critical procurement programs.

Q3: How should the 57C493-ES371AMB be stored if purchased as a long-term spare?
Store in original anti-static packaging in a climate-controlled environment: temperature 15–30°C, relative humidity below 60%, away from direct sunlight and electromagnetic interference sources. Inspect annually for connector oxidation. Rotate stock on a first-in, first-out basis to maintain readiness. NINERMAS can support reserved inventory agreements for facilities requiring guaranteed long-term supply.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers functional defects arising under normal operating conditions, including output voltage failure, internal component failure, and connector defects. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental range. Warranty claims are processed with return shipping coordination and replacement dispatch within 5 business days of fault confirmation.
