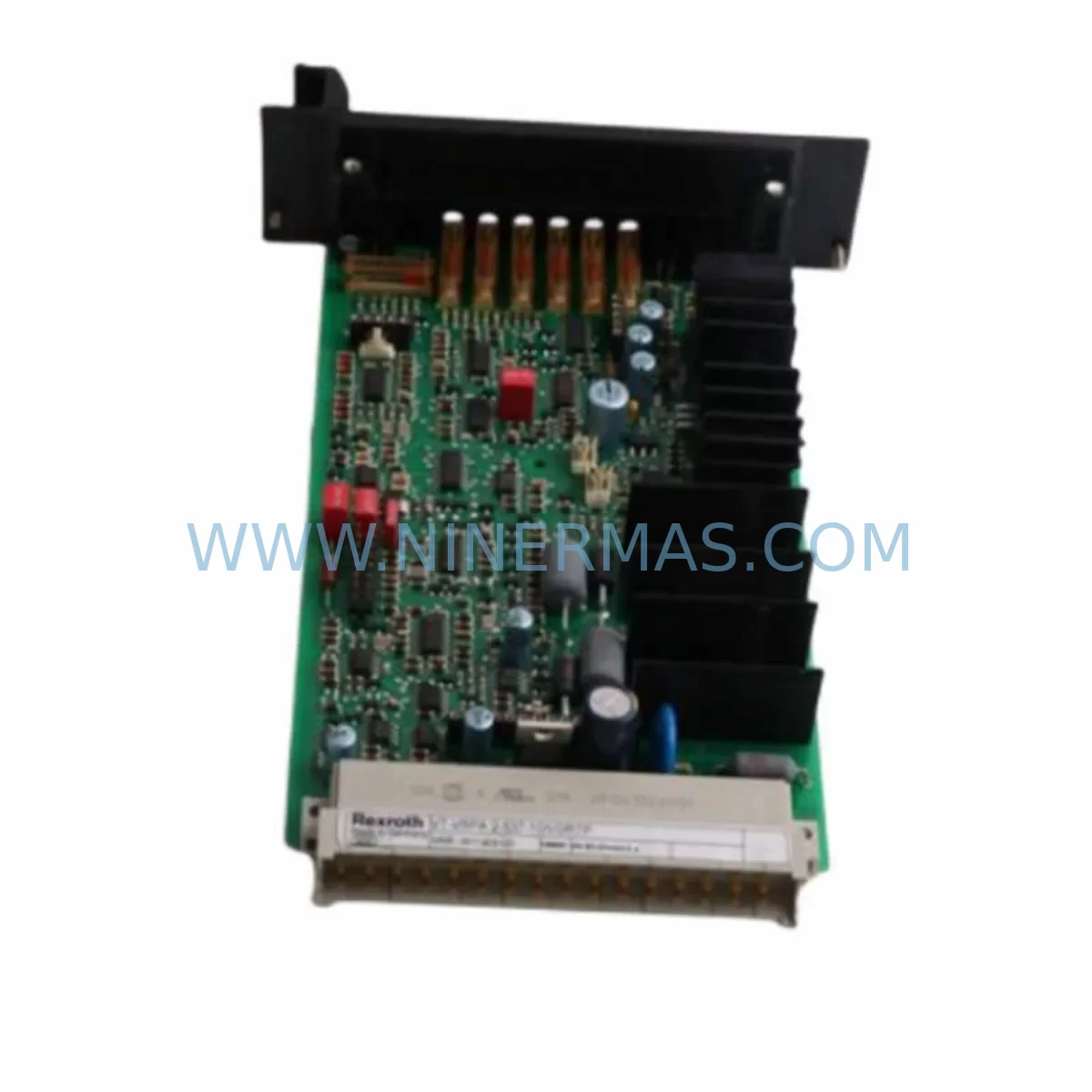

Rexroth VT-HNC100.C-30/P-S-00/000 Service-Ready Spare Part

Rexroth VT-HNC100.C-30/P-S-00/000 Service-Ready Spare Part for Industrial Maintenance

The Rexroth VT-HNC100.C-30/P-S-00/000 is a ruggedized digital axis control module engineered for precision motion control in demanding industrial environments. As a direct service-ready spare part, this unit supports rapid replacement of failed or end-of-life axis controllers in Rexroth hydraulic and electrohydraulic servo systems — minimizing unplanned downtime and restoring production continuity with confidence.

Maintenance engineers and procurement teams managing aging Rexroth VT-HNC100 series installations rely on verified spare stock of this module to sustain axis positioning accuracy, closed-loop control integrity, and system synchronization across multi-axis press lines, injection molding machines, metal forming equipment, and heavy industrial test rigs. With a 12-month warranty and pre-shipment functional testing, each unit is dispatched ready for immediate field installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the VT-HNC100.C-30/P-S-00/000, experienced maintenance engineers treat this module as the centerpiece of a broader axis control circuit audit. A failed or degraded axis controller rarely operates in isolation — associated components in the same control cabinet and hydraulic servo loop should be inspected and, where appropriate, stocked as preventive spares.

Begin with the 24 VDC power supply module feeding the VT-HNC100 card rack: voltage ripple, load regulation, and output stability directly affect axis controller performance and can cause intermittent faults that mimic controller failure. Inspect the Rexroth VT-VSPA2 or VT-VSPA1 servo amplifier card in the same rack — these amplifier modules drive the proportional or servo valve and must be verified for correct gain settings and output linearity after any axis controller swap.

The proportional valve or servo valve connected to the axis output should be tested for spool response, hysteresis, and zero-offset drift. A worn valve can mask a successfully replaced controller and cause persistent positioning errors. Similarly, the linear position transducer (LVDT or magnetostrictive sensor) providing feedback to the VT-HNC100 must be checked for signal integrity, cable shielding continuity, and connector condition — degraded feedback signals are a leading cause of axis instability after controller replacement.

Within the control cabinet, inspect the terminal blocks and signal wiring harness connecting the VT-HNC100 to the machine PLC or supervisory controller. Loose terminations, corroded contacts, or damaged shielding on analog command cables introduce noise that degrades closed-loop performance. If the system uses a Rexroth VT-HNC100 parameter memory module or EEPROM configuration card, verify that axis parameters are backed up before removal and correctly restored after installation of the replacement unit.

For systems integrated with a Siemens S7-300/S7-400 PLC or Rexroth IndraControl platform, confirm that the axis controller’s serial communication or fieldbus interface (where applicable) is re-established and that the PLC program’s axis enable sequence is validated after replacement. Procurement teams should also consider holding buffer stock of the VT-VRPA2 ramp generator card and VT-SWMO signal conditioning module, which are frequently co-located in the same VT-series card rack and share the same end-of-life risk profile as the VT-HNC100.

Fuse protection for the 24 VDC rail and the valve output circuit should be inspected and replaced as a matter of course during any axis controller maintenance event. Keeping a small inventory of Rexroth VT-series card rack backplane connectors and shielded analog signal cables ensures that a single maintenance event does not extend into a multi-day outage due to secondary component availability.

Site Replacement Workflow

Replacing the VT-HNC100.C-30/P-S-00/000 on-site follows a structured sequence designed to minimize control system downtime and eliminate re-commissioning risk. Before removing the existing module, document all parameter settings using the Rexroth VT-HNC100 configuration software or the front-panel display — axis gain values, ramp times, position limits, and valve offset calibration data must be preserved for transfer to the replacement unit.

Power down the control cabinet following the machine’s lockout/tagout procedure. Disconnect the axis controller carefully, noting the wiring positions for command input, feedback signal, valve output, and digital I/O. Install the replacement VT-HNC100.C-30/P-S-00/000, reconnect all wiring, and restore power. Load the saved parameter set and perform a slow-speed axis movement test before returning the machine to production speed. Verify position accuracy against the machine’s reference standard and confirm that the PLC axis enable and fault reset sequences operate correctly.

This workflow is compatible with direct replacement of earlier VT-HNC100 variants, allowing maintenance teams to standardize on the current C-30/P-S-00/000 build state without machine-side hardware modifications. Reduced re-commissioning time — typically under two hours for a prepared maintenance team — translates directly into lower cost-per-downtime-event and improved OEE for the production line.

Spare Parts Support FAQ

Q1: Is the VT-HNC100.C-30/P-S-00/000 a direct replacement for earlier VT-HNC100 variants?
Yes. The C-30/P-S-00/000 build state is designed as a service replacement for earlier VT-HNC100 series axis controllers. Mechanical mounting, connector pinout, and core parameter structure are maintained for backward compatibility. Minor firmware differences may require parameter re-entry rather than direct transfer — always verify against the machine’s original commissioning documentation.

Q2: What pre-shipment testing is performed on each unit?
Every VT-HNC100.C-30/P-S-00/000 dispatched by NINERMAS undergoes functional power-on verification and output signal testing before shipment. Units are inspected for physical condition, connector integrity, and correct firmware presence. A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of delivery.

Q3: Can NINERMAS support long-term or scheduled spare parts supply for VT-HNC100 series modules?
Yes. NINERMAS offers long-term spare parts supply arrangements for maintenance teams managing multiple Rexroth VT-HNC100 installations. Scheduled procurement programs, annual blanket orders, and priority stock reservation are available. Contact sale@ninermas.com to discuss your site’s spare parts lifecycle requirements and establish a supply agreement aligned with your planned maintenance schedule.

Q4: How do I confirm compatibility before ordering?
Provide your existing module’s full part number, nameplate data, and machine type to sale@ninermas.com. Our technical team will verify compatibility against the VT-HNC100 series documentation and confirm the correct replacement build state for your application before order confirmation. This eliminates procurement risk and ensures the correct unit is dispatched on the first order.
