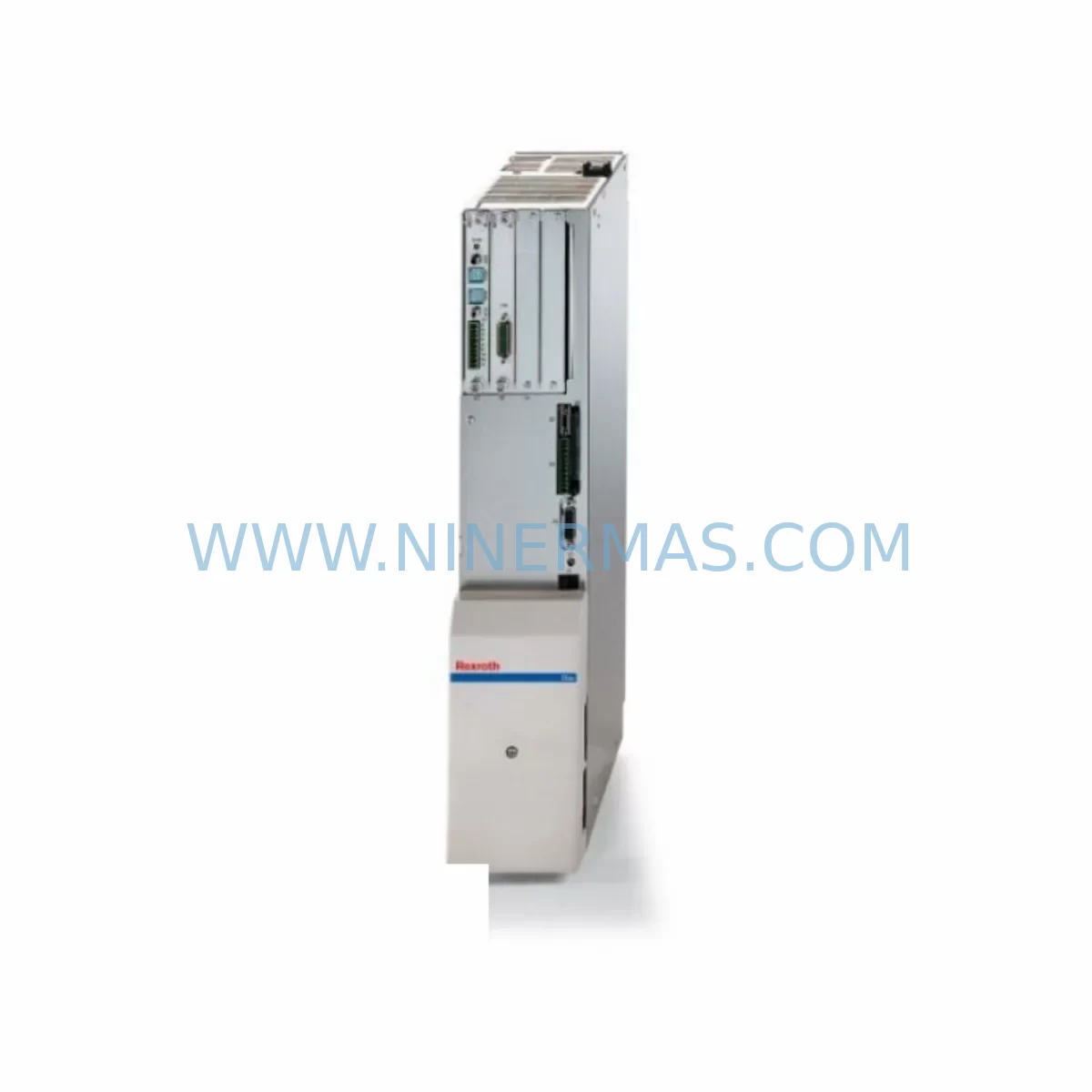

Rexroth HDS03.2-W100N-HT20-01-FW Safety-Reliable Servo Drive

Rexroth HDS03.2-W100N-HT20-01-FW Safety-Reliable Servo Drive for Critical Control Sites

The Rexroth HDS03.2-W100N-HT20-01-FW is a high-performance AC servo drive controller engineered for demanding industrial environments where control continuity, safety interlock integrity, and uninterrupted production are non-negotiable. As part of Bosch Rexroth’s INDRAMAT HDS series, this drive module delivers robust closed-loop servo control with exceptional resistance to electrical noise, thermal stress, and mechanical vibration — making it a trusted backbone component in critical control cabinets across global process industries.

Whether deployed in continuous chemical processing, high-voltage power generation switchgear panels, underground mining hoists, municipal water treatment pump stations, steel mill rolling lines, port crane drive systems, or offshore vessel propulsion control rooms, the HDS03.2-W100N-HT20-01-FW provides the signal fidelity, power stability, and fault-tolerant architecture that safety-critical applications demand.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinet environments, a single component failure can cascade into full-line shutdown, safety interlock trips, or — in worst cases — hazardous uncontrolled motion. The HDS03.2-W100N-HT20-01-FW is designed to minimize these risks through a combination of robust power electronics, deterministic communication, and hardware-level safety inputs.

When integrated with the Rexroth HVR02.2 regenerative power supply unit, the HDS03.2 benefits from a stabilized DC bus that absorbs regenerative energy during deceleration, preventing voltage spikes that could otherwise trigger protective shutdowns or damage sensitive encoder circuits. Pairing the drive with a Rexroth NFD03.1 mains filter module further suppresses conducted EMI from the supply network — critical in environments near large variable-frequency drives, arc furnaces, or high-current welding equipment.

For multi-axis coordinated motion, the HDS03.2-W100N-HT20-01-FW operates seamlessly within a SERCOS II fiber-optic ring managed by a Rexroth DIAX04 or IndraMotion MLC motion controller, ensuring microsecond-level synchronization across axes without susceptibility to ground loops or common-mode noise. The fiber-optic SERCOS interface eliminates galvanic coupling between the controller and drive — a significant safety advantage in high-voltage environments.

Complementing the drive’s hardware enable input, a Rexroth MSK servo motor with integrated temperature sensor and brake feedback provides closed-loop thermal and mechanical protection. When the motor’s PTC thermistor signals an overtemperature condition, the HDS03.2 executes a controlled deceleration ramp rather than an abrupt torque cutoff — preserving mechanical integrity and preventing load drop in vertical axis applications such as crane hoists or injection moulding clamp units.

For cabinet-level surge protection, installing a Phoenix Contact or Rexroth-compatible Type 2 SPD (Surge Protective Device) upstream of the drive’s AC input terminals guards against lightning-induced transients and switching surges from large contactors or transformer tap changes. Downstream, a Rexroth CSH01.1 or CDB01.1 digital servo controller can serve as a redundant axis controller in dual-drive safety architectures, enabling hot-standby configurations for critical positioning axes.

Battery-backed Rexroth BTA20 or equivalent absolute encoder backup modules ensure that homing position data is retained through power interruptions, eliminating the need for time-consuming re-referencing cycles after unplanned shutdowns — a key factor in reducing mean time to recovery (MTTR) in continuous process plants.

Critical Industrial Safety Applications

The Rexroth HDS03.2-W100N-HT20-01-FW has established a proven track record across the most demanding industrial safety applications worldwide:

Petrochemical & Refinery Plants: In ATEX-zoned process areas, the drive controls compressor inlet guide vane actuators and reactor agitator drives from within pressurized control rooms. Its deterministic SERCOS communication ensures that safety PLC interlock commands — such as emergency stop or controlled rundown sequences — are executed within defined response windows, supporting SIL 2 safety loop architectures.

Power Generation & Transmission: Turbine governor control systems and excitation regulator drives in thermal and hydroelectric power stations rely on the HDS03.2’s stable DC bus and low-ripple current output to maintain grid synchronization accuracy. Any control interruption in these applications risks frequency deviation events with grid-wide consequences.

Mining & Mineral Processing: Underground hoist drives, conveyor tensioning systems, and crusher feed control applications subject servo drives to extreme vibration, coal dust ingress, and wide ambient temperature swings. The HDS03.2’s robust enclosure design and conformal-coated PCBs (where applicable) provide the environmental resilience required for continuous operation in these conditions.

Water & Wastewater Treatment: Variable-speed pump drives in municipal water treatment stations must maintain precise flow control 24/7. The HDS03.2’s integrated fault diagnostics and SERCOS fault reporting allow SCADA systems to detect drive anomalies before they escalate to pump failure, supporting predictive maintenance strategies that reduce unplanned downtime.

Metallurgy & Steel Rolling Mills: In hot strip mill main drive applications, the HDS03.2 manages high-inertia roll drive axes where speed regulation accuracy directly impacts product thickness tolerances. The drive’s high dynamic current response and regenerative braking capability are essential for the rapid acceleration and deceleration cycles inherent in reversing mill operations.

Port Cranes & Material Handling: Container crane hoist and trolley drives demand fail-safe load holding under all fault conditions. The HDS03.2’s hardware STO-compatible enable input integrates with safety relay modules to ensure that drive torque is removed in a controlled, monitored manner upon safety system activation — preventing uncontrolled load descent.

Marine & Offshore Vessels: Dynamic positioning thruster drives and deck machinery winch controllers on offshore support vessels operate in high-humidity, salt-laden atmospheres with continuous vibration from hull flexure and engine operation. The HDS03.2’s sealed cabinet integration and EMC-compliant design support reliable operation in these challenging marine environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the HDS03.2-W100N-HT20-01-FW?
The 12-month warranty covers all manufacturing defects, component failures, and functional performance deviations from Rexroth’s published specifications. It applies from the date of shipment and includes technical support for fault diagnosis. Warranty claims are processed with priority to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every HDS03.2-W100N-HT20-01-FW unit undergoes a full functional test under load conditions prior to dispatch. This includes DC bus voltage verification, current loop response testing, SERCOS communication handshake validation, and hardware enable input functionality confirmation. A test report is available upon request.

Q3: Is this drive compatible with existing Rexroth INDRAMAT HDS03 series installations?
Yes. The HDS03.2-W100N-HT20-01-FW is a direct form-fit-function replacement for other HDS03.2 series drives of equivalent current rating. It is compatible with existing SERCOS II fiber-optic networks, Rexroth MSK/MKD/MHD servo motors with resolver or EnDat feedback, and HVR/KVR power supply units. No firmware re-parameterization is required when replacing a like-for-like unit.

Q4: Can long-term supply be guaranteed for this end-of-life Rexroth component?
NINERMAS maintains dedicated inventory reserves for critical INDRAMAT HDS series components to support long-term maintenance contracts and planned replacement programs. We source from verified global supply channels and can provide supply commitment agreements for customers requiring multi-year spare parts coverage. Contact our technical team to discuss your site’s long-term spare parts strategy.
