TEL 2986-411806-11 Service-Ready Spare Part

TEL 2986-411806-11 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

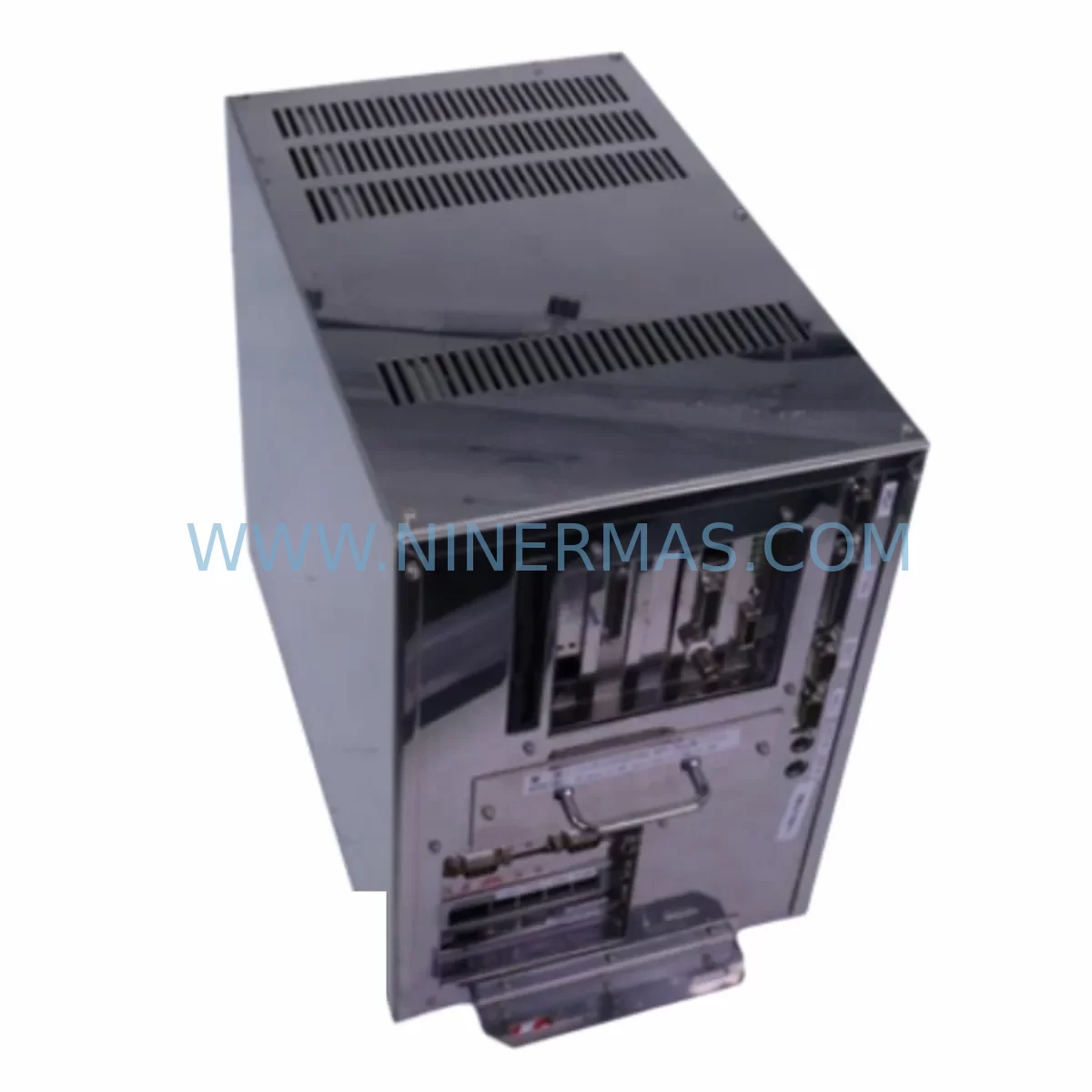

The TEL 2986-411806-11 is a ruggedized system control module manufactured by Tokyo Electron (TEL), designed for deployment in demanding semiconductor processing and industrial automation environments. As a critical component within the TEL 2986 Series control architecture, this module governs system-level coordination, process sequencing, and real-time I/O management across the equipment platform. When this module fails or degrades, the entire process line is at risk of unplanned downtime — making a verified, service-ready spare essential for any maintenance-conscious operation.

At NINERMAS, we supply the 2986-411806-11 as a fully tested, original-specification spare part with a 12-month warranty, pre-shipment functional verification, and rapid global dispatch. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a strategic spare parts inventory, this module is available for immediate procurement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the TEL 2986-411806-11 system control module, a thorough site inspection of the surrounding control architecture is strongly recommended. Maintenance engineers and procurement teams should treat this replacement as an opportunity to audit the full control cabinet and associated subsystems.

Begin by verifying the 24VDC and 5VDC power supply rails feeding the control board — degraded power modules such as the TEL 2986 series DC power supply units are a common root cause of premature controller failure. Inspect all I/O interface boards connected to the 2986 platform, including digital input/output expansion cards and analog signal conditioning modules, for signs of corrosion, loose connectors, or intermittent faults.

The communication backplane and inter-module ribbon cables within the 2986 chassis should be checked for continuity and seating integrity — a partially seated backplane connector can cause the control module to report false faults or fail to initialize. If the system uses SEMI E5 / SECS-II communication or a proprietary TEL host interface, verify that the communication interface card (e.g., TEL 2986 SECS/GEM module) is functioning correctly after the control module swap.

Relay output boards and solid-state relay (SSR) driver modules in the same cabinet should be inspected for contact wear, especially those controlling vacuum pumps, gas valves, and heater zones — these components experience high cycle counts and are frequently overlooked during corrective maintenance. Similarly, signal isolation modules between the controller and field instrumentation should be tested for drift, as degraded isolation can introduce noise that destabilizes the new control module.

For systems with an integrated HMI panel (operator interface terminal), confirm that the HMI communication link to the 2986 controller is re-established after replacement and that all recipe and parameter data is correctly loaded. Terminal blocks and field wiring at the I/O marshalling panel should be torqued to specification and inspected for insulation damage. Finally, review the status of fuse holders and circuit protection devices on the 24VDC control bus — a blown fuse or degraded fuse holder is often the first sign of an upstream fault that caused the original module failure.

Proactively stocking the following companion components alongside the 2986-411806-11 is recommended for sites with extended maintenance intervals or remote locations: TEL 2986 series I/O expansion boards, DC power supply modules, communication interface cards, SSR driver boards, signal isolators, and HMI interface units.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the TEL equipment diagnostic interface to confirm the 2986-411806-11 as the failed component. Log the fault code and capture the system state before powering down.

Step 2 — Safe Shutdown: Follow the TEL 2986 platform lockout/tagout (LOTO) procedure. Discharge any stored energy in the control cabinet before opening the enclosure.

Step 3 — Module Removal: Disconnect all I/O connectors, communication cables, and power headers from the control module in the sequence specified in the TEL field service manual. Label all connectors before removal to prevent mis-wiring during reinstallation.

Step 4 — Spare Installation: Install the NINERMAS-supplied 2986-411806-11 replacement module. Verify that all connectors are fully seated and that the module is secured to the chassis per OEM torque specifications.

Step 5 — Power-Up & Verification: Restore power in the correct sequence. Confirm that the control module initializes without fault codes, that all I/O channels respond correctly, and that the HMI displays the expected system status.

Step 6 — Process Validation: Run a dry-cycle or test recipe to confirm full system functionality before returning the equipment to production. Document the replacement in the site maintenance log.

This workflow minimizes mean time to repair (MTTR) and ensures that the replacement module is correctly integrated into the existing 2986 platform without introducing new faults. Sites that maintain a pre-tested spare on the shelf can typically complete this workflow in under four hours, significantly reducing the cost of unplanned downtime.

Spare Parts Support FAQ

Q1: Is the NINERMAS 2986-411806-11 a direct OEM-equivalent replacement?
Yes. The module supplied by NINERMAS meets the original Tokyo Electron specification for the 2986-411806-11 and is a direct drop-in replacement for the OEM-installed unit. No firmware modification or hardware adaptation is required for standard 2986 platform installations.

Q2: What pre-shipment testing is performed on this module?
Every 2986-411806-11 unit undergoes functional verification prior to dispatch, including power-on self-test, I/O channel continuity checks, and communication interface validation. A test report is available upon request. The module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can NINERMAS support long-term or scheduled spare parts supply for the TEL 2986 platform?
Yes. NINERMAS offers long-term supply agreements for critical spare parts including the 2986-411806-11 and associated 2986 series components. We maintain stock buffers for high-demand modules and can support annual procurement planning, blanket orders, and emergency call-off arrangements to ensure your maintenance team always has access to verified spares.

Q4: What should I do if the replacement module does not resolve the original fault?
If the fault persists after installing the 2986-411806-11, the issue may originate in an upstream component such as the power supply, backplane, or I/O interface board. Contact the NINERMAS technical support team at sale@ninermas.com or +0086 187 5021 5667 for fault isolation guidance. Our team can assist with identifying companion components that may require replacement as part of the same corrective maintenance event.
