TEL TVB3001-1/STI-3281-000035-19 Service-Ready Industrial Spare

TEL TVB3001-1/STI-3281-000035-19 Service-Ready Industrial Spare: Spare Part Replacement and Downtime Risk Control

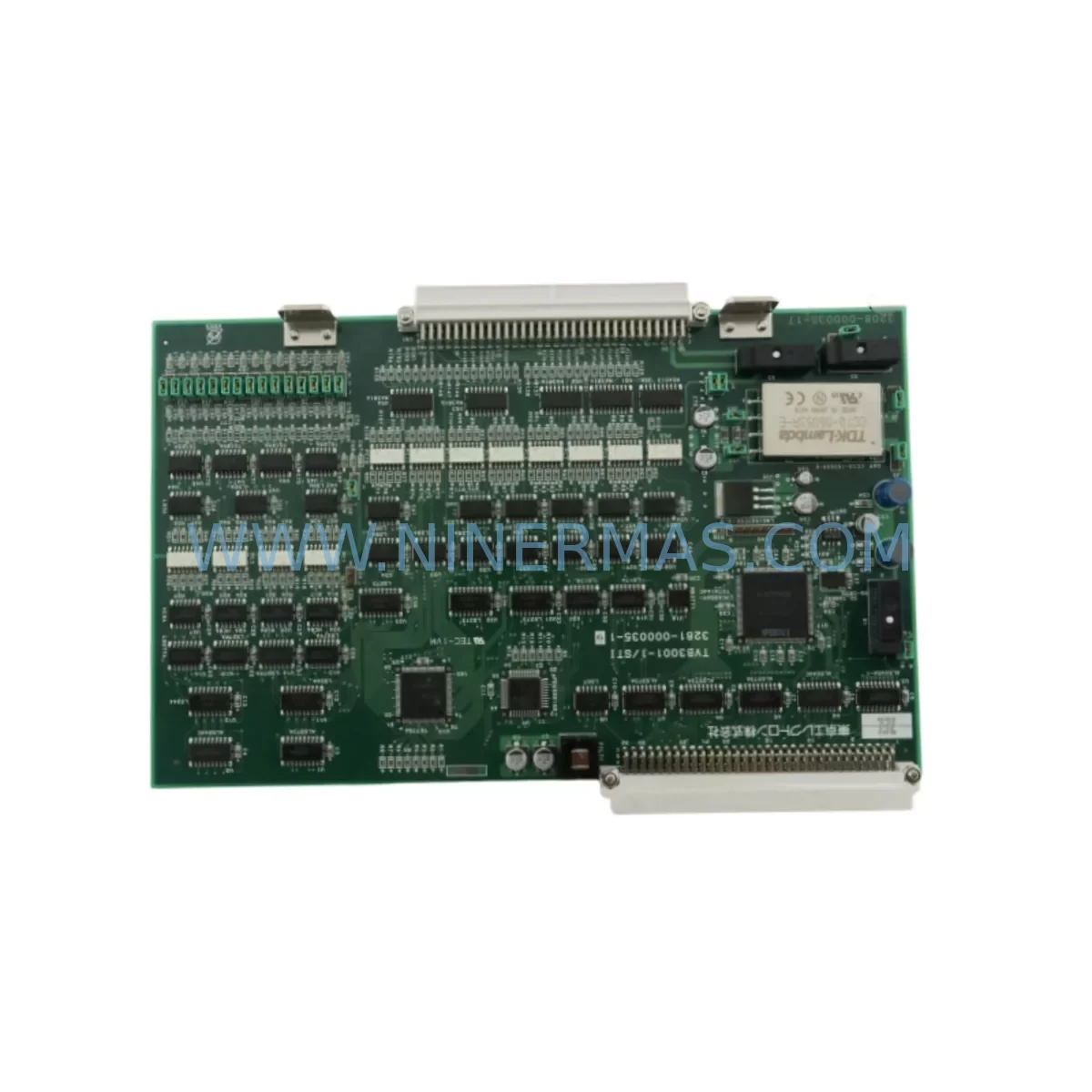

The Tokyo Electron (TEL) TVB3001-1/STI-3281-000035-19 is a critical PCB assembly used in TEL semiconductor processing equipment within the TVB3000 series platform. For maintenance engineers managing wafer fabrication lines, etch systems, or CVD chambers, this board sits at the intersection of process control and system uptime. When this component fails or degrades, the downstream impact on throughput and yield can be severe. NINERMAS stocks this spare part as a service-ready replacement, pre-shipment tested and backed by a 12-month warranty, to support rapid field restoration and minimize mean time to repair (MTTR).

Procurement engineers sourcing this part for planned maintenance cycles or emergency replacement will find that the TVB3001-1/STI-3281-000035-19 is not always available through standard distribution channels. TEL equipment is widely deployed across leading semiconductor fabs globally, and legacy system support often depends on specialist spare parts suppliers with dedicated inventory programs. NINERMAS maintains reserved stock of this PCB to support both scheduled annual overhauls and unplanned breakdown scenarios, with committed lead times and long-term supply agreements available on request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the TVB3001-1/STI-3281-000035-19 in a live production environment requires a structured approach that goes beyond swapping the board itself. Maintenance engineers should treat this replacement as an opportunity to audit the surrounding electrical and control architecture to prevent repeat failures and reduce future downtime exposure.

Begin with the power supply feeding the TVB3000 series backplane. TEL systems typically use dedicated DC power modules that supply regulated voltages to each board slot. If the TVB3001-1 has failed due to overvoltage or ripple, the power supply module itself — often a TEL-branded or OEM-equivalent unit — should be tested and replaced if out of specification. Alongside this, inspect the backplane connector integrity; damaged backplane slots can cause intermittent faults that are difficult to diagnose and may damage a newly installed board.

The I/O signal conditioning boards adjacent to the TVB3001-1 in the control cabinet should also be checked. These boards handle analog and digital signals between the process chamber and the main controller. Degraded signal isolation on these boards can introduce noise that affects process repeatability even after the primary PCB is replaced. Similarly, any relay output modules or solid-state relay (SSR) assemblies in the same electrical loop should be inspected for contact wear or thermal damage.

Communication interface modules — whether RS-232, RS-485, or proprietary TEL fieldbus — that connect the TVB3000 series controller to upstream MES or equipment automation systems should be verified for correct operation after board replacement. A communication fault at this layer can prevent the equipment from returning to auto mode even when the hardware is otherwise functional.

For systems with HMI panels connected to the TVB3000 platform, confirm that the display and operator interface are correctly re-initialized after the board swap. Some TEL systems require a parameter reload or recipe re-download following a control board replacement. Fuse assemblies and circuit protection components in the power distribution section of the control cabinet should also be inspected — a blown fuse or tripped thermal protector may have been the root cause of the original board failure rather than a symptom.

Finally, signal isolators between the process sensors and the control board, as well as any terminal block assemblies used for field wiring connections, should be checked for loose terminations or corrosion. These are common sources of intermittent faults in high-uptime semiconductor environments and are often overlooked during emergency repairs.

Site Replacement Workflow

When replacing the TVB3001-1/STI-3281-000035-19 on-site, follow a structured workflow to minimize downtime and ensure system compatibility:

Step 1 — Fault Isolation: Confirm the TVB3001-1 is the failed component using TEL diagnostic software or fault code analysis. Document the fault code and any process alarms prior to shutdown.

Step 2 — Safe Shutdown: Follow TEL lockout/tagout (LOTO) procedures for the affected equipment. Discharge any stored energy in the power supply section before accessing the control cabinet.

Step 3 — Board Removal: With ESD protection in place, carefully unseat the TVB3001-1 from the backplane. Note connector orientation and any jumper or DIP switch settings on the original board before removal.

Step 4 — Compatibility Verification: Compare the part number, revision level, and any sub-assembly markings on the replacement board against the original. Confirm compatibility with the equipment’s firmware version if applicable.

Step 5 — Installation: Seat the replacement board firmly, reconnect all cables and connectors, and verify that all indicators are correctly positioned. Restore power and observe startup diagnostics.

Step 6 — Functional Verification: Run the equipment through a test cycle or dry run before returning to production. Confirm that all process parameters, communication links, and I/O signals are operating within specification.

Step 7 — Documentation: Record the replacement in the equipment maintenance log, including the new board’s serial number, installation date, and technician details. Update the spare parts inventory accordingly.

This workflow supports rapid restoration of semiconductor processing equipment while maintaining system integrity and traceability — both critical requirements in regulated fab environments.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the TVB3001-1/STI-3281-000035-19?
NINERMAS provides a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing before dispatch to reduce the risk of DOA (dead-on-arrival) scenarios in the field.

Q2: How do I verify compatibility before ordering?
Provide your equipment model number, serial number, and the existing board’s full part number including any revision suffix. NINERMAS technical staff will cross-reference against known TEL TVB3000 series configurations to confirm compatibility before shipment. For critical applications, we recommend requesting a compatibility confirmation in writing prior to placing the order.

Q3: Can NINERMAS support long-term supply of this part for multi-year maintenance contracts?
Yes. NINERMAS offers reserved inventory programs and long-term supply agreements for customers with ongoing maintenance requirements. This is particularly relevant for fabs operating legacy TEL equipment where OEM support has been discontinued. Contact our sales team to discuss committed stock levels, pricing, and lead time guarantees.
