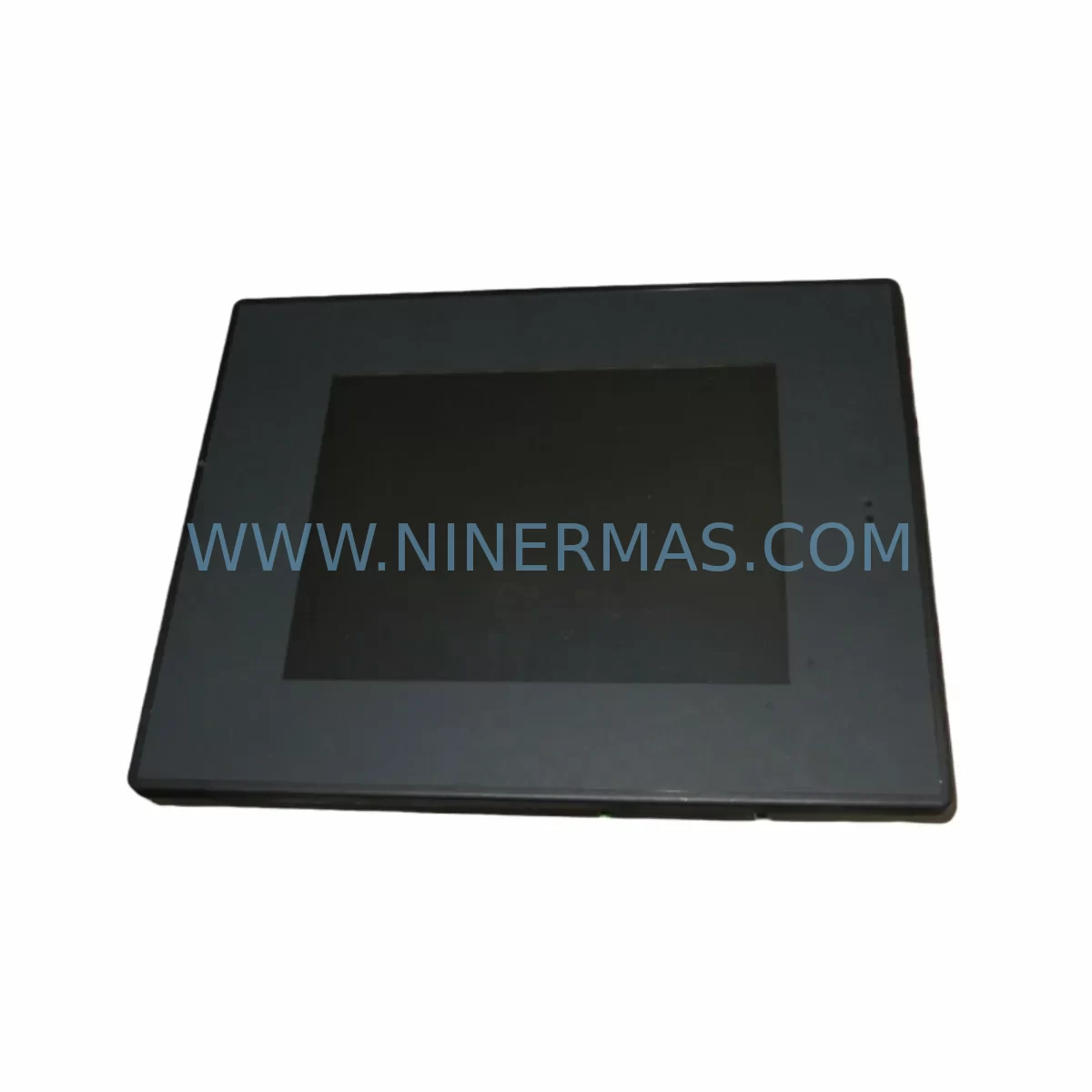

The GE IC754VBI10MTD-BB is a ruggedized operator interface panel from GE’s QuickPanel series, engineered for demanding industrial environments where legacy HMI systems have reached end-of-life or are no longer supported by the original manufacturer. As automation engineers face increasing pressure to modernize aging control architectures without full system overhauls, the IC754VBI10MTD-BB provides a proven, retrofit-ready solution that bridges the gap between discontinued operator panels and current production requirements.

This unit is purpose-built for facilities running older GE Fanuc, GE Series 90, or third-party PLC platforms where the original HMI hardware has become obsolete, difficult to source, or incompatible with updated communication protocols. The IC754VBI10MTD-BB supports direct panel cutout replacement in many legacy control cabinet configurations, significantly reducing installation time and minimizing the need for structural cabinet modifications during upgrade projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful deployment of the IC754VBI10MTD-BB in a retrofit scenario requires a structured pre-installation review. Engineers should begin by auditing the existing control cabinet layout to confirm available panel depth, backplane clearance, and cable routing space. In many legacy installations, the original HMI was mounted alongside a GE IC693PWR321 or similar 24 VDC power supply module; verifying that the existing supply can sustain the current draw of the replacement panel is a critical first step before any hardware swap.

Communication wiring must be carefully mapped. If the legacy system relied on RS-232 serial links to a GE IC693CPU374 or IC693CPU364 controller, the replacement panel’s serial port pinout and baud rate settings must be confirmed against the original configuration. For sites that have already migrated their PLC to Ethernet-based communication — for example, using a GE IC693CMM321 Ethernet communications module — the IC754VBI10MTD-BB’s onboard Ethernet port can be leveraged to establish a direct SRTP or EGD connection, eliminating the need for serial-to-Ethernet converters.

Where the legacy control system includes discrete I/O expansion racks using modules such as the GE IC693MDL645 (DC input) or IC693MDL740 (DC output), the HMI screen project must be reviewed to ensure all I/O tag addresses remain valid after the panel swap. Address mapping errors are among the most common causes of extended commissioning time during HMI replacement projects. It is strongly recommended to export and archive the full tag database from the outgoing panel before decommissioning.

For facilities where the control architecture includes a GE IC693ALG392 analog input module or similar signal conditioning hardware, engineers should verify that the HMI’s analog trend displays and alarm setpoints are correctly re-mapped in the new screen project. Signal isolators may be required if ground loop issues are detected during pre-commissioning checks.

In multi-panel or distributed HMI architectures — for example, where a GE IC754VSI06MTD or similar remote operator station is networked alongside the primary panel — the replacement of one node must be coordinated with the network configuration of all remaining nodes to avoid IP address conflicts or communication timeouts. A GE IC693CMM302 communications coprocessor, if present in the rack, should also be checked for firmware compatibility with the updated HMI driver set.

All pre-shipment units are functionally tested prior to dispatch. Each IC754VBI10MTD-BB is verified for display integrity, communication port functionality, and power-on self-test completion before packaging. This pre-shipment testing protocol is part of our standard quality assurance process and is covered under the 12-month warranty.

Downtime Control During System Migration

Minimizing production downtime is the primary operational concern during any HMI replacement project. For the IC754VBI10MTD-BB, the recommended migration approach is a parallel preparation strategy: the replacement panel is fully configured, screen project loaded, and communication parameters set on the bench before the scheduled maintenance window begins. This allows the physical swap to be completed within a single planned shutdown, typically achievable in under four hours for a straightforward panel replacement.

Before the cutover, the existing HMI screen project should be backed up in its native format and stored in a secure, version-controlled location. If the original project was developed in an older version of GE’s Proficy Machine Edition or QuickPanel Control software, compatibility with the replacement unit’s firmware version must be confirmed. In some cases, a project conversion step is required, and this should be completed and tested on a staging unit before the live cutover to avoid unexpected delays.

During the physical installation, it is advisable to label all communication cables and terminal connections before disconnection. A wiring photograph taken from multiple angles provides a reliable reference during reconnection and reduces the risk of miswiring. Once the replacement panel is installed and powered, a systematic I/O verification routine — checking each input and output against the process P&ID — should be completed before returning the system to automatic control. Alarm inhibit functions should be used during this verification phase to prevent nuisance trips from triggering downstream safety systems.

For sites with strict change management requirements, a formal pre-startup safety review (PSSR) checklist should be completed and signed off before the system is returned to production. This documentation also supports warranty claim processing in the event that a defect is identified during the initial commissioning period.

Retrofit Support FAQ

Q1: Is the IC754VBI10MTD-BB a direct drop-in replacement for the IC754VBI10MTD?
The IC754VBI10MTD-BB shares the same form factor and core functionality as the IC754VBI10MTD. The “-BB” suffix typically denotes a hardware revision. In most retrofit applications, the unit is a functional replacement; however, engineers should verify the screen project compatibility and communication driver version before final commissioning. Contact our technical team with your existing unit’s firmware version for confirmation.

Q2: What communication protocols does this panel support for legacy PLC integration?
The IC754VBI10MTD-BB supports Modbus RTU over RS-232/RS-485, GE SRTP over Ethernet, and SNP/SNPX serial protocols, making it compatible with a wide range of GE Series 90-30, 90-70, and VersaMax PLC platforms. For third-party PLC integration, additional driver licensing may be required depending on the target controller.

Q3: Does the unit come with pre-shipment testing and a warranty?
Yes. Every IC754VBI10MTD-BB dispatched from our facility undergoes a pre-shipment functional test covering display, communication ports, and power-on diagnostics. The unit is covered by a 12-month warranty from the date of shipment. Warranty claims are supported by our technical team and include remote diagnostic assistance as a first step before any return authorization is issued.

Q4: What is the typical lead time and stock availability?
We maintain inventory of the IC754VBI10MTD-BB to support urgent retrofit and breakdown replacement requirements. Standard orders are processed within 1–3 business days. For large-quantity or project-based procurement, please contact us directly to confirm availability and lead time. Expedited shipping options are available for critical production downtime situations.
