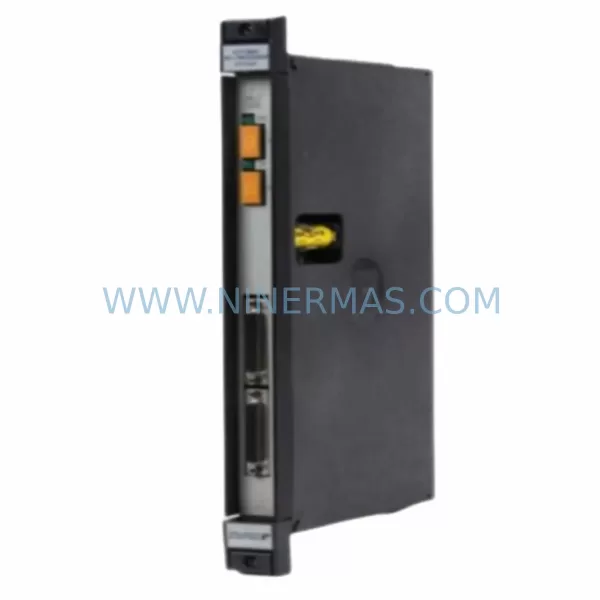

RELIANCE 57C431A Retrofit-Compatible Processor Module

RELIANCE 57C431A Retrofit-Compatible Processor Module: Legacy System Compatibility and Smooth Upgrade Path

The RELIANCE 57C431A is a processor module originally designed for Reliance Electric’s AutoMax distributed control platform — a system widely deployed across paper mills, steel processing lines, metal rolling mills, and continuous process manufacturing facilities throughout the 1980s and 1990s. As the AutoMax platform has reached end-of-life and original spare parts have become increasingly scarce, the 57C431A has become one of the most sought-after retrofit-compatible processor modules for engineers tasked with extending the operational life of legacy control systems without committing to a full DCS or PLC migration.

At NINERMAS, we supply the 57C431A as a tested, retrofit-ready replacement module backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm processor initialization, backplane communication integrity, and I/O bus response before dispatch. Our inventory is maintained to support both emergency breakdown replacements and planned spare parts programs for facilities operating aging AutoMax-based control architectures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 57C431A processor module within an active AutoMax control system requires careful pre-planning to avoid unintended process interruptions. Before the replacement module arrives on site, maintenance engineers should retrieve and verify the current application program backup from the existing processor. AutoMax systems typically store ladder logic and function block programs on proprietary memory cartridges or via a connected programming workstation running AutoMax programming software — confirm that a verified backup exists before proceeding.

The power supply module feeding the rack — commonly the 57C401A power supply — must be assessed for available headroom. If the existing power supply is already operating near capacity due to a fully populated rack including analog input modules, digital output modules, and communication interface cards, adding or swapping a processor module without verifying power budget can cause instability across the entire rack. In some retrofit scenarios, engineers have found it necessary to upgrade the power supply in parallel with the processor replacement.

Backplane and rack integrity should be inspected during the replacement window. The 57C400A-series chassis used in AutoMax systems can develop backplane connector wear after years of continuous operation. If the 57C431A processor module is being replaced due to intermittent faults rather than hard failure, the root cause may lie in the backplane connector or rack itself rather than the processor module. Cleaning backplane contacts and inspecting for corrosion or mechanical damage is recommended before installing the replacement unit.

Network interface modules such as the 57C410A AutoMax Network Communication Module or the 57C420A Coax Network Interface are critical to the distributed control architecture. When replacing the processor, confirm that the network node address and token-passing configuration stored in the processor are correctly re-established after the new 57C431A is installed. Failure to restore the correct node address will cause the replacement processor to fail to join the AutoMax network, resulting in loss of communication with remote I/O racks, operator interface panels, and drive controllers.

For facilities that have integrated AutoMax with third-party drive systems — such as Reliance Electric GV3000 or GP2000 series AC drives — the communication link between the processor and the drive network must be re-validated after processor replacement. Drive parameter sets and speed reference scaling should be confirmed against the original commissioning documentation. Similarly, if the AutoMax system interfaces with a SCADA or DCS layer via a 57C450A or similar gateway module, the data exchange configuration should be verified to ensure process variable mapping remains intact.

I/O module addressing within the AutoMax rack is processor-dependent. After installing the 57C431A replacement, the I/O configuration table within the application program must match the physical slot assignments of analog input modules, thermocouple input modules, digital I/O modules, and any specialty function modules installed in the rack. Mismatched I/O addressing is one of the most common commissioning errors during processor replacement and can result in incorrect process control outputs if not caught during pre-startup verification.

HMI panels connected to the AutoMax system — whether legacy Reliance operator interface terminals or third-party panels communicating via serial or network links — should be tested for correct tag resolution after the processor replacement. Tag database mismatches between the HMI and the restored application program can cause display errors or incorrect alarm setpoints that are not immediately obvious during initial startup.

Downtime Control During System Migration

Minimizing downtime during a 57C431A processor replacement begins with preparation well before the maintenance window opens. The single most effective measure is ensuring a verified, tested program backup exists and can be successfully loaded onto the replacement processor before the production line is taken offline. Where possible, pre-loading the application program onto the replacement 57C431A in a workshop environment and confirming successful initialization before bringing the module to site eliminates one of the most time-consuming steps from the critical path.

For facilities where the AutoMax system controls continuous processes — such as paper machine drives, rolling mill tension control, or chemical dosing systems — a structured cold-swap procedure is strongly recommended over any attempt at hot-swap replacement. The 57C431A processor module controls the execution of all application logic within its rack; removing it while the system is energized without proper isolation creates risk of uncontrolled output states across connected drive systems and field devices.

A pre-shutdown checklist should include: confirming all drive systems are in a safe stopped state, verifying that field devices are in a known safe position, documenting current process setpoints and control mode states, and notifying all operators and upstream/downstream process areas of the planned outage window. After the replacement module is installed and the application program is reloaded, a structured startup sequence should be followed — beginning with I/O verification in manual mode before returning any drive or process control loop to automatic.

Where the AutoMax system operates in a redundant processor configuration, the replacement procedure may allow for a bumpless transfer to the standby processor while the primary 57C431A is replaced — consult the system architecture documentation to confirm whether redundancy is configured and whether the standby processor firmware version is compatible with the application program version in use.

NINERMAS maintains ready stock of the 57C431A to support both planned maintenance programs and emergency breakdown scenarios. Fast dispatch is available for urgent requirements, and our technical team can provide pre-shipment configuration support to reduce on-site commissioning time.

Retrofit Support FAQ

Q1: Is the RELIANCE 57C431A a direct drop-in replacement for the original module?
Yes, the 57C431A is designed as a slot-compatible replacement for the same part number within the AutoMax rack. However, after physical installation, the application program must be reloaded from a verified backup, and network node address settings must be re-confirmed. The module does not retain the previous processor’s program or configuration after replacement.

Q2: What pre-shipment testing does NINERMAS perform on the 57C431A?
Each 57C431A unit supplied by NINERMAS undergoes functional power-on testing, backplane communication verification, and processor initialization confirmation before shipment. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: How do I confirm wiring and terminal compatibility before installation?
The 57C431A processor module connects to the system via the AutoMax backplane — there are no field wiring terminals on the processor module itself. Field wiring connects to I/O modules installed in adjacent rack slots. Confirm that the rack (e.g. 57C400A chassis), power supply (e.g. 57C401A), and I/O modules are in serviceable condition before replacing the processor.

Q4: Can NINERMAS supply other AutoMax spare parts alongside the 57C431A?
Yes. NINERMAS maintains inventory of a range of AutoMax-compatible spare parts including network interface modules, power supply modules, analog and digital I/O modules, and communication gateway modules. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm availability and lead times for your specific requirements.
