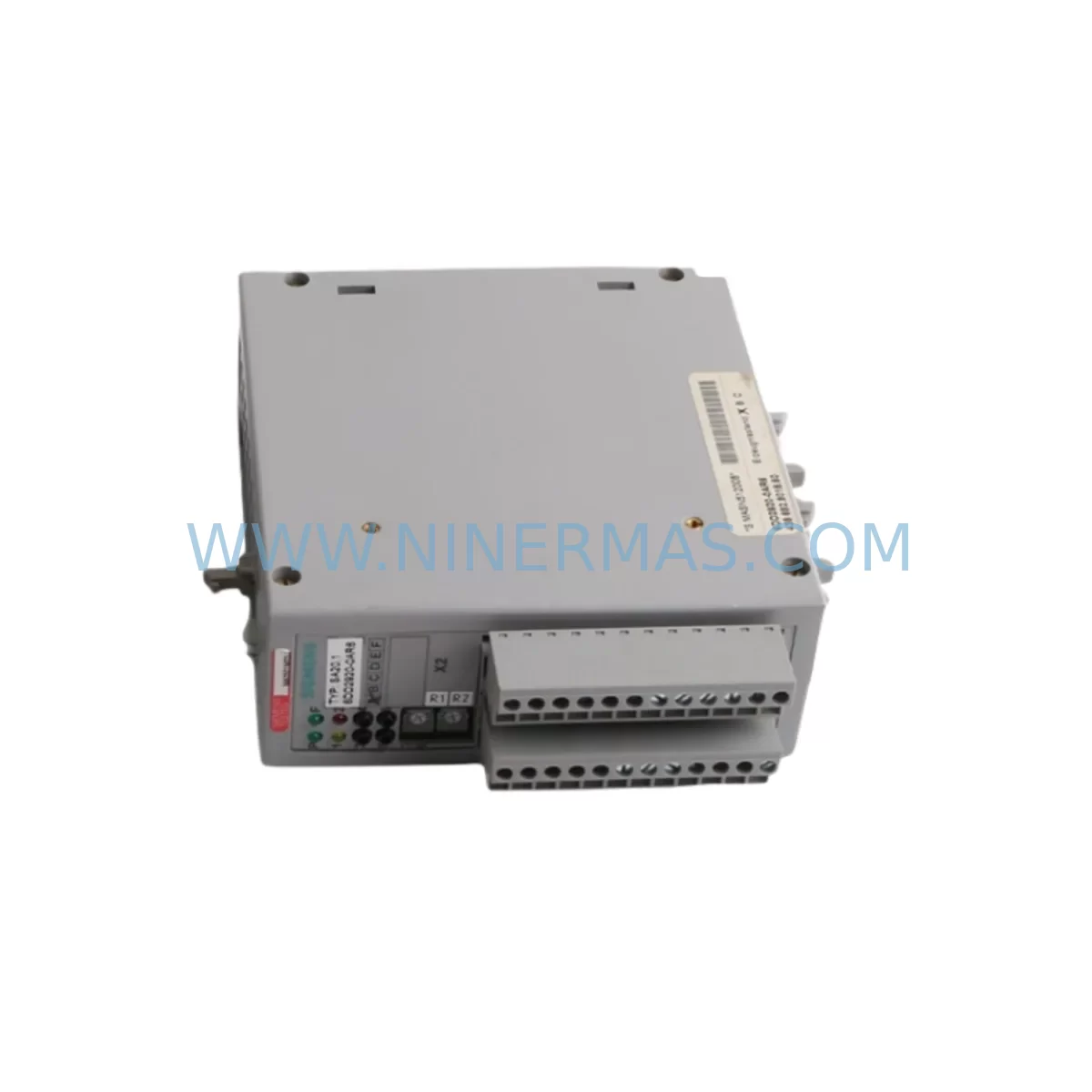

Siemens 6DD2920-0AR5 Retrofit-Compatible Processor for Legacy Systems

Siemens 6DD2920-0AR5 Retrofit-Compatible Processor for Legacy Systems

The Siemens 6DD2920-0AR5 is a processor module originally designed for the SIMADYN D real-time automation platform — a high-performance, rack-based control system widely deployed across power generation, drive control, rolling mills, and heavy industrial automation throughout the 1990s and 2000s. As Siemens has officially discontinued the SIMADYN D product line, sourcing a verified, tested replacement unit has become one of the most critical challenges for maintenance engineers and procurement teams managing legacy control infrastructure.

At NINERMAS, we stock the 6DD2920-0AR5 as a retrofit-compatible spare part, fully tested prior to shipment and backed by a 12-month warranty. Whether you are executing a like-for-like board swap, planning a phased control cabinet upgrade, or managing an emergency breakdown recovery, this module is available for immediate dispatch to global destinations including the US, EU, UK, Japan, and Southeast Asia.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6DD2920-0AR5 processor in an active SIMADYN D installation requires a structured approach that accounts for the full control architecture — not just the processor board itself. In most legacy deployments, the SIMADYN D rack houses a combination of modules that must be evaluated as a system before any swap is initiated.

Begin by auditing the existing rack configuration. The 6DD1681-0AE0 power supply module is the most common PS unit paired with this processor; confirm its output voltage and current capacity can support the replacement board under full I/O load. If the power supply is aging or showing voltage drift, it is strongly recommended to replace it concurrently to avoid post-retrofit instability.

Next, document all installed I/O modules in the rack. Analog input modules such as the 6DD1606-0AE0 and digital output modules like the 6DD1607-0AE0 must retain their original slot addresses. If the processor replacement involves any slot reassignment, the module address table in the CFC program must be updated accordingly before the system is restarted. Failure to do so will result in I/O mapping errors and potential process faults.

Communication continuity is another critical checkpoint. If the existing system uses a PROFIBUS DP network connecting the SIMADYN D controller to remote I/O stations, variable-speed drives, or third-party field devices, the DP master configuration stored in the processor must be re-loaded after the swap. Ensure the PROFIBUS address list and GSD files are archived before the outage window begins. In systems where the SIMADYN D communicates upstream to a SIMATIC S5 or early S7 controller via SINEC H1, the network topology and station addresses must be verified post-replacement to confirm data exchange integrity.

For sites that have already partially migrated to newer platforms, the 6DD2920-0AR5 replacement can serve as a bridge solution while a longer-term migration to SIMATIC S7-400 or SIMATIC PCS 7 is planned. In such hybrid environments, signal isolators and protocol converters may be required to maintain communication between the legacy SIMADYN D rack and newer S7 I/O modules or ET 200M distributed I/O stations. A CP 443-1 communication processor or equivalent Industrial Ethernet module may also be needed if the site is transitioning from SINEC H1 to standard TCP/IP-based SCADA connectivity.

HMI compatibility should be confirmed early in the planning process. Most SIMADYN D installations use SIMATIC OP37 or TP270 operator panels connected via MPI or PROFIBUS. A direct processor swap does not require HMI reconfiguration, but if the retrofit is combined with a panel upgrade to a modern SIMATIC HMI Comfort Panel, screen tag mapping and communication driver settings must be re-validated. Programming cables such as the PC Adapter USB A2 or MPI/DP adapter will be required for online diagnostics and program upload during commissioning.

Finally, confirm physical installation space within the control cabinet. The 6DD2920-0AR5 occupies a standard SIMADYN D rack slot, but cabinet airflow, cable routing, and grounding arrangements should be inspected before the replacement unit is installed. Proper EMC bonding of the rack chassis to the cabinet earth bar is essential in high-noise industrial environments such as drive rooms and motor control centers.

Downtime Control During System Migration

Minimizing production downtime during a SIMADYN D processor replacement requires preparation that begins well before the scheduled maintenance window. The most effective approach is to treat the swap as a structured outage event with defined go/no-go checkpoints rather than an ad-hoc board change.

Pre-outage preparation should include a full backup of the processor’s CFC/SFC program using SIMATIC Manager or the legacy STEP 5 toolset, depending on the firmware generation. This backup must be stored on a verified offline medium and tested for readability before the outage begins. Simultaneously, capture a snapshot of all PROFIBUS DP slave configurations, I/O force tables, and any active diagnostic buffers. These records serve as the baseline for post-swap verification.

During the swap itself, follow a strict sequence: power down the rack via the PS module, extract the 6DD2920-0AR5 using the correct ejector tool to avoid backplane damage, insert the replacement unit, and restore power. Do not attempt a hot-swap on this module type — the SIMADYN D processor requires a cold restart to initialize its internal memory and re-establish communication with all rack-resident I/O modules.

After power-up, the first priority is to reload the program from backup and verify that all I/O modules are recognized by the processor. Check the diagnostic LEDs on each module — particularly the 6DD1606-0AE0 analog input cards and any 6DD1607-0AE0 digital output cards — to confirm fault-free initialization. Once the rack is healthy, bring the PROFIBUS network online and verify that all DP slaves are communicating correctly before releasing the system to process control.

For sites where continuous operation is critical, consider staging a parallel test rack with the replacement 6DD2920-0AR5 pre-loaded with the production program. This allows the swap to be completed within a single shift window, with the test rack serving as an immediate fallback if the primary replacement encounters an unexpected issue. This approach is particularly valuable in power plant auxiliary systems, water treatment automation, and continuous process lines where even a two-hour unplanned outage carries significant operational cost.

Retrofit Support FAQ

Q1: Is the 6DD2920-0AR5 a direct drop-in replacement for the original Siemens unit?
Yes. The NINERMAS-supplied 6DD2920-0AR5 is an OEM-equivalent unit that installs directly into the existing SIMADYN D rack slot without mechanical modification. Firmware revision should be confirmed against your existing system documentation to ensure full program compatibility before installation.

Q2: What pre-shipment testing is performed on this module?
Every 6DD2920-0AR5 unit undergoes a full functional test on a SIMADYN D test bench prior to dispatch. A test report is included with each shipment. Units that do not pass all functional checks are not released for sale.

Q3: Can you supply other SIMADYN D modules needed for a full rack rebuild?
Yes. NINERMAS maintains stock of a range of SIMADYN D components including power supply modules, analog and digital I/O cards, communication modules, and rack assemblies. Contact our team with your full BOM and we will confirm availability and lead times for each line item.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Our technical team is available to support installation and commissioning queries throughout the warranty period.
