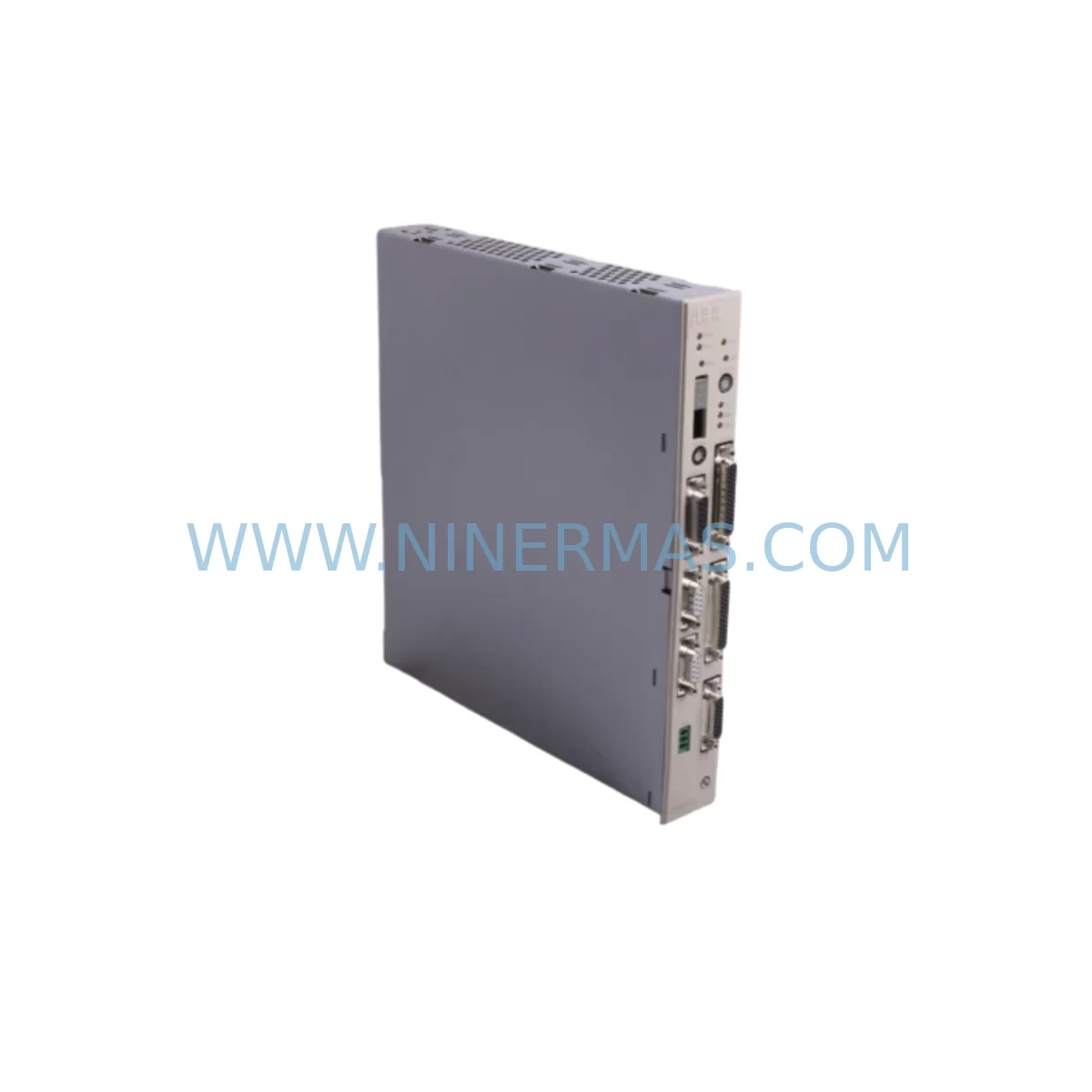

The ABB PM645B (3BSE010535R1) is a ruggedized central processing unit designed for the AC800M controller platform, one of ABB’s most widely deployed distributed control system (DCS) architectures in continuous process industries. Engineered to operate reliably in harsh industrial environments — including high electromagnetic interference, elevated ambient temperatures, mechanical vibration, and dusty or humid conditions — this processor module serves as the computational core of safety-critical control cabinets across petrochemical, power generation, mining, water treatment, metallurgical, and marine automation sites.

In critical production environments where unplanned downtime carries severe operational and safety consequences, the PM645B 3BSE010535R1 delivers the processing stability and deterministic cycle execution that plant engineers and maintenance teams depend on. Its robust hardware architecture minimizes the risk of control loop interruption, spurious trips, signal drift, and communication anomalies — all of which can cascade into hazardous process deviations or costly production losses. For facilities operating legacy ABB 800xA or Advant OCS systems, this module represents a proven, field-validated spare part that maintains full backward compatibility with existing I/O infrastructure and engineering tools.

NINERMAS maintains verified stock of the ABB 3BSE010535R1, with each unit subject to pre-shipment functional testing and covered by a 12-month warranty. Our global sourcing network ensures reliable long-term supply for end-of-life and hard-to-source ABB components, supporting plant maintenance teams that require dependable spare parts availability without extended lead times.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered AC800M control cabinet, the PM645B 3BSE010535R1 processor module does not operate in isolation — its safety and reliability performance is directly influenced by the quality and condition of every surrounding component. A systematic approach to control cabinet risk reduction requires attention to the entire signal chain, from field I/O through to the communication backbone.

On the analog input side, modules such as the ABB AI895 (3BSE038415R1) provide high-resolution measurement with built-in channel diagnostics, reducing the risk of undetected signal drift that could cause the processor to act on erroneous process values. Similarly, the ABB AO810V2 (3BSE020514R1) analog output module ensures that control commands issued by the PM645B are faithfully transmitted to final control elements, with hardware-level fault detection preventing spurious actuator movements during power transients or communication disturbances.

For digital I/O integrity, the ABB DI810 and DO810 series modules provide galvanic isolation between field wiring and the controller backplane, protecting the 3BSE010535R1 processor from voltage surges and ground loops that are common in heavy industrial environments such as arc furnace facilities, variable-frequency drive installations, and high-voltage switchgear rooms. The TB820V2 (3BSE013208R1) termination unit further simplifies field wiring connections while maintaining signal integrity across the I/O bus.

Communication reliability is equally critical. The CI854AK01 (3BSE008508R1) PROFIBUS DP communication interface module, when installed alongside the PM645B, extends the controller’s reach to field devices including intelligent motor control centers, valve positioners, and remote I/O stations. In architectures where redundant communication paths are required, the CI855K01 (3BSE008516R1) provides an additional communication channel, ensuring that a single cable fault or interface failure does not interrupt the flow of process data to the processor.

Power supply stability is a foundational requirement for processor module longevity. The ABB SD833 and SD834 power supply modules are specifically rated for AC800M systems and provide regulated, filtered DC power that protects the PM645B from voltage sags, surges, and high-frequency noise injected by adjacent variable-speed drives or large contactors. In applications where power continuity is safety-critical, a redundant power supply configuration using two SD833 units with automatic switchover eliminates the power supply as a single point of failure.

For sites requiring higher processing performance or future-proofing of the control architecture, the PM856K01 (3BSE020848R1) and PM864AK01 (3BSE040662R1) processor modules represent upward-compatible alternatives within the AC800M family, sharing the same backplane and I/O infrastructure as the PM645B. Maintaining a documented spare parts strategy that includes these processor variants, along with the TU830V1 (3BSE013234R1) termination unit and relevant communication modules, significantly reduces mean time to repair (MTTR) following an unplanned processor failure.

Critical Industrial Safety Applications

The ABB PM645B 3BSE010535R1 processor module is deployed across a broad spectrum of safety-critical and continuous process applications where control system reliability is directly linked to operational safety and regulatory compliance.

In petrochemical and refinery operations, the PM645B executes the control logic for distillation column pressure management, reactor feed ratio control, and emergency shutdown (ESD) pre-logic sequencing. Its deterministic scan cycle ensures that process deviations are detected and responded to within defined safety time limits, reducing the risk of overpressure events or uncontrolled exothermic reactions.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the module manages boiler combustion control, turbine governor interfacing, and grid synchronization sequences. The ability to maintain stable control loop execution under the high electromagnetic interference generated by large generators and transformer switching is a key reliability advantage in these environments.

In mining and mineral processing applications, the PM645B controls conveyor interlocking systems, crusher protection logic, and flotation cell reagent dosing. The ruggedized design tolerates the vibration, dust ingress, and temperature cycling characteristic of underground and open-pit mining control rooms.

In water and wastewater treatment plants, the module manages pump sequencing, chemical dosing control, and SCADA communication for remote monitoring. Reliable processor operation is essential for maintaining water quality compliance and preventing overflow events that carry environmental and regulatory consequences.

In metallurgical and steel production facilities, the PM645B supports rolling mill speed control, furnace temperature regulation, and cooling water interlock systems. The high thermal load and intense electromagnetic environment of steelmaking operations demand a processor module with proven EMC robustness and thermal stability.

In port and marine automation systems, including ship loading arms, crane control systems, and vessel management automation, the module provides the processing backbone for coordinated multi-axis motion control and safety interlock monitoring in environments subject to salt air corrosion, vibration, and wide temperature swings.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the ABB 3BSE010535R1?
Every ABB PM645B 3BSE010535R1 unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with ABB’s published specifications. Our technical team provides post-sale support to assist with installation verification and fault diagnosis throughout the warranty period.

Q2: How is each unit tested before shipment?
All ABB 3BSE010535R1 modules undergo pre-shipment functional verification at our facility. Testing confirms that the processor initializes correctly, communication interfaces are operational, and no hardware faults are present. Units that do not pass functional verification are not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the PM645B 3BSE010535R1 compatible with existing AC800M and 800xA system configurations?
Yes. The PM645B is a standard processor module for the ABB AC800M platform and is fully compatible with the existing backplane, I/O modules, communication interfaces, and Control Builder M engineering software used in 800xA and Advant OCS installations. No hardware modifications are required for direct replacement of a failed or end-of-life processor module.

Q4: Can NINERMAS support long-term and repeat supply of the ABB 3BSE010535R1?
Yes. NINERMAS maintains an active sourcing network for ABB AC800M series components, including the 3BSE010535R1, to support plant maintenance programs that require reliable spare parts availability beyond the original manufacturer’s active production period. We support both single-unit emergency orders and scheduled bulk procurement for multi-site maintenance contracts. Contact our team to discuss long-term supply agreements and lead time commitments.
