TEL 3895-120321-21 Service-Ready Spare for Industrial Maintenance

TEL 3895-120321-21 Service-Ready Spare for Industrial Maintenance

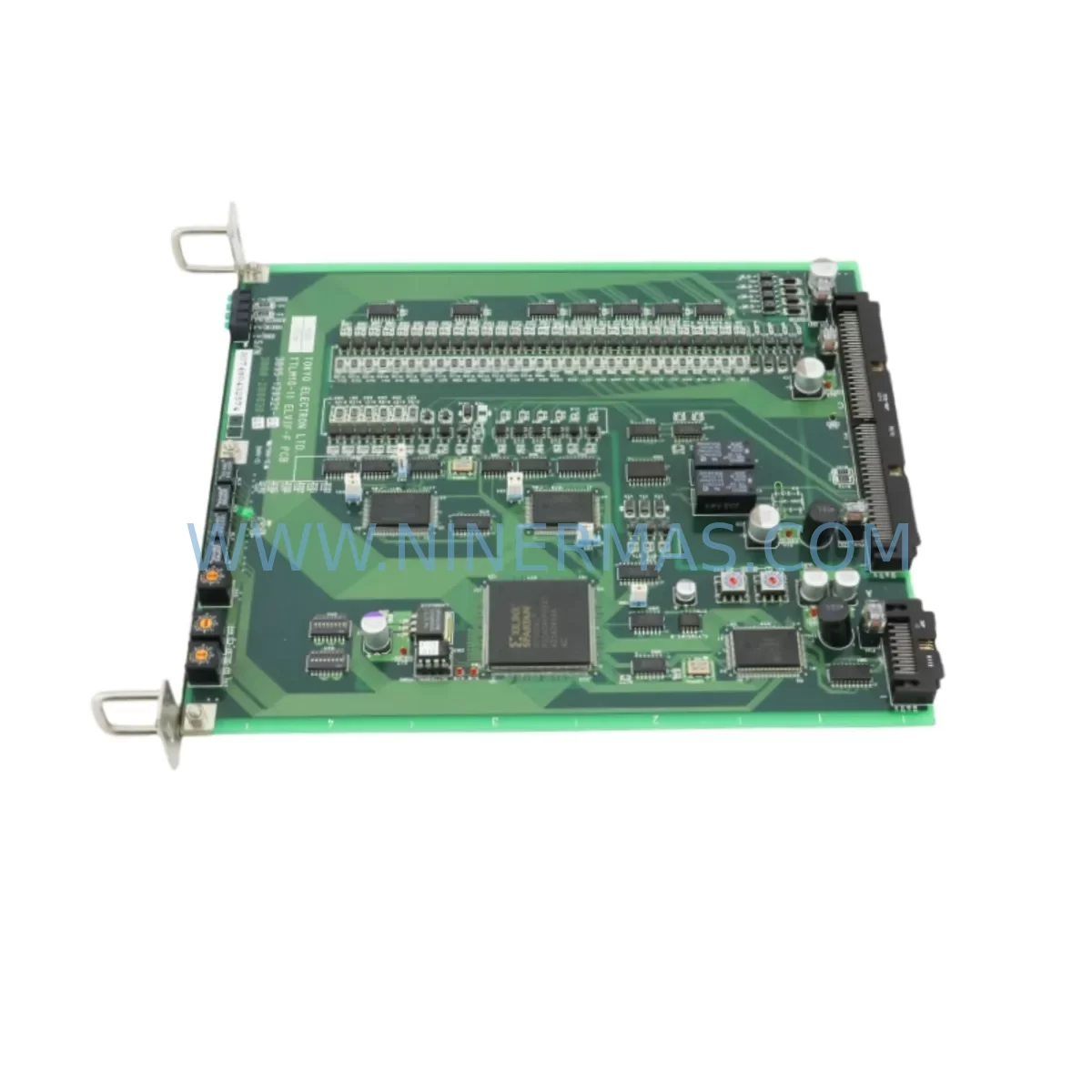

The Tokyo Electron (TEL) 3895-120321-21 — also referenced under model designation TTLM10-11 ELVIF-F — is a critical controller module used in TEL TTL-series semiconductor processing and industrial automation equipment. When this component fails or degrades, the downstream impact is immediate: process interruptions, unplanned downtime, and costly production losses. NINERMAS maintains verified, service-ready stock of the 3895-120321-21 to support maintenance engineers and procurement teams who cannot afford delays in spare parts sourcing.

Whether you are managing a scheduled annual overhaul, responding to an emergency fault alarm, or building a proactive spare parts inventory for your TEL TTL-series control cabinet, the 3895-120321-21 is a high-priority line item. Our units are sourced from original production runs, inspected against TEL specifications, and dispatched with a 12-month warranty covering functional performance under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Experienced maintenance engineers know that replacing a single module like the TEL 3895-120321-21 in isolation rarely resolves the root cause of a system fault — and it rarely prevents the next one. A structured inspection of the surrounding electrical circuit, backplane, and communication infrastructure is essential every time this module is pulled from service.

During a planned replacement of the 3895-120321-21, your site team should simultaneously inspect the TEL 3895-120322-21 (TTLM11-11 W/TIF-L), which operates in the same TTL-series control tier and shares backplane power rails. Degradation in one module frequently correlates with thermal or voltage stress on its neighbors. Similarly, the TEL TTLD14-12 WCIF-L (3881-020032-11) — a companion interface module in the same control cabinet — should be checked for connector wear and signal integrity.

On the power supply side, verify the TEL TTL-series DC power distribution module output voltages under load. Undervoltage conditions are a leading cause of premature controller module failure and are often overlooked during fault isolation. If your cabinet uses a TEL backplane bus board, inspect the edge connectors and seating clips for oxidation or mechanical fatigue — a loose backplane connection can cause intermittent faults that mimic module failure.

For I/O integrity, audit the TEL I/O interface boards connected downstream of the 3895-120321-21. Check for blown protection fuses on individual I/O channels, particularly on analog input circuits where signal spikes from field sensors can cause latent damage. Signal isolation modules between the TEL controller and field devices should also be tested — degraded isolation can introduce ground loops that corrupt process data and accelerate module wear.

Communication continuity is equally important. Inspect the TEL serial communication module or fieldbus gateway associated with the TTL-series rack. A failing communication module can cause the host system to misinterpret controller status, leading to false fault codes that send maintenance teams chasing the wrong component. Verify cable termination resistors and shielding continuity on all communication lines.

Finally, review the TEL HMI panel connected to this control tier. HMI display anomalies — frozen screens, communication timeouts, or incorrect process variable readouts — are frequently the first visible symptom of a degrading controller module like the 3895-120321-21. Addressing the HMI’s firmware version and communication settings during the same maintenance window prevents repeat call-outs.

Building a site-level spare parts kit around the 3895-120321-21 should include at minimum: one spare 3895-120321-21, one spare 3895-120322-21, one spare TTLD14-12 WCIF-L, a set of TEL-compatible terminal block connectors, and a replacement set of backplane fuses rated for your cabinet’s power supply configuration. This kit approach reduces mean time to repair (MTTR) from hours to minutes during an unplanned outage.

Site Replacement Workflow

Step 1 — Fault Confirmation: Before ordering or installing a replacement 3895-120321-21, confirm the fault using the TEL system diagnostic interface. Log the fault code, timestamp, and any associated I/O or communication alarms. This documentation supports warranty claims and root cause analysis.

Step 2 — Safe Isolation: De-energize the control cabinet following your site’s lockout/tagout (LOTO) procedure. Verify zero-voltage on the backplane power rails before removing the module. The 3895-120321-21 is a backplane-mounted unit — do not attempt hot-swap unless the TEL system documentation explicitly supports it for this model.

Step 3 — Module Removal and Inspection: Remove the 3895-120321-21 and inspect the backplane connector for bent pins, carbon tracking, or moisture ingress. Photograph the installation orientation and any DIP switch or jumper settings before removal. These settings must be replicated on the replacement unit.

Step 4 — Replacement Installation: Install the new 3895-120321-21, ensuring full backplane engagement. Replicate all switch and jumper configurations from the removed unit. Re-energize the cabinet and monitor the TEL system startup sequence for fault-free initialization.

Step 5 — Functional Verification: Run the TEL system through a complete I/O check cycle. Verify all process variables are reading correctly on the HMI. Confirm communication status with upstream PLC or DCS controllers. Document the replacement in your maintenance management system (CMMS) with the new unit’s serial number and installation date.

Step 6 — Spare Parts Replenishment: Immediately initiate a replenishment order for the consumed 3895-120321-21. Lead times for original TEL spare parts can extend significantly for end-of-life models — maintaining at least one unit in reserve is strongly recommended for any site running TEL TTL-series equipment in critical production roles.

Spare Parts Support FAQ

Q1: Is the 3895-120321-21 still in production, and how do you ensure long-term supply?
The TEL 3895-120321-21 is an end-of-life or limited-availability component. NINERMAS specializes in sourcing and holding verified stock of discontinued industrial spare parts. We maintain reserved inventory agreements and conduct regular procurement cycles to ensure continued availability. Contact our team to discuss long-term supply agreements or reserved stock arrangements for your site.

Q2: How is compatibility verified before shipment?
Each 3895-120321-21 unit is cross-referenced against TEL TTL-series documentation and tested for functional performance prior to dispatch. We verify part number markings, hardware revision levels, and electrical characteristics. If you provide your system’s serial number or software version, our technical team can confirm compatibility before you place an order.

Q3: What does the 12-month warranty cover?
Our 12-month warranty covers functional failure of the 3895-120321-21 under normal operating conditions as specified by Tokyo Electron. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s rated environmental parameters. Warranty claims are supported by our technical team with replacement dispatch or full refund options.

Q4: Can you support emergency or expedited orders for the 3895-120321-21?
Yes. NINERMAS maintains service-ready stock specifically to support unplanned downtime scenarios. Contact us directly at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock status and arrange priority dispatch. We ship globally and can coordinate with your freight forwarder for time-critical deliveries.
