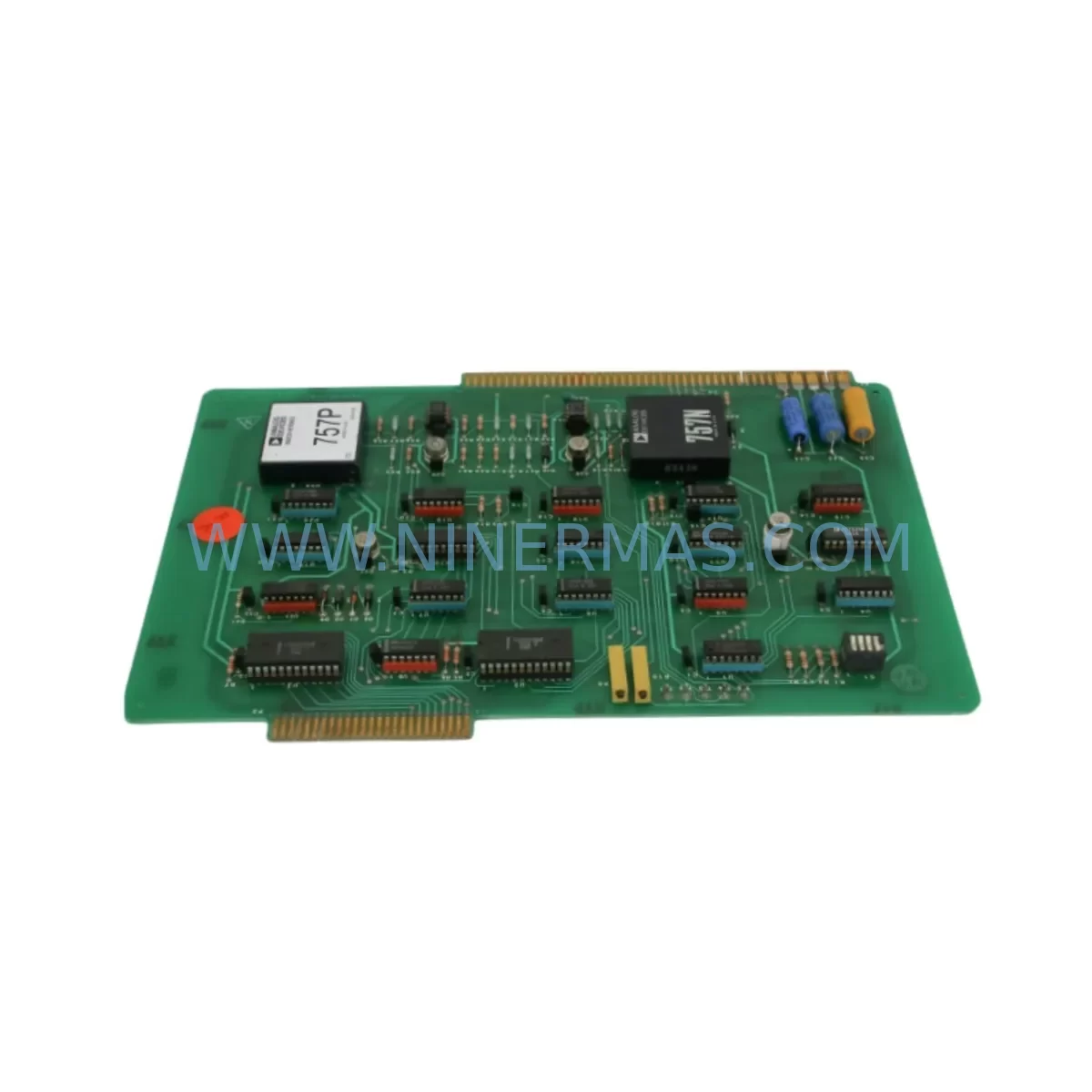

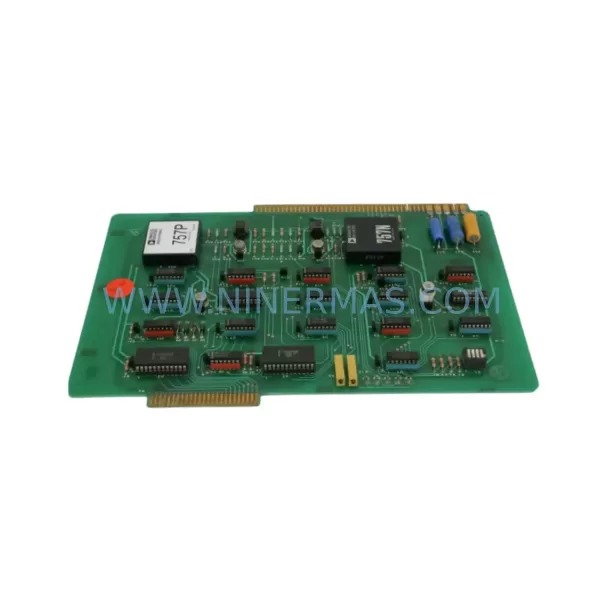

The Tokyo Electron (TEL) 1805-320125-21 is a ruggedized controller module from the TC600 series, engineered for demanding semiconductor process equipment environments. As a critical control component within TEL diffusion, oxidation, and thermal processing systems, this module governs real-time process sequencing, temperature zone management, and interlock logic. When this unit fails or degrades, the result is unplanned downtime, process drift, and costly production interruptions. Maintaining a service-ready spare of the 1805-320125-21 is a fundamental requirement for any maintenance team operating TEL TC600-based equipment.

At NINERMAS, every 1805-320125-21 unit is sourced from verified industrial channels, subjected to pre-shipment functional testing, and shipped with a 12-month warranty. Our inventory is specifically maintained to support emergency replacement, scheduled overhaul, and long-term spare parts planning for end-of-life TEL systems where OEM supply has been discontinued or lead times are unacceptable.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 1805-320125-21 controller module in isolation is rarely sufficient for a complete maintenance intervention. Maintenance engineers and procurement teams should treat this replacement as an opportunity to audit the full TC600 control cabinet and associated electrical circuits. The following components are commonly inspected or replaced concurrently to prevent repeat failures and ensure system stability after the controller module is restored.

The TEL TC600 power supply module (typically a 24VDC regulated rail unit) should be load-tested before reinstalling the new controller. A degraded power supply is a leading cause of premature controller failure and process instability. Similarly, the TC600 backplane assembly that hosts the 1805-320125-21 should be inspected for oxidized connector pins, cracked PCB traces, and loose retention clips — all of which can cause intermittent faults that are difficult to diagnose under production pressure.

The I/O interface board connected to the controller module handles thermocouple inputs, digital interlock signals, and analog process feedback. If the 1805-320125-21 has failed due to signal overload or ground fault, the I/O board may have sustained secondary damage and should be bench-tested before the system is returned to service. Alongside this, the signal isolation modules on the thermocouple and RTD input channels should be verified — degraded isolation can introduce noise that causes erratic temperature readings and false alarms.

In TC600 systems with networked process control, the communication interface card (RS-232/RS-485 or proprietary TEL bus) should be checked for firmware version compatibility with the replacement controller module. Mismatched firmware between the controller and communication card is a known source of initialization failures after module swap. The relay output modules driving gas valve solenoids, heater contactors, and exhaust dampers should also be inspected — relay contacts degrade over time and may not be apparent until the system is under full process load.

Terminal blocks and wiring harnesses within the control cabinet deserve attention during any controller replacement. Loose terminations on the 24VDC distribution terminal strip or the thermocouple extension wiring can introduce resistance that corrupts temperature measurement accuracy. Fuse holders on the 1805-320125-21 power input circuit should be cleaned and fuses replaced as a matter of course. Finally, if the TC600 system includes a local HMI panel or operator interface terminal, verify that the display communication link is re-established after controller replacement and that alarm history has been cleared and re-baselined.

Site Replacement Workflow

The 1805-320125-21 is designed as a field-replaceable unit within the TC600 architecture, but a structured replacement workflow is essential to minimize downtime and avoid configuration errors. Before removing the failed module, document the current DIP switch settings, jumper configurations, and any site-specific parameter values stored in the controller’s non-volatile memory. If the TC600 system supports parameter backup via the HMI or host computer, perform a full configuration export before powering down.

Power down the TC600 cabinet using the correct lockout/tagout procedure. Discharge any capacitive hold-up circuits on the power supply rail before handling the controller module. Remove the 1805-320125-21 by releasing the front-panel retention screws and carefully extracting the module from the backplane connector — avoid rocking the module laterally, as the backplane connector pins are susceptible to bending under side load.

Install the replacement 1805-320125-21, ensuring the backplane connector is fully seated before tightening retention hardware. Restore DIP switch and jumper settings to match the documented configuration. Power up the system and verify that the controller initializes correctly, communication links are established, and all I/O channels report expected values before releasing the equipment to production. A short functional test run — at least one complete process cycle — is strongly recommended before returning the system to full production status.

For sites managing multiple TC600 systems, maintaining a minimum of one service-ready 1805-320125-21 per system cluster is a best practice. Given the end-of-life status of the TC600 platform, procurement lead times from secondary market sources can be unpredictable. NINERMAS maintains long-term stock agreements to support customers requiring guaranteed availability over multi-year maintenance horizons.

Spare Parts Support FAQ

Q: Is the 1805-320125-21 compatible with all TC600 variants?
A: The 1805-320125-21 (TMU 071-003) is designed for the TC600 platform. Compatibility should be confirmed against your specific system revision and backplane slot assignment. NINERMAS technical support can assist with cross-reference verification prior to order placement.

Q: What pre-shipment testing is performed on each unit?
A: Every 1805-320125-21 shipped by NINERMAS undergoes functional power-on testing and visual inspection for physical damage, connector integrity, and component condition. Test records are available upon request for quality-critical applications.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, electrical overstress, or use outside the module’s rated environmental parameters. Warranty claims are processed with full RMA support.

Q: Can NINERMAS support long-term supply agreements for the 1805-320125-21?
A: Yes. For customers operating multiple TC600 systems or managing multi-year maintenance contracts, NINERMAS offers reserved inventory agreements with guaranteed stock allocation and fixed pricing. Contact our sales team to discuss your long-term spare parts requirements.
