Tokyo Electron PHS120-Z03 Service-Ready Industrial Spare Part

Tokyo Electron PHS120-Z03 Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

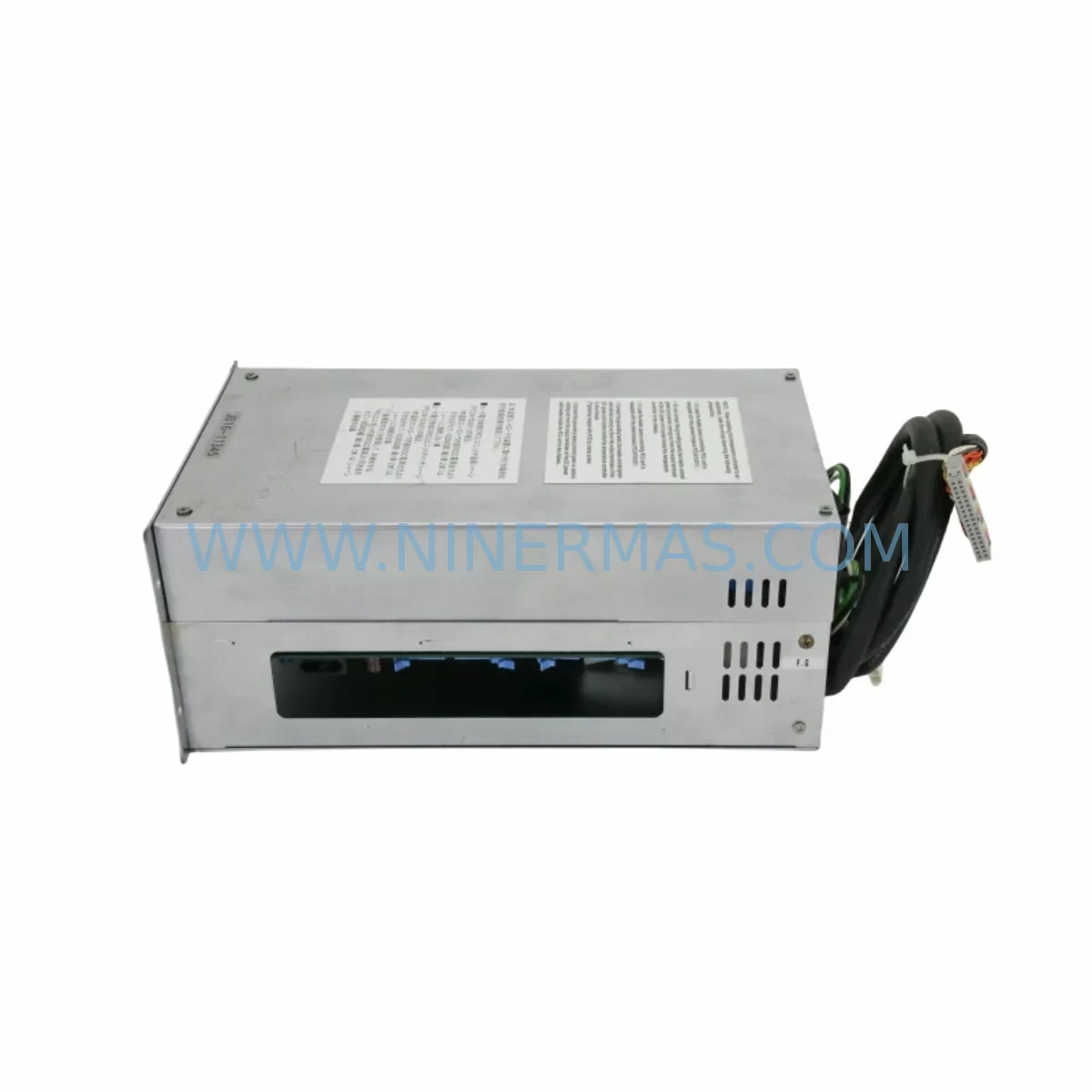

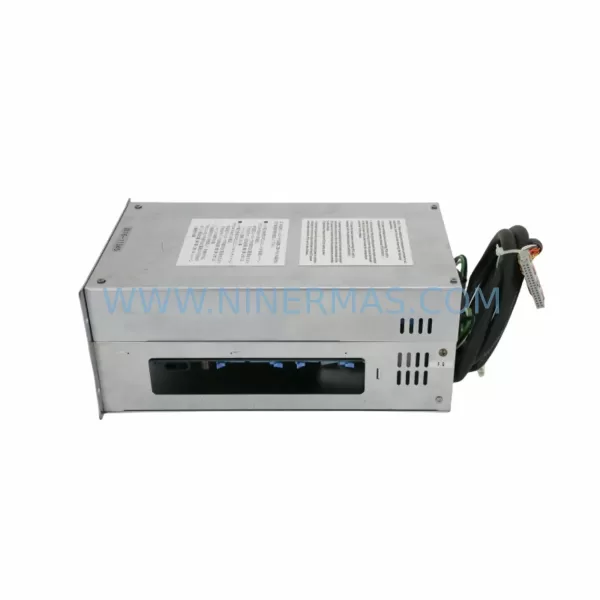

The Tokyo Electron PHS120-Z03 is a critical spare part serving the PHS and ATR series semiconductor process equipment platforms. Sourced from verified supply channels and pre-shipment tested to original TEL specifications, this component is maintained in service-ready inventory to support emergency replacement, scheduled annual overhaul, and long-term spare parts procurement programs. For maintenance engineers and procurement teams managing aging TEL equipment, securing a qualified PHS120-Z03 spare is a direct investment in production continuity and unplanned downtime prevention.

The PHS120-Z03 functions within the PHS series process handler subsystem, interfacing with the ATR-9100-901P controller assembly and the 9700-9960-06 power distribution module. Its role in the electrical circuit makes it a high-priority item on any TEL equipment spare parts list. Failure of this component without an available replacement can result in extended line stoppages, particularly in facilities operating legacy TEL systems where OEM lead times are no longer predictable.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PHS120-Z03 in a TEL PHS or ATR series system, a thorough cabinet inspection is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat this replacement as an opportunity to audit the surrounding electrical and control architecture.

Begin by verifying the 9700-9960-06 power supply module output voltages before reinstalling the new PHS120-Z03. Voltage irregularities from a degraded power module are a common root cause of premature spare part failure. Alongside the power supply, inspect the ATR-9100-901P controller board for signs of capacitor aging, connector oxidation, or firmware version mismatches that could affect handshake compatibility with the replacement module.

The 11130-0167 I/O interface board should be checked for signal integrity — particularly on digital output channels that drive downstream relay logic. A faulty I/O board can mask itself as a PHS120-Z03 failure, so confirming I/O board health before and after replacement is a recommended diagnostic step. Similarly, the TEL backplane assembly that hosts the PHS module should be inspected for bent pins, cracked PCB traces, or loose retention clips that could cause intermittent contact faults after reinstallation.

Communication modules within the ATR control cabinet — including any RS-232, RS-485, or PROFIBUS interface cards — should be verified for correct termination and address settings, as a module swap can sometimes trigger communication timeouts if the replacement unit initializes with different default parameters. Signal isolators on analog input channels connected to the PHS subsystem should also be tested, as signal drift from aging isolators can generate false alarms post-replacement.

Relay boards and terminal block assemblies within the same control loop should be visually inspected for contact wear, loose wiring, and corrosion. Fuse holders associated with the PHS120-Z03 power circuit should be checked for continuity and replaced if the fuse shows signs of thermal stress. HMI panels connected to the ATR system should be tested for correct status display after the replacement is complete, confirming that the new module is recognized and reporting correctly. Maintaining a documented spare parts kit that includes the PHS120-Z03, the 9700-9960-06 power module, and the 11130-0167 I/O board as a matched set significantly reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

The PHS120-Z03 is designed as a direct replacement for the original TEL factory-installed unit. No hardware modification is required for standard PHS and ATR series configurations. The following workflow is recommended for site replacement to minimize downtime and maintain system compatibility:

Step 1 — Pre-Replacement Verification: Confirm the failed unit’s part number against the equipment BOM. Cross-reference with 9700-9960-06 and ATR 9100 901P-11130-0167 to ensure the correct spare is being installed. Document the current system firmware version and any active alarms before powering down.

Step 2 — Safe Isolation: Follow the TEL equipment lockout/tagout procedure. Discharge any residual capacitor voltage in the power supply section before handling the module. Use ESD-safe handling procedures throughout.

Step 3 — Module Swap: Remove the failed PHS120-Z03 by releasing the retention mechanism and disconnecting the interface connector. Install the service-ready replacement, ensuring the connector is fully seated and the retention clip is engaged. Inspect the backplane connector for damage before insertion.

Step 4 — Power-Up and Functional Test: Restore power and monitor the ATR-9100-901P controller for correct initialization. Verify that the HMI panel displays the expected module status. Run a functional test cycle to confirm I/O response, communication handshake, and process handler operation before returning the equipment to production.

Step 5 — Documentation: Record the replacement in the equipment maintenance log, including the new module’s serial number, installation date, and test results. Update the spare parts inventory to trigger reorder of a replacement PHS120-Z03 to maintain buffer stock.

Spare Parts Support FAQ

Q1: Is the PHS120-Z03 available for long-term supply beyond the OEM’s active production period?
Yes. NINERMAS maintains reserved inventory of the PHS120-Z03 and associated ATR/PHS series components specifically to support facilities operating legacy TEL equipment. Long-term supply agreements and reserved stock arrangements are available for high-volume or critical-site customers.

Q2: What pre-shipment testing is performed on the PHS120-Z03 before dispatch?
Each unit undergoes functional verification against original TEL electrical specifications prior to shipment. Testing covers power-on initialization, interface signal integrity, and connector continuity. A test report is available upon request. All units are shipped with 12-month warranty coverage from the date of dispatch.

Q3: How do I confirm compatibility between the PHS120-Z03 and my specific ATR or PHS series equipment revision?
Provide your equipment model number, serial number, and current BOM revision to our technical team at sale@ninermas.com. We will cross-reference against known compatible configurations and confirm fit before order confirmation. Cross-reference part numbers 9700-9960-06 and 11130-0167 are also accepted for compatibility verification.

Q4: What is the recommended spare parts inventory strategy for TEL PHS/ATR series equipment?
For facilities with two or more TEL PHS/ATR systems, maintaining a minimum of one PHS120-Z03 per system as buffer stock is recommended. Pairing this with a spare 9700-9960-06 power module and 11130-0167 I/O board creates a matched replacement kit that covers the most common failure modes and reduces MTTR to under two hours for a trained technician.
