SIEMENS 6ES7151-1AA05-0AB0 Retrofit-Compatible IM for Legacy ET200S

SIEMENS 6ES7151-1AA05-0AB0 Retrofit-Compatible Interface Module for Legacy ET200S Systems

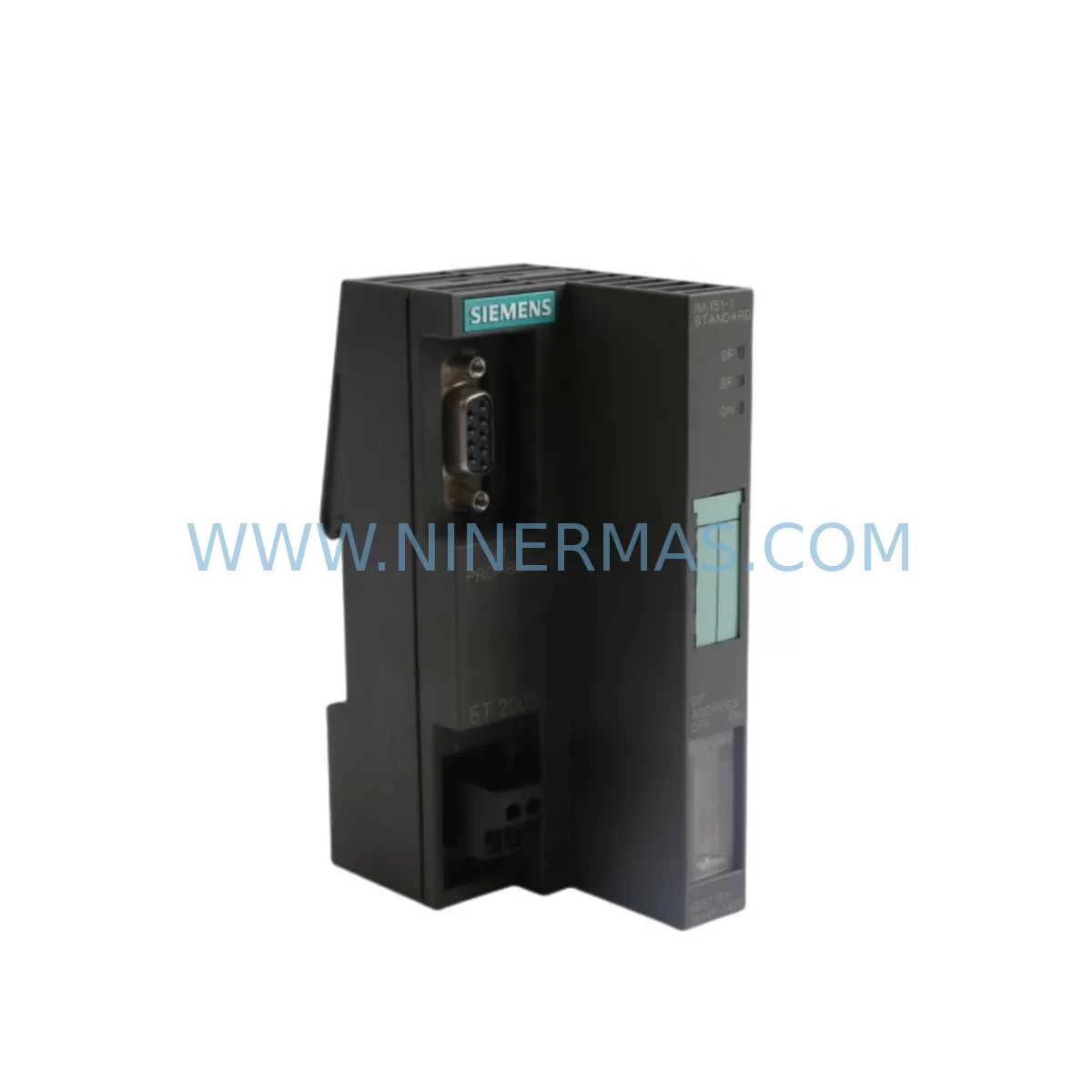

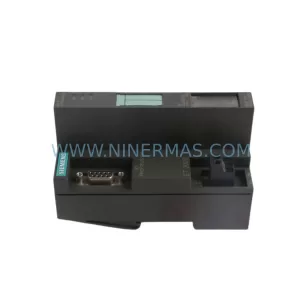

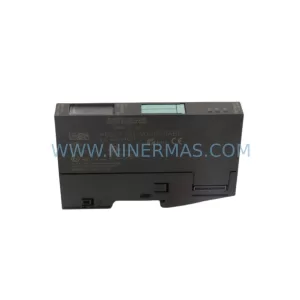

The SIEMENS 6ES7151-1AA05-0AB0 is a high-performance interface module (IM) designed for the ET 200S distributed I/O system, fully compatible with legacy IM151-1 Standard installations. As automation engineers face increasing pressure to modernize aging production lines while minimizing capital expenditure and downtime, the 6ES7151-1AA05-0AB0 stands out as the definitive retrofit solution for facilities still operating on first- and second-generation ET 200S hardware. Whether you are replacing a discontinued IM151-1 unit, expanding an existing control cabinet, or migrating from an older PROFIBUS-based architecture, this module delivers the reliability and backward compatibility your operation demands.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6ES7151-1AA05-0AB0 into an existing ET 200S station begins well before the module arrives on site. Engineers should start by auditing the current power budget of the 24 V DC power supply module — typically a PM-E or equivalent — to confirm it can sustain the full I/O load after the interface module swap. In many legacy cabinets, the original PM-E 24VDC power supply module has been running at near-capacity for years, and a retrofit is the ideal moment to assess whether an upgraded power module is warranted.

Terminal wiring is the next critical checkpoint. The 6ES7151-1AA05-0AB0 uses the same terminal block layout as the IM151-1 Standard, meaning existing field wiring to digital input modules such as the 6ES7131-4BB01-0AB0 (2DI) and digital output modules such as the 6ES7132-4BB01-0AB0 (2DO) can remain connected without re-termination. However, engineers should inspect terminal torque and insulation condition, particularly on installations older than ten years.

Backplane and rack integrity must be verified before insertion. The ET 200S mounting rail and bus connector system should be inspected for corrosion or mechanical damage. If the station includes analog input modules — for example, the 6ES7134-4FB01-0AB0 for 2AI ±10V — confirm that the analog signal ground reference is correctly bonded to avoid measurement drift after the IM swap.

For stations communicating over PROFIBUS DP, the PROFIBUS address set on the replacement 6ES7151-1AA05-0AB0 must match the address previously assigned to the legacy IM151-1. This is configured via the onboard DIP switches and must align with the GSD file entry in the STEP 7 hardware configuration or TIA Portal project. No GSD file update is required since the 6ES7151-1AA05-0AB0 uses the same device description as the IM151-1 Standard.

If the control system includes an HMI — such as a SIMATIC TP700 Comfort or MP377 — the HMI screen tags linked to ET 200S I/O addresses will remain valid after the module replacement, provided the PROFIBUS address and slot assignments are preserved. This eliminates the need for HMI project modifications, significantly reducing retrofit engineering hours.

For facilities migrating from PROFIBUS to PROFINET as part of a broader network modernization, the 6ES7151-1AA05-0AB0 can serve as a stable interim solution while the PROFINET migration is planned in phases. During this transition, the existing SIMATIC S7-300 or S7-400 CPU — connected via a CP 342-5 or CP 443-5 communications processor — continues to manage the ET 200S station without interruption. Signal isolators may be required at the field level if long cable runs introduce noise during the transition period.

Programming cable access is another consideration: if the legacy IM151-1 was configured using a PC Adapter USB or MPI/PROFIBUS adapter, the same programming interface remains valid for the 6ES7151-1AA05-0AB0. No new programming hardware is required.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any retrofit involving a live automation system. The 6ES7151-1AA05-0AB0 supports a structured hot-swap approach when the ET 200S station is taken offline in a controlled manner. Before powering down the station, engineers should export the current STEP 7 or TIA Portal hardware configuration and create a full program backup of the associated CPU — whether a SIMATIC S7-315-2DP or S7-317-2DP — to a secure location. This backup protects the original ladder logic, function block diagrams, and data block values against accidental loss.

Once the station is de-energized, the legacy IM151-1 can be removed and the 6ES7151-1AA05-0AB0 inserted in under five minutes. The PROFIBUS address DIP switches should be set before insertion to avoid the need for a second power cycle. After re-energization, the CPU will perform an automatic hardware scan; if the GSD file matches — which it does for this replacement — the station will come online without requiring a hardware configuration download.

Field control continuity is maintained by ensuring that all output modules — including relay output modules such as the 6ES7132-4HB01-0AB0 — are in a safe de-energized state during the swap. Safety interlocks and emergency stop circuits should remain active throughout the procedure. For processes that cannot tolerate even brief interruptions, a parallel redundant ET 200S station can be pre-configured and switched over using the PROFIBUS master’s redundancy management features.

Post-swap commissioning should include a full I/O force test to verify that each digital and analog channel responds correctly, followed by a communication link check to confirm PROFIBUS cycle time and error counters are within specification. Total planned downtime for a straightforward IM swap using the 6ES7151-1AA05-0AB0 is typically 30 to 90 minutes, including pre-checks and post-commissioning verification.

Retrofit Support FAQ

Q1: Is the 6ES7151-1AA05-0AB0 a direct drop-in replacement for the IM151-1 Standard?
Yes. The 6ES7151-1AA05-0AB0 is mechanically and electrically compatible with the IM151-1 Standard. It fits the same ET 200S mounting rail, uses the same PROFIBUS DP interface, and is recognized by the same GSD file. No hardware configuration download or program modification is required in most standard installations.

Q2: What commissioning steps are required after installation?
After inserting the module, verify that the PROFIBUS address DIP switches match the legacy setting, confirm the 24 V DC power supply budget is sufficient, and perform a full I/O force test. Check PROFIBUS diagnostic LEDs for BF (Bus Fault) and SF (System Fault) status. If both LEDs are off and the RUN LED is green, the station is operating correctly.

Q3: Will my existing field wiring and terminal connections need to be changed?
No. The 6ES7151-1AA05-0AB0 uses the same terminal and bus connector layout as the IM151-1 Standard. Existing wiring to I/O modules, including digital and analog signal terminals, does not need to be modified. Inspect terminal condition and re-torque if the installation is more than five years old.

Q4: What warranty and supply assurance does NINERMAS provide for this module?
