Siemens 6GK7443-5DX05-0XE1 Retrofit-Compatible CP 443-5 Extended for Legacy PROFIBUS Systems

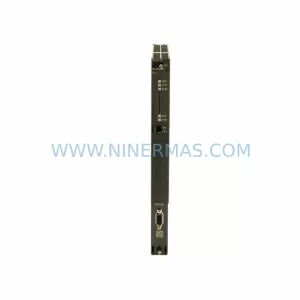

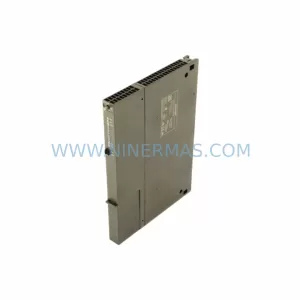

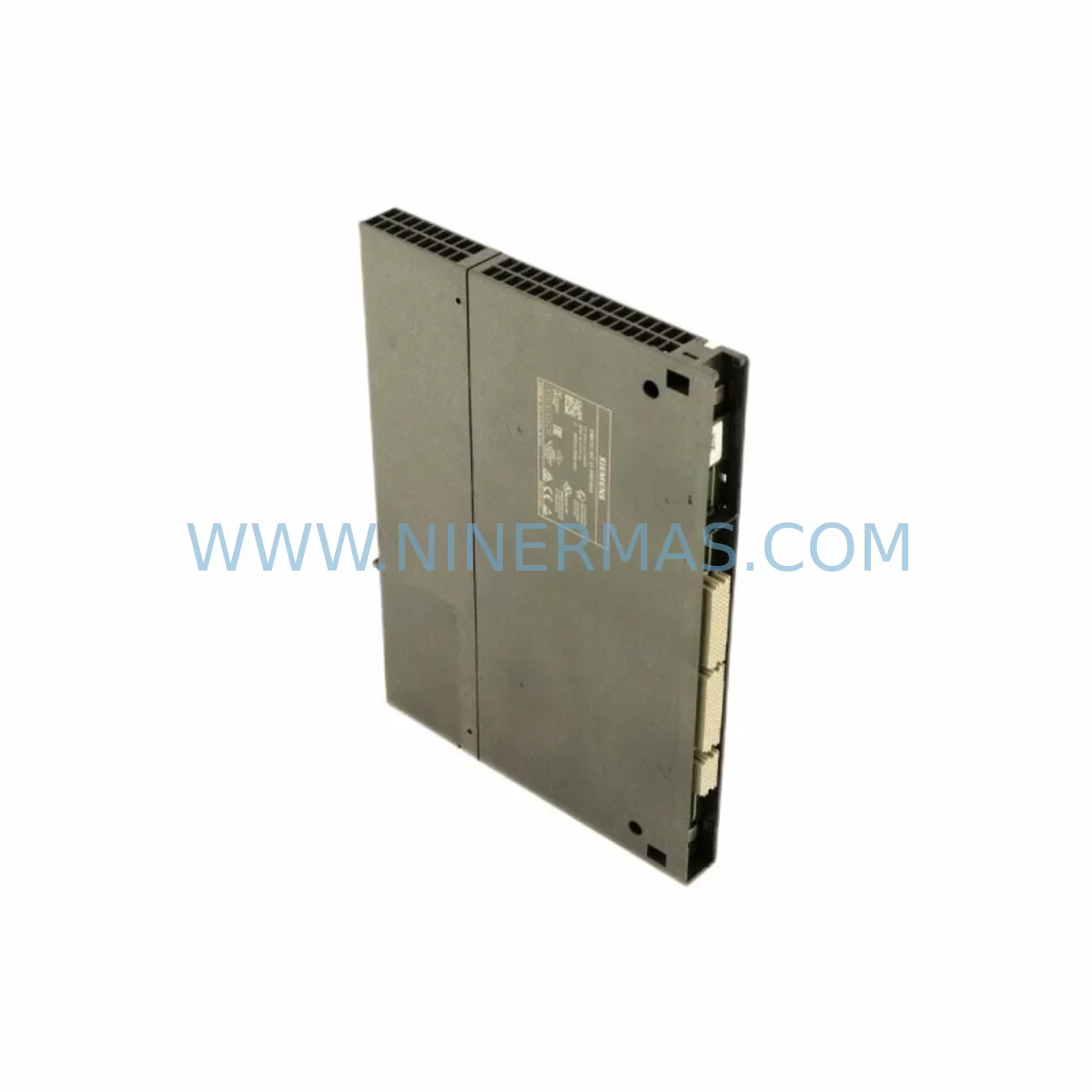

The Siemens 6GK7443-5DX05-0XE1 is a ruggedized Communications Processor (CP) designed for the SIMATIC S7-400 platform, providing PROFIBUS DP and FMS connectivity in demanding industrial environments. As a direct retrofit-compatible replacement for aging CP 443-5 variants, this module enables plant engineers and automation integrators to extend the operational life of existing S7-400 control systems without requiring a full PLC migration. Its ruggedized design makes it particularly suited for harsh environments where standard modules may be susceptible to vibration, temperature extremes, or electromagnetic interference — conditions commonly found in legacy process plants, heavy manufacturing lines, and aging control cabinets.

For facilities running SIMATIC S7-400 racks with original CP 443-5 or CP 443-5 Basic modules that have reached end-of-life, the 6GK7443-5DX05-0XE1 provides a validated upgrade path. The module slots directly into the S7-400 central rack or expansion rack, maintaining the same backplane interface and PROFIBUS DP master/slave communication architecture. Engineers replacing discontinued CP modules should verify the rack slot assignment, module address configuration in STEP 7 or TIA Portal, and confirm that the existing PROFIBUS network topology — including DP slaves, GSD files, and bus termination resistors — remains compatible with the updated firmware version on this module.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life CP 443-5 module in an active S7-400 system requires careful pre-migration planning to avoid unplanned downtime and configuration loss. The 6GK7443-5DX05-0XE1 is commonly deployed alongside other S7-400 rack components including the PS 407 10A power supply module, which must be verified to provide sufficient current budget for the updated CP alongside co-installed FM 455 function modules, SM 421 digital input modules, and SM 422 digital output modules. In systems with high I/O density, the rack power budget calculation is a critical first step before swapping any communications module.

On the PROFIBUS network side, engineers should document the existing DP master configuration — including all slave station addresses, GSD file versions, and diagnostic address assignments — before removing the legacy CP. When the 6GK7443-5DX05-0XE1 is installed, the STEP 7 HW Config or TIA Portal hardware configuration must be updated to reflect the new module’s firmware version. In mixed networks where ET 200M distributed I/O stations, ET 200S islands, or third-party PROFIBUS slaves are connected, each slave’s GSD file should be re-validated against the new CP’s DP master parameters to prevent address conflicts or polling cycle mismatches.

For systems that also include CP 443-1 Ethernet modules in the same rack, the coexistence of PROFIBUS and Industrial Ethernet communications must be verified in the routing configuration. Plants migrating from older PROFIBUS FMS segments to PROFIBUS DP should use this retrofit opportunity to consolidate the network topology, reducing the number of bus segments and simplifying the IM 460 / IM 461 interface module connections between central and expansion racks. Signal isolators and PROFIBUS repeaters installed in the existing bus segment should be retained and their termination settings confirmed after the CP replacement.

Where HMI systems such as SIMATIC OP 277, TP 277, or MP 377 panels are connected via PROFIBUS MPI/DP to the S7-400 CPU, the HMI project’s communication driver settings must be reviewed after the CP module swap. Changes to the DP master system number or slot address can cause HMI variable mapping errors that only appear during runtime. A full HMI screen test cycle — covering alarm displays, trend views, and operator command functions — should be completed before returning the system to production.

Downtime Control During System Migration

Minimizing production interruption during a CP 443-5 module replacement requires a structured hot-swap preparation protocol. Although the S7-400 platform supports online module replacement under specific conditions, the 6GK7443-5DX05-0XE1 installation should be treated as a planned maintenance window to ensure configuration integrity. The recommended approach is to perform a CPU memory backup using a SIMATIC Memory Card or via STEP 7 online upload before any hardware change, preserving the complete program logic, data blocks, and system function configurations.

During the physical swap, the PROFIBUS cable should be disconnected from the old CP before rack power is removed to prevent bus termination disruption to active DP slaves still powered on the network. After installing the 6GK7443-5DX05-0XE1, the module should be powered up in isolation — with the PROFIBUS connector disconnected — to allow the firmware initialization sequence to complete before rejoining the live bus. This staged reconnection approach protects downstream ET 200 stations and field devices from spurious diagnostic messages during the CP startup phase.

Once the module is online, a PROFIBUS diagnostic scan using STEP 7 NetPro or TIA Portal’s device view should confirm that all DP slave stations are recognized and reporting no faults. The CPU’s OB86 (rack failure) and OB122 (I/O access error) organization blocks should be monitored for the first 30 minutes of operation to catch any latent addressing issues. For critical process lines where even brief interruptions are unacceptable, a parallel test rack with a pre-configured 6GK7443-5DX05-0XE1 can be prepared offline and swapped as a complete assembly, reducing live system exposure to under 15 minutes.

Retrofit Support FAQ

Q1: Is the 6GK7443-5DX05-0XE1 a direct drop-in replacement for the 6GK7443-5DX04-0XE0?
The 6GK7443-5DX05-0XE1 is functionally compatible with earlier CP 443-5 Extended variants including the -5DX04-0XE0 and -5DX03-0XE0. The backplane connector and rack slot dimensions are identical. However, the HW Config in STEP 7 or TIA Portal must be updated to select the correct order number for the new module version, as firmware differences between revisions affect the available diagnostic functions and DP cycle time parameters. Always perform an offline configuration update and simulation before going live.

Q2: What pre-shipment testing is performed on this module?
Each 6GK7443-5DX05-0XE1 unit supplied by NINERMAS undergoes functional power-on testing to verify backplane communication, PROFIBUS port initialization, and firmware version confirmation prior to dispatch. Units are inspected for physical connector integrity and shipped with protective end caps on the PROFIBUS Sub-D port. A 12-month warranty covering functional defects is included with every unit, supported by documented test records available upon request.

Q3: Can this CP module operate in both PROFIBUS DP Master and Slave modes?
Yes. The CP 443-5 Extended supports configuration as a PROFIBUS DP master (Class 1 and Class 2) and as a DP slave, providing flexibility for systems where the S7-400 must act as a subordinate controller to a higher-level DCS or SCADA system. FMS communication is also supported for legacy segment integration. The operating mode is defined in the STEP 7 HW Config CP properties dialog and does not require hardware modification.

Q4: What is the lead time and inventory availability?
NINERMAS maintains stock of the 6GK7443-5DX05-0XE1 to support urgent retrofit and breakdown replacement requirements. Standard orders are processed within 1–3 business days with international shipping available. For long-term spare parts programs or volume commitments supporting lifecycle extension beyond OEM discontinuation, contact our sales team to discuss fixed-price supply agreements and reserved inventory arrangements. All units are covered by a 12-month warranty from the date of shipment.
