Emerson KJ3209X1-BA1 VE4002S2T1B1 Spare Part for Maintenance

Emerson KJ3209X1-BA1 VE4002S2T1B1 Spare Part for Maintenance: Minimizing Downtime Risk in DeltaV Control Systems

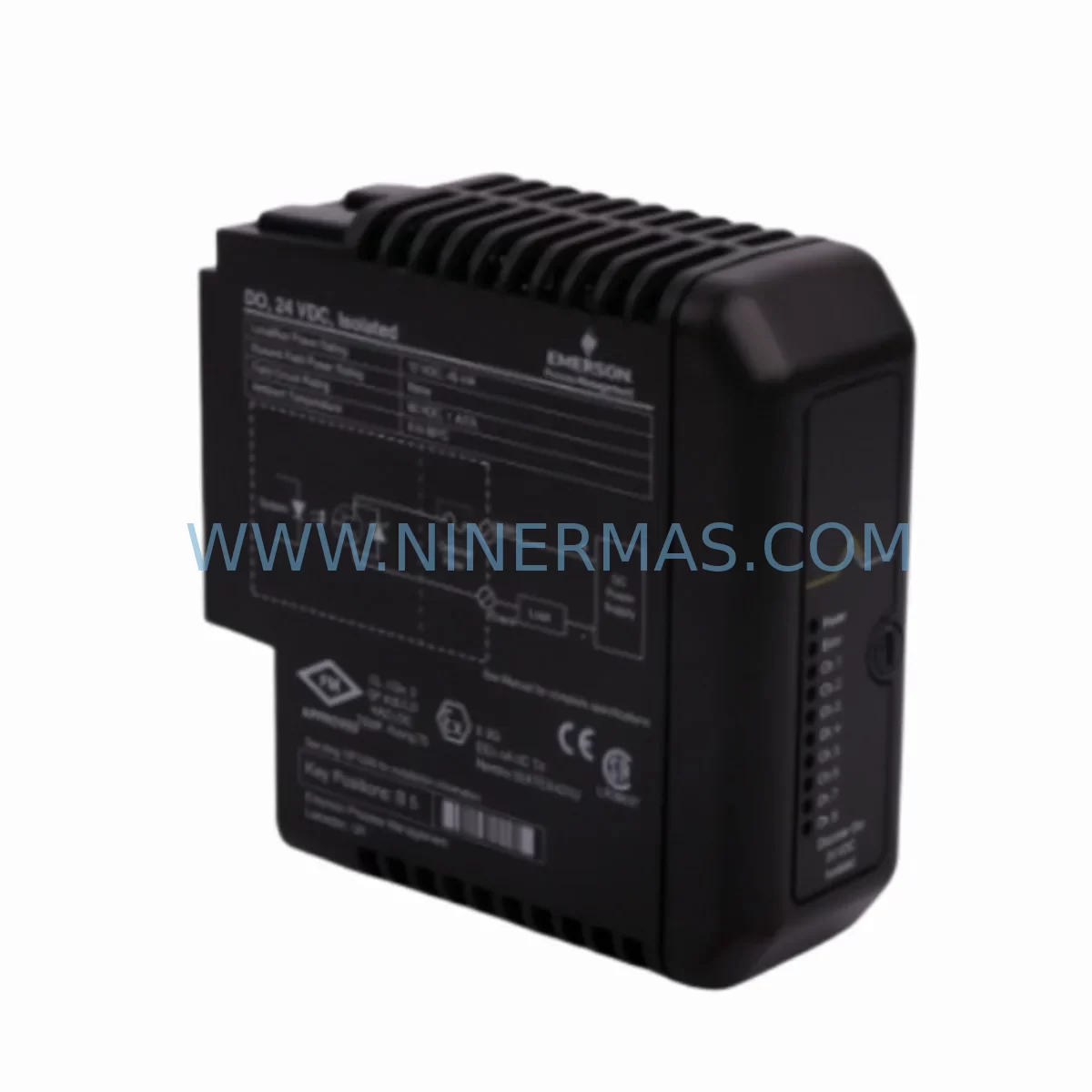

The Emerson KJ3209X1-BA1 (cross-reference: 12P3905X012, VE4002S2T1B1) is a service-ready output module engineered for the Emerson DeltaV S-series distributed control system. Designed for continuous-process industries including oil & gas, petrochemical, power generation, and pharmaceutical manufacturing, this module delivers reliable digital output control across safety-critical and production-critical loops. Sourced as an original spare, it is pre-tested, serialized, and shipped with a 12-month warranty — making it the preferred choice for maintenance engineers who cannot afford unplanned downtime.

Whether you are managing a planned annual turnaround, responding to an emergency fault isolation event, or building a strategic spare parts inventory for aging DeltaV infrastructure, the KJ3209X1-BA1 / VE4002S2T1B1 provides a direct, plug-compatible replacement that preserves your existing system architecture without requiring controller reconfiguration or firmware updates.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DeltaV output module such as the KJ3209X1-BA1 is flagged during a routine control cabinet inspection or fails during a fault isolation sequence, the replacement event rarely occurs in isolation. Experienced maintenance engineers understand that a failed output module is often a symptom of broader electrical stress within the I/O subsystem. A thorough site replacement should therefore include a systematic review of all components sharing the same power rail, backplane segment, and field wiring circuit.

Begin by verifying the DeltaV S-series I/O carrier (such as the KJ3204X1 or KJ3208X1 series carrier) for signs of backplane connector wear, corrosion, or mechanical damage. A degraded carrier can cause intermittent communication faults that mimic module failure and will shorten the service life of any replacement module installed into it. Simultaneously, inspect the DeltaV CIOC or EIOC controller node powering the I/O subsystem — controller firmware version compatibility should be confirmed before inserting a replacement module, particularly in systems running DeltaV v11 through v14.

On the power distribution side, check the 24 VDC bulk power supply feeding the I/O cabinet — units such as the Emerson KJ4001X1-BA1 or equivalent redundant power supply modules should be load-tested to confirm they are not operating at the edge of their rated capacity. Overvoltage or ripple on the 24 VDC bus is a common root cause of premature output module failure. Inline fuse blocks and terminal strips (Phoenix Contact or Weidmüller series commonly used in DeltaV cabinets) should be inspected for blown fuses, loose terminations, and signs of thermal stress.

Field wiring connected to the output channels should be meggered for insulation resistance, particularly in high-humidity or outdoor-rated enclosures. If the output module was driving interposing relay modules — such as the Emerson KJ3221X1 relay output module or third-party DIN-rail relay assemblies — those relays should be replaced as a precautionary measure, since relay coil inrush current can accelerate output transistor degradation over time.

For systems integrating HART-enabled field devices on the same I/O loop, confirm that the HART multiplexer or HART interface module (such as the Emerson CHARM I/O or legacy KJ1501X1 HART module) is functioning correctly after the output module swap. In DeltaV architectures with redundant I/O subsystems, verify that the redundancy switchover logic is operating correctly by performing a manual switchover test post-installation.

Finally, if the control loop feeds into a safety instrumented system (SIS) or interfaces with a Triconex or DeltaV SIS controller, coordinate with the SIS engineer to confirm that the output module replacement does not affect the SIL rating or proof-test interval of the associated safety function. Documenting the replacement in the plant’s CMMS (Computerized Maintenance Management System) with the new module serial number, installation date, and test results is essential for audit readiness and future spare parts planning.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement KJ3209X1-BA1 / VE4002S2T1B1 part number matches the installed module label exactly. Cross-reference against the DeltaV hardware catalog using both the KJ3209X1-BA1 and 12P3905X012 part numbers to rule out revision-level incompatibilities.

Step 2 — Safe state and isolation: Place the associated control loop in manual mode at the DeltaV workstation. De-energize the field output circuit at the marshalling cabinet. Do not rely solely on the DeltaV software interlock — physically verify zero voltage at the field terminal block before proceeding.

Step 3 — Hot-swap extraction: The KJ3209X1-BA1 supports hot-swap removal on DeltaV S-series carriers. Squeeze the module locking tabs, extract the module smoothly, and inspect the backplane connector pins on both the module and the carrier for damage or contamination before inserting the replacement.

Step 4 — Module insertion and commissioning: Insert the replacement module firmly until the locking tabs engage. The DeltaV controller will automatically detect the new module and download the associated I/O configuration. Monitor the module status LED — a solid green indicates successful commissioning. If the LED flashes amber, check the DeltaV diagnostics for configuration mismatch or communication errors.

Step 5 — Loop verification and return to auto: Perform a full output channel verification by commanding each channel from the DeltaV operator station and confirming field device response. Once all channels are verified, return the loop to automatic control and document the replacement in the CMMS.

This workflow minimizes mean time to repair (MTTR) and ensures that the replacement module is fully commissioned before the maintenance team leaves the site — reducing the risk of a repeat callout due to incomplete commissioning.

Spare Parts Support FAQ

Q1: Is the KJ3209X1-BA1 compatible with all DeltaV S-series controller versions?
The KJ3209X1-BA1 / VE4002S2T1B1 is compatible with DeltaV S-series I/O subsystems running DeltaV v10.3 and above. For systems running earlier firmware, a firmware upgrade may be required prior to installation. We recommend confirming the installed DeltaV version with your system administrator before ordering. Our technical team can assist with compatibility verification at no charge.

Q2: What testing is performed before shipment?
Every KJ3209X1-BA1 unit is subjected to a full functional test prior to dispatch. This includes power-on self-test, channel-by-channel output verification, backplane communication check, and isolation resistance measurement. A test report is available upon request. Units that do not pass all test criteria are not shipped.

Q3: Can you support long-term spare parts supply for aging DeltaV systems?
Yes. NINERMAS specializes in long-term spare parts supply for legacy and end-of-life DeltaV hardware. We maintain stock of KJ-series and VE-series modules and can establish a standing supply agreement to support your annual maintenance budget and turnaround planning. Contact our team to discuss volume pricing and reserved stock arrangements.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, NINERMAS will provide a replacement unit or full refund within 10 business days of receiving the returned item. All warranty claims are handled directly by our technical support team.
