GE Fanuc IC693MDL741C Retrofit-Compatible Output Module for Legacy Systems

GE Fanuc IC693MDL741C Retrofit-Compatible Output Module for Legacy Systems

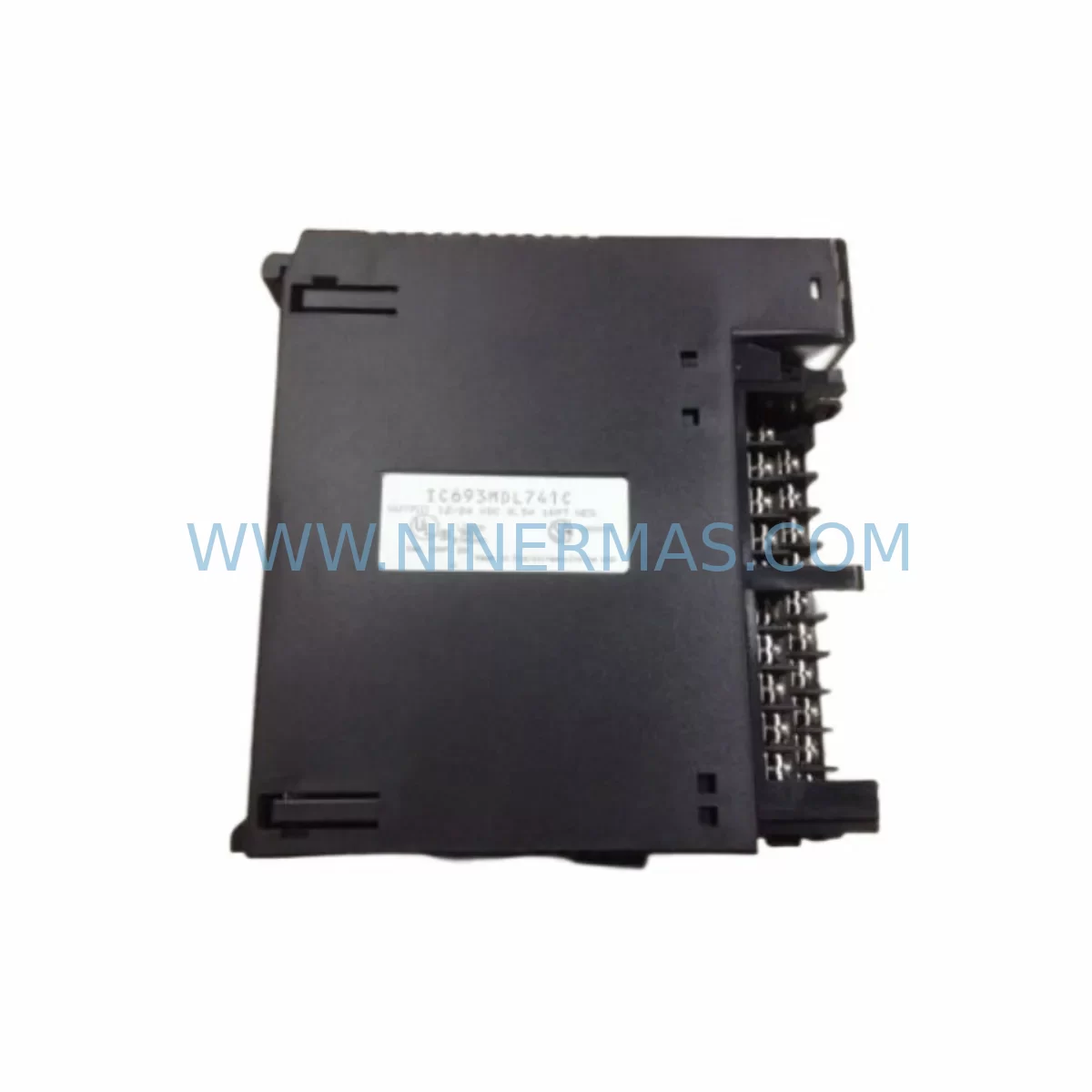

The GE Fanuc IC693MDL741C is a discrete output module designed for the Series 90-30 PLC platform — one of the most widely deployed programmable logic controller families in industrial automation history. As production lines age and OEM support for legacy hardware diminishes, facilities running Series 90-30 racks face increasing pressure to source reliable replacement modules, validate compatibility, and execute controlled retrofits without disrupting ongoing operations.

NINERMAS supplies the IC693MDL741C as a tested, retrofit-ready replacement for aging or failed output modules in existing Series 90-30 control cabinets. Whether you are managing a planned upgrade, responding to an unplanned module failure, or extending the service life of a legacy automation system, this module provides a direct drop-in solution with verified electrical and mechanical compatibility.

The IC693MDL741C delivers 16-point discrete output capability, operating within the standard Series 90-30 backplane architecture. It is compatible with the IC693CHS391 and IC693CHS397 expansion chassis, and integrates directly with the IC693CPU374 and IC693CPU375 central processing units without requiring firmware changes or logic rewrites in most retrofit scenarios. Output wiring follows the standard 40-pin connector layout used across the Series 90-30 I/O family, simplifying terminal block reuse during module swap procedures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IC693MDL741C retrofit begins well before the module arrives on site. Engineers responsible for legacy Series 90-30 systems should conduct a pre-replacement audit covering rack power capacity, slot assignments, terminal wiring condition, and CPU program backup status. The IC693PWR321 and IC693PWR322 power supply modules should be evaluated to confirm that adding or replacing output modules does not exceed the rack’s available current budget — a common oversight in aging systems where power supplies may already be operating near capacity.

Terminal block condition is a critical checkpoint. In systems that have been in service for 10 or more years, the 40-pin connector assemblies used with Series 90-30 I/O modules may show signs of oxidation, loose terminations, or insulation degradation. Replacing the terminal block alongside the IC693MDL741C module is recommended practice to avoid intermittent output faults after commissioning. Spare terminal blocks compatible with the Series 90-30 I/O form factor should be sourced as part of the retrofit kit.

For facilities operating mixed-generation control architectures — where Series 90-30 racks communicate upstream to a PACSystems RX3i controller or downstream to remote I/O via IC693CMM321 or IC693CMM311 communication modules — the output module replacement does not affect the communication link. The backplane bus isolates I/O module changes from the communication layer, allowing the IC693MDL741C to be swapped without reconfiguring Ethernet, serial, or Genius bus connections.

In control cabinets where the Series 90-30 rack shares enclosure space with IC693MDL654 input modules, IC693ALG392 analog output modules, or IC693APU300 high-speed counter modules, the physical installation of the IC693MDL741C requires confirmation of slot spacing and module locking tab clearance. Modules should be seated firmly until the locking tab engages the rack rail, and the backplane connector should be inspected for bent pins before insertion.

HMI screens built on GE’s Proficy iFIX or QuickPanel platforms reference I/O tags by rack-slot-point address. On a direct module replacement (same slot, same module type), no HMI reconfiguration is required. However, if the retrofit involves relocating the module to a different slot due to rack damage or chassis replacement, all affected tag addresses must be updated in both the CPU program and the HMI project before returning the system to automatic mode.

Downtime Control During System Migration

Minimizing production downtime during a Series 90-30 output module replacement requires a structured approach to pre-staging, program protection, and field verification. Before initiating any hardware change, the CPU program should be uploaded and saved to an offline backup using GE’s Proficy Machine Edition programming software. This backup preserves all rung logic, variable tables, and I/O configuration data, providing a recovery baseline if the replacement procedure encounters unexpected issues.

Where process conditions allow, the affected outputs should be placed in a safe state — either de-energized or held at their last known value using the CPU’s I/O override function — before the module is removed. This prevents uncontrolled actuator movement during the swap window. For systems controlling conveyor drives, valve actuators, or motor starters, coordination with the operations team is essential to confirm that downstream equipment is in a safe hold condition before the output module is physically removed from the rack.

The IC693MDL741C can typically be installed and verified within a 15–30 minute maintenance window when pre-staging is complete. After insertion, the CPU should be cycled from STOP to RUN mode with I/O forcing disabled, and each output point should be individually verified against the field device using the CPU’s online monitoring function in Proficy Machine Edition. Any discrepancies between expected and actual output states should be investigated before returning the system to automatic production mode.

For facilities managing multiple simultaneous retrofit points — for example, replacing output modules across several Series 90-30 racks in a single planned shutdown — NINERMAS recommends pre-testing each IC693MDL741C unit prior to shipment and providing a test report with the delivery. This eliminates the risk of receiving a defective module during a time-critical maintenance window and supports the 12-month warranty coverage from the date of shipment.

Retrofit Support FAQ

Q: Is the IC693MDL741C a direct replacement for the IC693MDL741 and IC693MDL741B?
A: In most applications, yes. The IC693MDL741C is the current revision of this output module and is functionally equivalent to earlier revisions. Minor differences in internal component specifications may exist between revisions, but electrical interface, backplane compatibility, and I/O point configuration are consistent across the IC693MDL741 family. NINERMAS recommends confirming the revision history with your system documentation before installation.

Q: Does replacing the IC693MDL741C require changes to the CPU program or HMI configuration?
A: A direct slot-for-slot replacement of the same module type requires no changes to the CPU program or HMI tag configuration. I/O addresses are determined by rack and slot position, not by the module’s internal revision. If the module is being installed in a different slot as part of a broader rack reorganization, the CPU program and HMI project must be updated to reflect the new address assignments.

Q: What pre-shipment testing does NINERMAS perform on the IC693MDL741C?
A: Each IC693MDL741C unit supplied by NINERMAS undergoes functional output verification prior to shipment. Testing confirms that all 16 output points respond correctly to control signals and that the backplane interface meets Series 90-30 electrical specifications. A test report is available upon request and is included as standard for orders requiring documented quality evidence.

Q: What warranty coverage applies to the IC693MDL741C supplied by NINERMAS?
A: NINERMAS provides a 12-month warranty on the IC693MDL741C from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch, supporting urgent replacement requirements with short lead times. Contact the NINERMAS sales team for availability confirmation and expedited shipping options.
