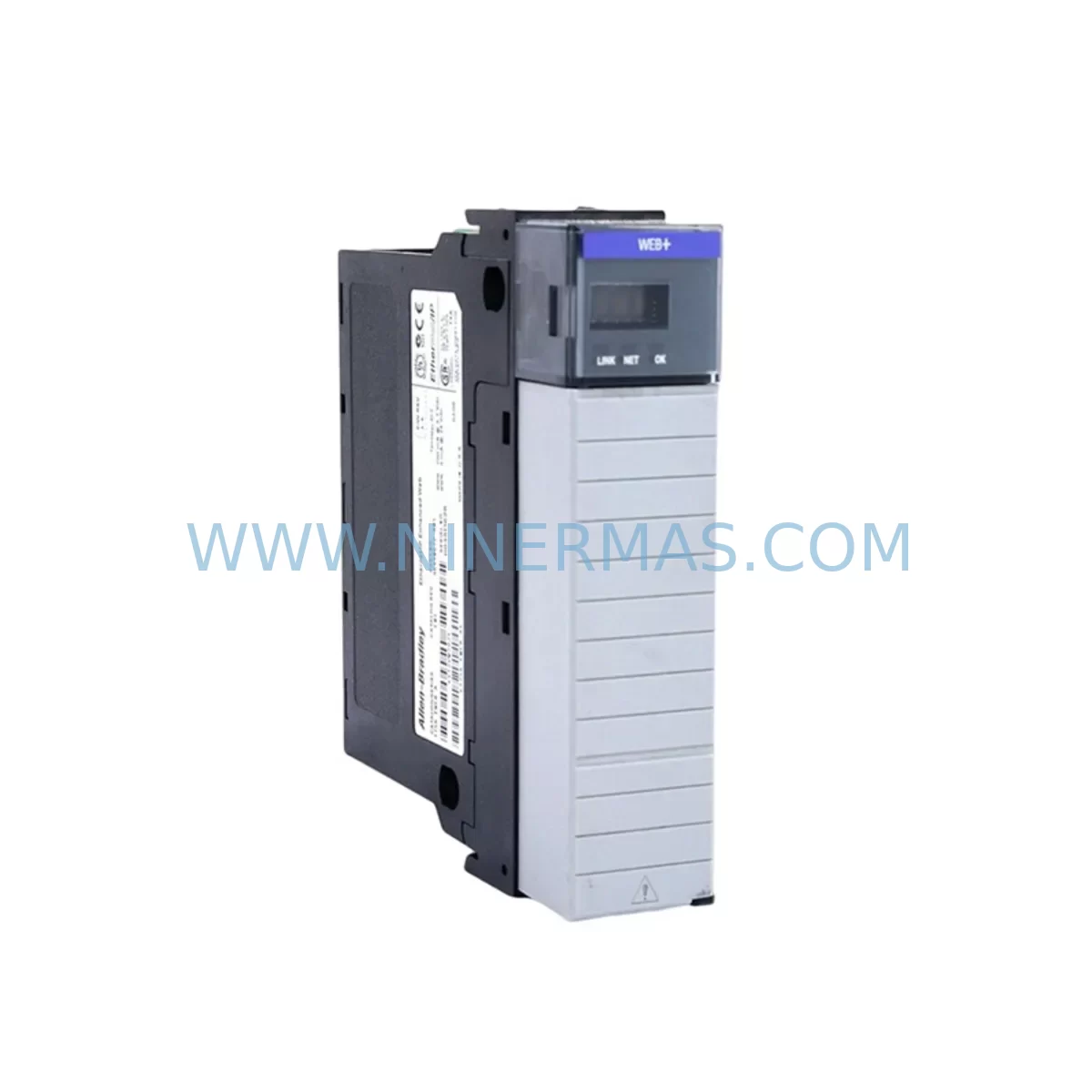

Allen-Bradley 1756-IB16D Retrofit-Compatible DC Input Module

Allen-Bradley 1756-IB16D Retrofit-Compatible DC Input Module: Legacy System Compatibility & Smooth Upgrade

The Allen-Bradley 1756-IB16D is a 16-point, 24VDC sourcing input module designed for the ControlLogix platform. As industrial facilities face increasing pressure to modernize aging automation infrastructure, the 1756-IB16D has become a critical component in retrofit projects — bridging the gap between legacy PLC-5 and SLC 500 control architectures and modern ControlLogix-based systems. Whether you are replacing a discontinued input card, expanding an existing I/O chassis, or migrating an entire control cabinet to a current-generation platform, the 1756-IB16D delivers the signal integrity, diagnostic capability, and backplane compatibility required for a reliable transition.

For engineers managing brownfield upgrades, the 1756-IB16D fits directly into the 1756 ControlLogix chassis — including the 1756-A4, 1756-A7, 1756-A10, and 1756-A13 rack configurations — without requiring mechanical modification. Its 16 individually isolated input channels support field devices wired with standard 24VDC sourcing signals, making it directly compatible with most existing field wiring from legacy systems. Before installation, engineers should verify terminal block pinout compatibility against the original wiring diagram, confirm that the field power supply capacity supports the additional input load, and check that the module slot address is correctly assigned within the RSLogix 5000 or Studio 5000 project file.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1756-IB16D into an existing control system requires careful pre-migration planning. In most retrofit scenarios, the 1756-IB16D replaces a legacy discrete input card from a PLC-5 or SLC 500 rack. The migration path typically involves installing a new 1756 ControlLogix chassis alongside the existing control cabinet, then progressively migrating I/O modules while maintaining production continuity.

During the planning phase, engineers should audit the existing field wiring to confirm that all input signals are 24VDC sourcing — the 1756-IB16D does not support sinking input configurations without additional wiring adaptation. The removable terminal block (RTB) must be wired to match the original field device connections, and the terminal layout should be verified against the 1756-IB16D installation manual before energizing the module.

The 1756-IB16D operates on the ControlLogix backplane alongside other 1756 series modules. In a typical retrofit cabinet, it shares the rack with the 1756-L73 or 1756-L85E ControlLogix controller, a 1756-EN2T EtherNet/IP communication module for network connectivity, and potentially a 1756-OB16D output module for paired discrete control loops. Where the legacy system used Data Highway Plus (DH+) or Remote I/O (RIO) communication, a 1756-DHRIO bridge module may be required to maintain communication with existing remote I/O drops or operator panels during the transition period.

For systems that include analog signal processing, the 1756-IB16D is commonly installed alongside the 1756-IF16 analog input module or the 1756-OF8 analog output module, allowing the retrofit to address both discrete and analog I/O requirements within a single chassis. Signal isolators may be required at the field terminal level if the legacy wiring introduces ground loop interference or if field device output impedance does not match the 1756-IB16D input specifications.

HMI integration is another critical consideration. If the existing operator interface runs on a legacy PanelView 550 or PanelView 900 terminal communicating over DH+, the retrofit plan must account for either retaining the legacy HMI with a protocol bridge or upgrading to a PanelView Plus 7 terminal with EtherNet/IP connectivity. In either case, the tag database in the Studio 5000 project must be structured to expose the 1756-IB16D input data to the HMI application without requiring a complete screen rebuild.

Programming cable access is required during commissioning. A 1756-USB or 1784-U2DHP programming cable connected to a laptop running Studio 5000 Logix Designer allows the engineer to go online with the controller, verify module status, and confirm that all 16 input channels are reading correctly before transferring control from the legacy system.

Downtime Control During System Migration

Minimizing production downtime is the primary concern in any control system retrofit. When replacing a legacy input module with the 1756-IB16D, the recommended approach is to pre-configure the module offline in Studio 5000 before the scheduled maintenance window. The module configuration — including slot assignment, input filter times, and diagnostic enable settings — should be fully defined and verified in the offline project file so that the physical installation and go-live sequence can be completed within the available downtime window.

Where the production schedule permits only short maintenance windows, a parallel installation strategy is preferred. The new 1756 chassis is installed and wired in parallel with the existing control system, with the 1756-IB16D receiving live field signals through a temporary terminal block jumper arrangement. This allows the new module to be verified under real operating conditions before the legacy system is taken offline, reducing the risk of unexpected field device incompatibilities causing extended downtime.

Original program logic from the legacy PLC-5 or SLC 500 system should be preserved and documented before migration begins. Rockwell Automation’s migration tools support partial conversion of legacy ladder logic to Studio 5000 format, but manual review is required to confirm that all input references mapped to the 1756-IB16D channels are correctly translated. Retaining the original program as a reference during commissioning allows the engineering team to quickly identify and resolve any logic discrepancies without relying on memory or incomplete documentation.

After the 1756-IB16D is installed and the Studio 5000 project is downloaded to the controller, a channel-by-channel input verification should be performed by actuating each field device and confirming the corresponding controller tag transitions correctly. This functional test, combined with a review of the module diagnostic status bits, confirms that the retrofit is complete and the system is ready to return to production.

Retrofit Support FAQ

Q: Can the 1756-IB16D directly replace a legacy PLC-5 discrete input card?
A: The 1756-IB16D is not a direct plug-in replacement for PLC-5 I/O cards due to differences in backplane architecture and terminal block pinout. However, it is the correct replacement module within a ControlLogix migration project. Field wiring can typically be re-terminated to the 1756-IB16D RTB with minimal modification, and the Studio 5000 project must be updated to reference the new module slot and channel assignments.

Q: What commissioning steps are required after installing the 1756-IB16D?
A: After physical installation, connect to the controller via Studio 5000, verify the module appears in the I/O tree with no fault indicators, and perform a channel-by-channel functional test by actuating each field input device. Confirm that input filter time settings match the response time requirements of the application, and review the module diagnostic tags for any channel-level fault conditions before returning the system to automatic operation.

Q: Does NINERMAS provide pre-shipment testing for the 1756-IB16D?
A: Yes. All 1756-IB16D units supplied by NINERMAS undergo functional testing prior to shipment to verify that all 16 input channels respond correctly and that the module communicates properly on the ControlLogix backplane. Each unit is supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability for the 1756-IB16D?
A: NINERMAS maintains inventory of the 1756-IB16D to support urgent retrofit and breakdown replacement requirements. Standard orders are processed and shipped within 1–3 business days. For large-quantity orders or scheduled retrofit projects requiring guaranteed stock reservation, please contact our sales team in advance to confirm availability and arrange priority allocation.
