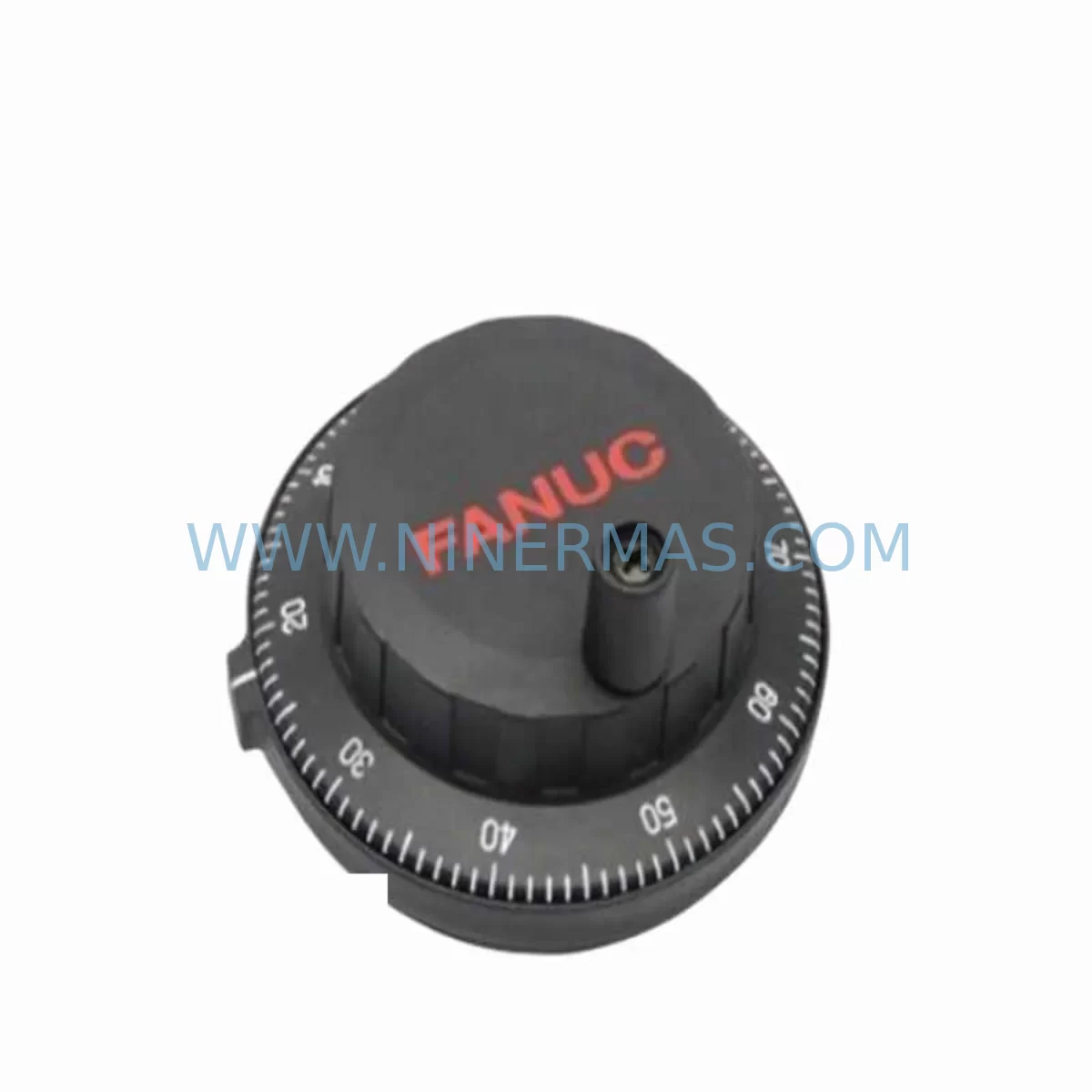

The GE Fanuc A860-0203-T001 is a precision pulse generator (encoder) from the GE Fanuc A860 Series, widely deployed in CNC machine tool servo systems, robotic axis control, and industrial automation platforms. As a critical feedback device, this encoder provides high-resolution position and speed signals to the CNC controller, enabling accurate axis positioning, spindle synchronization, and closed-loop servo control. When this component fails or degrades, the result is immediate: axis drift, servo alarms, positioning errors, or complete machine downtime.

NINERMAS maintains ready stock of the A860-0203-T001 to support maintenance engineers and procurement teams who cannot afford extended lead times on critical spare parts. Every unit is pre-shipment tested, supplied with a 12-month warranty, and traceable to verified sourcing channels. Whether you are managing a planned annual overhaul, responding to an unplanned servo fault, or building a strategic spare parts inventory for a multi-machine CNC floor, the A860-0203-T001 is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the A860-0203-T001 pulse generator is rarely an isolated task. Experienced maintenance engineers treat an encoder replacement as an opportunity to inspect the entire servo feedback chain and surrounding electrical environment. Before or during replacement, the following components should be checked or simultaneously sourced as part of a comprehensive maintenance kit.

The A860-0203-T001 connects directly to the servo amplifier via a dedicated encoder cable — typically a shielded multi-core cable such as the A660-2005-T369 or equivalent A660 Series feedback cable. Cable insulation degradation, connector pin corrosion, or shield continuity loss can cause intermittent encoder faults that mimic encoder failure. Always inspect and, where necessary, replace the encoder cable alongside the encoder itself.

On the controller side, the encoder signal is received by the axis control board or servo interface card within the GE Fanuc CNC control unit — such as the A16B-2202 or A16B-3200 series main CPU and axis control boards. If servo alarms persist after encoder replacement, the axis card should be tested for signal reception integrity. Similarly, the FANUC α-series servo amplifier (e.g., A06B-6096 or A06B-6114 series) should be inspected for fault codes related to encoder feedback loss, overcurrent, or regenerative circuit issues.

Power quality is a frequently overlooked factor in encoder longevity. The A860-0203-T001 operates on low-voltage DC supplied through the servo system. Voltage ripple, grounding faults, or noise from adjacent A20B series power supply units or switching power supplies within the control cabinet can corrupt encoder signals and accelerate component wear. A cabinet inspection should include verification of DC bus voltage stability, PE grounding continuity, and EMI shielding integrity on all signal cables.

For machines with multiple controlled axes, it is advisable to audit the encoder condition on all axes simultaneously. Encoders on adjacent axes — whether mounted on ballscrew servo motors or spindle motors — share the same operating environment and often exhibit similar wear patterns. Sourcing a small buffer stock of the A860-0203-T001 and related A860 Series variants (such as the A860-0202-T001 or A860-0309-T001) reduces the risk of repeat downtime events on the same production line.

In control cabinets where the CNC system interfaces with a PMC (Programmable Machine Controller) or external PLC via I/O modules, the A03B series I/O units and associated terminal blocks should be inspected for loose wiring, oxidized contacts, and blown fuses. Relay outputs controlling spindle enable, axis interlock, and emergency stop circuits are common failure points during high-cycle production environments and should be part of any scheduled maintenance visit.

Finally, if the machine uses an MDI/CRT unit or LCD operator panel (such as the A02B series operator panel), verify that the HMI is correctly displaying axis position feedback after encoder replacement. Residual position errors or coordinate offset alarms may indicate that a reference point return (zero-return) procedure is required following installation.

Site Replacement Workflow

Replacing the GE Fanuc A860-0203-T001 on-site requires a structured approach to minimize downtime and avoid secondary faults. The following workflow is recommended for maintenance engineers performing the replacement in a live production environment.

Step 1 — Fault Confirmation: Before ordering or installing a replacement encoder, confirm the fault source. Check the CNC controller for active alarm codes related to encoder feedback (e.g., Servo Alarm 300–399 series on FANUC systems). Use the servo diagnostic screen to verify whether the fault is consistent with encoder signal loss, cable fault, or amplifier-side error. This prevents unnecessary replacement of a functional encoder.

Step 2 — Safe Isolation: Power down the machine following the site lockout/tagout (LOTO) procedure. Confirm that the servo amplifier DC bus has discharged before opening the control cabinet or accessing the motor encoder connector. Do not disconnect the encoder cable under power.

Step 3 — Physical Replacement: Disconnect the encoder cable connector from the motor. Remove the encoder from the motor shaft, noting the coupling type (key, clamp, or direct mount). Install the A860-0203-T001 replacement, ensuring correct shaft alignment and coupling torque. Reconnect the encoder cable, verifying pin alignment and connector latch engagement.

Step 4 — Power-Up and Reference Return: Restore power and perform a controlled power-up sequence. Clear any latched alarms on the CNC controller. Execute the axis reference point return (zero-return / home) procedure as required by the machine’s parameter settings. Verify that the axis position display updates correctly and that no encoder-related alarms reappear.

Step 5 — Functional Verification: Run the axis through its full travel range at low feed rate. Monitor the servo load meter and position error for abnormal values. Confirm spindle encoder synchronization if the A860-0203-T001 is installed on a spindle motor. Document the replacement in the machine maintenance log and update the spare parts inventory record.

Spare Parts Support FAQ

Q1: Is the A860-0203-T001 a direct drop-in replacement for the original GE Fanuc encoder?
Yes. The A860-0203-T001 is supplied as an OEM-equivalent spare part with matching connector, shaft dimensions, and signal output specifications. No parameter changes or wiring modifications are required for a standard replacement on compatible FANUC servo systems. Confirm the motor model and axis application before installation to ensure the correct A860 Series variant is selected.

Q2: How is the unit tested before shipment?
Every A860-0203-T001 unit supplied by NINERMAS undergoes pre-shipment functional testing, including signal output verification (A, B, Z phase), connector pin integrity check, and visual inspection for physical damage. A test report is available upon request. Units are packaged in anti-static, shock-protected packaging to prevent transit damage.

Q3: Can NINERMAS supply the A860-0203-T001 on a long-term or blanket order basis?
Yes. NINERMAS supports long-term spare parts supply agreements for customers managing multi-machine CNC fleets or annual maintenance programs. Blanket orders, scheduled releases, and consignment stock arrangements can be discussed with our sales team. Contact sale@ninermas.com to discuss volume pricing and supply continuity terms.

Q4: What warranty coverage applies to the A860-0203-T001?
All units are covered by a 12-month warranty from the date of shipment. Warranty coverage includes defects in materials and workmanship under normal operating conditions. NINERMAS will arrange replacement or credit for any unit that fails within the warranty period, subject to inspection. Warranty claims should be initiated by contacting sale@ninermas.com with the order reference and fault description.
