ABB 3HAC044168-001 Service-Ready Spare Part for IRC5 Drive

ABB 3HAC044168-001 Service-Ready Spare Part for IRC5 Drive: Minimizing Downtime in Industrial Robot Maintenance

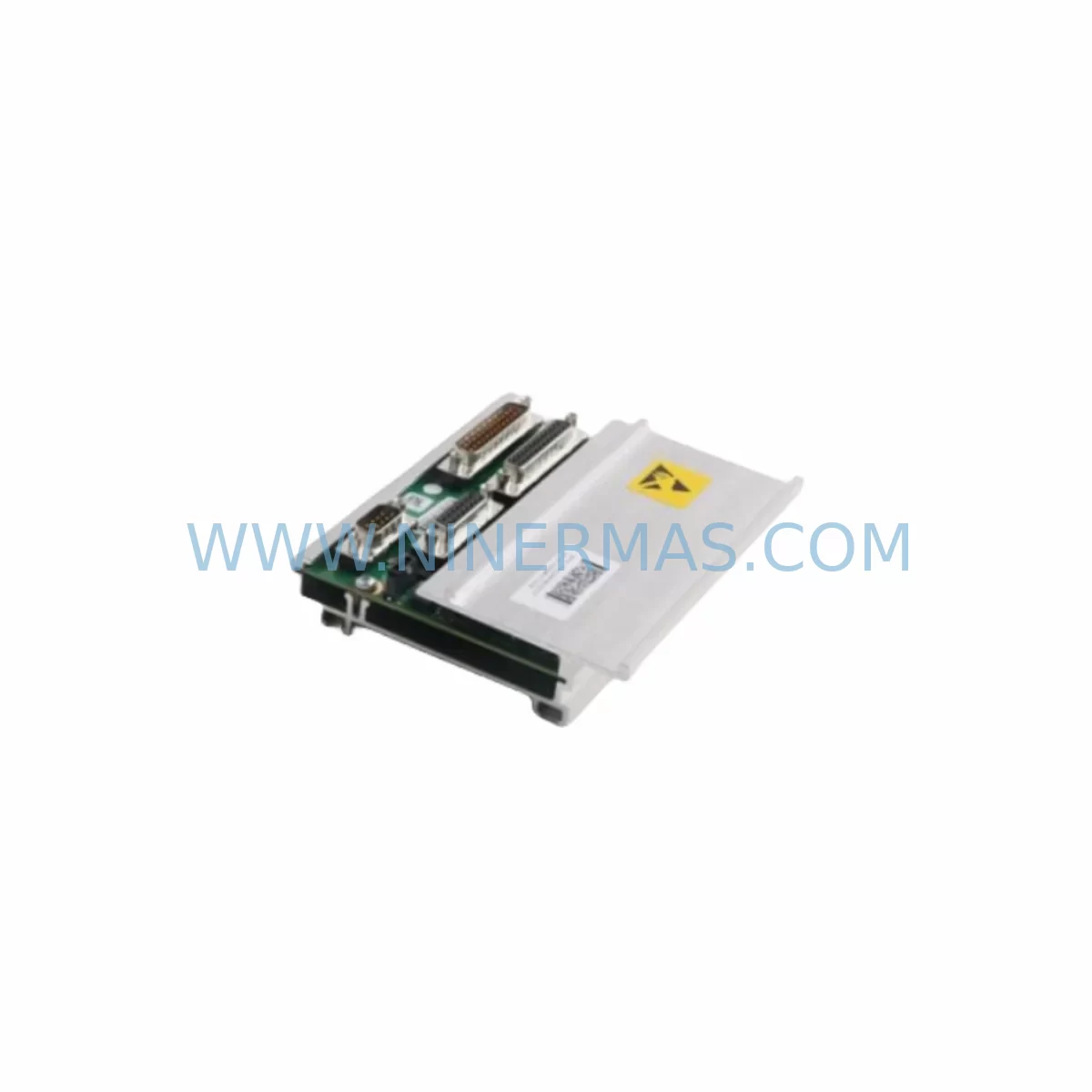

The ABB 3HAC044168-001 is a critical servo drive module designed for use within the ABB IRC5 robot controller drive system. As industrial automation facilities continue to rely on ABB IRB-series robots for precision assembly, welding, material handling, and palletizing operations, the availability of original, service-ready spare parts like the 3HAC044168-001 becomes a cornerstone of any credible maintenance strategy. Whether you are managing a planned annual overhaul, responding to an unscheduled fault alarm, or building a strategic spare parts buffer for a multi-robot production line, sourcing a verified replacement unit is the first and most important step toward restoring full operational capacity.

At NINERMAS, we supply the ABB 3HAC044168-001 as an original spare part, fully tested prior to shipment and backed by a 12-month warranty. Our inventory is maintained to support both emergency procurement and long-term supply agreements, ensuring that maintenance engineers and procurement teams can access this component without the extended lead times that often accompany end-of-life or low-volume ABB drive modules.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 3HAC044168-001 servo drive module in an IRC5 controller is rarely an isolated task. Experienced maintenance engineers understand that a drive fault or module failure is often symptomatic of broader stress across the control cabinet. A structured replacement workflow should therefore include a parallel inspection of all interdependent components to prevent repeat failures and reduce the risk of secondary downtime events.

Begin with the IRC5 power supply unit (PSU) — typically the DSQC 661 or equivalent — which feeds regulated DC voltage to the drive modules. A degraded PSU can cause intermittent drive faults that mimic module failure. Verify output voltage stability under load before commissioning the new 3HAC044168-001. Next, inspect the drive system capacitor bank and DC bus connections; aged capacitors are a leading cause of drive module stress in systems that have been in service for more than five years.

The DSQC 652 digital I/O board and DSQC 643 analog I/O module should be checked for signal integrity, particularly if the drive fault was accompanied by axis position errors or teach pendant alarms. Faulty I/O signals can mask the true source of a drive trip. Similarly, the DSQC 668 fieldbus communication module — whether configured for PROFIBUS, DeviceNet, or EtherNet/IP — should be verified for correct node addressing and communication health, as a communication dropout can trigger protective drive shutdowns.

Inspect the motor cable connectors and resolver feedback cables at both the drive end and the robot arm junction box. Damaged insulation or loose resolver connectors are a frequent cause of encoder fault codes that lead to premature drive module replacement. The IRC5 brake resistor unit should also be tested for correct resistance value and thermal integrity, as an open-circuit brake resistor will cause the drive to fault on deceleration.

For facilities running multiple IRC5 cabinets, consider maintaining a standardized spare parts kit that includes the DSQC 1000 main computer unit, axis computer board, teach pendant (FlexPendant) cable assembly, and a set of terminal block connectors and fuse holders for the drive input section. Proactive stocking of these components alongside the 3HAC044168-001 significantly reduces mean time to repair (MTTR) across the robot fleet.

Signal isolation barriers and 24 VDC auxiliary power supplies feeding safety relay circuits within the IRC5 cabinet should be tested for output stability. A marginal auxiliary supply can cause sporadic safety chain faults that are difficult to diagnose without a calibrated power analyzer. Finally, review the condition of the IRC5 cabinet cooling system — including the main fan assembly, filter mats, and thermal sensors — as overtemperature conditions are the single most common cause of premature servo drive module failure in high-duty-cycle robot applications.

Site Replacement Workflow

When the ABB 3HAC044168-001 is identified as the failed component through fault log analysis or swap-test isolation, follow this structured replacement sequence to minimize downtime and ensure system compatibility:

Step 1 — Fault Confirmation: Download the IRC5 event log via RobotStudio or the FlexPendant. Confirm that the fault code references the specific drive axis associated with the 3HAC044168-001 module position. Cross-reference with the robot’s electrical schematic to identify the exact drive bay location within the cabinet.

Step 2 — Safe Isolation: Follow ABB’s lockout/tagout procedure for the IRC5 cabinet. Discharge the DC bus capacitors per the service manual (minimum 5-minute wait after main power isolation) before opening the drive bay cover. Verify zero voltage with a calibrated multimeter before handling the module.

Step 3 — Module Removal and Inspection: Document the existing wiring configuration with photographs before disconnecting any cables. Note the firmware revision label on the outgoing module. Remove the module by releasing the DIN-rail locking tabs and carefully extracting the unit from the drive bay.

Step 4 — Compatibility Verification: Confirm that the replacement 3HAC044168-001 unit matches the hardware revision required by the IRC5 system software version installed on the main computer. If a firmware update is required, perform it via RobotStudio before installation to avoid axis calibration errors.

Step 5 — Installation and Commissioning: Install the replacement module, reconnect all cables in the documented sequence, and restore power. Run the IRC5 self-test routine and verify that all axes report correct resolver feedback. Perform a slow-speed test cycle on the affected axis before returning the robot to full production speed.

Step 6 — Documentation: Update the maintenance log with the replacement date, new module serial number, and any associated findings. Schedule a follow-up inspection at 500 operating hours to verify thermal performance of the new module.

Spare Parts Support FAQ

Q1: Is the 3HAC044168-001 compatible with all IRC5 controller variants, including the IRC5 Compact and IRC5 Panel Mounted Controller?
The 3HAC044168-001 is designed for the standard IRC5 drive system architecture. Compatibility with IRC5 Compact or Panel Mounted Controller variants depends on the specific axis configuration and hardware revision of your system. Please provide your IRC5 serial number and software version when contacting our sales team so we can confirm the correct part revision for your application before shipment.

Q2: What pre-shipment testing is performed on the 3HAC044168-001, and is a test report available?
Each unit undergoes functional electrical testing prior to dispatch, including input/output voltage verification, gate driver signal integrity check, and thermal cycling where applicable. A test report can be provided on request. Units are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

Q3: Can NINERMAS support long-term supply agreements for the 3HAC044168-001 given that IRC5 is a mature platform?
Yes. NINERMAS maintains strategic inventory of IRC5-series spare parts specifically to support facilities operating legacy robot fleets beyond the standard ABB product lifecycle. We can discuss annual supply agreements, consignment stock arrangements, and priority allocation for customers with multi-robot installations. Contact our sales team to discuss your long-term procurement requirements.

Q4: What is the warranty coverage for the 3HAC044168-001, and what does it include?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental parameters. In the event of a warranty claim, we will arrange replacement or repair with priority turnaround to minimize your production impact.
