ABB 3BDZ000398R1 RLM01 PROFIBUS Redundancy Link Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of an Industrial Solution Architect, the ABB 3BDZ000398R1 RLM01 PROFIBUS Redundancy Link Module occupies a mission-critical position within Distributed Control System (DCS) architectures. Designed to bridge redundant PROFIBUS DP segments without requiring slave address configuration, the 3BDZ000398R1 operates transparently — meaning it integrates into existing Fieldbus topologies with zero disruption to live process loops. In petrochemical refineries, offshore platforms, and power generation facilities where a single millisecond of communication loss can cascade into a full plant shutdown, this module is not optional — it is foundational.

What distinguishes the ABB 3BDZ000398R1 from generic PROFIBUS repeaters is its automatic baud rate detection across the full spectrum from 9.6 Kbps to 12 Mbps, combined with galvanic isolation rated at 500V between all three RS-485 ports. This combination eliminates ground loop interference — a persistent challenge in large-scale DCS Hardware installations spanning multiple electrical zones. Engineers upgrading Legacy Components in aging ABB Advant or 800xA systems will find the 3BDZ000398R1 to be a direct, validated replacement that preserves existing network topology without requiring re-engineering.

Original factory-sealed units of the ABB 3BDZ000398R1 are increasingly scarce on the global market. As ABB transitions its automation portfolio, procurement teams managing Maintenance Stock for long-lifecycle plants face growing lead times from authorized distributors. Our inventory is sourced directly from certified channels, inspected, and shipped in original packaging — ensuring the component you receive is identical to what was specified in your original system design.

Key Technical Highlights

Transparent PROFIBUS Operation: No slave address assignment required — the 3BDZ000398R1 is invisible to the master controller, preserving existing GSD files and network configurations.

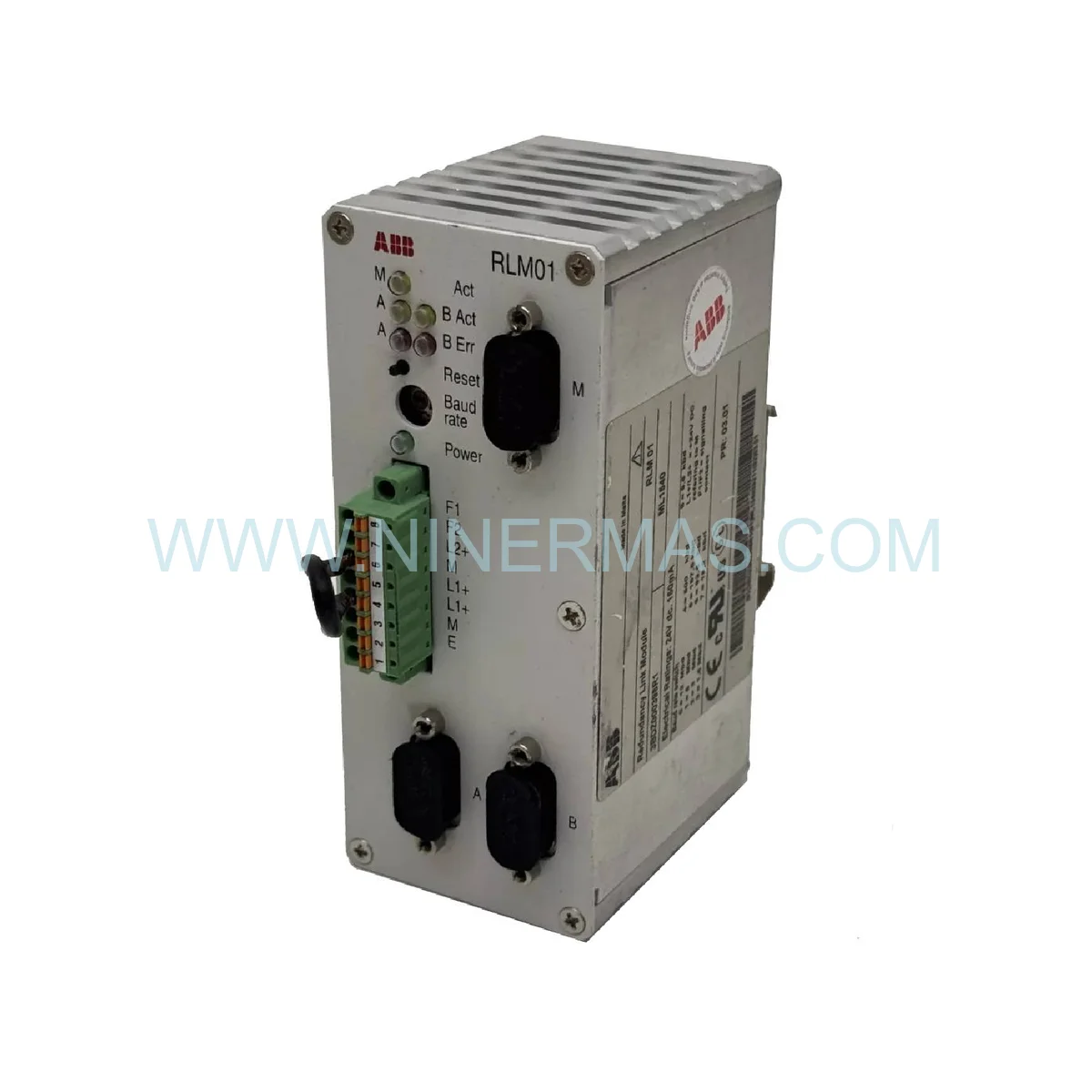

Triple-Port RS-485 Architecture: Three independent 9-pin Sub-D ports (A, B, M) enable true ring or star redundancy topologies with automatic failover switching.
Full-Range Baud Rate Auto-Detection: Supports 9.6 Kbps through 12 Mbps without manual DIP switch configuration — critical for mixed-speed Fieldbus segments.
500V Galvanic Port Isolation: Prevents ground loop currents between network segments, dramatically improving signal integrity in high-EMI industrial environments.
Redundancy Switchover <1ms: Failover between active and standby PROFIBUS segments occurs within one bit time, maintaining real-time Process Control loop integrity.
Alarm Contact Output: Normally-closed dry contact (60VDC / 1A) enables direct integration with PLC or SCADA fault management systems for remote diagnostics.
Marine-Grade Certification: Germanischer Lloyd (GL) approval in addition to CE, UL, and CSA — qualifying the module for shipboard automation and offshore DCS Hardware deployments.

Vertical Industry Applications

Petrochemical & Refining: In continuous process plants operating 24/7, PROFIBUS communication failures between field instruments and DCS controllers can trigger emergency shutdowns costing millions per hour. The 3BDZ000398R1 provides the redundant Fieldbus backbone that keeps distillation columns, compressor trains, and reactor loops communicating without interruption — even when one cable segment is physically damaged.

Mining & Mineral Processing: Conveyor systems, crushers, and flotation cells rely on distributed I/O connected via PROFIBUS DP. In underground or open-pit environments where cable damage is frequent, the automatic failover capability of the 3BDZ000398R1 ensures that a severed cable segment does not halt production. Legacy Components from older ABB Advant installations are directly compatible.

Marine & Offshore: Vessel automation systems — including propulsion control, ballast management, and fire & gas detection — demand components certified for marine environments. The Germanischer Lloyd-approved 3BDZ000398R1 meets DNV and Lloyd’s Register requirements for shipboard DCS Hardware, reducing system downtime during critical voyages.

Power Generation & Utilities: Turbine control systems, substation automation, and grid-connected renewable energy installations use PROFIBUS DP as the primary Fieldbus for I/O communication. Redundancy modules like the 3BDZ000398R1 are specified in SIS (Safety Instrumented System) designs to meet IEC 61511 availability targets.

Pharmaceutical & Food Processing: FDA-regulated manufacturing environments require validated, traceable components. The 3BDZ000398R1’s original factory documentation and traceability chain supports 21 CFR Part 11 compliance requirements for Process Control system qualification.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the ABB 3BDZ000398R1 shipped from our facility undergoes a structured verification process before dispatch. We source exclusively from authorized ABB distribution channels and certified industrial surplus networks — never from unverified gray-market sources. Each module is inspected for physical integrity, original factory seals, and label authenticity prior to packaging.

100% Original Components: All 3BDZ000398R1 units are genuine ABB-manufactured parts. Counterfeit DCS Hardware is a growing risk in the global spare parts market; our sourcing protocols include serial number verification against ABB’s manufacturer database where applicable.

12-Month Comprehensive Warranty: We provide a full 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed within 5 business days with advance replacement available for critical applications.

Emergency Delivery via DHL / FedEx / UPS: For Emergency Repair scenarios — where a plant is down and every hour represents significant production loss — we offer same-day dispatch with express international freight. Customs documentation, commercial invoices, and HS code classification are prepared in advance to minimize border clearance delays. Delivery to most global destinations within 24-72 hours.

Factory Sealed Condition: Units designated as Factory Sealed are shipped in original ABB packaging with intact tamper-evident seals, ensuring the component has never been installed, powered, or exposed to field conditions.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that a 3BDZ000398R1 unit is genuinely original ABB and not a counterfeit?
Authentic ABB 3BDZ000398R1 modules carry a holographic ABB label on the housing with a unique serial number traceable through ABB’s product registration system. The PCB inside should bear ABB’s internal part marking. Request a high-resolution photo of the label and connector area before purchase. Our units include a Certificate of Authenticity with each shipment.

Q2: Where can I obtain the official datasheet and installation manual for the 3BDZ000398R1?
The official ABB RLM01 documentation — including the installation manual (document number 3BDD010725), wiring diagrams, and PROFIBUS configuration guide — is available through ABB’s Library portal. We can also provide copies of the technical documentation with your order upon request.

Q3: Is the 3BDZ000398R1 compatible with non-ABB PROFIBUS DP masters?
Yes. Because the RLM01 operates transparently on the Fieldbus without requiring a slave address, it is compatible with any PROFIBUS DP master that conforms to IEC 61158 / EN 50170. This includes Siemens S7, Schneider Modicon, Honeywell Experion, and other third-party DCS Hardware platforms.

Q4: Can the 3BDZ000398R1 be used in a Safety Instrumented System (SIS)?
The RLM01 is a communication infrastructure component, not a SIL-rated safety device. However, it is commonly deployed in the communication layer of SIS architectures to provide the redundant Fieldbus connectivity required by IEC 61511 system designs. Consult your SIS engineer for specific application validation requirements.

Q5: What is the lead time if the module is not in stock?
For in-stock units, same-day or next-day dispatch is available. For sourced units, typical lead time is 3-7 business days depending on global availability. For Legacy Components with extended market scarcity, we recommend maintaining Maintenance Stock of at least one spare unit per critical PROFIBUS segment.

Q6: Does the 3BDZ000398R1 require firmware updates or configuration software?
No. The ABB RLM01 is a hardware-only device with no firmware, no configuration software, and no slave address assignment. It is fully plug-and-play within any PROFIBUS DP network. This zero-configuration design is one of its primary advantages for Emergency Repair situations where rapid replacement is essential.
