KUKA RV-410F-236 Retrofit-Compatible Gearbox for Legacy Systems

KUKA RV-410F-236 Retrofit-Compatible Gearbox for Legacy Systems

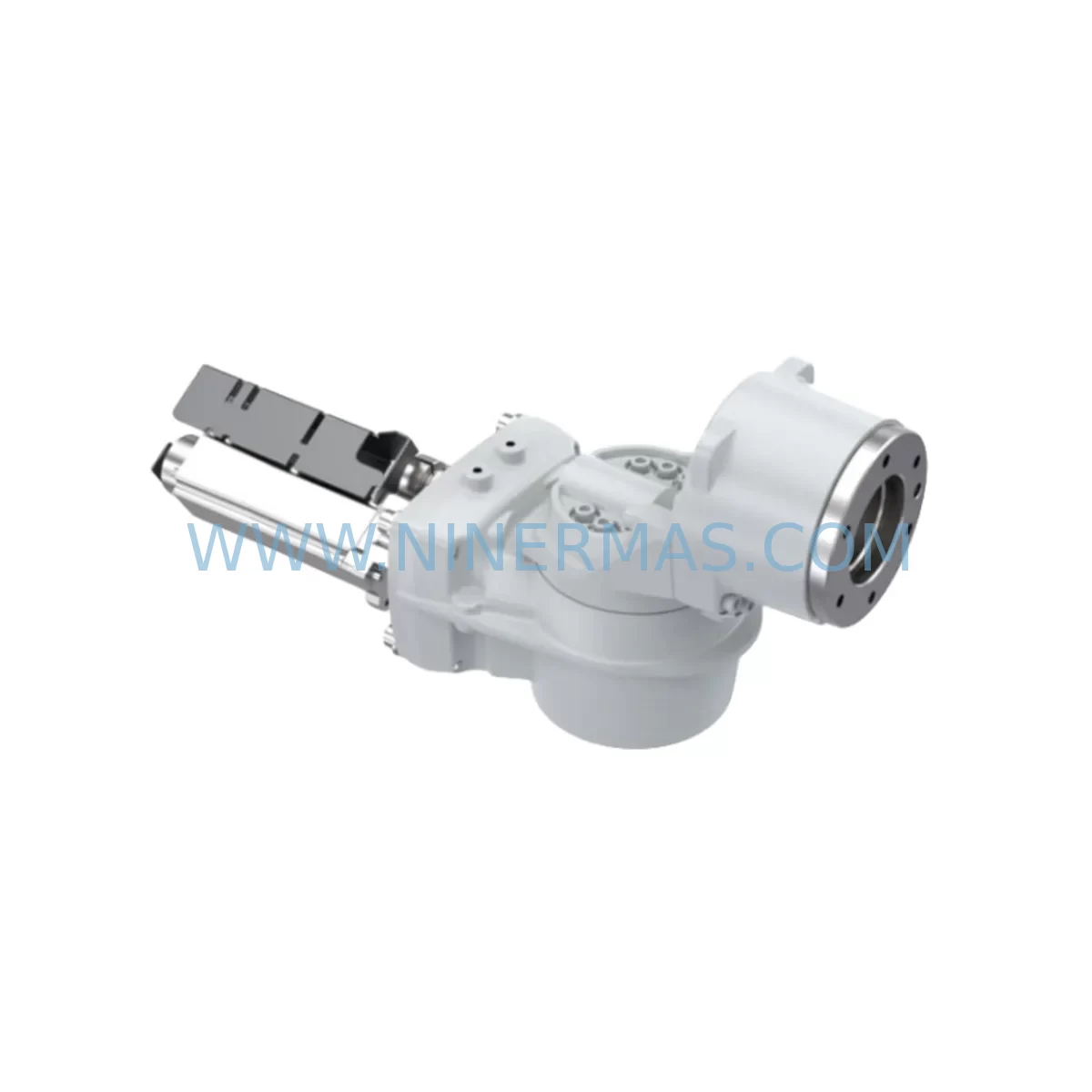

The KUKA RV-410F-236 (part numbers 00-170-819, 00-187-547, and 00-176-109) is a precision-engineered reduction gearbox module designed for KUKA industrial robots operating in demanding production environments. As KUKA continues to evolve its robot platform lineup, many facilities running legacy KUKA KR series robots — including the KR 210, KR 240, KR 270, and KR 300 R2500 ultra variants — face the challenge of sourcing compatible drivetrain components for aging axis assemblies. The RV-410F-236 gearbox addresses this challenge directly, offering a verified retrofit-compatible replacement path that preserves mechanical interfaces, mounting geometry, and torque transmission characteristics of the original OEM specification.

For maintenance engineers and system integrators managing multi-robot cells in automotive body shops, press lines, foundry environments, or heavy-payload palletizing stations, the availability of a pre-tested, in-stock RV-410F-236 gearbox unit is critical to minimizing unplanned downtime. This gearbox module is applicable to axis 1, axis 2, or axis 3 depending on the specific robot variant and configuration, and its ruggedized housing construction makes it suitable for high-vibration, high-temperature, and contamination-prone environments where standard gearbox units would degrade prematurely.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a gearbox in an operational KUKA robot cell requires careful pre-work to ensure the retrofit proceeds without introducing new faults or requiring extended commissioning time. Before removing the worn or failed RV-410F-236 unit, engineers should document the current axis zero position using the KUKA smartPAD teach pendant and record all mastering data stored in the KRC4 controller or KRC2 controller cabinet. This data is essential for re-mastering the axis after gearbox replacement and restoring the robot to its calibrated working envelope.

The gearbox replacement procedure also requires attention to the KUKA motor module (servo motor and resolver assembly) mounted to the gearbox input shaft. In many legacy installations, the motor connector harness and motor power cable routing must be carefully managed during disassembly to avoid damaging the resolver feedback signal lines, which directly affect position accuracy after recommissioning. If the resolver or encoder shows drift or signal irregularity prior to the gearbox failure, it is advisable to replace the motor assembly concurrently with the gearbox to avoid a second intervention.

For robots integrated into welding cells or press-tending applications, the KUKA axis computer board (DSE-IBS or equivalent) and the KPS 600 power supply module within the controller cabinet should be inspected for signs of overload or thermal stress that may have contributed to accelerated gearbox wear. Replacing the gearbox without addressing upstream electrical anomalies risks premature failure of the new unit. Similarly, the RDC (Resolver Digital Converter) board should be verified for correct resolver signal mapping after the new gearbox and motor assembly are installed.

In multi-axis robot configurations, it is common to replace the RV-410F-236 gearbox on one axis while simultaneously auditing the condition of gearboxes on adjacent axes. The KUKA KR 210 axis 4 and axis 5 gearbox modules — typically smaller RV-series units — should be inspected for backlash and oil seal integrity during the same maintenance window. This approach reduces total downtime across the robot lifecycle and avoids repeated line stoppages. The KUKA grease kit (Spezialpaste or equivalent lubrication compound) specified for the RV-410F-236 should be applied during reassembly per the KUKA maintenance manual torque and lubrication schedule.

For facilities managing a fleet of KUKA robots across multiple production lines, maintaining a reserved stock of the RV-410F-236 gearbox alongside compatible KUKA KPS 1200 power supply units, servo drive modules, and smartPAD teach pendants creates a comprehensive spare parts buffer that supports rapid response to unplanned failures without waiting for extended lead times from the OEM supply chain.

Downtime Control During System Migration

Gearbox replacement on a KUKA industrial robot is a planned maintenance event that, when properly prepared, can be completed within a single production shift. The key to minimizing downtime lies in pre-staging all required components, tools, and documentation before the robot is taken offline. This includes having the replacement RV-410F-236 gearbox unit on-site and pre-inspected, the correct torque wrench settings prepared per the KUKA service manual, and the mastering reference fixture or electronic mastering tool available at the workstation.

Once the robot is powered down and locked out per site safety procedures, the gearbox swap itself — including motor removal, gearbox extraction, new unit installation, and motor remounting — typically requires two to four hours depending on the axis location and robot model. The most time-sensitive step is re-mastering: using the KUKA EMT (Electronic Mastering Tool) or mechanical mastering gauge to restore the axis zero position to within the required tolerance. Incorrect mastering will cause path deviation errors and may trigger safety faults in the KRC4 safety controller or the connected KUKA SafeOperation monitoring system.

After mastering, a controlled test run at reduced speed (T1 mode) should be performed to verify smooth axis motion, absence of abnormal noise, and correct position feedback from the resolver. The robot program should then be executed in T2 mode before returning to full automatic production speed. This structured recommissioning sequence protects the original program logic, preserves tool center point (TCP) calibration, and ensures the robot returns to its pre-failure performance baseline without requiring reprogramming of the production cell.

For facilities with tight production schedules, NINERMAS maintains ready-to-ship inventory of the RV-410F-236 gearbox to support same-week dispatch, reducing the gap between failure detection and parts availability. All units are pre-tested for backlash, rotation smoothness, and dimensional conformance before shipment, ensuring that the replacement unit is installation-ready upon arrival.

Retrofit Support FAQ

Q1: Is the RV-410F-236 (00-170-819 / 00-187-547 / 00-176-109) a direct replacement for the original KUKA gearbox?
Yes. The RV-410F-236 is a direct mechanical replacement for the original OEM gearbox unit used in compatible KUKA KR series robots. The mounting flange, bolt pattern, shaft interface, and overall envelope dimensions are identical to the original specification, requiring no structural modification to the robot arm or axis housing during installation.

Q2: What pre-shipment testing is performed on each unit?
Every RV-410F-236 gearbox unit dispatched by NINERMAS undergoes a full pre-shipment inspection covering backlash measurement, input-to-output rotation verification, oil seal integrity check, and dimensional conformance to OEM tolerances. A test record is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this gearbox be used with both KRC2 and KRC4 controller platforms?
Yes. The RV-410F-236 is a mechanical component and is controller-agnostic. It is compatible with robots managed by KRC2, KRC4, and KRC4 compact controller platforms. After installation, standard axis mastering procedures applicable to the specific controller version should be followed to restore correct position calibration.

Q4: What is the lead time and warranty coverage?
NINERMAS maintains in-stock inventory of the RV-410F-236 gearbox for immediate dispatch. Standard international shipping lead time is 3–7 business days depending on destination. All units are covered by a 12-month warranty from the shipment date, covering manufacturing defects and functional failures under normal operating conditions. Long-term supply agreements and reserved stock arrangements are available for facilities managing multiple KUKA robots.
