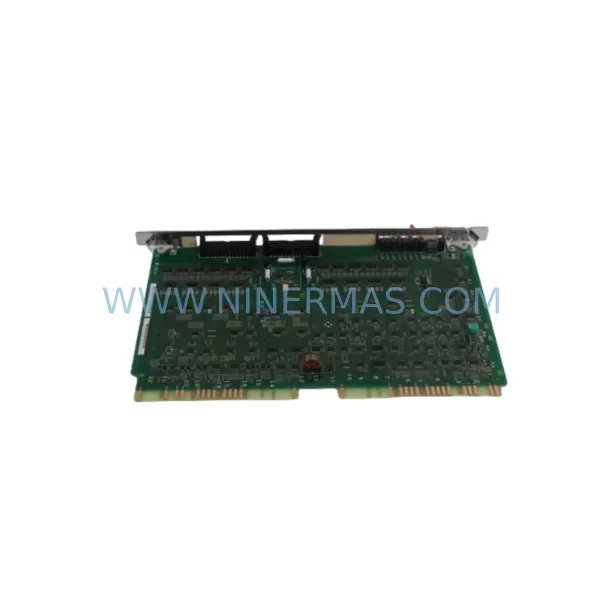

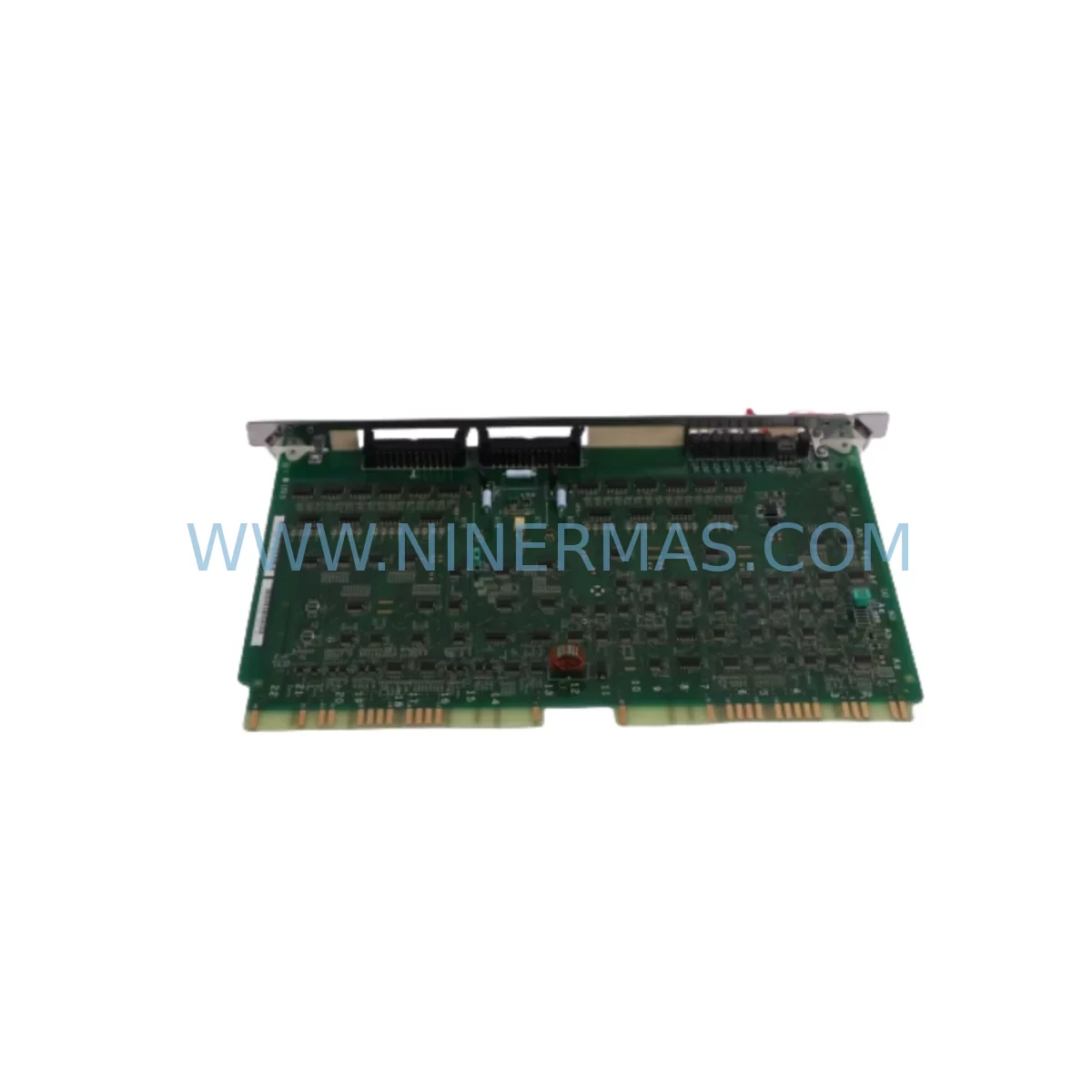

REXROTH VT-VSPA1-1-12 Retrofit-Compatible Analog Amplifier

REXROTH VT-VSPA1-1-12 Retrofit-Compatible Analog Amplifier for Legacy Hydraulic Control Systems

The REXROTH VT-VSPA1-1-12 is a ruggedized analog amplifier module engineered for proportional valve control in demanding industrial hydraulic applications. As legacy Rexroth VSPA-series amplifier cards reach end-of-life or become increasingly difficult to source, the VT-VSPA1-1-12 serves as the proven retrofit solution for plants operating older Rexroth VT-series control cabinets, mobile hydraulic systems, and press control platforms. With its robust analog signal conditioning architecture, this module delivers stable command output to proportional directional control valves, pressure-reducing valves, and flow control valves across a wide range of industrial environments — including steel mills, injection molding machines, die casting lines, and heavy-duty test rigs.

For maintenance engineers and automation integrators managing aging hydraulic control infrastructure, the VT-VSPA1-1-12 provides a reliable path to extend system life without committing to a full digital migration. Its compatibility with existing Rexroth VT-HACD, VT-HNC100, and VT-MSPA amplifier rack systems means that panel space, terminal wiring, and valve solenoid connections can often be preserved during the swap — significantly reducing retrofit labor and downtime exposure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful VT-VSPA1-1-12 retrofit begins with a thorough audit of the existing control cabinet. Engineers should first confirm that the 24 V DC power supply — often a Rexroth VT-NE30 or equivalent DIN-rail PSU — can sustain the combined current draw of the amplifier card and the proportional valve solenoid under peak demand. Undersized power supplies are a common cause of erratic valve response after card replacement and must be addressed before commissioning.

Terminal block wiring should be documented and photographed before removal of the legacy card. In many Rexroth VT-series racks, the command signal input, enable signal, solenoid output A and B, and feedback connections share a standardized terminal layout — but minor revisions between VSPA generations can introduce pin-mapping differences. Cross-referencing the VT-VSPA1-1-12 wiring diagram against the original installation drawing is essential to avoid solenoid polarity errors or enable-signal mismatches.

For plants running Rexroth HNC100 or VT-HACD axis controllers, the analog command interface between the controller output and the VT-VSPA1-1-12 input must be verified for signal range compatibility. Where the upstream controller outputs a 0–10 V unipolar signal rather than the standard ±10 V bipolar range, a signal conditioner or offset adjustment at the amplifier’s zero potentiometer may be required. In more complex multi-axis hydraulic systems, the VT-VSPA1-1-12 may operate alongside VT-VSPA2 dual-solenoid amplifier cards, VT-MSPA1 servo amplifier modules, and VT-SR2 ramp generator cards — all of which should be inspected for wear or calibration drift during the same maintenance window.

Where the control system includes a Rexroth IndraControl L or IndraControl V PLC platform, the analog output module (typically an IndraDrive or VT-series DAC card) driving the VT-VSPA1-1-12 should be confirmed operational before the amplifier card is replaced. Swapping the amplifier card while the upstream analog output module is degraded will produce misleading commissioning results. Similarly, if the hydraulic axis is monitored by a Rexroth VT-SWKD position transducer interface or an external LVDT signal conditioner, the feedback loop should be verified independently of the amplifier replacement.

For facilities planning a phased migration toward digital proportional valve control — such as transitioning to Rexroth VT-HACD or Bosch Rexroth Sytronix variable-speed pump drives — the VT-VSPA1-1-12 provides a cost-effective bridge solution that maintains production continuity while the digital upgrade is budgeted and scheduled. The analog architecture also simplifies integration with legacy Siemens S5 or early S7-300 PLC analog output cards that remain in service on older press lines and forming machines.

Downtime Control During System Migration

Minimizing unplanned downtime during a VT-VSPA1-1-12 swap requires preparation at three levels: documentation, spare parts staging, and pre-commissioning verification. Before the maintenance window opens, the existing amplifier card’s potentiometer settings — including ramp-up time, ramp-down time, dither amplitude, dither frequency, zero offset, and maximum current limit — should be recorded. These values represent months or years of field-tuned calibration and must be replicated on the replacement card to restore valve response characteristics without extended re-tuning on the production floor.

Where possible, the replacement VT-VSPA1-1-12 should be bench-tested against a known-good solenoid load or a resistive dummy load before installation. NINERMAS pre-shipment functional testing confirms that each unit powers up correctly, produces stable output current across the command signal range, and passes enable/disable switching without fault. This factory-level verification reduces the risk of installing a card that develops a fault during the first hours of production restart.

During the physical swap, the control program logic in the upstream PLC or motion controller does not require modification — the VT-VSPA1-1-12 is a transparent analog device from the controller’s perspective. This means that Rexroth IndraWorks, Siemens STEP 7, or Allen-Bradley Studio 5000 programs do not need to be re-downloaded or modified, preserving validated program integrity and avoiding the risk of inadvertent logic changes during the maintenance event. HMI screens referencing the hydraulic axis will continue to function normally, as the axis behavior is governed by the upstream controller rather than the amplifier card itself.

Post-installation commissioning should follow a structured sequence: power-on with valve solenoid disconnected, verify enable signal, apply a low-amplitude command signal and confirm output current with a clamp meter, reconnect solenoid, perform slow ramp tests at 10%, 50%, and 100% command, and verify axis response against the original motion profile. Total commissioning time for an experienced hydraulic technician is typically 30–90 minutes per axis, making single-shift completion realistic for most retrofit scenarios.

Retrofit Support FAQ

Q1: Is the VT-VSPA1-1-12 a direct drop-in replacement for the VT-VSPA1-1-10?
The VT-VSPA1-1-12 and VT-VSPA1-1-10 share the same card form factor and terminal layout within the Rexroth VT-series rack. The primary difference is the maximum solenoid current rating. Before substituting, confirm that the solenoid coil resistance of your proportional valve falls within the VT-VSPA1-1-12 output current range. NINERMAS technical support can assist with cross-reference verification prior to order placement.

Q2: What commissioning steps are required after installation?
After physical installation, set the enable input, apply a zero command signal, and verify zero output current. Then adjust the zero offset potentiometer if required. Apply a full-scale positive command and set the maximum current potentiometer to match the valve manufacturer’s rated solenoid current. Set ramp times to match the original card’s documented values. Perform a full-stroke valve test and confirm axis response before returning the machine to production.

Q3: Does NINERMAS provide pre-shipment testing for the VT-VSPA1-1-12?
Yes. Every VT-VSPA1-1-12 unit shipped by NINERMAS undergoes functional testing prior to dispatch. Testing confirms power-up behavior, analog input response, solenoid driver output linearity, and enable/disable switching. A test record is available upon request. All units are covered by a 12-month warranty against manufacturing defects from the date of shipment.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains inventory of VT-VSPA1-1-12 units to support urgent retrofit and breakdown replacement requirements. Standard orders are dispatched within 3–5 business days. For projects requiring multiple units or scheduled maintenance programs, NINERMAS offers stock-commitment arrangements to guarantee availability against planned retrofit schedules. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock levels and lead times.
