Siemens 6SY7010-0AB07 Service-Ready Industrial Spare

Siemens 6SY7010-0AB07 Service-Ready Industrial Spare: Spare Replacement & Downtime Risk Control

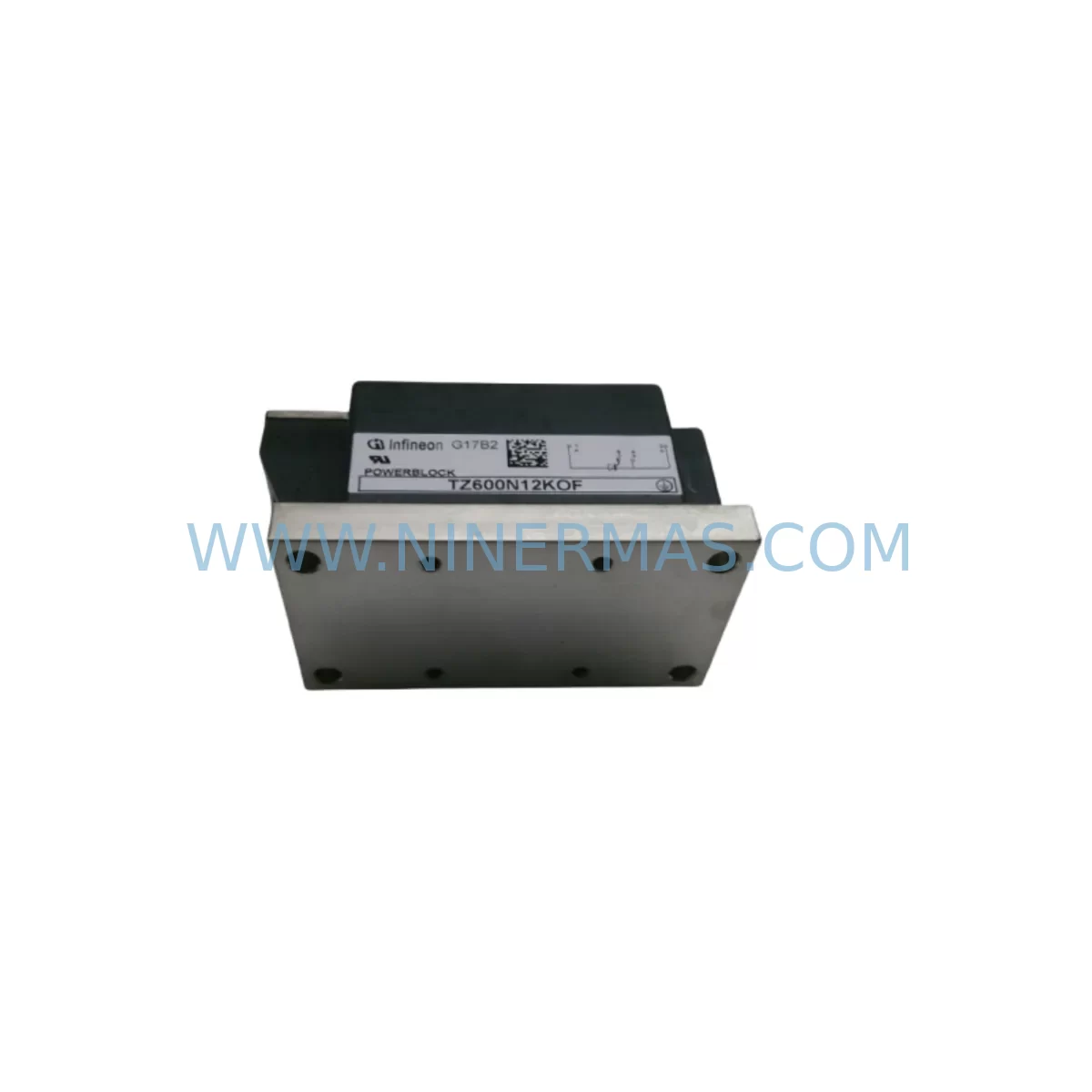

The Siemens 6SY7010-0AB07 is an original rectifier unit designed for the SIMOVERT MASTERDRIVES series of AC variable-speed drive systems. This component serves as a critical power conversion element within the drive cabinet, converting AC mains supply into a stable DC bus voltage that feeds the inverter stage. In industrial environments where SIMOVERT MASTERDRIVES units power conveyor systems, compressors, pumps, extruders, and precision machine tools, the availability of a service-ready 6SY7010-0AB07 spare directly determines how quickly a production line can be restored after an unplanned shutdown.

NINERMAS maintains verified stock of the 6SY7010-0AB07 with pre-shipment electrical testing, ensuring that every unit dispatched meets original Siemens performance specifications. Each spare is covered by a 12-month warranty from the date of shipment, providing procurement engineers with the confidence needed to commit to long-term maintenance contracts and annual inspection schedules.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a failed or degraded 6SY7010-0AB07 rectifier unit during a fault isolation routine, the replacement event is rarely isolated to a single component. A thorough cabinet inspection at the same maintenance window significantly reduces the risk of a repeat shutdown within the same production quarter.

Begin by verifying the DC bus capacitor bank — electrolytic capacitors in SIMOVERT MASTERDRIVES cabinets age in parallel with the rectifier stage and are a common secondary failure point. If the rectifier has failed due to overvoltage or thermal stress, the capacitor bank should be measured for capacitance and ESR before the drive is returned to service.

The IGBT inverter module (such as the 6SY7000-0AB20 or equivalent power module for the relevant frame size) should be inspected for gate driver signal integrity and thermal compound condition. A rectifier failure that caused DC bus overvoltage may have stressed the IGBT switching elements, making a functional test of the inverter stage mandatory before recommissioning.

Check the pre-charge resistor and pre-charge relay circuit — these components limit inrush current during power-up and are directly in the current path upstream of the rectifier. A failed pre-charge relay (such as those in the 6SE7090-0XX84-0AB0 option board assemblies) can cause repeated rectifier stress on every power cycle.

The control board and CU (Control Unit) — for example the 6SE7021-0EP50 or similar CUVC/CUMC boards — should be inspected for firmware version compatibility and parameter backup. After a rectifier replacement, a parameter restore from the last known-good backup prevents configuration drift and ensures the drive restarts with correct ramp times, current limits, and protection thresholds.

Inspect the 24 VDC auxiliary power supply feeding the control electronics. A degraded SMPS module (such as the 6SY7000-0AC71 or equivalent auxiliary supply board) can cause intermittent control faults that are misdiagnosed as rectifier failures. Measuring the 24 V rail under load before and after the rectifier swap confirms the auxiliary supply is stable.

Review the input line reactor or EMC filter upstream of the drive. Line reactors protect the rectifier from voltage spikes and harmonic distortion; a missing or undersized reactor accelerates rectifier aging. If the site uses a shared DC bus topology, also inspect the braking resistor and chopper module (e.g., 6SE7031-2HF84-1BG0) for signs of thermal fatigue.

Finally, verify the fiber optic communication links and PROFIBUS DP or PROFINET interface modules (such as the 6SE7090-0XX84-0FF5 CBP2 board) are seated correctly and that the drive node address is unchanged. Communication faults after a hardware replacement are a common source of extended commissioning delays that could otherwise be avoided with a pre-replacement checklist.

Stocking the 6SY7010-0AB07 alongside these associated components — capacitor banks, IGBT modules, pre-charge relays, control boards, and auxiliary supplies — as a drive cabinet spare kit is the most effective strategy for reducing mean time to repair (MTTR) on SIMOVERT MASTERDRIVES installations.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the drive cabinet and verify DC bus voltage has discharged below 50 V before opening the cabinet. SIMOVERT MASTERDRIVES DC bus capacitors can retain dangerous charge for several minutes after mains disconnection.

Step 2 — Fault Documentation: Record the active fault codes from the drive’s operator panel (OP1S or AOP) or from the STARTER/SCOUT commissioning tool. Photograph the existing wiring and connector positions on the 6SY7010-0AB07 before removal.

Step 3 — Component Removal: Disconnect the AC input terminals, DC bus output busbars, gate driver ribbon cable, and any temperature sensor connectors. Note torque specifications for busbar bolts — typically 6–10 Nm depending on frame size — to ensure correct reinstallation.

Step 4 — New Unit Installation: Install the replacement 6SY7010-0AB07, reconnect all terminals in reverse order, and verify that the gate driver cable is fully seated. Apply thermal compound to the heatsink interface if required by the frame variant.

Step 5 — Pre-Power Verification: Measure insulation resistance between AC input and DC bus before energizing. Confirm the pre-charge circuit is functional by monitoring DC bus voltage rise on initial power-up — a healthy pre-charge sequence ramps the bus voltage smoothly over 2–5 seconds.

Step 6 — Functional Test & Recommissioning: Restore drive parameters from backup, run the drive at reduced load for 15–30 minutes, and monitor DC bus voltage, output current, and heatsink temperature. Log the test results for the maintenance record before returning the line to full production.

This workflow is compatible with both direct replacement of legacy 6SY7010-0AB07 units and retrofit scenarios where an older MASTERDRIVES cabinet is being refurbished to extend its operational life by 5–10 years, deferring capital expenditure on a full drive replacement.

Spare Parts Support FAQ

Q1: Is the 6SY7010-0AB07 still available as a new original part, or is it end-of-life?
The 6SY7010-0AB07 is a legacy Siemens SIMOVERT MASTERDRIVES component that has been discontinued from standard Siemens production channels. NINERMAS sources verified original units from authorized distribution channels and long-term inventory reserves. Each unit undergoes pre-shipment electrical testing to confirm it meets original performance specifications before dispatch.

Q2: How do I confirm compatibility with my specific MASTERDRIVES cabinet frame size?
Compatibility is determined by the drive’s rated output current, DC bus voltage, and frame size designation (e.g., Compact PLUS, Compact, or chassis format). Provide your drive’s full order number (e.g., 6SE70XX-XXXXXX-XXXX) or the nameplate data to NINERMAS at sale@ninermas.com and our technical team will confirm fitment before order confirmation.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events beyond rated limits, or physical damage in transit. To initiate a warranty claim, contact sale@ninermas.com with the order number, fault description, and photographic evidence. NINERMAS will arrange a replacement or repair within the agreed lead time.

Q4: Can NINERMAS support long-term supply agreements for ongoing MASTERDRIVES maintenance programs?
Yes. NINERMAS offers reserved inventory agreements for maintenance engineers and procurement teams managing large fleets of SIMOVERT MASTERDRIVES installations. Long-term supply contracts include agreed pricing, priority allocation from reserved stock, and defined lead times to support annual inspection schedules and emergency breakdown response. Contact +0086 187 5021 5667 or sale@ninermas.com to discuss your site’s requirements.
