ABB IIMCL01 Service-Ready Spare Part for Industrial Maintenance

ABB IIMCL01 Service-Ready Spare Part for Industrial Maintenance

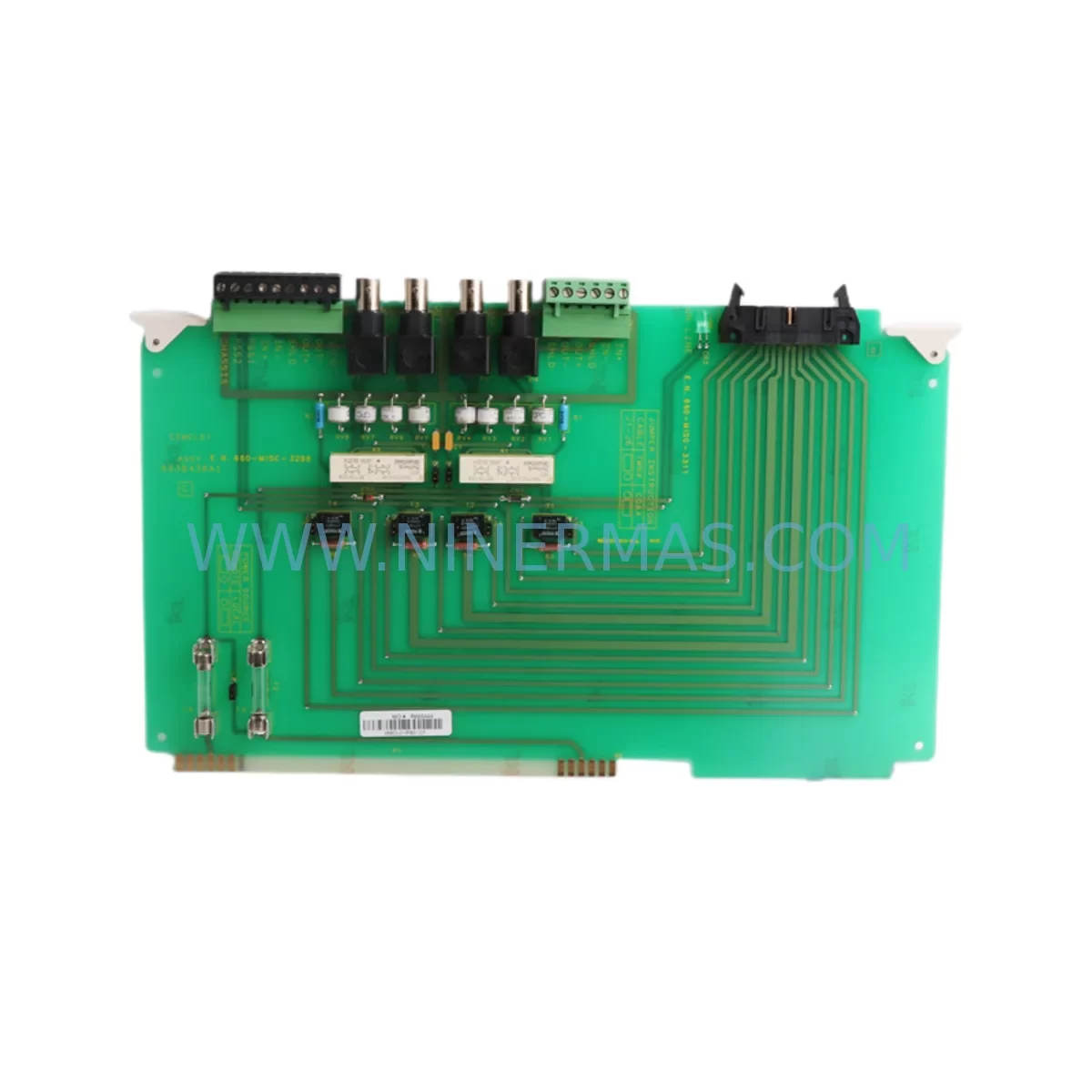

The ABB IIMCL01 Ruggedized Multibus Communication Link Safety Module is a critical spare part for industrial automation systems built on the ABB AC500 PLC platform. Designed to maintain uninterrupted communication between safety-rated control nodes and the broader Multibus architecture, the IIMCL01 is a go-to replacement component for maintenance engineers managing aging control cabinets, safety-critical production lines, and distributed I/O networks. Whether you are responding to an unplanned fault, executing a scheduled annual overhaul, or building a proactive spare parts inventory, having a verified, service-ready IIMCL01 on hand is essential to minimizing downtime and protecting operational continuity.

At NINERMAS, every ABB IIMCL01 unit is sourced, inspected, and dispatched with full traceability. Our supply chain covers original and equivalent-grade components, and each unit undergoes pre-shipment functional verification before leaving our warehouse. We support long-term procurement relationships with maintenance teams, MRO buyers, and plant engineering departments across process industries, discrete manufacturing, energy, and infrastructure sectors.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Multibus communication fault is traced to the IIMCL01 module, experienced maintenance engineers know that the fault rarely exists in isolation. The Multibus link sits at the heart of the AC500 safety architecture, and its failure often signals stress across adjacent components that share the same communication backbone, power rail, or I/O scan cycle.

Before completing the IIMCL01 replacement, a thorough site inspection should include the AC500 CPU module (such as the PM564-T or PM573-ETH) to confirm that the processor’s communication ports and firmware are functioning correctly and have not been corrupted by the fault event. The backplane itself — the TB521 or TB541 expansion rack — should be inspected for oxidation, loose seating, or mechanical damage that could cause intermittent contact with the new module.

Power integrity is equally important. The PS501 or PS502 power supply modules feeding the AC500 rack should be load-tested to confirm stable 24 VDC output under full I/O load. A degraded power supply is a common root cause of communication module failures that goes undetected until a replacement module exhibits the same fault. Inline fuse holders and terminal blocks on the 24 VDC distribution rail should also be checked for loose connections or thermal discoloration.

On the I/O side, digital input modules (DI524 or DI572) and digital output modules (DO524 or DO572) connected to the Multibus network should be scanned for error flags in the PLC diagnostic buffer. A single I/O module with a persistent communication error can generate enough bus traffic to destabilize the IIMCL01 link. Signal isolators on analog input channels feeding safety-rated loops should be verified for correct output range and isolation integrity.

For systems with fieldbus extensions, the CI590-CS31-HA or CI592-CS31 communication interface modules should be checked for firmware version compatibility with the replacement IIMCL01. Mismatched firmware between the communication link module and the fieldbus interface is a known source of post-replacement instability in AC500 safety systems.

Maintenance planners building annual spare parts kits for AC500-based control cabinets should consider stocking the IIMCL01 alongside the TB521 backplane, at least one PS501 power supply module, a set of DI524 and DO524 I/O modules, and a CI590-CS31-HA fieldbus interface. This combination covers the most common failure modes in a fully loaded AC500 safety rack and supports rapid recovery from both planned and unplanned outages.

For older installations where the AC500 system has been in service for more than seven years, proactive replacement of the IIMCL01 during scheduled downtime — rather than waiting for a fault — is a cost-effective strategy that avoids the much higher cost of an emergency shutdown. NINERMAS maintains long-term supply agreements for legacy ABB components, ensuring that even discontinued or hard-to-source modules remain available for system life extension programs.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the IIMCL01, record the current PLC diagnostic buffer state, note any active fault codes, and photograph the module’s slot position and wiring connections. This documentation is critical for post-replacement verification.

Step 2 — Power down safely: Follow the site’s lockout/tagout procedure. De-energize the AC500 rack via the PS501/PS502 power supply input. Confirm zero voltage at the backplane bus before proceeding.

Step 3 — Remove and inspect: Extract the IIMCL01 from its backplane slot. Inspect the slot connector on the TB521 or TB541 rack for bent pins, debris, or corrosion. Clean with approved contact cleaner if necessary.

Step 4 — Install the replacement: Seat the new IIMCL01 firmly into the backplane slot. Confirm the module latch engages fully. Do not force the module — misalignment can damage the backplane connector.

Step 5 — Power up and verify: Restore power via the PS501/PS502 supply. Monitor the AC500 CPU’s diagnostic LEDs and the IIMCL01’s status indicators during the boot sequence. Clear any residual fault codes in the PLC program and confirm that all Multibus nodes are communicating correctly.

Step 6 — Functional test: Execute a full I/O scan and safety function test before returning the system to production. Document the replacement in the site’s maintenance log, including the new module’s serial number and the date of installation.

This workflow is designed to minimize total downtime to under two hours for a prepared maintenance team with the replacement module on hand. For sites without local stock, NINERMAS offers express dispatch to reduce the gap between fault detection and system recovery.

Spare Parts Support FAQ

Q1: Is the IIMCL01 still in production, and can NINERMAS guarantee long-term supply?
The IIMCL01 is a mature component within the ABB AC500 safety portfolio. NINERMAS maintains dedicated stock and supplier relationships to support long-term procurement, including for systems in the extended service or life-extension phase. We can provide supply continuity agreements for customers with multi-year maintenance contracts.

Q2: How do I confirm compatibility between the IIMCL01 and my existing AC500 CPU and backplane?
Compatibility is determined by the AC500 CPU generation (PM5xx series) and the backplane type (TB521 or TB541). Share your existing CPU part number and rack configuration with our technical team at sale@ninermas.com, and we will confirm compatibility before shipment. We do not dispatch modules without compatibility verification for safety-rated applications.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or environmental conditions outside the module’s rated range. To initiate a warranty claim, contact sale@ninermas.com with your order number, fault description, and site photos. Replacement or credit is processed within 10 business days of receiving the returned unit.

Q4: Can NINERMAS supply multiple IIMCL01 units for a plant-wide spare parts standardization program?
Yes. NINERMAS supports bulk procurement for MRO standardization programs. Volume pricing, consolidated shipment, and staggered delivery schedules are available. Contact our procurement team to discuss your annual spare parts plan and we will provide a dedicated quotation with lead time commitments.
