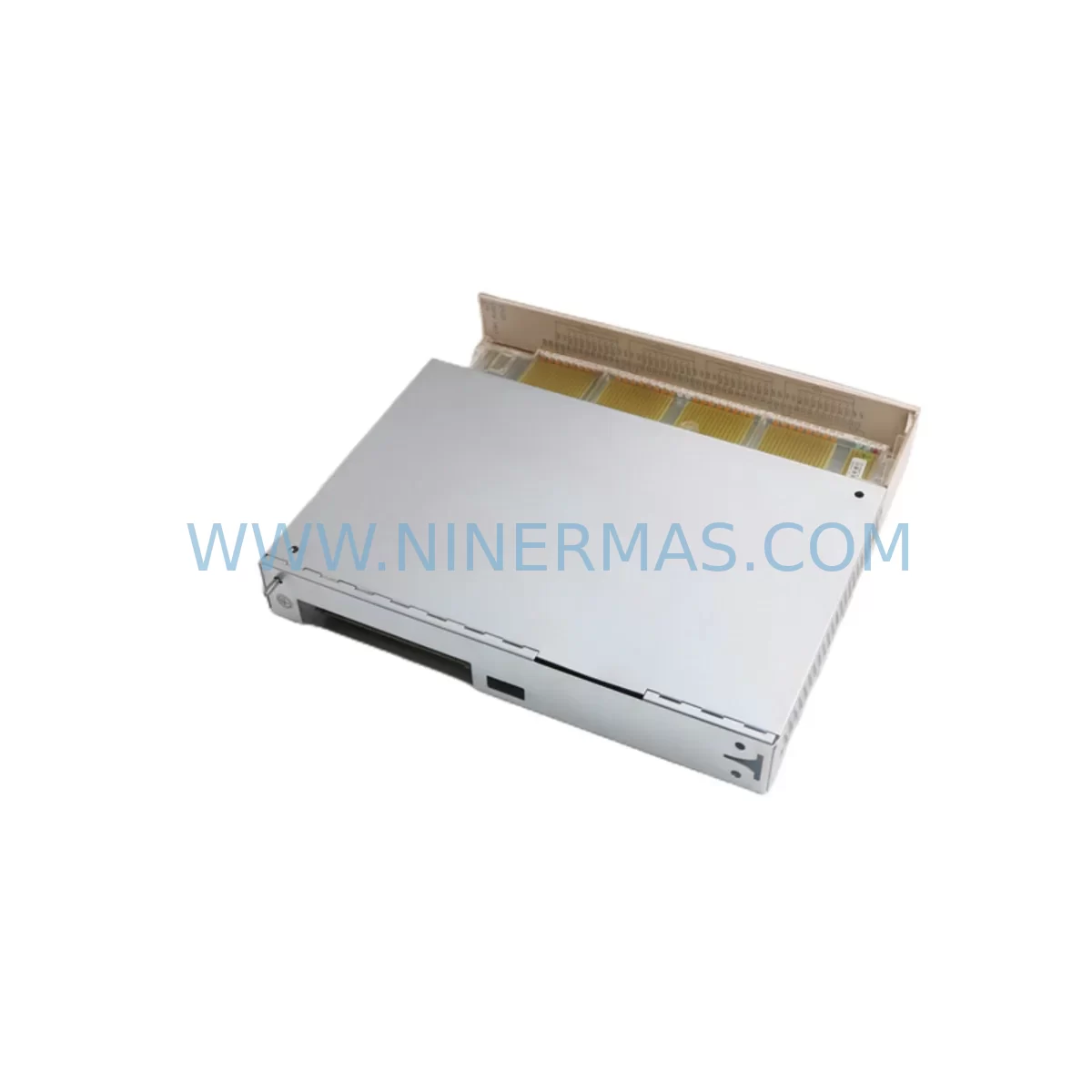

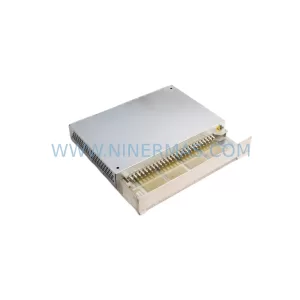

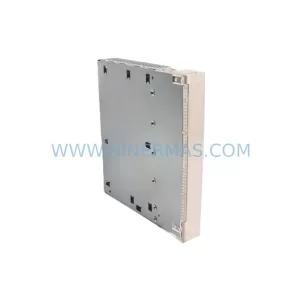

ABB DI620 3BHT300002R1 Safety Digital Input Module

ABB DI620 3BHT300002R1 Safety Digital Input Module: Reliable Control for Critical Industrial Sites

The ABB DI620 3BHT300002R1 is a ruggedized digital input module engineered for demanding industrial automation environments where control reliability is non-negotiable. Designed as part of ABB’s proven AC500 PLC platform, this module delivers consistent, high-integrity digital signal acquisition across continuous production lines, critical safety interlocks, and heavy-duty control cabinet installations. Whether deployed in petrochemical processing, power generation, mining extraction, water treatment, or metallurgical operations, the DI620 3BHT300002R1 provides the signal fidelity and environmental resilience that safety-critical applications demand.

In modern industrial facilities, unplanned downtime caused by signal drift, electromagnetic interference, or module failure can result in catastrophic production losses and, more critically, safety hazards. The ABB DI620 3BHT300002R1 addresses these risks head-on with its ruggedized construction, wide operating temperature tolerance, and robust EMI shielding — ensuring that digital input signals from field devices such as proximity sensors, limit switches, and safety relay contacts are accurately captured and transmitted to the control system without interruption or misinterpretation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the ABB DI620 3BHT300002R1 serves as the front-line signal acquisition layer, capturing discrete field inputs and feeding them reliably into the AC500 CPU — such as the ABB PM573-ETH or ABB PM591 — for real-time logic processing. The integrity of this signal chain is foundational to safe machine operation. A corrupted or delayed digital input can cause a safety interlock to fail to respond, a motor to start unexpectedly, or a process to exceed safe operating limits.

To protect the DI620 module and the broader control system from power-related disturbances, it is standard practice to pair it with a high-quality DIN rail power supply such as the ABB CP-E 24/5.0 or equivalent 24 VDC regulated supply with surge protection. Upstream surge protection devices — for example, the ABB OVR T2 series surge arresters — should be installed at the cabinet entry point to absorb transient overvoltages from lightning strikes or switching operations on long field cable runs.

For safety-critical interlock circuits, the DI620 is frequently used alongside ABB safety relay modules such as the ABB JSBR4 or ABB Pluto safety PLC series, where the digital inputs monitor the status of emergency stop buttons, safety gates, and light curtain outputs. In these architectures, the module’s galvanic isolation between input channels and the backplane bus is essential — it prevents a field-side fault from propagating into the control system and causing a spurious trip or, worse, masking a genuine safety event.

Communication integrity is equally important. In distributed control architectures, the AC500 rack hosting the DI620 may communicate via PROFIBUS DP, Modbus TCP, or EtherNet/IP using ABB communication modules such as the ABB CI590-CS31-HA or ABB CI501-PNIO. Ensuring that these communication modules are properly configured and that network cables are shielded and grounded minimizes the risk of communication timeouts or data corruption that could lead to incorrect control decisions.

In high electromagnetic interference environments — common in variable frequency drive (VFD) cabinets, arc furnace control rooms, or near large transformer banks — the ruggedized design of the DI620 3BHT300002R1 provides a measurable advantage over standard-grade input modules. Its enhanced noise immunity reduces the risk of false input triggering (phantom signals) that can cause nuisance trips, unexpected actuator movements, or alarm floods that overwhelm operators. Complementing the DI620 with proper cable segregation, ferrite cores on signal cables, and ABB DO620 or ABB DO610 digital output modules of equivalent ruggedized specification ensures a consistent, high-reliability I/O layer throughout the cabinet.

For applications requiring analog signal monitoring alongside digital interlocks — such as pressure, temperature, or flow transmitter inputs — the ABB AI620 analog input module from the same AC500 family provides seamless integration, sharing the same rack infrastructure and programming environment. This reduces spare parts complexity and simplifies maintenance training for site engineers.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments such as crude distillation units, hydrocracker reactors, and LNG terminals, the DI620 3BHT300002R1 monitors critical field signals including high-high level switches, pressure safety valve position feedback, and flame detector outputs. Its ability to operate reliably at elevated ambient temperatures and in the presence of corrosive atmospheres (when housed in appropriately rated enclosures) makes it a trusted choice for safety instrumented system (SIS) support layers.

Power Generation and Substation Automation: In coal-fired, gas turbine, and hydroelectric power plants, digital input modules must respond to generator protection relay outputs, circuit breaker position signals, and turbine overspeed trip contacts within milliseconds. The DI620’s fast input response time and high noise immunity ensure that these critical signals are captured accurately even in the high-EMI environment of a generator control room or switchgear building.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction of the DI620 3BHT300002R1 — compliant with IEC 60068 environmental test standards — ensures continued operation of conveyor belt safety interlocks, crusher overload protection circuits, and ventilation fan status monitoring even under these harsh conditions.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on digital input modules to monitor pump run/fail status, valve open/closed feedback, and high-level float switch signals across geographically distributed pump stations. The DI620’s compatibility with the AC500 remote I/O architecture allows it to be deployed in remote field panels while maintaining reliable communication back to the central SCADA system.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate intense electromagnetic interference and mechanical vibration. The DI620 3BHT300002R1’s ruggedized design and optocoupler isolation protect the control system from the electrical noise generated by high-current switching, ensuring that roll gap position signals, cooling water flow switches, and emergency stop inputs are processed correctly at all times.

Port and Marine Applications: Ship-to-shore cranes, bulk material handling systems, and vessel automation systems require control modules that can withstand salt-laden air, humidity, and the mechanical shock of heavy load handling. The DI620’s wide operating temperature range and vibration resistance make it suitable for these demanding maritime and port logistics environments.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the ABB DI620 3BHT300002R1?
All ABB DI620 3BHT300002R1 modules supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification testing to confirm correct operation before dispatch. In the event of a warranty claim, NINERMAS provides prompt replacement or repair support to minimize your site downtime.

Q2: How is the module tested before shipment?
Every DI620 3BHT300002R1 unit is subject to a pre-shipment inspection protocol that includes visual inspection for physical damage, power-on functional testing of all 16 digital input channels, and verification of backplane communication integrity. Units that do not pass all test criteria are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is the DI620 3BHT300002R1 compatible with my existing ABB AC500 system?
Yes. The DI620 3BHT300002R1 is designed for direct installation into ABB AC500 expansion racks and is compatible with the full range of AC500 CPUs including the PM571, PM573, PM581, PM583, PM591, and PM595 series. It is also compatible with AC500-S safety CPUs when used in the appropriate system architecture. If you are unsure about compatibility with your specific rack or CPU version, please contact NINERMAS at sale@ninermas.com with your system configuration details.

Q4: Can NINERMAS guarantee long-term supply and replacement support for this module?
NINERMAS maintains dedicated stock of ABB AC500 series I/O modules including the DI620 3BHT300002R1 to support both planned maintenance schedules and emergency replacement requirements. We understand that industrial sites cannot afford extended lead times for critical spare parts. Our inventory management strategy prioritizes high-demand ABB modules to ensure rapid dispatch — typically within 1–3 business days for in-stock items. For sites requiring guaranteed spare parts availability under a long-term service agreement, please contact our sales team to discuss framework supply arrangements.
