ABB 3BHB022793R0001 ASE2UDC920AE01 Service-Ready Spare Part

ABB 3BHB022793R0001 ASE2UDC920AE01 Service-Ready Spare Part for Industrial Maintenance

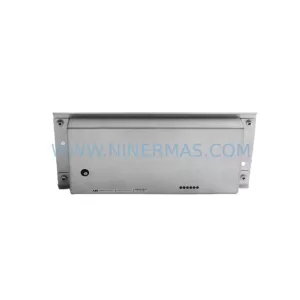

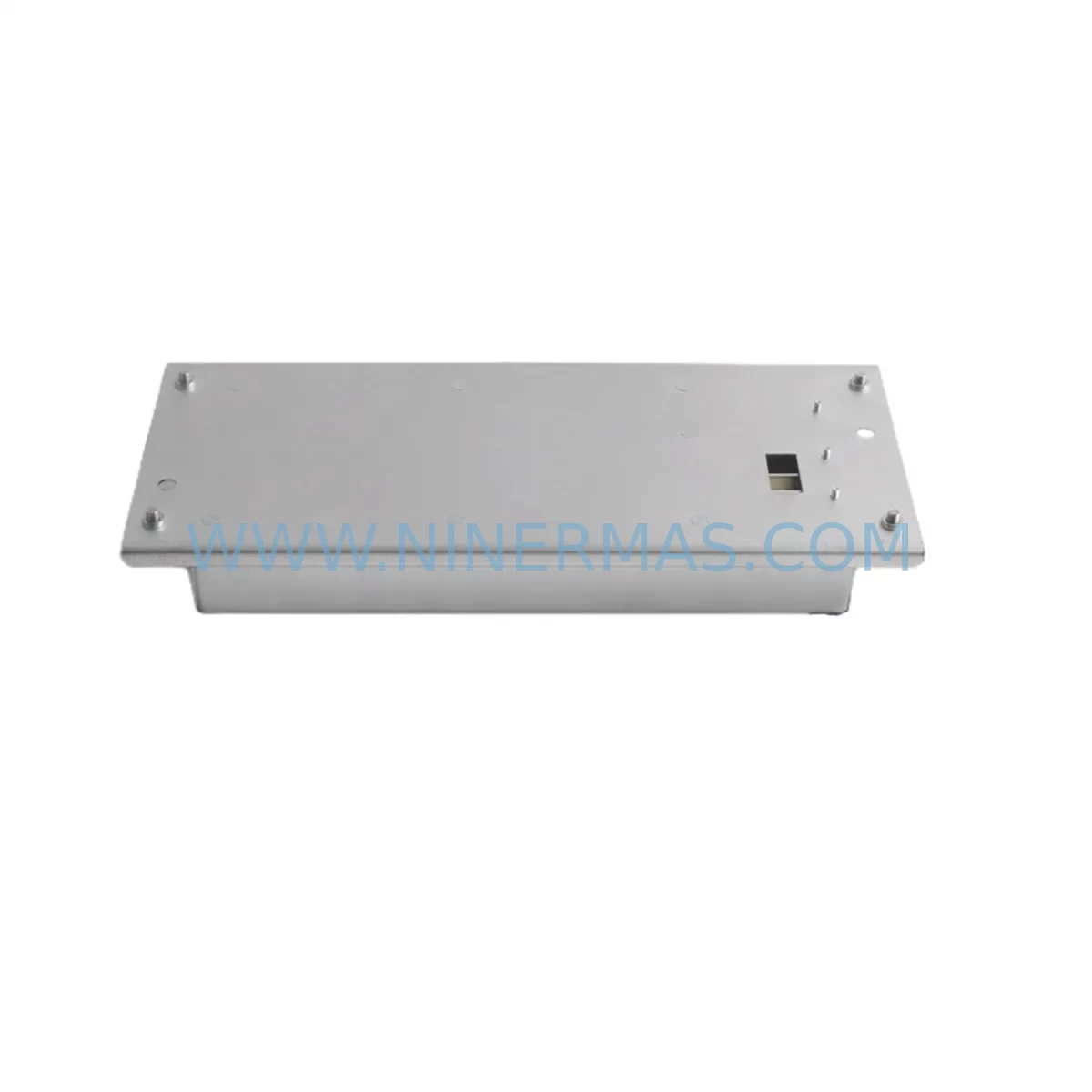

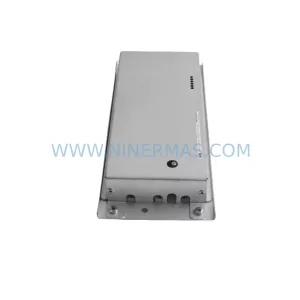

The ABB 3BHB022793R0001 (ASE2UDC920AE01) is a ruggedized safety control module engineered for continuous operation in demanding industrial environments. Designed as a core component within ABB’s AC800M distributed control system architecture, this module delivers reliable safety logic execution, real-time process monitoring, and fault-tolerant control — making it a critical spare part for any maintenance engineer responsible for uptime in power generation, oil & gas, chemical processing, or heavy manufacturing facilities.

At NINERMAS, every unit of the ASE2UDC920AE01 is sourced as an original ABB spare, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are responding to an unplanned shutdown, building a preventive maintenance inventory, or replacing an end-of-life module in an aging control cabinet, this part ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3BHB022793R0001 module requires replacement, experienced maintenance engineers know that a single-component swap rarely tells the full story. A thorough site inspection and cabinet audit should accompany any safety module replacement to prevent repeat failures and ensure system integrity is fully restored.

Begin by verifying the AC800M controller backplane and rack assembly for signs of corrosion, loose connectors, or mechanical stress — backplane faults are a common root cause of module failures that go undetected until a replacement module also fails. Inspect the PM866 or PM891 processor module in the same controller rack; if the ASE2UDC920AE01 has failed due to a power surge or communication fault, the processor module may carry latent damage.

Check the 24 VDC power supply module (such as the ABB SD831 or SD832) feeding the control cabinet. Voltage ripple, under-voltage events, or intermittent power interruptions are leading causes of safety module degradation. A failing power supply will shorten the service life of any replacement module. Similarly, inspect fuse terminals and circuit protection on the incoming power rail — blown or weakened fuses indicate transient overcurrent events that should be investigated before commissioning the new module.

Review the I/O modules connected to the safety loop — particularly digital input modules (DI) and digital output modules (DO) in the same safety circuit. Faulty field wiring or a shorted I/O channel can cause the safety controller to trip repeatedly. If the plant uses signal isolators or signal conditioners between field instruments and the safety I/O, verify their output ranges and isolation integrity.

For systems using Modulebus optical fiber communication, inspect fiber connectors and optical transceivers for contamination or bending radius violations. Communication errors at the Modulebus level can cause the ASE2UDC920AE01 to report spurious faults. Also confirm that the TB820 or TB840 Modulebus modem in the rack is functioning correctly, as a degraded modem will affect all modules on that bus segment.

If the plant operates an 800xA operator station or HMI workstation, verify that the control network switch and OPC server are communicating correctly after module replacement — configuration downloads and function block re-initialization may be required. For sites with redundant controller configurations, test the switchover logic between primary and backup modules before returning the system to automatic mode.

Finally, update your spare parts inventory record to reflect the consumed unit and initiate a replenishment order. Maintaining at least one additional 3BHB022793R0001 on the shelf — alongside spares for the PM866 processor, SD831 power supply, and key I/O modules — is a recognized best practice for facilities operating AC800M-based safety systems where unplanned downtime carries significant production or safety risk.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a Permit to Work (PTW) and isolate the affected control loop per site LOTO procedures. Confirm the safety function is bypassed or the process is in a safe state before opening the control cabinet.

Step 2 — Documentation: Record the existing module’s firmware version, slot position, and any active fault codes displayed on the 800xA system or local LED indicators on the ASE2UDC920AE01. Photograph wiring and connector positions before disconnection.

Step 3 — Module Removal: Power down the rack slot if hot-swap is not supported for this configuration. Carefully extract the 3BHB022793R0001 from the backplane, avoiding stress on the connector pins. Label the removed module with the date and fault description for traceability.

Step 4 — Inspection & Cleaning: Inspect the backplane connector for bent pins, oxidation, or debris. Clean with approved contact cleaner if necessary. Verify the rack slot is mechanically sound before inserting the replacement.

Step 5 — Installation: Insert the new ASE2UDC920AE01 module firmly into the backplane slot. Restore power and observe LED status indicators — a healthy module should display a steady green RUN indicator within the boot sequence.

Step 6 — Configuration Download: Using ABB Control Builder or the 800xA engineering workspace, download the application configuration to the replacement module. Verify all function blocks, safety parameters, and I/O assignments are correctly loaded.

Step 7 — Functional Test: Perform a loop test on all safety I/O channels associated with the module. Confirm that the safety function responds correctly to test inputs before releasing the bypass and returning the system to normal operation.

Step 8 — Documentation & Handover: Update the maintenance log, CMMS record, and spare parts register. Notify the operations team that the system has been returned to service. Initiate a replenishment order for the consumed spare.

Spare Parts Support FAQ

Q1: Is the 3BHB022793R0001 a direct drop-in replacement for the ASE2UDC920AE01 installed in my AC800M system?
Yes — 3BHB022793R0001 is the ABB order number and ASE2UDC920AE01 is the module designation for the same unit. Both references identify the identical ruggedized safety control module. Compatibility is confirmed for AC800M racks and System 800xA environments. Always verify firmware version compatibility with your engineering team before installation in a live safety system.

Q2: How does NINERMAS verify the condition of this module before shipment?
Every 3BHB022793R0001 unit dispatched by NINERMAS undergoes a pre-shipment inspection covering physical condition, connector integrity, and where applicable, power-on functional verification. Units are packed in anti-static ESD-safe packaging with desiccant to prevent moisture ingress during transit. A 12-month warranty is included with every shipment, covering manufacturing defects and module failure under normal operating conditions.

Q3: Can NINERMAS support long-term or repeat supply of this module for our annual maintenance program?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation systems, including discontinued and hard-to-source ABB modules. We maintain stock of the ASE2UDC920AE01 and related AC800M components and can support blanket purchase orders, scheduled deliveries, and emergency expedite requests. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your annual maintenance procurement requirements.

Q4: What should I do if the replacement module does not resolve the fault after installation?
If the fault persists after installing a new 3BHB022793R0001, the root cause is likely external to the module itself. Review the diagnostic steps outlined in the Maintenance Planning section above — particularly the backplane, power supply, I/O wiring, and Modulebus communication path. Collect the 800xA system event log and module diagnostic data before contacting ABB technical support or your site automation engineer. NINERMAS technical staff can also assist with compatibility verification and sourcing of related components.
