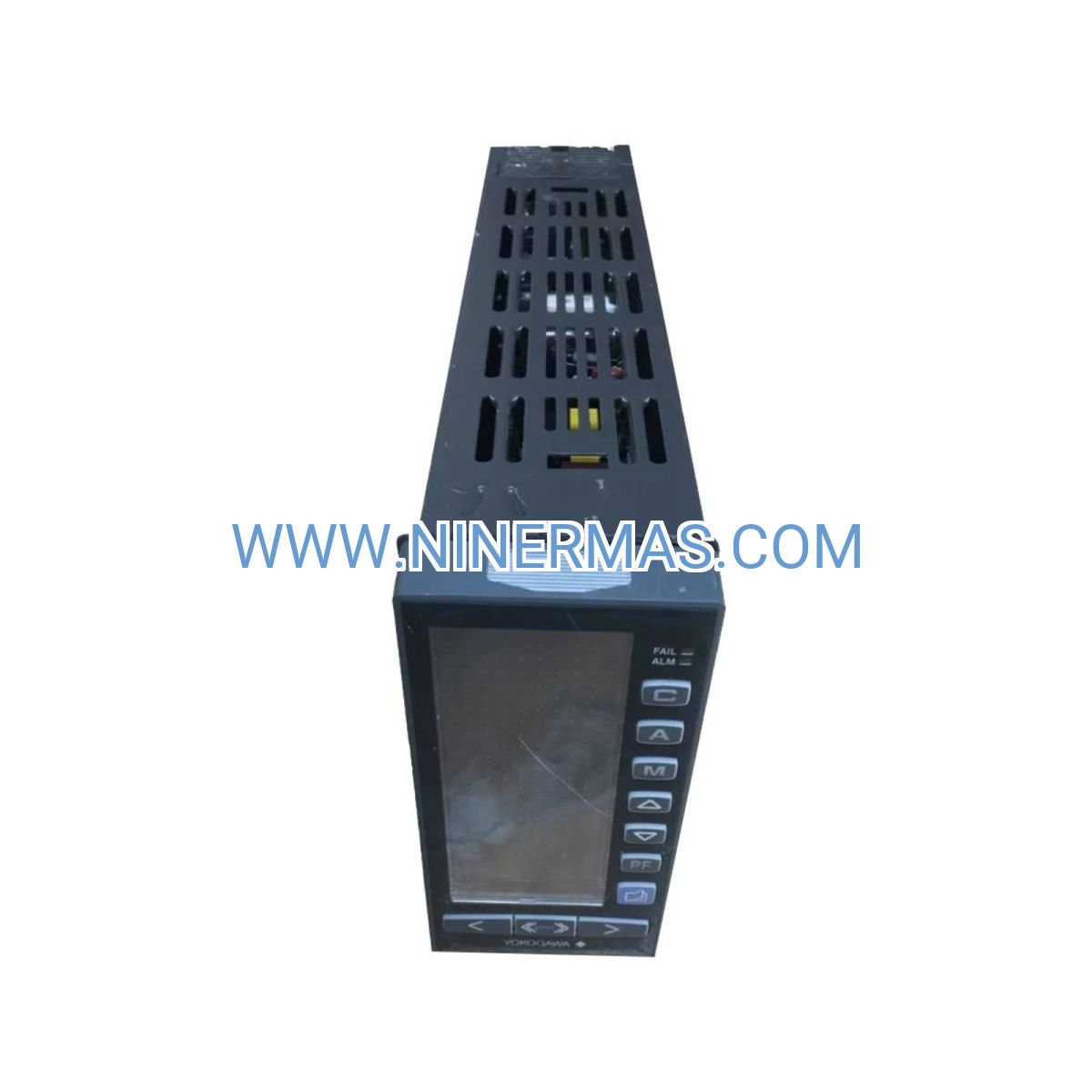

UP55A-201-11-00/AP Industrial-Grade Thermal Program Controller

The Yokogawa UP55A-201-11-00/AP is a high-performance thermal program controller designed to automate complex heating and cooling sequences in industrial environments. Built for applications demanding repeatable temperature profiles—from metallurgical heat treatment to ceramic sintering—this controller eliminates manual intervention while ensuring process consistency across every production cycle.

Manufacturing facilities facing challenges with batch-to-batch variation, operator-dependent quality, or compliance documentation gaps will find the UP55A's programmable architecture addresses these pain points directly. With capacity for 99 independent thermal programs and 600 configurable segments, engineers can store entire process libraries within a single unit, reducing setup time and standardizing critical thermal operations.

Yokogawa's proven control algorithms deliver ±0.3% temperature accuracy across the full measurement range, while auto-tuning PID functionality adapts to varying load conditions without manual optimization. For operations requiring audit trails or remote oversight, optional RS-485 connectivity integrates seamlessly with SCADA platforms and data historians.

Core Capabilities & Business Value

→ 99-Program Memory Bank
Store complete process recipes for different products, materials, or customer specifications. Eliminates recipe transcription errors and accelerates changeovers between production runs—critical for job shops and contract manufacturers handling diverse thermal requirements.

→ 600-Segment Profiling Architecture
Define intricate ramp-soak-hold sequences with precision timing control. Each segment supports independent setpoint targets, rate limits, and dwell parameters, enabling faithful reproduction of validated thermal cycles for aerospace, medical device, and materials testing applications.

→ Universal Sensor Compatibility
Accepts eight thermocouple types (K, J, R, S, B, E, T, N) plus Pt100 RTD inputs without external signal conditioning. Simplifies spare parts inventory and allows sensor selection based on temperature range, accuracy requirements, and environmental conditions rather than controller limitations.

✓ Auto-Tuning PID with Adaptive Control
Automatically calculates optimal proportional, integral, and derivative parameters based on actual system response. Compensates for thermal mass variations, ambient temperature shifts, and aging heating elements—maintaining tight control without ongoing manual adjustment.

✓ Multi-Level Alarm Protection
Configurable deviation alarms, process limit monitoring, and hardware fault detection safeguard product quality and equipment integrity. Alarm outputs trigger external annunciators, emergency shutdowns, or notification systems to prevent costly scrap or safety incidents.

✓ High-Visibility LED Status Display
Real-time indication of current temperature, active program number, segment position, and alarm status enables at-a-glance process monitoring from across the production floor. Reduces operator workload in multi-equipment installations.

Industry Application Scenarios

Metallurgical Heat Treatment
Precision austenizing, quenching, and tempering cycles for tool steels, aerospace alloys, and automotive components. The UP55A's controlled heating rates prevent thermal shock and grain structure defects, while documented temperature profiles satisfy AS9100 and NADCAP audit requirements. Typical installations control box furnaces, salt baths, and vacuum heat treat systems.

Ceramic & Glass Manufacturing
Sintering, annealing, and firing operations requiring gradual temperature transitions to prevent cracking or warping. Program multiple heating zones independently, coordinate with atmosphere control systems, and maintain kiln temperature uniformity within ±5°C across large production volumes. Reduces energy consumption through optimized ramp rates.

Laboratory Materials Testing
Thermal cycling protocols for polymer curing, composite lamination, and accelerated aging studies. Researchers program complex thermal profiles matching industry standards (ASTM, ISO, MIL-STD), then execute identical test sequences across multiple specimens. Built-in data logging supports test report generation and regulatory submissions.

Food Processing & Sterilization
Validated cook-chill cycles, retort sterilization, and pasteurization processes where temperature-time relationships directly impact food safety. The controller's segment-based programming ensures compliance with FDA, USDA, and HACCP protocols, while alarm functions provide critical control point monitoring.

Chemical Reactor Temperature Management
Controlled exothermic reaction sequences, solvent distillation profiles, and crystallization cooling curves. Programmable setpoint ramping prevents thermal runaway conditions, while deviation alarms alert operators to unexpected reaction behavior before process upsets occur.

Technical Parameters & Selection Guide

Selection Criteria: Choose the UP55A-201-11-00/AP when your application requires extensive program storage (99 recipes), complex multi-segment profiling (600 segments total), and universal sensor compatibility. For simpler applications with fewer programs or single-zone control, consider the UP55A-001 series. Applications requiring multi-loop coordination or advanced logic should evaluate the YS1700 programmable controller family.

Extended Integration Capabilities

SCADA & MES Connectivity: Optional RS-485 communication modules enable real-time data exchange with supervisory systems. Monitor active programs, current temperatures, and alarm status remotely while logging process data for SPC analysis, OEE tracking, and regulatory compliance documentation.

Recorder Pairing: Combine with Yokogawa paperless recorders (SMARTDAC+ series) for comprehensive temperature profiling with permanent electronic records. Synchronized time stamps correlate controller actions with measured process variables, supporting root cause analysis and process optimization initiatives.

Custom Program Development: Engineering support available for translating existing paper-based thermal cycles into optimized controller programs. Yokogawa's application specialists analyze heating system dynamics, recommend segment structures, and validate program performance against process requirements.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for stock configurations (UP55A-201-11-00/AP base model)
Custom Configurations: 10-15 business days for units with optional communication modules or special calibrations
Warranty Coverage: 24 months from shipment date covering materials and workmanship defects
Technical Support: Application engineering assistance via phone/email during business hours (GMT+8)
Documentation Package: Installation manual, programming guide, wiring diagrams, calibration certificate

All controllers ship factory-calibrated with traceable standards. Expedited delivery available for critical equipment replacements—contact our technical sales team for rush order processing.

Frequently Asked Questions

How do I interface the UP55A-201-11-00/AP with my existing PLC or DCS system?
The optional RS-485 communication module supports Modbus RTU protocol, providing read/write access to setpoints, process values, program status, and alarm states. Standard register mapping allows integration with Siemens, Allen-Bradley, Schneider, and other major automation platforms. Wiring requires shielded twisted-pair cable with 120Ω termination resistors at network endpoints.

What is the maximum heating rate this controller can manage for a 50kW furnace?
The controller's output capabilities depend on your selected model variant (relay contact vs. voltage pulse). For 50kW loads, implement solid-state relay (SSR) or SCR power control triggered by the UP55A's output signal. The controller itself supports ramp rate programming from 0.1 to 999.9°C/min—actual achievable rates depend on furnace thermal mass, insulation quality, and heating element capacity.

Can this unit reduce energy consumption compared to manual temperature control?
Yes, through three mechanisms: (1) Optimized ramp rates eliminate overshoot and reduce peak power demand, (2) Precise soak temperature control prevents unnecessary overheating, (3) Repeatable programs eliminate conservative "safety margins" operators add during manual control. Typical installations report 15-25% energy savings in batch thermal processes.

What are the physical installation requirements and panel space needed?
The UP55A requires a standard 92mm × 92mm DIN panel cutout with minimum 150mm depth behind the panel for wiring clearance. Mount in vertical orientation within ambient temperature range of 0–50°C. Ensure adequate ventilation—avoid installing directly above high-heat equipment. Panel thickness range: 1-10mm. Secure using supplied mounting brackets.

Does the controller support remote monitoring and alarm notification?
With the optional RS-485 module, the UP55A integrates with SCADA systems providing remote monitoring dashboards and alarm management. For standalone installations, the controller's alarm relay outputs can trigger external annunciators, SMS gateways, or plant-wide notification systems. Alarm conditions include deviation from setpoint, sensor failure, and program completion.

How many different thermal profiles can I store for various product recipes?
The UP55A-201-11-00/AP stores 99 independent programs, each containing up to 600 total segments distributed across all programs. For example, you might configure 20 programs with 30 segments each, or 50 programs with 12 segments each—allocation is flexible based on your process complexity. Program selection via front panel or remote command.

Request Technical Consultation

Our application engineering team provides complimentary system design support for thermal control projects. Share your process requirements, temperature ranges, and control objectives to receive customized recommendations including controller selection, sensor specifications, power control architecture, and integration guidance.

Contact our specialists today: Email sale@ninermas.com or call +0086 187 5021 5667 to discuss your thermal automation needs. Quote requests typically processed within 4 business hours.
