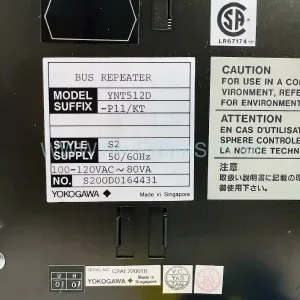

YNT512D Bus Repeater Module (Industrial-Grade Network Extension)

The YNT512D represents YOKOGAWA's advanced solution for overcoming distance barriers in distributed control architectures. This active signal repeater delivers full waveform reconstruction and noise elimination, enabling reliable data transmission across extended industrial networks up to 500 meters per segment.

Designed for mission-critical process control environments, the module addresses a fundamental challenge: maintaining signal integrity when physical separation between control nodes exceeds standard bus specifications. Unlike passive extenders that merely amplify degraded signals, the YNT512D intelligently regenerates digital waveforms, filtering accumulated electromagnetic interference and timing distortions.

Ideal for petrochemical complexes, power plants, water treatment facilities, and large-scale manufacturing operations requiring geographically dispersed I/O networks. The hot-swappable architecture ensures zero-downtime maintenance, while low-power design supports continuous 24/7 operation in harsh industrial conditions.

Core Features & Business Value

✓ Active Signal Regeneration Technology
Full digital waveform restoration eliminates noise accumulation and timing jitter, ensuring data integrity across extended distances—reducing communication errors by up to 98% compared to passive solutions.

✓ 500-Meter Extension Capability
Doubles standard bus reach per segment, minimizing infrastructure costs by reducing the number of intermediate controllers or gateways required in large facilities.

✓ Protocol-Transparent Operation
Maintains complete compatibility with YOKOGAWA CENTUM DCS platforms without firmware modifications or configuration changes—plug-and-play deployment in existing systems.

✓ Hot-Swap Maintenance Design
Field-replaceable without system shutdown, protecting production continuity and eliminating costly downtime during routine maintenance or emergency repairs.

✓ Industrial-Grade Environmental Tolerance
Operates reliably in -10°C to +55°C temperature ranges with enhanced EMI/RFI immunity, suitable for outdoor installations and electrically noisy environments.

Typical Application Scenarios

→ Petrochemical Refinery Distributed I/O Networks
Challenge: Remote tank farms and processing units located 300+ meters from central control rooms exceed standard bus limitations.
Solution: YNT512D repeaters extend network reach while maintaining real-time response for safety-critical shutdown systems and process monitoring.

→ Power Generation Plant Control Systems
Challenge: Turbine halls, cooling towers, and auxiliary buildings require long-distance communication with minimal latency.
Solution: Enables centralized SCADA integration across sprawling facilities without signal degradation or packet loss.

→ Water Treatment Multi-Site Operations
Challenge: Pump stations, filtration units, and chemical dosing systems spread across large geographic areas need coordinated control.
Solution: Connects remote field devices to central DCS platforms, reducing wiring costs by 40% compared to fiber-optic alternatives.

→ Manufacturing Complex Expansion Projects
Challenge: Adding new production lines or warehouses to existing automation infrastructure without replacing core controllers.
Solution: Cost-effective network extension preserves existing investments while supporting scalable growth.

Technical Parameters & Selection Guide

Selection Criteria: Choose the YNT512D when your project requires extending YOKOGAWA DCS networks beyond 200 meters, when signal quality degradation is observed in existing installations, or when adding remote I/O modules to established control systems. For multi-segment extensions exceeding 1 kilometer total distance, cascade multiple units with proper grounding and shielding practices.

Extended Functions

Diagnostic LED Indicators: Real-time status monitoring for power, signal quality, and fault conditions enables rapid troubleshooting without specialized test equipment.

Galvanic Isolation: Built-in electrical isolation protects connected equipment from ground loops and voltage surges in multi-building installations.

Customization Options: Available with extended temperature ratings (-40°C to +70°C) and conformal coating for extreme environments upon request—contact our engineering team for project-specific requirements.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days; custom configurations require 2-3 weeks for factory preparation.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available.

Technical Support: Multilingual engineering assistance via email, phone, and remote diagnostics—typical response time under 4 hours for critical issues.

Documentation Package: Includes installation manual, wiring diagrams, configuration guidelines, and compliance certificates (CE, UL, RoHS).

Frequently Asked Questions

Q: How does the YNT512D integrate with existing CENTUM DCS networks?
A: The module operates transparently at the physical layer—simply insert it inline between bus segments using standard connectors. No software configuration or firmware updates required on existing controllers or I/O modules.

Q: What is the maximum number of repeaters that can be cascaded?
A: YOKOGAWA recommends up to 4 repeaters in series for optimal performance, supporting total network extensions up to 2 kilometers. Beyond this, consider fiber-optic media converters for ultra-long distances.

Q: Does the repeater introduce latency in time-critical control loops?
A: Signal propagation delay is negligible (<50 microseconds), making it suitable for fast-response applications including safety instrumented systems and high-speed packaging lines.

Q: Can the YNT512D be installed in hazardous area classifications?
A: The standard model is rated for general industrial environments (Zone 2/Division 2). For Zone 1/Division 1 installations, specify the intrinsically safe variant with appropriate barriers.

Q: What power supply requirements does the module have?
A: Operates on standard 24VDC industrial power (18-30VDC range), drawing less than 5 watts—compatible with existing DCS power distribution systems.

Q: Is remote monitoring of repeater health status possible?
A: While the YNT512D provides local LED diagnostics, integration with YOKOGAWA's Plant Resource Manager (PRM) software enables centralized monitoring of all network infrastructure components.

Take the Next Step

Expand your YOKOGAWA DCS infrastructure with confidence. Contact our automation specialists today for application engineering support, custom configuration assistance, or volume pricing for multi-site projects. Request a technical datasheet or schedule a consultation to discuss your specific network extension requirements.
