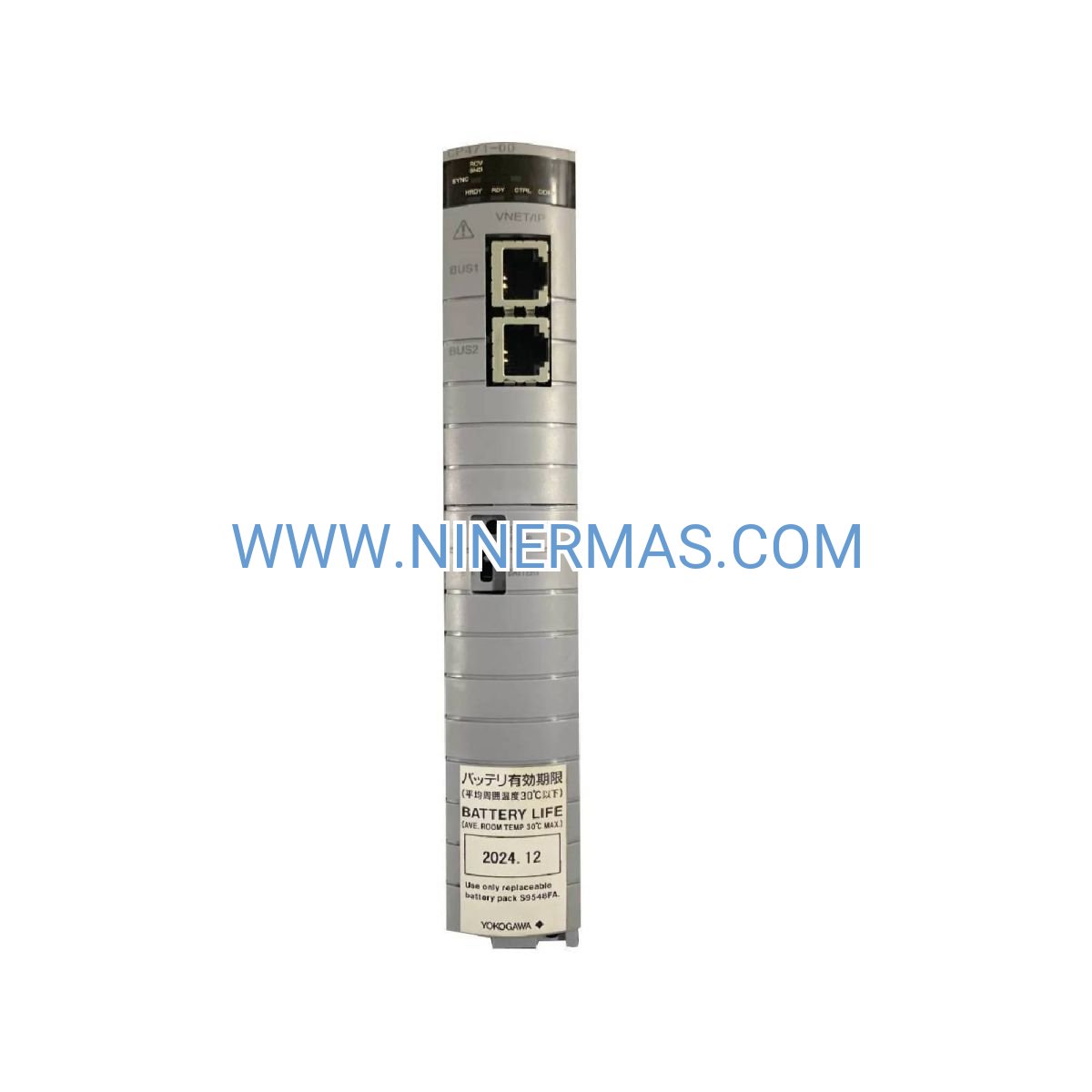

CP471-00 Field Control Unit Processor (Industrial-Grade DCS CPU)

The CP471-00 represents YOKOGAWA's flagship processor technology for distributed control systems, engineered to deliver uncompromising performance in the harshest industrial environments. This field control unit CPU combines 32-bit RISC computing power with fault-tolerant architecture, enabling process manufacturers to achieve operational excellence through precise, real-time control of complex production workflows.

Designed for industries where downtime translates to millions in lost revenue, the CP471-00 addresses the critical challenge of maintaining continuous process control across refineries, chemical plants, and power generation facilities. Plant engineers and automation specialists rely on this processor module to orchestrate thousands of I/O points while maintaining deterministic scan cycles under 10 milliseconds.

What sets the CP471-00 apart is its proven track record in mission-critical applications—over 15 years of field deployment with documented MTBF exceeding 100,000 hours. Whether you're modernizing legacy CENTUM systems or building greenfield automation infrastructure, this processor delivers the computational backbone your operation demands. Request technical specifications tailored to your application today.

Core Capabilities & Business Value

→ Dual-Redundant Architecture for Zero-Downtime Operations
Automatic failover within 50ms ensures continuous control even during module replacement or unexpected failures. Eliminates costly production interruptions and protects against single-point failures that plague non-redundant systems.

✓ High-Speed 32-bit RISC Processing Engine
Executes complex PID loops, cascade control, and multivariable algorithms with sub-10ms scan times. Enables tighter process tolerances that reduce raw material waste by 3-7% in typical batch operations.

✓ Native CENTUM VP Ecosystem Integration
Seamless communication via Vnet/IP and Control Bus protocols eliminates integration headaches. Backward-compatible with CENTUM CS3000 systems, protecting your existing automation investment during phased upgrades.

→ Advanced Diagnostic & Predictive Maintenance
Built-in self-test routines monitor CPU health, memory integrity, and communication status in real-time. Early warning alerts reduce unplanned maintenance events by up to 40% compared to reactive service models.

✓ Hot-Swappable Field Replacement
Replace failed modules without shutting down the control system in redundant configurations. Maintenance windows shrink from hours to minutes, maximizing production uptime.

→ Industrial-Hardened Environmental Tolerance
Operates reliably in 0°C to 55°C ambient temperatures with resistance to vibration, EMI, and power fluctuations. Meets CE, UL, FM, and CSA certifications for global deployment.

Industry Applications & Problem-Solving

Oil & Gas Refining
Manages distillation column control, blending operations, and safety instrumented systems across refineries processing 50,000+ barrels per day. Solves the challenge of coordinating hundreds of control loops while maintaining API specifications for finished products. Delivers ROI through reduced off-spec production and faster grade transitions.

Chemical Manufacturing
Orchestrates batch reactor sequences, continuous polymerization processes, and hazardous material handling in specialty chemical plants. Addresses the pain point of recipe management across multiple production lines with different formulations. Value realized through improved batch consistency and reduced cycle times.

Power Generation Facilities
Controls boiler combustion optimization, turbine governing, and emissions monitoring in coal, gas, and combined-cycle power plants. Tackles the complexity of balancing efficiency, emissions compliance, and grid stability requirements. Benefits include 2-4% fuel savings and extended equipment lifespan.

Pharmaceutical Production
Ensures precise temperature, pressure, and flow control for API synthesis and sterile filling operations under FDA 21 CFR Part 11 compliance. Solves validation documentation challenges through comprehensive audit trails and electronic signatures. Accelerates regulatory approval timelines.

Pulp & Paper Mills
Regulates digester cooking processes, bleaching sequences, and paper machine moisture profiles in integrated mills. Addresses quality variation issues that lead to customer complaints and downtime. Achieves 15-20% reduction in quality-related production losses.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CP471-00 for field control applications requiring 500-4000 I/O points with standard control complexity. For systems exceeding 4000 points or requiring advanced model predictive control, consider the CP471-10 variant. Evaluate your redundancy requirements—non-critical applications may use simplex configuration, while continuous processes mandate 1:1 redundancy. Consult our application engineers for load calculations based on your specific control strategy mix.

Extended Functionality & Integration Options

Industrial IoT Connectivity: The CP471-00 supports OPC UA server functionality, enabling secure data exchange with MES, ERP, and cloud analytics platforms. Unlock predictive analytics and remote monitoring capabilities without compromising control system security through proper network segmentation.

Advanced Control Algorithms: Beyond basic PID, the processor executes cascade control, ratio control, feedforward compensation, and split-range strategies. Custom function blocks can be developed using YOKOGAWA's engineering tools for specialized applications like inferential property control.

Customization Services: NINERMAS offers pre-configured modules with customer-specific firmware, I/O mapping templates, and tested redundancy configurations. Reduce commissioning time by 30-50% with factory acceptance testing and documentation packages tailored to your project requirements.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL/FedEx). All modules ship with factory calibration certificates and test reports.

Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific settings and FAT documentation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Extended warranty programs available for critical applications.

Technical Support: Lifetime access to our automation specialists for configuration assistance, troubleshooting, and upgrade planning. Remote diagnostic support available 24/7 for emergency situations.

Documentation Package: Each module includes installation manual, wiring diagrams, configuration software, and sample control programs. Access to YOKOGAWA's technical library and training resources provided.

Frequently Asked Questions

How does the CP471-00 interface with existing CENTUM CS3000 systems during migration projects?
The CP471-00 maintains full backward compatibility with CS3000 field control stations through Vnet/IP protocol translation. You can deploy CP471-00 modules alongside legacy CS3000 FCUs, allowing phased migration without disrupting production. Our migration planning service maps your existing I/O configuration to the new platform and validates communication integrity before cutover.

What redundancy configuration delivers optimal uptime for continuous process industries?
For 24/7 operations where unplanned downtime costs exceed $50K/hour, implement 1:1 hot-standby redundancy with automatic failover. The CP471-00 pair synchronizes in real-time, with the standby module assuming control within 50ms of primary failure—faster than most process time constants, ensuring bumpless transfer without process upset.

Can this processor handle advanced control strategies like model predictive control or fuzzy logic?
The CP471-00 executes standard PID, cascade, ratio, and feedforward algorithms natively. For model predictive control (MPC) or neural network applications, pair the CP471-00 with YOKOGAWA's Exapilot advanced control package, which runs on dedicated computing hardware and interfaces via OPC. This architecture preserves regulatory control integrity while enabling optimization layers.

What cybersecurity features protect the CP471-00 from industrial network threats?
The processor implements role-based access control, encrypted Vnet/IP communications, and audit logging compliant with IEC 62443 standards. Deploy within a properly segmented network architecture using industrial firewalls and unidirectional gateways to isolate the control network from enterprise IT systems. We provide cybersecurity assessment services to validate your defense-in-depth strategy.

How much energy efficiency improvement can be achieved through tighter process control?
Plants upgrading from legacy PLCs to the CP471-00's deterministic control typically realize 2-5% energy reduction through optimized setpoint tracking and reduced process variability. In energy-intensive operations like distillation or drying, this translates to $100K-$500K annual savings for medium-sized facilities. Our process optimization team can quantify potential savings for your specific application.

What installation requirements and physical space does the CP471-00 demand?
The module mounts on standard DIN rail or YOKOGAWA card racks, occupying a single slot (approximately 25mm width). Requires 24VDC power supply with 20W capacity per module. Maintain 50mm clearance above and below for cooling airflow. Installation typically takes 30-45 minutes per module including wiring termination and configuration download.

Take the Next Step Toward Control System Excellence

Ready to upgrade your process control infrastructure with proven YOKOGAWA technology? Our automation specialists are standing by to discuss your specific application requirements, provide detailed technical specifications, and develop a customized quotation. Contact us today for a free consultation and discover how the CP471-00 can transform your operational performance.

Request Your Technical Proposal: Email sale@ninermas.com with your system architecture details, I/O count, and redundancy requirements for a comprehensive solution design within 24 hours.
