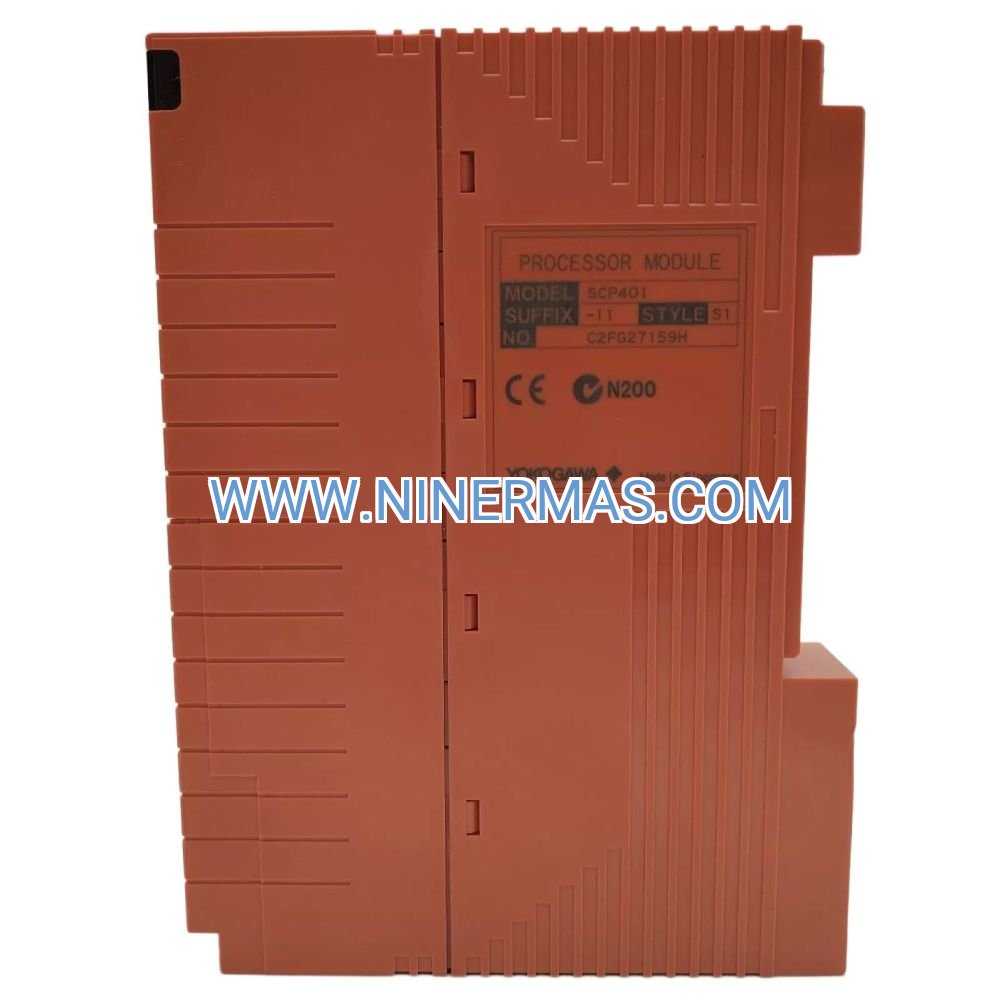

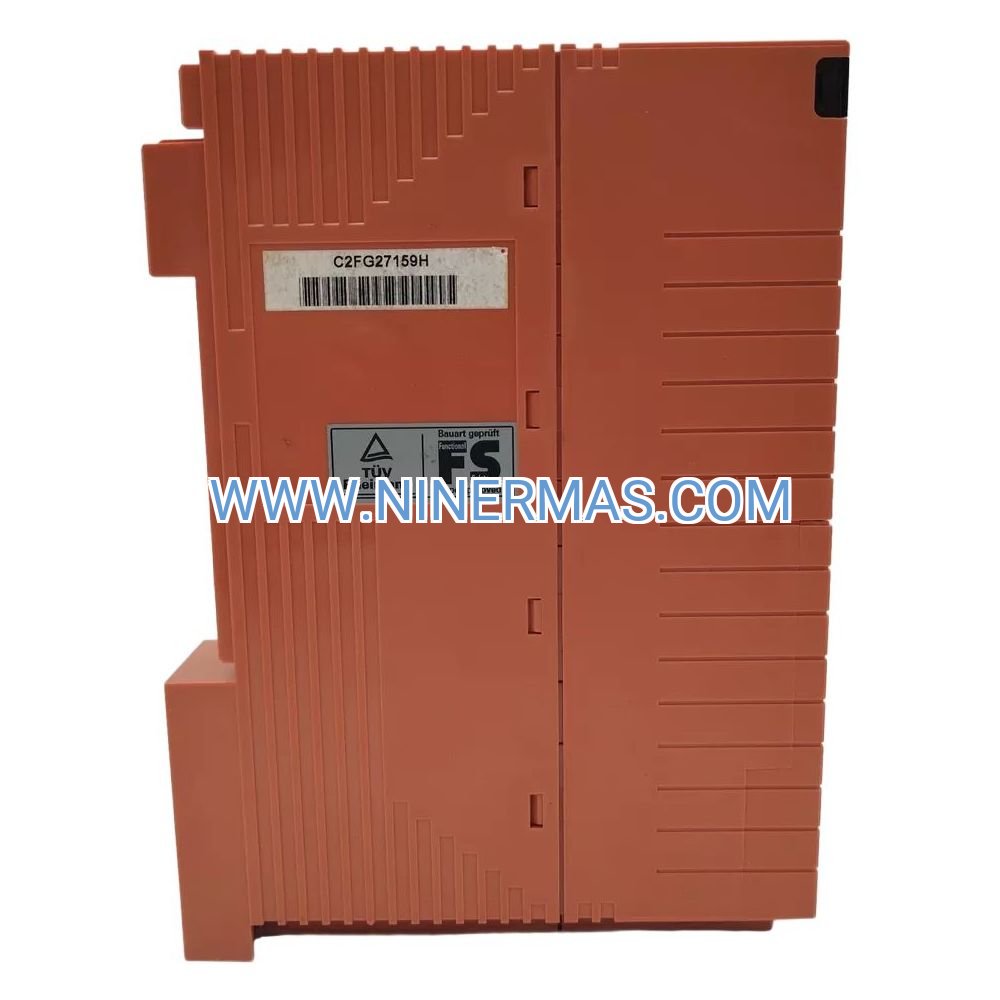

SCP401-11 Safety Processor Module (Industrial-Grade SIS Controller)

The SCP401-11 represents Yokogawa's flagship safety processor technology, engineered specifically for safety-instrumented systems where failure is not an option. This industrial-grade controller combines triple modular redundancy architecture with deterministic execution to deliver uncompromising protection in high-consequence environments.

Designed for process industries demanding SIL 3 integrity levels, the SCP401-11 serves as the computational core of ProSafe-RS safety platforms across refineries, chemical plants, offshore installations, and power generation facilities. Its 32-bit processing engine executes complex safety logic while maintaining fail-safe operation through continuous self-diagnostics and fault-tolerant design.

Whether you're upgrading legacy safety systems or deploying new protective layers, the SCP401-11 delivers proven reliability backed by global certifications and field-proven performance in thousands of critical installations worldwide.

Core Features & Benefits

✓ Triple Modular Redundancy (TMR) Architecture
Eliminates single points of failure through 2-out-of-3 voting logic at the processor level, ensuring continuous safe operation even during component faults. Business value: Maximizes system availability while maintaining safety integrity, reducing unplanned shutdowns by up to 40%.

✓ SIL 3 Certified Safety Integrity
Meets IEC 61508 SIL 3 requirements with >99% diagnostic coverage and proven failure rates. Business value: Simplifies compliance documentation and reduces liability exposure in regulated industries.

✓ Deterministic Scan Cycle Performance
Guarantees predictable response times under all operating conditions with typical scan cycles <100ms. Business value: Enables faster emergency response and tighter process control margins.

→ Hot-Swappable Maintenance Design
Supports online replacement of processor modules without system shutdown or safety function interruption. Business value: Reduces maintenance windows and eliminates production losses during servicing.

→ Comprehensive Diagnostic Monitoring
Built-in watchdog timers, memory integrity checks, and communication health monitoring provide real-time visibility into system status. Business value: Enables predictive maintenance and reduces mean time to repair (MTTR).

→ Backward Compatible Integration
Seamless retrofit into existing ProSafe-RS installations protects infrastructure investments. Business value: Lowers total cost of ownership and extends asset lifecycle.

Application Scenarios

Emergency Shutdown Systems (ESD) in Refineries
The SCP401-11 monitors critical process variables across distillation units, catalytic crackers, and storage terminals. When parameters exceed safe operating limits—such as excessive temperature, pressure, or level conditions—the processor executes pre-programmed shutdown sequences, isolating equipment and preventing catastrophic releases. Its redundant architecture ensures protective actions occur even if individual components fail.

Fire & Gas Detection Networks in Offshore Platforms
Integrated with multi-zone flame and toxic gas detectors, the SCP401-11 analyzes sensor patterns to distinguish genuine hazards from nuisance alarms. Upon confirmed detection, it activates deluge systems, closes ventilation dampers, and initiates evacuation protocols while maintaining continuous monitoring through fault-tolerant design—critical for unmanned installations.

Burner Management in Power Generation Boilers
Controls safe light-off, operation, and shutdown of utility-scale boilers, continuously verifying proper fuel-air ratios, flame presence, and purge cycles. The processor's deterministic execution prevents explosive conditions by enforcing strict sequencing and interlocking logic, protecting multi-million dollar assets and personnel.

High Integrity Pressure Protection (HIPPS) in Gas Pipelines
Monitors transmission pipeline pressure with millisecond precision, commanding fast-acting isolation valves before overpressure damages downstream equipment. The SCP401-11's rapid scan cycle and voting logic ensure reliable actuation while minimizing spurious trips that disrupt gas delivery.

Chemical Reactor Safety Interlocks
Manages complex permissive logic for batch and continuous reactors, preventing hazardous material releases through multi-parameter monitoring of temperature, pressure, flow, and composition. Its expandable memory accommodates sophisticated recipes and safety matrices for specialty chemical production.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SCP401-11 when your application requires SIL 3 integrity with triple redundancy. For single-channel SIL 3 applications with lower I/O counts, consider the SCP451-11 S1. For distributed safety architectures, evaluate the SCP451-53 with extended memory. Always verify compatibility with your existing I/O modules and communication infrastructure before ordering.

Extended Functions

IoT Integration & Remote Monitoring: The SCP401-11 supports OPC UA and Modbus TCP protocols, enabling integration with plant-wide SCADA systems and cloud-based asset management platforms. Real-time diagnostic data streams to predictive maintenance applications, while secure remote access facilitates expert troubleshooting without site visits.

Advanced Cybersecurity Features: Built-in authentication, encrypted communications, and role-based access control protect against unauthorized modifications. Audit logging tracks all configuration changes and operational events for compliance and forensic analysis.

Customization Options: Factory-configurable firmware variants support specialized applications including nuclear safety (IEC 61513), railway interlocking (CENELEC), and machinery safety (ISO 13849). Consult with Yokogawa application engineers to specify custom diagnostic routines or communication protocols.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 4-6 weeks from order confirmation. Expedited delivery available for critical outages (2-3 weeks with premium freight). Custom firmware variants require 8-12 weeks for factory programming and testing.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years with optional advance replacement service.

Technical Support: Access to Yokogawa's global support network including 24/7 emergency hotline, field service engineers, and application specialists. Remote diagnostic assistance via secure VPN connections minimizes downtime.

Documentation Package: Each module ships with installation manual, configuration guide, safety manual per IEC 61508-2, and certificate of conformity. CAD drawings, HART/Fieldbus DTMs, and sample ladder logic available for download from Yokogawa's technical library.

Frequently Asked Questions

How does the SCP401-11 interface with existing DCS systems?
The processor communicates via Modbus TCP, OPC UA, or FOUNDATION Fieldbus gateways, allowing seamless data exchange with Yokogawa CENTUM, Honeywell Experion, Emerson DeltaV, and other major DCS platforms. Safety-critical signals remain isolated on the dedicated ESB network while non-safety data flows to the DCS for monitoring.

What I/O capacity does this processor support?
A single SCP401-11 can manage up to 2,000 I/O points depending on scan cycle requirements and logic complexity. For larger systems, multiple processors operate in distributed architectures with peer-to-peer communication over redundant networks.

Can this module reduce energy consumption in safety systems?
Yes—the SCP401-11's optimized power design consumes approximately 30% less energy than previous-generation safety processors. When deployed across large installations with dozens of modules, annual energy savings can exceed $5,000 while reducing cooling requirements in control rooms.

What are the installation requirements for this processor?
The module mounts in standard ProSafe-RS chassis with DIN rail or panel-mount options. Minimum clearances: 50mm top/bottom for ventilation, 25mm sides for wiring access. Requires 24 VDC redundant power supply (3A minimum per module). Grounding per IEC 61508 guidelines mandatory for SIL 3 compliance.

Does the SCP401-11 support remote monitoring and diagnostics?
Full remote capability via OPC UA secure channels or Yokogawa's Synaptic Business Automation platform. Diagnostic parameters including CPU load, memory utilization, communication health, and fault logs accessible through web-based HMI or mobile apps. Role-based permissions ensure only authorized personnel can modify safety logic.

How does triple modular redundancy improve system reliability?
TMR architecture uses three independent processors executing identical logic simultaneously. A voting mechanism compares outputs—if one processor fails or produces erroneous results, the other two outvote it and the system continues operating safely. This design achieves >99.99% availability while maintaining SIL 3 integrity, far exceeding single-channel architectures.

Take the Next Step

Ready to enhance your safety instrumented system with proven SIL 3 protection? Contact our industrial automation specialists for application-specific guidance, system architecture reviews, and competitive quotations. We provide complimentary site assessments to evaluate retrofit feasibility and migration strategies from legacy safety systems.

Request a technical consultation: Share your process hazard analysis (PHA) and safety requirements study (SRS) for customized recommendations. Our certified safety engineers will propose optimized configurations that meet your SIL targets while minimizing total installed cost.
