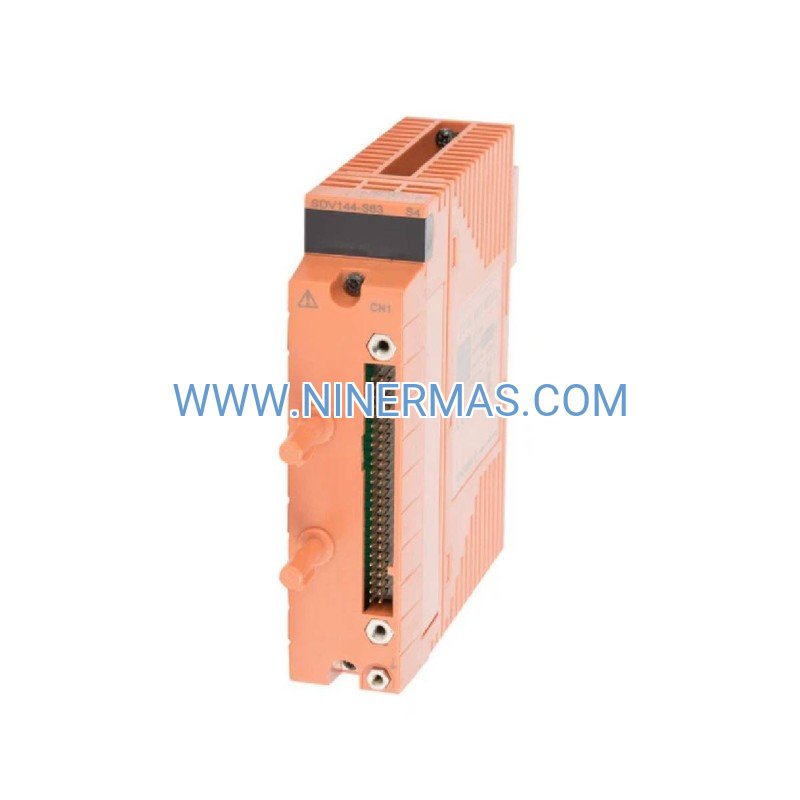

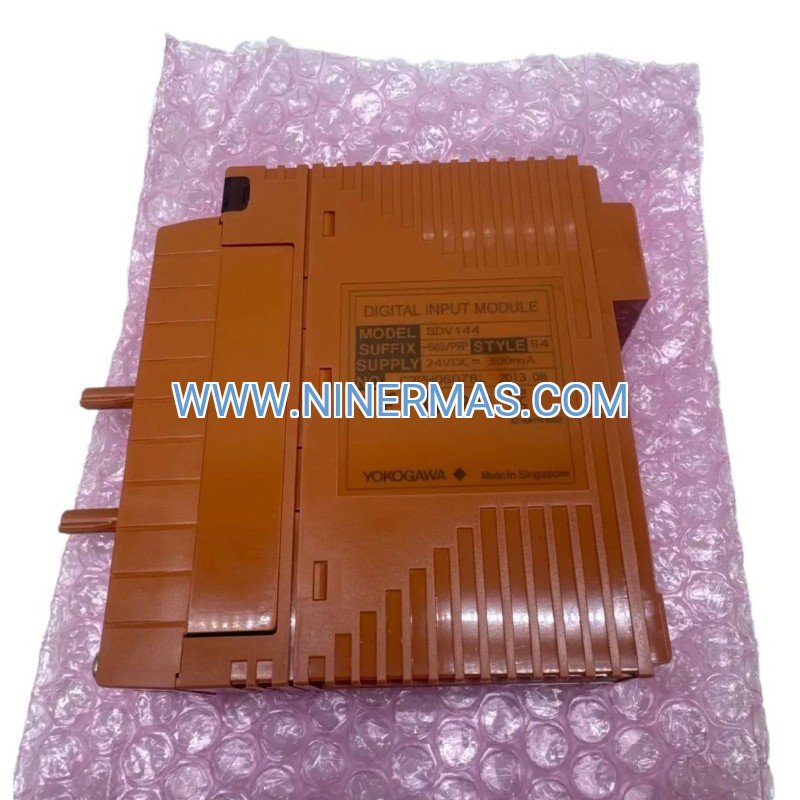

Yokogawa SDV144-S63/PRP S4 16-Channel Digital Input Module 24V DC

SDV144-S63/PRP S4 Digital Input Module (Industrial-Grade Dual-Redundant Architecture)

Engineered for high-availability process automation, the Yokogawa SDV144-S63/PRP S4 delivers 16 isolated digital input channels with dual-redundant signal processing and false-insertion prevention technology. This module integrates seamlessly into CENTUM VP and ProSafe-RS distributed control platforms, providing reliable no-voltage contact monitoring for safety-critical applications across petrochemical, power generation, and pharmaceutical manufacturing sectors.

Designed to eliminate single points of failure in emergency shutdown systems and process interlocks, the /PRP variant incorporates mechanical keying that prevents incorrect module placement during hot-swap operations. Field-proven in corrosive ISA G3 environments, this DCS I/O module maintains signal integrity across temperature extremes while supporting rapid 40ms state-change detection for time-sensitive control logic.

Whether you're upgrading legacy control systems or expanding existing DCS infrastructure, the SDV144-S63/PRP S4 offers plug-and-play compatibility with Yokogawa engineering tools, pre-configured diagnostic capabilities, and comprehensive isolation protection that safeguards backplane electronics from field-induced electrical transients.

Key Features & Technical Advantages

✓ Dual-Redundant Signal Processing
Simultaneous input monitoring across two independent channels ensures continuous operation even during module failure scenarios. Automatic switchover logic maintains process visibility without operator intervention, critical for SIL-rated safety instrumented systems.

✓ False-Insertion Prevention Mechanism
Mechanical keying system (/PRP suffix) physically blocks incorrect module installation in redundant slots. Eliminates configuration errors during maintenance windows, reducing commissioning time by up to 40% in multi-cabinet DCS deployments.

✓ 40ms Maximum Response Time
Rapid input-to-system propagation supports high-speed batch sequencing and emergency trip logic. Meets IEC 61131-2 Type 1 input specifications for industrial programmable controllers, enabling precise event timestamping in SCADA historian integration.

✓ 2kV Isolation Voltage Rating
Channel-to-backplane galvanic isolation protects DCS power supplies from field wiring faults. Withstands 1-minute AC dielectric test per IEC 61010-1 standards, essential for installations near high-voltage motor control centers.

✓ ISA G3 Corrosion Resistance
Conformal coating and sealed terminal blocks maintain performance in coastal refineries and chemical plants with airborne sulfur compounds. Extends MTBF beyond 200,000 hours in harsh industrial atmospheres per ANSI/ISA-71.04 testing protocols.

✓ Hot-Swappable Architecture
Online module replacement without process shutdown or controller reboot. Field-replaceable units ship with pre-loaded firmware, reducing mean time to repair (MTTR) to under 15 minutes for trained technicians.

Industrial Application Scenarios

→ Emergency Shutdown Systems (ESD)
Monitor critical safety devices including fire & gas detectors, high-level switches, and emergency stop pushbuttons in offshore platforms and LNG terminals. The module's dual-redundant design satisfies IEC 61508 SIL 3 hardware fault tolerance requirements, providing verifiable proof of safe operation during regulatory audits.

→ Burner Management Systems (BMS)
Capture flame scanner outputs, air/fuel valve limit switches, and purge confirmation contacts in boiler control applications. Sub-40ms response time ensures compliance with NFPA 85 flame safeguard timing requirements, preventing dangerous fuel accumulation during startup sequences.

→ Compressor Anti-Surge Control
Interface with proximity sensors detecting compressor surge conditions, recycle valve positions, and vibration trip relays. Module isolation prevents ground loop interference from variable frequency drives (VFDs), maintaining signal accuracy during rapid load changes in pipeline compression stations.

→ Batch Reactor Sequencing
Track ingredient addition confirmations, agitator motor status, and temperature/pressure alarm contacts in pharmaceutical clean rooms. The 24V DC external power architecture simplifies compliance with FDA 21 CFR Part 11 audit trail requirements through independent field device power monitoring.

→ Water Treatment SCADA
Acquire pump run status, tank level switches, and chlorine analyzer alarm outputs across distributed lift stations. Hot-swap capability enables preventive maintenance during off-peak hours without disrupting municipal water supply operations or triggering SCADA communication alarms.

Technical Specifications & Selection Guide

Selection Criteria: Choose the /PRP variant when deploying redundant controller pairs in safety-critical applications. For standard CENTUM VP configurations without redundancy requirements, consider the SDV144-S63 S4 base model. Verify external 24V DC power supply capacity can support cumulative module current draw plus 20% margin for inrush conditions.

Advanced Integration Capabilities

Vnet/IP Network Compatibility: Supports Yokogawa's deterministic field control network with sub-10ms update rates when paired with AFV30D/AFV40S field control stations. Enables distributed I/O architectures that reduce cabinet footprint by up to 60% compared to centralized marshalling designs.

Diagnostic Intelligence: Built-in self-test routines monitor power supply voltage, channel continuity, and backplane communication integrity. Predictive maintenance alerts flag degraded field wiring before complete signal loss, reducing unplanned downtime in continuous process industries.

Custom Configuration Options: Field-adjustable debounce timers (10-500ms) filter mechanical contact bounce in relay-intensive applications. Channel-specific alarm masking allows selective diagnostic suppression during planned maintenance activities without disabling entire I/O groups.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock modules with factory-sealed packaging and full traceability documentation. Expedited same-day shipping available for emergency outage support with premium freight options.

Custom Configuration: 7-10 business days for pre-commissioned modules with customer-specific firmware, diagnostic settings, and labeled terminal blocks. Includes factory acceptance testing (FAT) documentation and as-built wiring diagrams.

Warranty Coverage: 18-month manufacturer warranty covering material defects and workmanship failures. Extended service agreements available with advance replacement units and on-site commissioning support for critical infrastructure projects.

Technical Support: Unlimited access to application engineers for wiring diagram review, configuration file validation, and troubleshooting assistance. Includes Yokogawa engineering tool licenses, firmware update notifications, and compatibility bulletins for lifecycle management.

Documentation Package: Each shipment includes installation manual, dimensional drawings, terminal layout diagrams, and sample ladder logic for common interlock scenarios. Digital asset library provides 3D CAD models (STEP format) and electrical schematics (AutoCAD DWG) for panel design integration.

Frequently Asked Questions

Q: Can this module interface with 120V AC proximity sensors through interposing relays?
A: Yes, connect relay dry contacts to the module inputs while ensuring relay coil power derives from a separate 120V AC source. Verify relay contact ratings exceed 6mA @ 24V DC to guarantee reliable state detection. Use suppression diodes across inductive relay coils to prevent voltage spikes that could degrade module isolation barriers.

Q: What is the maximum cable length between field devices and the DCS cabinet?
A: Yokogawa recommends 500 meters maximum for shielded twisted-pair cable (0.5mm² conductor area) to maintain signal integrity. For longer runs, install field-mounted signal conditioners or transition to 4-20mA analog transmission. Always ground cable shields at the DCS cabinet end only to prevent ground loop currents.

Q: Does the dual-redundant architecture require special configuration in the control logic?
A: The module handles redundancy switching autonomously at the hardware level. Your control strategy references a single logical input tag—the system automatically selects the active channel based on health status. No additional ladder logic or function blocks required compared to simplex I/O configurations.

Q: How does false-insertion prevention work during module replacement?
A: The /PRP suffix indicates a mechanical key on the module backplane connector that matches a corresponding slot key in the I/O rack. Attempting to insert the module into an incorrect slot (e.g., swapping primary and secondary positions) results in physical interference, preventing improper installation before power-up.

Q: Can I mix SDV144-S63/PRP S4 modules with older SDV144-S33 variants in the same rack?
A: Yes, provided the rack firmware supports mixed I/O configurations (verify with Yokogawa engineering tools). However, redundancy pairing requires identical module types—you cannot create a redundant pair using /PRP and non-/PRP variants. Consult the CENTUM VP configuration manual for specific compatibility matrices.

Q: What energy efficiency improvements does this module offer over legacy I/O systems?
A: The module consumes 290mA @ 5V DC (1.45W) compared to 3-5W for equivalent relay-based input cards. In a 500-point I/O system, this reduces cabinet heat load by approximately 120W, potentially eliminating one air conditioning unit and lowering annual energy costs by $800-1,200 in typical industrial facilities.

Order Your SDV144-S63/PRP S4 Module Today

Enhance your DCS reliability with Yokogawa's proven digital input technology. Contact our automation specialists for application-specific wiring diagrams, compatibility verification with your existing CENTUM VP version, and volume pricing for multi-site deployments. We provide complete project support from initial design review through commissioning and operator training.

Request a Quote: Email your I/O list and single-line diagram for same-day technical proposal. Mention this product page for priority engineering review and expedited delivery scheduling.
