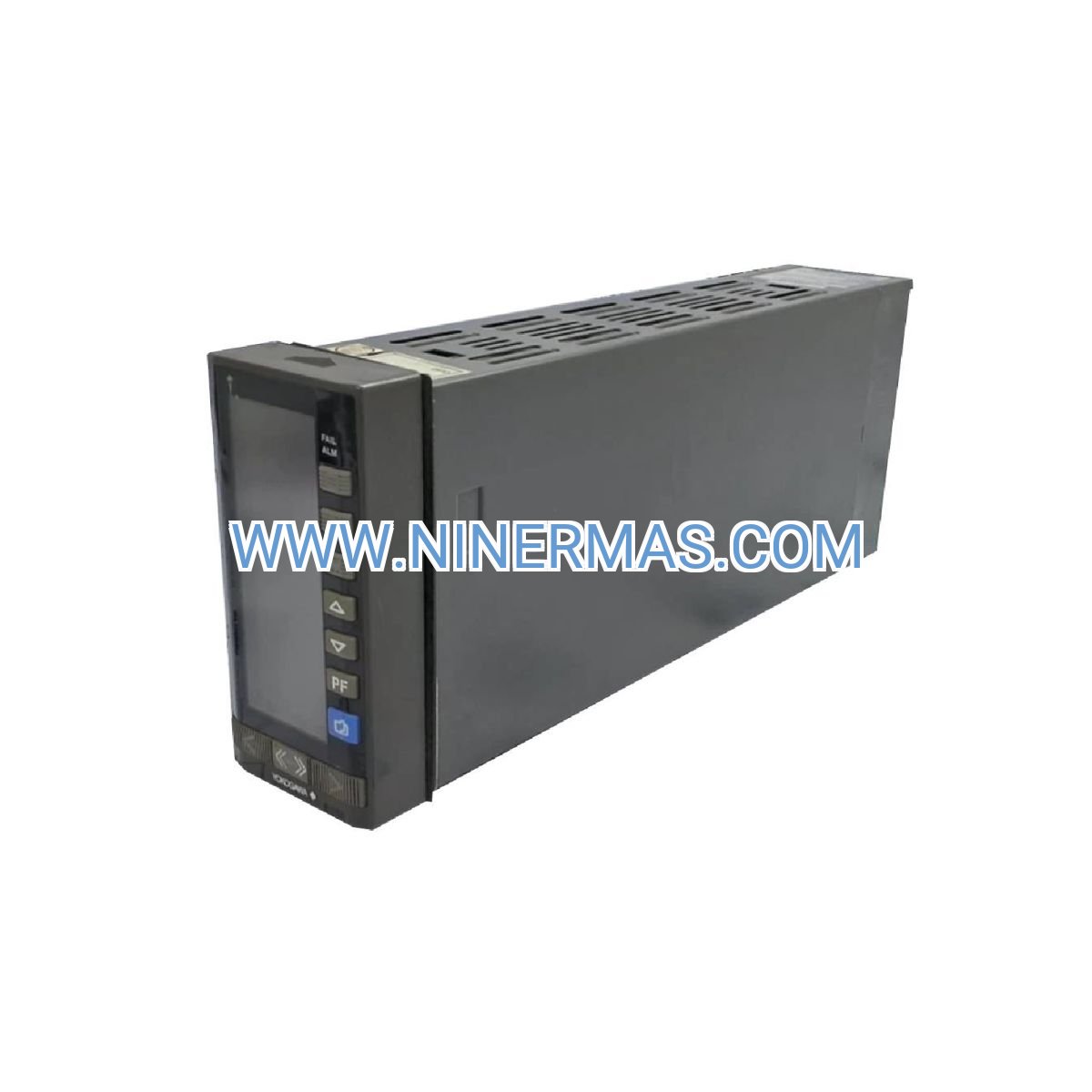

YS170-012 Single-Loop Controller (Industrial-Grade Process Automation)

The YS170-012 represents Yokogawa's commitment to precision process control, delivering a compact yet powerful single-loop programmable controller designed for mission-critical industrial applications. Built around advanced PID control architecture and HART 7 digital communication, this controller serves as the cornerstone for reliable temperature, pressure, and flow regulation across manufacturing, chemical processing, and energy sectors.

Engineered for professionals who demand accuracy and uptime, the YS170-012 addresses the challenge of maintaining tight process tolerances while reducing operational complexity. Plant engineers, automation specialists, and process technicians rely on this controller to eliminate manual intervention, minimize product waste, and ensure regulatory compliance in environments where precision directly impacts profitability and safety.

What sets the YS170-012 apart is its fusion of intelligent control capabilities with field-proven durability—auto-tuning PID algorithms adapt to process dynamics in real-time, while IP65-rated construction withstands harsh industrial conditions. Whether you're retrofitting legacy systems or designing new control loops, this controller delivers the performance and integration flexibility modern facilities require.

Core Capabilities & Business Value

→ Adaptive PID Control Engine
Self-tuning algorithms automatically optimize control parameters based on process behavior, eliminating weeks of manual commissioning while achieving ±0.1% setpoint accuracy. Reduces product variability by up to 40% compared to fixed-parameter controllers.

✓ HART 7 Digital Communication
Bidirectional protocol enables remote diagnostics, configuration cloning, and predictive maintenance alerts without process interruption. Cuts troubleshooting time by 60% and integrates seamlessly with existing DCS/SCADA infrastructure.

✓ Universal Sensor Compatibility
Accepts thermocouples (K/J/T/R/S/B), RTDs (Pt100/Pt1000), and 4-20mA signals through hot-swappable input modules. Single controller handles diverse measurement types, reducing spare parts inventory and training requirements.

→ Embedded Data Historian
10,000-point circular buffer captures process trends, alarm events, and setpoint changes with millisecond timestamps. Supports FDA 21 CFR Part 11 compliance and root cause analysis without external recorders.

✓ Multi-Stage Alarm Management
Configurable high/low/deviation alarms with independent hysteresis and time delays prevent false trips. Relay outputs drive shutdown sequences or annunciator panels for fail-safe operation.

→ Rugged Industrial Construction
IP65 front bezel protects against washdown environments; -10°C to 55°C operating range covers unheated enclosures. MTBF exceeds 150,000 hours in continuous duty applications.

Industry-Specific Applications

Chemical Batch Reactors
Maintains exothermic reaction temperatures within ±0.5°C during polymerization cycles. Cascade control coordinates jacket cooling with agitator speed to prevent thermal runaway, reducing batch rejection rates from 8% to under 1%.

Food & Beverage Pasteurization
Regulates HTST (High-Temperature Short-Time) processes with validated temperature profiles. HART communication logs critical control points for HACCP audits, eliminating manual chart recorders and ensuring pathogen kill validation.

Pharmaceutical Clean Utilities
Controls WFI (Water for Injection) loop temperatures and autoclave sterilization cycles. Built-in recipe management stores 20 validated programs with electronic signatures, streamlining batch record documentation.

HVAC Environmental Chambers
Stabilizes test chamber conditions for accelerated aging studies and product qualification. Dual-loop capability manages both temperature and humidity with <0.3°C/2% RH deviation over 72-hour test cycles.

Oil & Gas Separator Control
Regulates three-phase separator temperatures and pressure relief valves in upstream production. Explosion-proof housing option (Class I Div 2) and SIL 2 certification support safety instrumented functions.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the YS170-012 when you need single-loop control with HART communication in space-constrained panels. For multi-loop applications or advanced math functions, consider the YS1700 series. Verify input signal compatibility with your existing sensors—RTD inputs require 3-wire or 4-wire configuration. Specify relay output ratings based on valve actuator or contactor coil requirements (inductive loads may need suppression).

Advanced Integration Features

IoT-Ready Connectivity: Optional Ethernet/IP and OPC UA modules enable direct cloud connectivity for Industry 4.0 initiatives. Stream real-time process data to AWS IoT Core or Azure IoT Hub for machine learning-based predictive analytics without gateway hardware.

Custom Control Strategies: Built-in function block programming supports ratio control, lead-lag compensation, and feedforward algorithms. Configure complex control schemes using intuitive graphical interface—no ladder logic expertise required.

Modular Expansion: Add up to 4 auxiliary I/O modules for additional analog inputs, digital outputs, or communication ports. Hot-swappable modules allow capacity upgrades without process shutdown or controller replacement.

Delivery & Service Commitment

Lead Times: Standard configurations ship within 3-5 business days from regional distribution centers. Custom-configured units (special input ranges, explosion-proof housings) require 2-3 weeks for factory programming and certification.

Warranty Coverage: 3-year manufacturer warranty covers defects in materials and workmanship. Extended 5-year service plans available with annual calibration verification and priority replacement.

Technical Support: Unlimited phone and email support from application engineers with process control expertise. Remote commissioning assistance via HART modem connection—we'll optimize PID parameters for your specific process.

Documentation Package: Each controller includes quick-start guide, full operation manual (PDF), HART DD files, AutoCAD panel cutout drawings, and sample ladder logic for PLC integration. Video tutorials cover installation, wiring, and configuration.

Frequently Asked Questions

How do I connect the YS170-012 to my existing DCS system?
The controller supports HART 7 protocol over the 4-20mA output signal—simply connect to a HART-compatible DCS input card or use a HART multiplexer. For Modbus RTU integration, specify the optional RS-485 communication module at time of order. Configuration parameters can be read/written remotely without interrupting the control loop.

What is the maximum control loop update rate?
The PID algorithm executes at 100ms intervals for optimal response to process disturbances. Input sampling occurs at 50ms for thermocouple/RTD signals and 10ms for analog current inputs. This ensures stable control even in fast-changing processes like pressure regulation or flow balancing.

Can this controller reduce energy consumption in heating applications?
Yes—adaptive PID tuning minimizes overshoot and oscillation, reducing average heater duty cycle by 15-25% compared to on/off control. The optional time-proportioning output (PWM) further improves efficiency by eliminating mechanical relay wear and providing smoother power delivery to SCR drives or solid-state contactors.

What are the panel mounting requirements?
The controller requires a standard 1/4 DIN cutout (92mm × 92mm) with minimum 150mm depth behind the panel for terminal connections and wiring. Maintain 50mm clearance on all sides for ventilation—ambient temperature inside the enclosure must not exceed 55°C. Use shielded cable for thermocouple inputs to prevent EMI interference.

Does the YS170-012 support remote monitoring via smartphone?
When equipped with the optional Ethernet module, the controller hosts an embedded web server accessible via standard browsers (Chrome, Safari, Edge). View real-time process values, alarm status, and trend graphs from any device on your plant network. Push notifications for critical alarms require integration with a SCADA system or cloud platform.

How often does the controller require calibration?
Yokogawa recommends annual calibration verification for applications requiring documented accuracy (pharmaceutical, food safety). The controller features software-based calibration adjustment—no potentiometer trimming required. Typical drift is <0.05% per year for analog inputs when operated within specified temperature ranges.

Request Technical Consultation

Our process control specialists are ready to help you select the optimal configuration for your application. Contact us with your process parameters (temperature range, sensor type, control objectives) and we'll provide a detailed specification, wiring diagram, and budget quotation within 24 hours. Volume discounts available for multi-unit projects.
