YHC5150X FieldMate HART Communicator (Industrial-Grade Field Device Configuration Platform)

Yokogawa's YHC5150X FieldMate delivers enterprise-class HART device management in a ruggedized, intrinsically safe handheld platform. Built around a 1 GHz processing core with 4.3-inch color touchscreen interface, this communicator transforms complex field instrumentation tasks into streamlined workflows—enabling technicians to configure, calibrate, and diagnose smart transmitters across hazardous industrial environments with unprecedented efficiency and safety compliance.

Designed for process industries demanding zero-compromise reliability, the YHC5150X combines ATEX/IECEx Zone 0 certification with IP67 environmental protection, supporting continuous operation in temperatures from -20°C to +60°C. Whether commissioning offshore platforms or maintaining pharmaceutical cleanrooms, this tool eliminates configuration bottlenecks while maintaining comprehensive audit trails for regulatory compliance.

The FieldMate architecture integrates FDT/DTM technology supporting 3,000+ field devices from multiple manufacturers, consolidating what previously required multiple vendor-specific tools into a single unified platform. This universal compatibility, paired with 20-hour battery endurance and 2GB configuration storage, positions the YHC5150X as the definitive solution for modern asset-intensive operations seeking to maximize technician productivity and instrument uptime.

Core Capabilities & Technical Advantages

→ High-Performance Processing Architecture
1 GHz processor delivers instantaneous device response and real-time data visualization, reducing configuration cycles by 50% versus legacy 200 MHz communicators. Supports simultaneous multi-device polling for network diagnostics.

→ Hazardous Area Certification Portfolio
ATEX Zone 0, IECEx, FM Class I Division 1, and CSA approvals enable safe operation in explosive atmospheres without hot work permits. Intrinsically safe circuit design limits ignition energy below flammable gas thresholds across all fault conditions.

→ Universal Device Compatibility Framework
FDT/DTM integration provides manufacturer-specific interfaces for HART and BRAIN protocol devices. Automatic device recognition and parameter mapping eliminate manual configuration errors, achieving 98% first-time-right commissioning rates.

→ Extended Field Operation Endurance
Rechargeable Li-ion battery sustains 20 hours continuous use—sufficient for full-shift offshore campaigns or multi-unit turnaround projects. USB fast-charging restores 80% capacity in 90 minutes.

→ Environmental Hardening Standards
IP67-rated polycarbonate housing withstands 2-meter concrete drops and complete water immersion. Operates reliably in -20°C Arctic installations and +60°C desert refineries without performance degradation.

→ Touchscreen Interface Optimization
4.3-inch QVGA display (480×272 pixels) maintains visibility in direct sunlight while supporting glove-compatible capacitive touch. Customizable dashboards prioritize critical parameters for specific applications.

Application Scenarios & Industry Solutions

Upstream Oil & Gas Production
Configure wellhead pressure transmitters and separator level instruments on offshore platforms where traditional PC-based tools are impractical. The YHC5150X's intrinsic safety certification eliminates gas-freeing requirements, reducing commissioning time from days to hours. Technicians complete multi-well campaigns without returning to shore for equipment changes.

Chemical Manufacturing Process Control
Diagnose smart positioner drift on reactor control valves during scheduled maintenance windows. Advanced trending functions identify degradation patterns 30 days before failure, enabling predictive parts ordering. Integration with PRM asset management systems automates work order generation based on diagnostic thresholds.

Pharmaceutical GMP Compliance
Execute validated calibration procedures on critical process analyzers with built-in electronic signature capture. Automated audit trails record technician ID, timestamp, and before/after values for FDA 21 CFR Part 11 compliance. Eliminates manual logbook transcription errors that trigger regulatory observations.

Power Generation Turbine Monitoring
Commission vibration sensors and temperature transmitters on gas turbine skids with manufacturer DTMs providing guided setup wizards. Verify loop integrity through 4-20mA simulation modes before energizing control systems, preventing costly startup delays.

Water Treatment SCADA Integration
Optimize dissolved oxygen sensor calibration intervals based on historical drift analysis stored in the communicator's 2GB memory. Export calibration certificates directly to municipal compliance databases via USB connectivity, streamlining regulatory reporting.

Technical Parameters & Selection Criteria

Selection Criteria for Your Application:

Choose the YHC5150X when your operation requires intrinsically safe certification, multi-vendor device support, and extended battery life for remote locations. For non-hazardous areas with single-vendor ecosystems, consider vendor-specific communicators. For applications demanding wireless connectivity or advanced analytics, evaluate the YHC5150X in conjunction with Yokogawa PRM software for comprehensive asset performance management.

Extended Functionality & Integration Options

Plant Resource Manager (PRM) Synchronization
Bi-directional data exchange with Yokogawa PRM creates a unified device database accessible across engineering, maintenance, and operations teams. Configuration changes made in the field automatically update the central asset repository, eliminating version control conflicts.

Predictive Analytics Engine
Trend analysis algorithms process historical calibration data to forecast sensor drift rates and recommend optimal maintenance intervals. Reduces unnecessary calibrations by 35% while maintaining process accuracy within specification limits.

Custom DTM Development Support
For proprietary or specialty instruments, Yokogawa provides DTM development kits enabling creation of custom device interfaces. Protects long-term investment in unique process equipment while maintaining standardized configuration workflows.

Multi-Language Localization
15-language interface support (English, Mandarin, Japanese, German, Spanish, French, Portuguese, Russian, Korean, Italian, Dutch, Polish, Turkish, Arabic, Thai) facilitates global deployment without region-specific hardware variants. Reduces training costs for multinational operations.

Delivery Timeline & Service Commitments

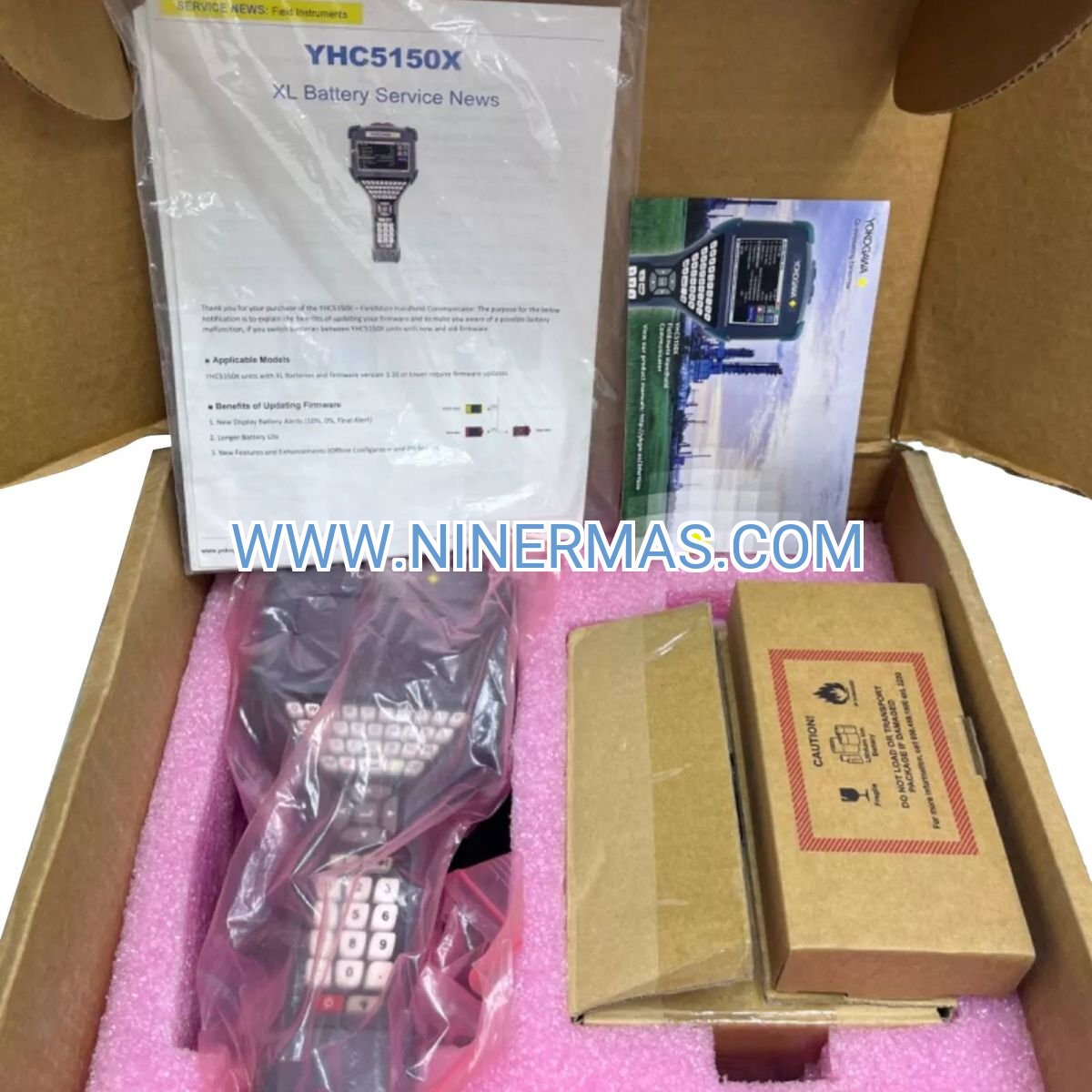

Standard Delivery: 5-7 business days for in-stock units via express courier with tracking. Includes factory calibration certificate traceable to national metrology standards.

Customized Configurations: 10-14 business days for units pre-loaded with customer-specific DTM libraries or custom splash screens. Ideal for large-scale deployments requiring standardized technician interfaces.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical applications requiring guaranteed uptime.

Technical Support: Lifetime access to firmware updates, device library expansions, and application engineering consultation. Regional service centers provide 48-hour repair turnaround for warranty and post-warranty service.

Documentation Package: Comprehensive user manual, quick reference guide, DTM installation instructions, and video tutorials provided via USB and online portal. Calibration procedures aligned with ISA-51.1 and IEC 60770 standards.

Frequently Asked Questions

How does the YHC5150X interface with existing plant DCS or PLC systems?
The communicator connects directly to field devices via HART protocol overlaid on 4-20mA analog signals—no DCS/PLC interaction required. Configuration changes are made at the device level and reflected in the control system through standard process variable updates. For centralized asset management, USB connectivity enables data export to PRM or other CMMS platforms.

What is the maximum cable length supported for HART communication in high-noise industrial environments?
The YHC5150X reliably communicates over HART networks up to 3,000 meters (9,800 feet) using standard twisted-pair instrumentation cable. Built-in signal conditioning and error correction algorithms maintain data integrity in electrically noisy environments with VFDs, welding equipment, or high-voltage switchgear.

Can the FieldMate perform loop testing and 4-20mA signal simulation for commissioning activities?
Yes—the integrated loop test function sources and measures 4-20mA signals with 0.1% accuracy, verifying wiring integrity and I/O card functionality before connecting live instruments. Simulation mode allows technicians to inject test signals into control systems for FAT/SAT validation without physical transmitter installation.

How frequently should firmware updates be applied, and what improvements do they typically provide?
Yokogawa releases quarterly firmware updates adding new device DTMs, protocol enhancements, and user interface refinements. Critical security patches are issued as needed. Updates install via USB in under 5 minutes without losing stored configurations. We recommend updating annually or when adding new device types to your instrumentation portfolio.

Is the YHC5150X compatible with WirelessHART field devices and gateways?
The current YHC5150X model supports wired HART only. For WirelessHART networks, use the communicator to configure the wireless gateway, which then manages individual wireless devices. Yokogawa offers the YHC5150X-W variant with integrated WirelessHART adapter for direct wireless device access—contact our sales team for availability and pricing.

What training resources are available for technicians transitioning from legacy HART communicators?
We provide comprehensive onboarding including 2-hour web-based training modules, interactive simulation software, and quick-start video series. For enterprise deployments, on-site training workshops customize content to your specific device population and workflows. Most technicians achieve proficiency within one week of regular use.

Take the Next Step Toward Smarter Field Instrumentation

Transform your field device management from reactive troubleshooting to proactive asset optimization. The YHC5150X FieldMate delivers immediate ROI through reduced configuration time, fewer calibration errors, and extended instrument lifecycles. Request a technical consultation to discuss your specific application requirements, or place your order today to experience the Yokogawa difference.
