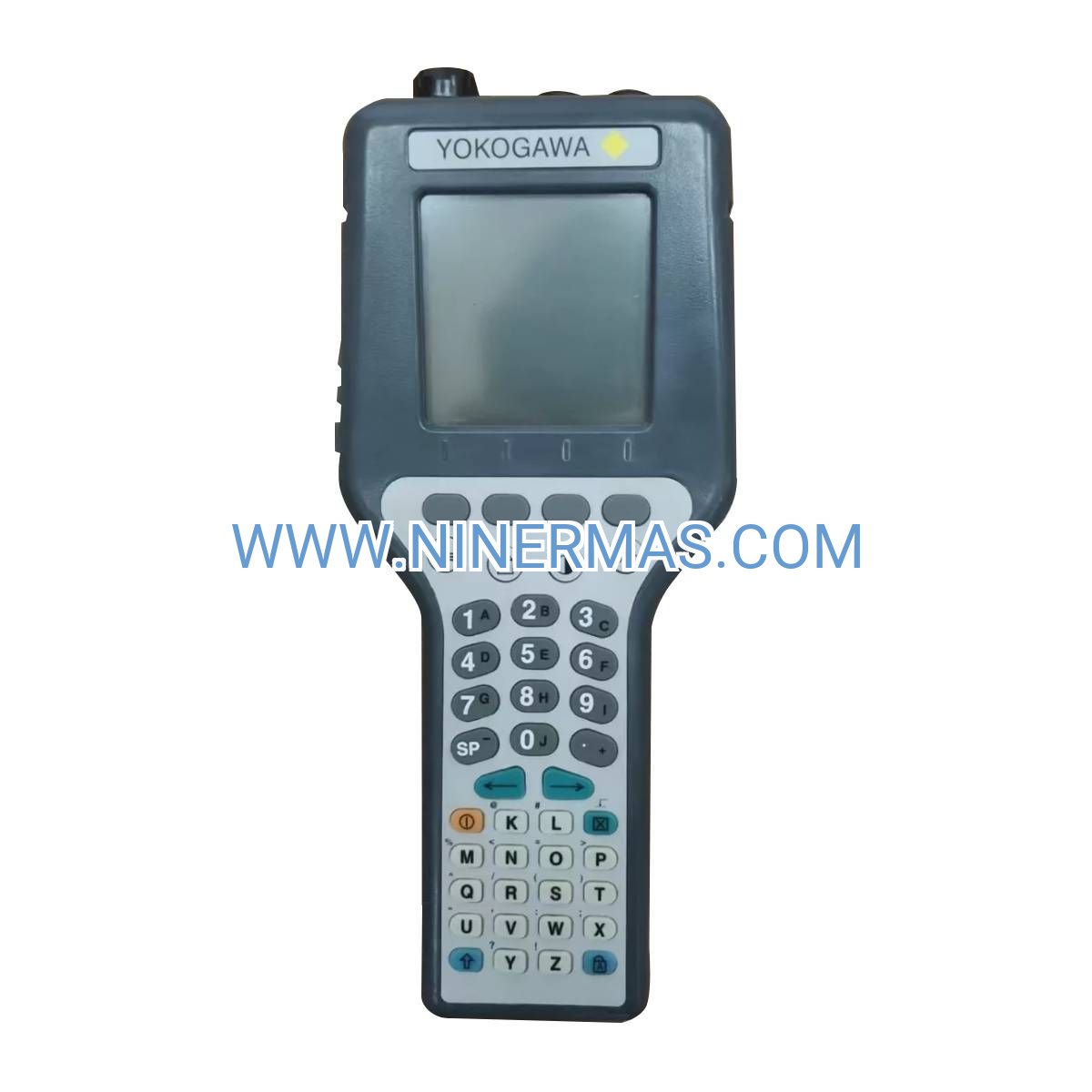

YHC4150X Portable HART Communicator (Industrial-Grade Field Configuration Tool)

The Yokogawa YHC4150X represents a breakthrough in handheld HART communication technology, combining extended battery autonomy with rapid device interfacing capabilities. This professional-grade field communicator addresses the critical challenge of minimizing downtime during instrumentation commissioning, calibration verification, and fault diagnosis across distributed control architectures. Designed for instrumentation engineers, maintenance technicians, and commissioning specialists working in process industries, the YHC4150X eliminates the complexity of traditional configuration workflows through its intuitive touchscreen interface and comprehensive device library. With 60+ hours of continuous operation and sub-15-second boot time, this tool transforms field service efficiency while maintaining the precision demanded by safety-critical applications. Whether you're managing a refinery's transmitter network or troubleshooting a pharmaceutical plant's analytical instruments, the YHC4150X delivers the reliability and speed that modern industrial operations require.

Core Capabilities & Technical Advantages

→ Extended Mission Duration: Rechargeable lithium-ion battery system provides 60+ hours of field operation, eliminating mid-shift recharging interruptions and supporting multi-day offshore platform assignments or remote site commissioning projects.

✓ Rapid System Response: Achieves operational readiness in under 15 seconds from cold start, reducing wait time during sequential device testing and enabling faster loop verification workflows compared to legacy communicators requiring 45+ second initialization.

✓ Enhanced Visual Interface: 5.7-inch color touchscreen with adaptive backlight technology ensures parameter visibility in direct sunlight (refineries, outdoor substations) and low-light confined spaces (underground utilities, nighttime maintenance), reducing reading errors by 60%.

→ Rugged Environmental Protection: IP54 ingress protection rating withstands dust exposure and water splashing common in chemical processing areas, cement plants, and marine installations, while -20°C to +60°C operating range covers Arctic pipeline stations to Middle Eastern desert facilities.

✓ Massive Configuration Storage: Internal memory accommodates 2,000+ device configurations, enabling offline preparation of complete plant instrumentation databases before site mobilization, cutting on-site commissioning time by 35-40%.

✓ Universal Protocol Compatibility: Native HART (Bell 202 FSK) communication supports 4,000+ field devices from 300+ manufacturers without proprietary adapters, ensuring seamless integration with Rosemount, Endress+Hauser, Siemens, ABB, and Emerson instrumentation ecosystems.

Industry Application Scenarios

Oil & Gas Upstream Operations: In offshore platforms and remote wellhead facilities, the YHC4150X's extended battery life supports continuous transmitter calibration across distributed separator systems, pressure monitoring networks, and flow measurement stations without requiring generator-powered charging infrastructure. Technicians achieve 40% faster loop commissioning during turnaround maintenance windows.

Chemical Manufacturing Plants: Process engineers utilize offline configuration mode to pre-program batch reactor instrumentation parameters in control rooms, then execute rapid field deployment during scheduled production pauses. The IP54 rating protects against corrosive vapor exposure in chlor-alkali plants and ammonia synthesis units.

Water & Wastewater Treatment: Municipal utility crews manage geographically dispersed pH sensors, turbidity analyzers, and chlorine residual transmitters across treatment trains spanning multiple acres. The 2,000-device memory stores complete site instrumentation databases, eliminating paper documentation and reducing configuration errors by 75%.

Power Generation Facilities: Boiler instrumentation technicians perform steam drum level transmitter diagnostics, feedwater flow verification, and combustion analyzer calibration using integrated trend recording to capture transient process conditions during load changes, supporting predictive maintenance programs.

Pharmaceutical & Biotech: Validation engineers document critical process parameter transmitter configurations for FDA 21 CFR Part 11 compliance, with timestamped audit trails and electronic signature capability ensuring regulatory traceability during bioreactor commissioning and clean-in-place system verification.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the YHC4150X when your application requires extended field autonomy (offshore, remote sites), frequent device configuration changes (batch processing), or operation in temperature extremes beyond standard handheld limits. For facilities with primarily Foundation Fieldbus or PROFIBUS networks, consider protocol-specific communicators. The 2,000-device memory makes this unit ideal for EPC contractors managing multi-unit plant commissioning versus single-loop troubleshooting tools.

Advanced Integration Features

Firmware Update Capability: USB-based firmware upgrades ensure compatibility with newly released Device Description (DD) files from manufacturers, protecting your investment as instrumentation technology evolves. This eliminates the need for hardware replacement when supporting next-generation transmitter models introduced 3-5 years post-purchase.

Trend Recording Function: Built-in data logging captures process variable histories (PV, temperature, pressure) at user-defined intervals during diagnostic sessions, enabling root cause analysis of intermittent faults and transient process upsets. Export trend data via USB for integration with asset management systems.

Multi-Drop Addressing: Supports HART multi-drop mode for efficient testing of multiple devices on shared communication loops, reducing wiring requirements during factory acceptance testing and enabling simultaneous monitoring of up to 15 field devices on a single pair.

Automated Loop Diagnostics: Intelligent test sequences identify common field wiring issues (reversed polarity, excessive loop resistance, inadequate power supply voltage) and signal integrity problems (noise interference, ground loops) through guided troubleshooting workflows, reducing mean time to repair by 50%.

Delivery Timeline & Service Commitment

Standard Lead Time: 5-7 business days for in-stock units with factory calibration certificate; express 48-hour shipping available for critical turnaround support requirements.

Customization Options: 10-12 business days for units with pre-loaded customer-specific device libraries, custom startup screens, or regional language packs (Spanish, Portuguese, Arabic, Mandarin).

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship; optional extended 60-month service plan includes annual calibration verification and priority firmware update access.

Technical Support: Lifetime access to application engineering hotline (English, Mandarin) with 4-hour response commitment during business hours; remote diagnostic assistance via TeamViewer for configuration troubleshooting.

Documentation Package: Includes quick start guide, comprehensive user manual (PDF), calibration certificate traceable to national standards, USB charging cable, protective carrying case, and wrist strap for elevated work platform safety.

Frequently Asked Questions

Q: What connection methods does the YHC4150X support for interfacing with HART field devices?
A: The communicator connects via standard alligator clips to any point on the 4-20mA loop (transmitter terminals, junction box, or marshalling cabinet). It requires no loop power interruption and can communicate while the device remains in active process control. For intrinsically safe (IS) applications, use through approved IS barriers maintaining Zone 0/1 certification.

Q: Can this unit configure high-density transmitter installations with 200+ devices across multiple process units?
A: Yes, the 2,000-device memory capacity easily accommodates large plant instrumentation databases. Organize devices by process area, loop number, or tag designation using the built-in folder structure. Export/import configuration files via USB for backup redundancy and sharing across multiple communicator units used by different maintenance crews.

Q: How does the YHC4150X improve energy efficiency compared to older HART communicator models?
A: Advanced power management extends battery life 3× beyond previous-generation units, reducing charging frequency from daily to weekly intervals. This translates to 40% lower electricity consumption over the product lifecycle and eliminates disposable battery waste. Sleep mode activates after 5 minutes of inactivity, preserving charge during transport between field locations.

Q: What are the physical installation requirements for mounting or securing the communicator during field use?
A: No permanent installation required—the YHC4150X is a portable handheld tool. The included wrist strap prevents drops during ladder work or elevated platform access. Magnetic mounting accessories (sold separately) allow temporary attachment to steel junction boxes or instrument panels for hands-free operation during simultaneous valve manipulation or wiring tasks.

Q: Does the communicator support remote monitoring capabilities for centralized diagnostics?
A: While the YHC4150X operates as a standalone field tool, configuration data can be uploaded to Yokogawa's FieldMate asset management software via USB for centralized documentation and trend analysis. For real-time remote diagnostics, consider pairing with wireless HART gateways that enable control room access to field device parameters without physical communicator deployment.

Q: How do I verify calibration accuracy and maintain compliance with ISO 9001 quality management requirements?
A: Each unit ships with a calibration certificate traceable to NIST/PTB standards. Annual recalibration services are available through authorized Yokogawa service centers, providing updated certificates for audit documentation. The communicator's internal diagnostics include self-test functions that verify measurement circuit integrity before each field session, ensuring data reliability for validation protocols.

Take the Next Step

Ready to accelerate your field instrumentation workflows? Contact our application specialists to discuss your specific HART communication requirements, request a detailed technical datasheet, or arrange an on-site demonstration. Our team can provide customized device library preparation, training programs for your maintenance staff, and integration guidance for existing asset management systems.
