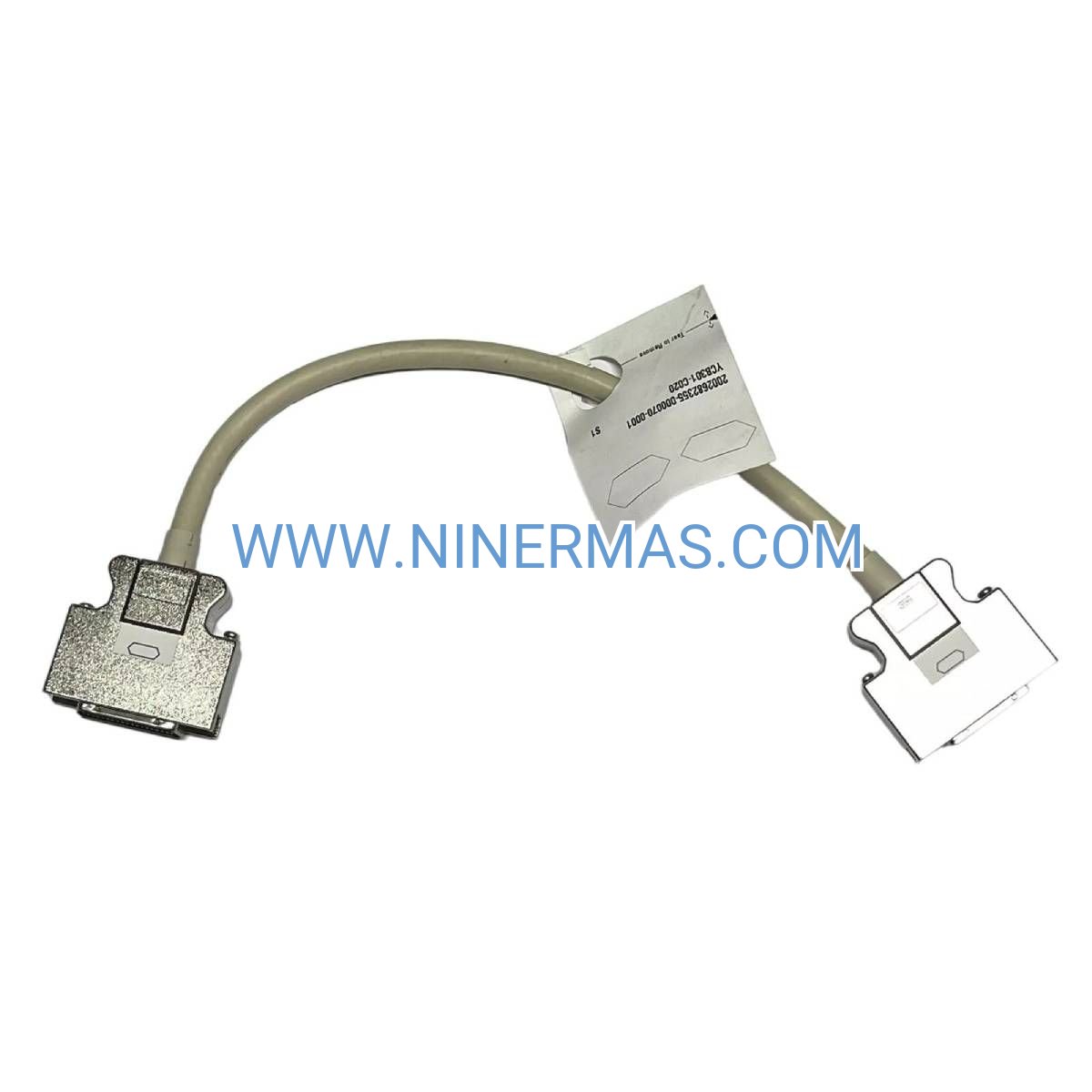

YCB301-C020 ESB Bus Cable (Industrial-Grade 20cm Interconnect)

The YCB301-C020 represents Yokogawa's precision-engineered solution for ultra-short ESB (Extended System Bus) connectivity within CENTUM CS 3000 distributed control platforms. Designed for high-density cabinet installations, this 20-centimeter cable delivers deterministic, noise-immune data pathways between Field I/O modules, ensuring microsecond-level synchronization across analog, digital, and communication subsystems in process-critical environments.

Engineered for industries where uptime translates directly to profitability—oil refineries, chemical plants, power stations, and pharmaceutical production lines—this cable eliminates the signal degradation and intermittent faults common in generic wiring solutions. Its factory-calibrated impedance and EMI/RFI shielding maintain data integrity even in electrically hostile environments with VFDs, high-voltage switchgear, and RF interference.

Whether you're commissioning a new CENTUM CS 3000 system or retrofitting legacy FIO racks, the YCB301-C020 provides plug-and-play compatibility with ANB/SNB node units, reducing installation time while meeting Yokogawa's stringent quality benchmarks for industrial automation infrastructure.

Core Features & Business Value

✓ Deterministic Communication Protocol
Supports high-speed ESB data exchange with guaranteed latency thresholds, critical for closed-loop control applications requiring sub-10ms response times in batch processing and continuous manufacturing.

→ Compact 20cm Form Factor
Optimized for adjacent FIO module spacing in standard 19-inch racks, reducing cable management complexity and improving airflow in thermally-sensitive control cabinets.

✓ EMI/RFI Hardened Construction
Triple-layer shielding (foil + braid + drain wire) rejects electromagnetic interference from motor drives, welding equipment, and radio transmitters—maintaining signal-to-noise ratios exceeding 60dB.

→ Hot-Swap Compatible Architecture
Enables live module replacement in redundant configurations without disrupting active process control loops, supporting 99.99% uptime requirements in continuous operations.

✓ Yokogawa OEM Certification
Factory-tested to IEC 61158 fieldbus standards with serialized traceability, ensuring warranty compliance and eliminating counterfeit component risks in safety-instrumented systems (SIS).

→ Temperature-Stabilized Materials
Operates reliably across 0°C to 55°C ambient ranges without signal attenuation, suitable for outdoor enclosures and non-climate-controlled industrial facilities.

Industry Applications & Problem-Solving

Petrochemical Refining
In catalytic cracking units and distillation columns, the YCB301-C020 interconnects temperature, pressure, and flow transmitters to CENTUM CS 3000 controllers, enabling real-time optimization of yield rates while maintaining SIL 2/3 safety integrity levels.

Power Generation
Links turbine vibration monitors, boiler drum level sensors, and emission analyzers in combined-cycle plants, supporting predictive maintenance algorithms that reduce unplanned outages by 40% through early fault detection.

Pharmaceutical Manufacturing
Connects clean-in-place (CIP) system sensors and bioreactor controllers in FDA-regulated facilities, providing the audit-trail-ready data integrity required for 21 CFR Part 11 compliance and batch record validation.

Water Treatment
Integrates pH, turbidity, and chlorine residual analyzers in municipal treatment plants, enabling automated dosing control that reduces chemical consumption by 15-25% while meeting EPA discharge standards.

Metals & Mining
Supports furnace temperature control and conveyor speed regulation in smelting operations, where the cable's vibration-resistant connectors withstand continuous mechanical stress in high-impact environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the YCB301-C020 when FIO modules are mounted in adjacent slots (≤20cm spacing). For longer distances, consider YCB301-C050 (50cm) or YCB301-C100 (100cm) variants. Verify compatibility with your CENTUM CS 3000 firmware revision—consult Yokogawa's hardware compatibility matrix for systems prior to R3.08.

Extended Capabilities

Redundancy Support: Deploy in dual-cable configurations with ANB10D or SNB10D redundant node units to achieve bumpless switchover during primary path failures, maintaining control continuity in SIL-rated applications.

Diagnostic Integration: Compatible with Yokogawa's PRM (Plant Resource Manager) software for cable health monitoring—track insertion cycles, contact resistance trends, and predictive replacement alerts via FOUNDATION Fieldbus or HART-IP gateways.

Custom Lengths Available: For non-standard rack configurations, Yokogawa offers factory-custom cable assemblies from 10cm to 200cm with identical electrical specifications and lead times of 4-6 weeks.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations require 4-6 weeks for factory assembly and testing.

Warranty: 24-month manufacturer's warranty covering material defects and workmanship. Extended 5-year coverage available through Yokogawa's VigilantPlant service agreements.

Technical Support: Access to Yokogawa-certified engineers for installation guidance, troubleshooting, and system integration planning. Remote diagnostics available via secure VPN connections.

Documentation Package: Includes calibration certificate, IEC compliance declaration, CAD drawings (STEP/DXF), and installation manual with torque specifications for connector assembly.

Frequently Asked Questions

Q: Can the YCB301-C020 interface with CENTUM VP systems?
A: Yes, the cable is backward-compatible with CENTUM VP R6.x and later when used with appropriate FIO modules. Verify node unit firmware supports ESB protocol version 2.0 or higher.

Q: What is the maximum number of FIO modules per ESB segment?
A: CENTUM CS 3000 architecture supports up to 8 FIO modules per ESB chain. Use YCB301-C020 for adjacent connections and longer variants for distributed layouts.

Q: Does this cable reduce energy consumption compared to optical alternatives?
A: ESB copper cables consume <0.5W per connection versus 2-3W for fiber transceivers, reducing cabinet heat load by 15-20% in high-density installations—lowering HVAC costs in control rooms.

Q: Are there installation torque requirements for the connectors?
A: Yes, apply 0.4-0.6 Nm (3.5-5.3 lb-in) to locking screws using a calibrated torque driver. Over-tightening can damage backplane receptacles and void warranty coverage.

Q: Can I monitor cable health remotely through the DCS?
A: When integrated with PRM software, the system logs connection events and resistance anomalies. Configure SNMP traps or OPC UA alarms for proactive maintenance notifications.

Q: What is the expected service life in continuous operation?
A: Under normal conditions (≤10 insertion cycles/year, controlled environment), expect 15+ years of service. High-vibration applications may require inspection every 3-5 years.

Ready to Optimize Your CENTUM CS 3000 Infrastructure?

Ensure zero-downtime performance with genuine Yokogawa ESB cables engineered for mission-critical process control. Contact our automation specialists for system-specific recommendations, bulk pricing, or technical integration support.
