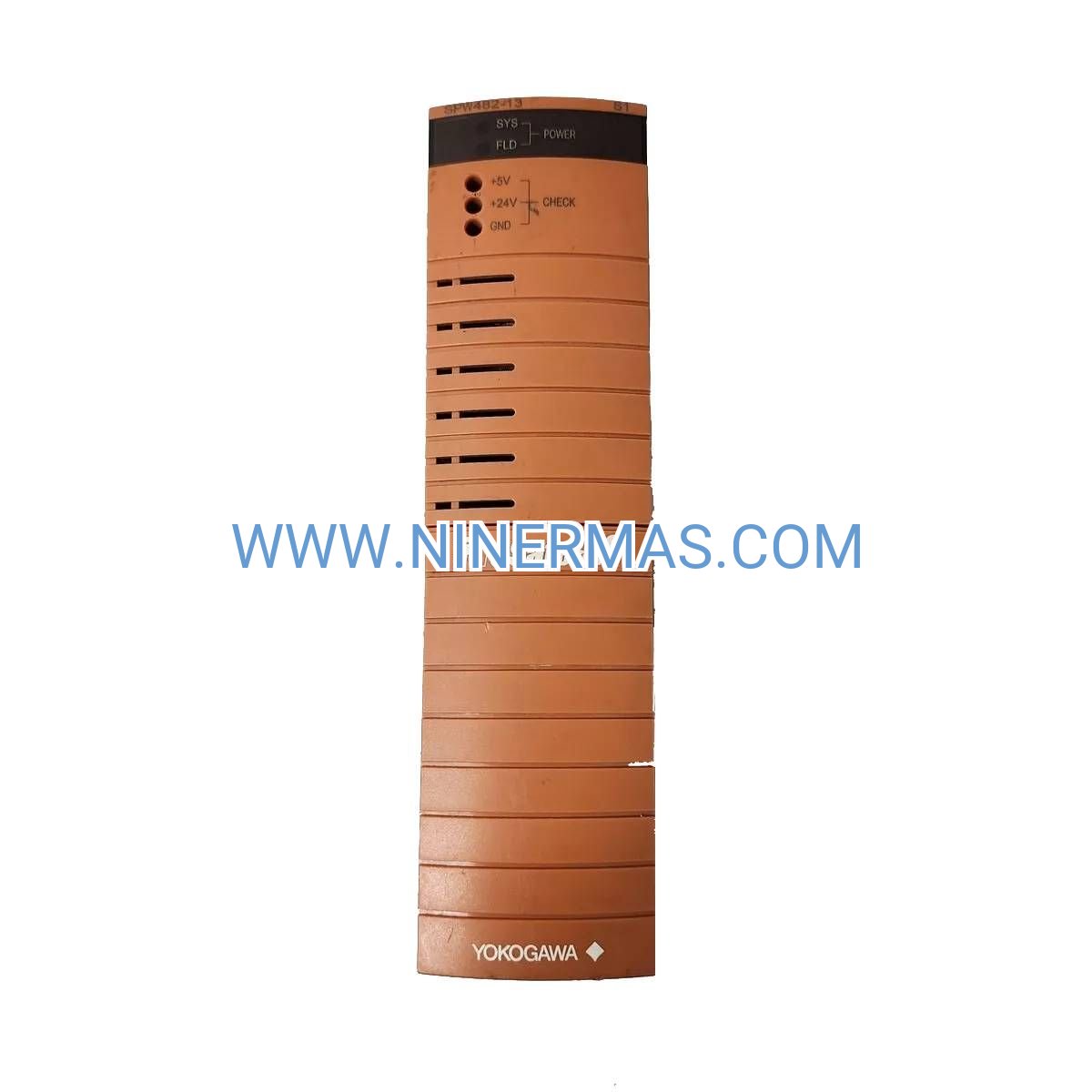

Yokogawa SPW482-13 S1 – Industrial-Grade Power Supply for Safety-Critical Control Systems

The SPW482-13 S1 is a precision-engineered power supply module designed to deliver uninterrupted, regulated electrical power to Yokogawa ProSafe-RS Safety Instrumented Systems and CENTUM VP Distributed Control Systems. Built for environments where downtime translates to production losses or safety risks, this module combines robust electrical design with advanced protection circuitry to maintain stable operation across demanding industrial conditions.

Engineered for process industries including petrochemical refineries, pharmaceutical manufacturing, power generation plants, and water treatment facilities, the SPW482-13 S1 addresses the critical need for reliable power infrastructure in safety-certified automation architectures. Its compact footprint and DIN-rail compatibility enable flexible installation in space-constrained control cabinets while maintaining thermal performance standards required for continuous operation.

Whether you're commissioning new safety systems, expanding existing CENTUM VP networks, or implementing redundant power architectures for mission-critical applications, the SPW482-13 S1 delivers the electrical stability and compliance credentials essential for modern industrial automation. Contact our technical team to discuss integration requirements for your specific control system configuration.

Core Capabilities & Technical Advantages

✓ Multi-Layer Protection Architecture
Integrated overvoltage, overcurrent, and thermal shutdown mechanisms safeguard connected control modules against electrical faults, extending system lifespan and reducing unplanned maintenance interventions.

✓ Wide Input Voltage Tolerance
Operates reliably across 220-240V AC input range with built-in filtering to compensate for grid fluctuations common in industrial power distribution networks, ensuring consistent output even during voltage sag events.

✓ Safety Certification Compliance
Meets stringent SIL 2/3 requirements for safety instrumented systems, providing documented reliability metrics and failure mode analysis essential for functional safety validation and regulatory audits.

✓ Enhanced EMI/RFI Immunity
Advanced electromagnetic shielding and filtering technologies maintain signal integrity in electrically noisy environments with variable frequency drives, welding equipment, and high-power motor controllers.

✓ Optimized Thermal Management
Engineered heat dissipation design enables reliable operation in ambient temperatures up to 55°C without forced cooling, reducing auxiliary equipment requirements and improving cabinet space utilization.

✓ Rapid Installation & Commissioning
Standardized DIN-rail mounting with clearly labeled terminal blocks accelerates installation workflows, while LED diagnostic indicators simplify troubleshooting during startup and routine maintenance.

Industrial Application Scenarios

→ Emergency Shutdown Systems (ESD)
Provides primary or backup power to ProSafe-RS logic solvers managing critical shutdown sequences in oil & gas separation facilities, chemical reactor protection systems, and turbine overspeed protection applications where power supply failure could compromise safety barrier integrity.

→ Distributed Control System Expansion
Supports incremental growth of CENTUM VP installations by powering additional field control units, I/O subsystems, and communication modules without requiring complete power infrastructure redesign, reducing capital expenditure for capacity additions.

→ Redundant Power Configurations
Enables N+1 or 2N redundancy architectures for high-availability control systems in continuous process industries, pharmaceutical clean rooms, and data center HVAC management where single-point power failures are unacceptable operational risks.

→ Legacy System Modernization
Facilitates phased migration from obsolete control platforms to current Yokogawa architectures by providing compatible power infrastructure for hybrid configurations during transition periods, minimizing production disruption during upgrade projects.

→ Hazardous Area Control Panels
Supports power distribution in Zone 2/Division 2 classified locations when installed in appropriately rated enclosures, enabling control system deployment in refineries, chemical plants, and offshore platforms with explosive atmosphere considerations.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify total power budget for connected modules including controller, I/O cards, and communication interfaces. For redundant configurations, specify matching S1 revision modules to ensure consistent electrical characteristics. Confirm input voltage availability matches 220-240V AC specification – contact technical support for alternative voltage requirements. Review ambient temperature conditions to ensure operation within -10°C to +55°C range, considering cabinet internal temperature rise from adjacent heat-generating equipment.

Extended Integration Capabilities

System Architecture Flexibility
The SPW482-13 S1 integrates seamlessly with Yokogawa's comprehensive automation portfolio including ProSafe-RS safety controllers, CENTUM VP field control stations, Vnet/IP communication networks, and various analog/digital I/O subsystems. Supports both centralized and distributed power distribution topologies based on system size and redundancy requirements.

Diagnostic & Monitoring Features
Front-panel LED indicators provide real-time status feedback for power output, fault conditions, and operational health. When integrated with CENTUM VP systems, power supply status can be monitored through operator workstations for predictive maintenance scheduling and alarm management.

Customization Options
While the SPW482-13 S1 represents a standard catalog product, Yokogawa offers engineering support for specialized applications requiring modified mounting configurations, extended temperature ratings, or integration with third-party control platforms. Consult with our application engineers to discuss project-specific requirements.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders during standard production cycles. Expedited shipping available for urgent project requirements – contact sales team for accelerated delivery options.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions. Extended warranty programs available for critical infrastructure applications requiring long-term support commitments.

Technical Support: Access to Yokogawa-certified application engineers for pre-sales consultation, installation guidance, troubleshooting assistance, and system optimization recommendations. Support available via email, phone, and remote diagnostic sessions.

Documentation Package: Each module ships with installation manual, electrical connection diagrams, safety certification documents, and dimensional drawings. Complete technical specifications and integration guides available for download from manufacturer documentation portal.

Frequently Asked Questions

Q: How does the SPW482-13 S1 integrate with existing ProSafe-RS safety systems?
A: The module connects directly to ProSafe-RS backplanes or power distribution terminals using standard wiring practices. It provides regulated power to safety logic solvers, I/O modules, and communication cards within the same chassis or distributed across multiple cabinets. Installation follows documented procedures in the ProSafe-RS system configuration manual, with terminal assignments clearly marked on the module housing.

Q: What power capacity does the SPW482-13 S1 provide for connected control modules?
A: Output power capacity depends on connected load requirements – consult the module datasheet for specific current ratings at standard output voltages. For system design, calculate total power consumption of all connected devices (controllers, I/O cards, communication modules) and apply 20-30% derating factor for thermal management and future expansion. Our engineering team can perform load analysis for complex configurations.

Q: Can this power supply achieve measurable energy efficiency improvements in control systems?
A: Modern switching power supply topology delivers higher conversion efficiency compared to legacy linear designs, typically reducing heat generation by 15-25% and lowering cooling requirements for control cabinets. While individual module savings are modest, cumulative benefits across large distributed control systems can reduce facility electrical consumption and HVAC loads in control rooms.

Q: What installation requirements must be met for proper SPW482-13 S1 operation?
A: Mount on standard 35mm DIN rail with adequate clearance (minimum 50mm) above and below for airflow. Ensure input power wiring meets local electrical codes with appropriate circuit protection (fuse or breaker) sized per module specifications. Verify ambient temperature remains within -10°C to +55°C range, accounting for cabinet internal temperature rise. Maintain proper grounding connections to minimize electrical noise and ensure safety compliance.

Q: Does the SPW482-13 S1 support remote monitoring and diagnostic capabilities?
A: When integrated with CENTUM VP systems, power supply status can be monitored through the distributed control system's operator interface, enabling centralized alarm management and predictive maintenance scheduling. Standalone installations rely on front-panel LED indicators for local status monitoring. For advanced remote diagnostics, consider integration with Yokogawa's plant asset management solutions.

Q: What differentiates the S1 revision from previous SPW482 versions?
A: The S1 revision incorporates enhanced electromagnetic filtering, improved thermal management characteristics, and updated component specifications for extended operational lifespan. It maintains backward compatibility with existing ProSafe-RS and CENTUM VP installations while offering superior performance in electrically noisy industrial environments. Consult factory documentation for detailed revision change history.

Request Technical Consultation

Our industrial automation specialists are ready to assist with power system design, module selection, and integration planning for your ProSafe-RS or CENTUM VP project. Contact us today to discuss your specific application requirements, receive detailed technical specifications, or request a formal quotation for your control system upgrade or expansion initiative.
