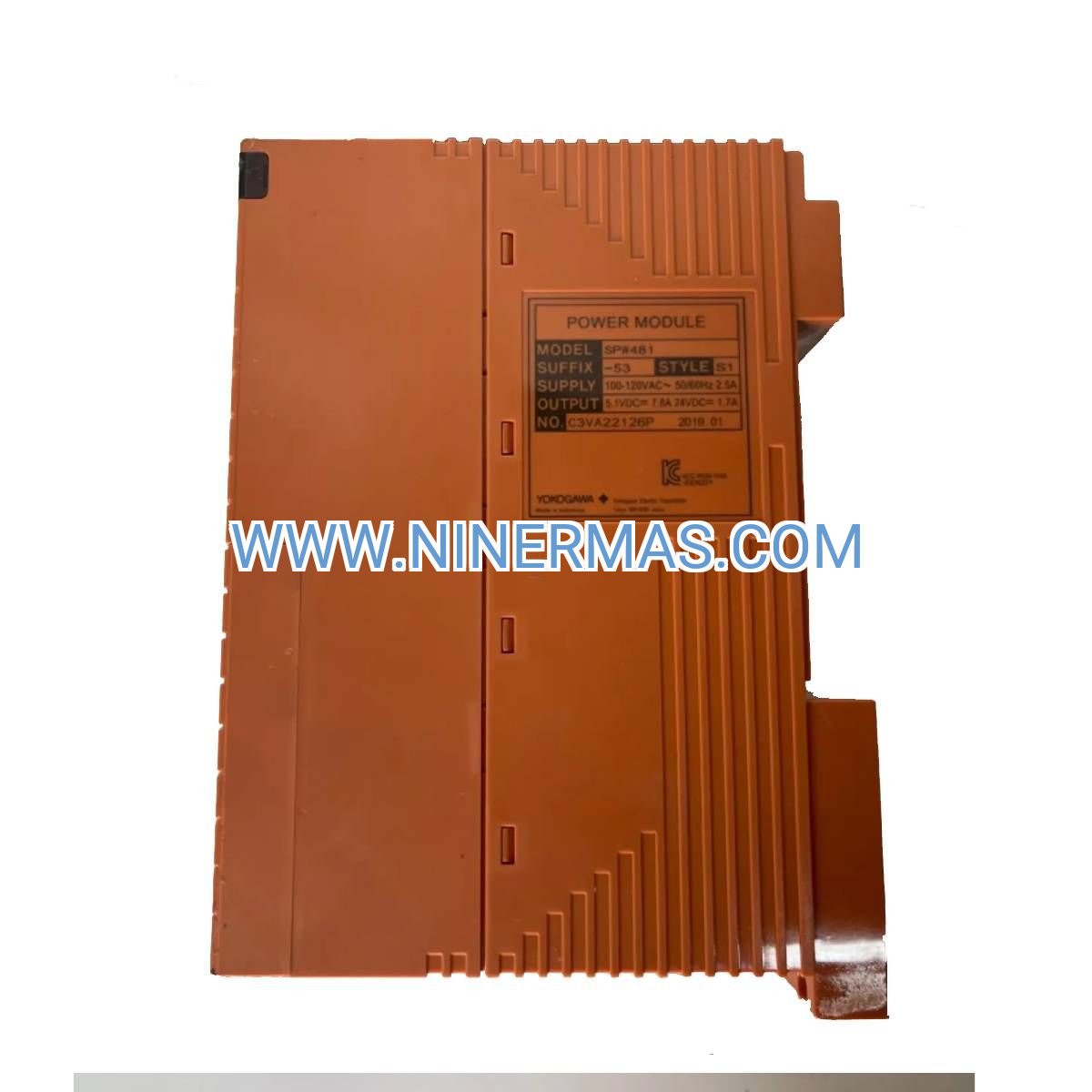

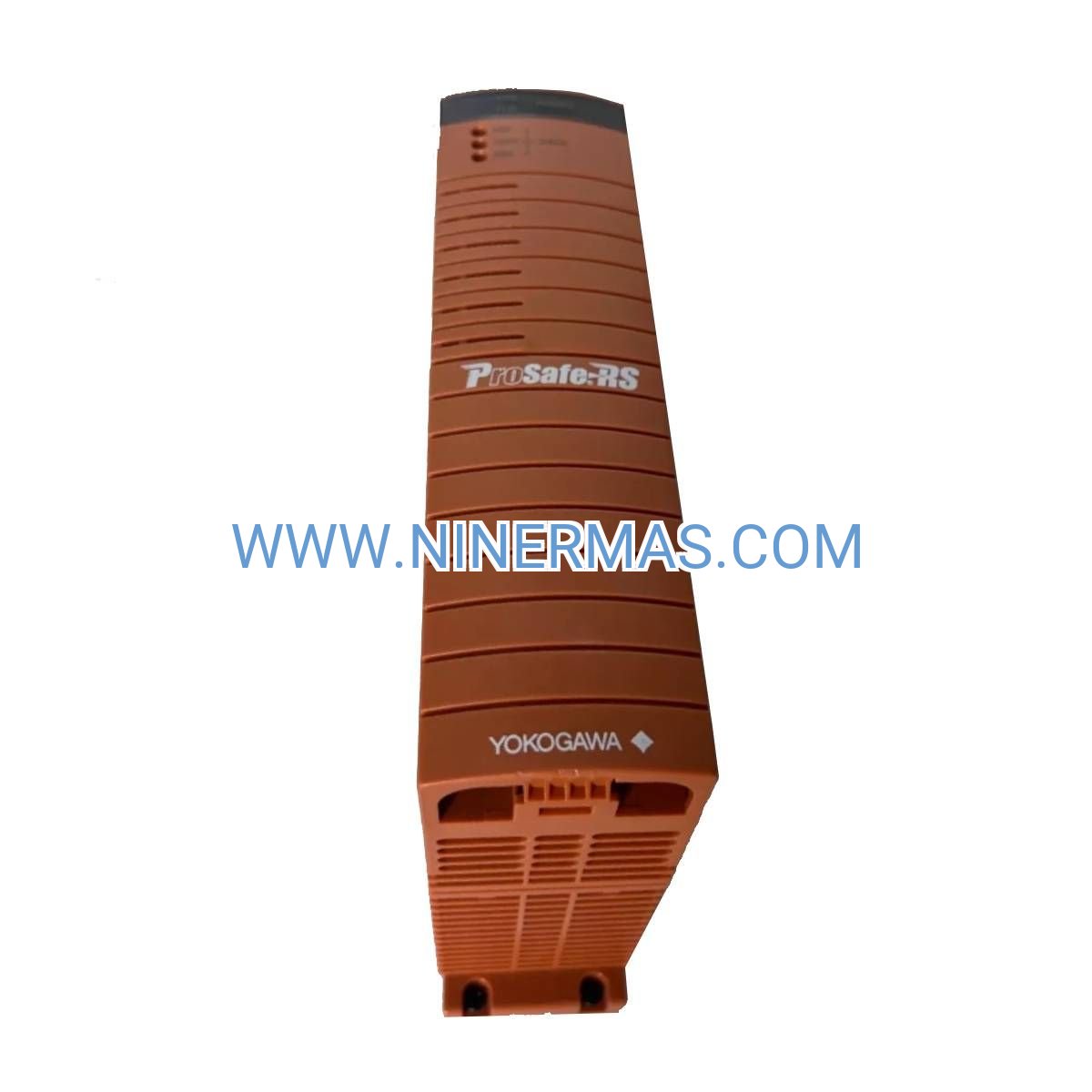

SPW481-53 Power Supply Module (Industrial-Grade Reliability)

The SPW481-53 represents Yokogawa's commitment to uncompromising power integrity in process automation environments. This industrial power supply module transforms standard AC input into precisely regulated DC output, ensuring your ProSafe-RS Safety Instrumented Systems and CENTUM Distributed Control Systems operate without interruption. Engineered for facilities where downtime translates to safety risks and revenue loss, the SPW481-53 combines robust construction with intelligent protection circuitry.

Process engineers and plant managers trust this module to maintain voltage stability across temperature extremes, electrical transients, and demanding load conditions. Whether you're upgrading legacy systems or designing new installations, the SPW481-53 delivers the power foundation your critical control infrastructure demands.

With field-proven reliability exceeding 100,000 hours MTBF and compliance with global safety certifications, this power module minimizes maintenance windows while maximizing operational uptime. Its hot-swappable architecture enables service without process shutdown—a critical advantage in continuous manufacturing environments.

Core Features & Benefits

✓ Universal AC Input Compatibility
Accepts 100-120V AC at 50/60 Hz, accommodating regional power variations without derating. Eliminates the need for external transformers in most installations, reducing panel space and wiring complexity.

✓ Multi-Layer Protection Architecture
Integrated overvoltage, overcurrent, and short-circuit safeguards protect downstream control electronics from power anomalies. Automatic recovery mechanisms restore operation after transient events, preventing nuisance shutdowns that disrupt production.

✓ Extended Temperature Performance
Operates reliably from -10°C to +55°C without forced cooling, ideal for control rooms with variable HVAC or outdoor enclosures. Thermal management design ensures consistent output across ambient conditions.

✓ Hot-Swap Serviceability
Replace modules during operation without powering down control systems. Reduces planned maintenance impact by 80% compared to non-redundant architectures, supporting 24/7 process continuity.

✓ Diagnostic LED Indicators
Front-panel status lights provide instant visibility into power health, input voltage conditions, and fault states. Accelerates troubleshooting and reduces mean time to repair (MTTR) during service calls.

✓ Global Safety Certifications
CE, UL, and IEC compliance ensures regulatory acceptance across North America, Europe, and Asia-Pacific markets. Simplifies multi-site standardization for global enterprises.

Typical Application Scenarios

→ Oil & Gas Refineries
Powers safety shutdown systems (SIS) protecting against overpressure, flame-out, and toxic release scenarios. The SPW481-53's redundant-ready design supports SIL 2/3 architectures mandated by IEC 61511, while its wide temperature range handles control room environments from Arctic to desert climates.

→ Chemical Processing Plants
Maintains stable power to reactor control systems managing exothermic reactions and batch sequencing. Overvoltage protection prevents controller damage during electrical storms or grid disturbances common in industrial parks, avoiding costly production halts.

→ Pharmaceutical Manufacturing
Ensures uninterrupted operation of cleanroom environmental controls and batch documentation systems required for FDA 21 CFR Part 11 compliance. Hot-swap capability enables preventive maintenance during validation campaigns without requalification.

→ Power Generation Facilities
Supplies auxiliary control systems monitoring turbine vibration, generator protection, and emissions compliance. Proven MTBF exceeding 100,000 hours aligns with plant availability targets of 95%+ while reducing spare parts inventory.

→ Water Treatment Infrastructure
Drives SCADA systems controlling pump stations, chemical dosing, and filtration processes serving municipal populations. Wide input voltage tolerance accommodates utility grid fluctuations without triggering alarms or process upsets.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SPW481-53 when your application requires 100-120V AC input compatibility with Yokogawa ProSafe-RS or CENTUM platforms. For 220-240V AC installations, consult our SPW482 series alternatives. Redundant configurations should pair two SPW481-53 modules with appropriate load-sharing or backup switching logic. Verify total system load does not exceed module capacity; contact our engineering team for load calculations in complex multi-chassis deployments.

Extended Functions

Redundancy Configuration Support
Deploy dual SPW481-53 modules in N+1 or 1+1 redundant topologies for enhanced availability. Automatic load balancing distributes current evenly, while diode-OR circuits prevent backfeed during single-module failure. Ideal for SIL-rated safety systems requiring fault-tolerant power architectures.

Remote Monitoring Integration
When paired with Yokogawa's system controllers, power status data integrates into plant-wide SCADA/HMI displays. Alarm notifications for input voltage deviations, output current limits, or thermal warnings enable predictive maintenance before failures occur.

Customization Options
Factory modifications available for specialized input voltages, conformal coating for corrosive atmospheres, or extended temperature ratings. Consult NINERMAS engineering for custom configurations supporting unique installation requirements.

Delivery & Service Assurance

Lead Time
Standard units: 3-5 business days for in-stock items
Custom configurations: 4-6 weeks depending on specification complexity

Warranty Coverage
24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 5+ year coverage.

Technical Support
Direct access to Yokogawa-certified engineers for installation guidance, troubleshooting assistance, and system integration consulting. Support available via email, phone, and remote diagnostics during business hours (GMT+8).

Documentation Package
Each module ships with installation manual, wiring diagrams, dimensional drawings, and compliance certificates. CAD files and 3D models available for download to streamline panel design workflows.

Frequently Asked Questions

Q: How does the SPW481-53 integrate with existing Yokogawa control systems?
A: The module mounts directly into ProSafe-RS and CENTUM chassis via standard backplane connectors. No special adapters required—simply insert into designated power slots and secure retention clips. Consult system documentation for slot assignment guidelines.

Q: What capacity or power rating does this module provide?
A: Output capacity is optimized for typical ProSafe-RS and CENTUM configurations. For precise load calculations, sum the current draw of all installed I/O modules, processors, and communication cards. Contact our engineering team with your system configuration for validation.

Q: Can this power supply reduce energy consumption compared to older models?
A: Yes—modern switching topology achieves 85%+ efficiency versus 60-70% for legacy linear supplies. In a typical 10-module system, expect 20-30% reduction in heat dissipation and associated cooling costs over 5-year lifecycle.

Q: What are the installation requirements for the SPW481-53?
A: Requires DIN rail or panel mounting hardware (included). Ensure 50mm clearance above and below for convection cooling. Input wiring accepts 14-22 AWG conductors; torque terminals to 0.5-0.6 Nm. Verify input circuit breaker sizing per local electrical codes.

Q: Does the SPW481-53 support remote monitoring and diagnostics?
A: Status signals integrate with Yokogawa system controllers for centralized monitoring. For standalone installations, optional external alarm contacts available via custom configuration. Remote diagnostics require compatible HMI/SCADA infrastructure.

Q: How do I determine if my application needs redundant power supplies?
A: Evaluate process criticality and acceptable downtime. Safety Instrumented Systems (SIS) rated SIL 2 or higher typically mandate redundancy per IEC 61511. For non-safety applications, consider redundancy if unplanned downtime costs exceed $5,000/hour or regulatory compliance requires high availability.

Take the Next Step

Secure reliable power for your critical control systems today. Contact our industrial automation specialists at sale@ninermas.com or +0086 187 5021 5667 for technical consultation, system compatibility verification, and volume pricing. Request a detailed datasheet or schedule a virtual integration review to ensure the SPW481-53 meets your specific application requirements.
