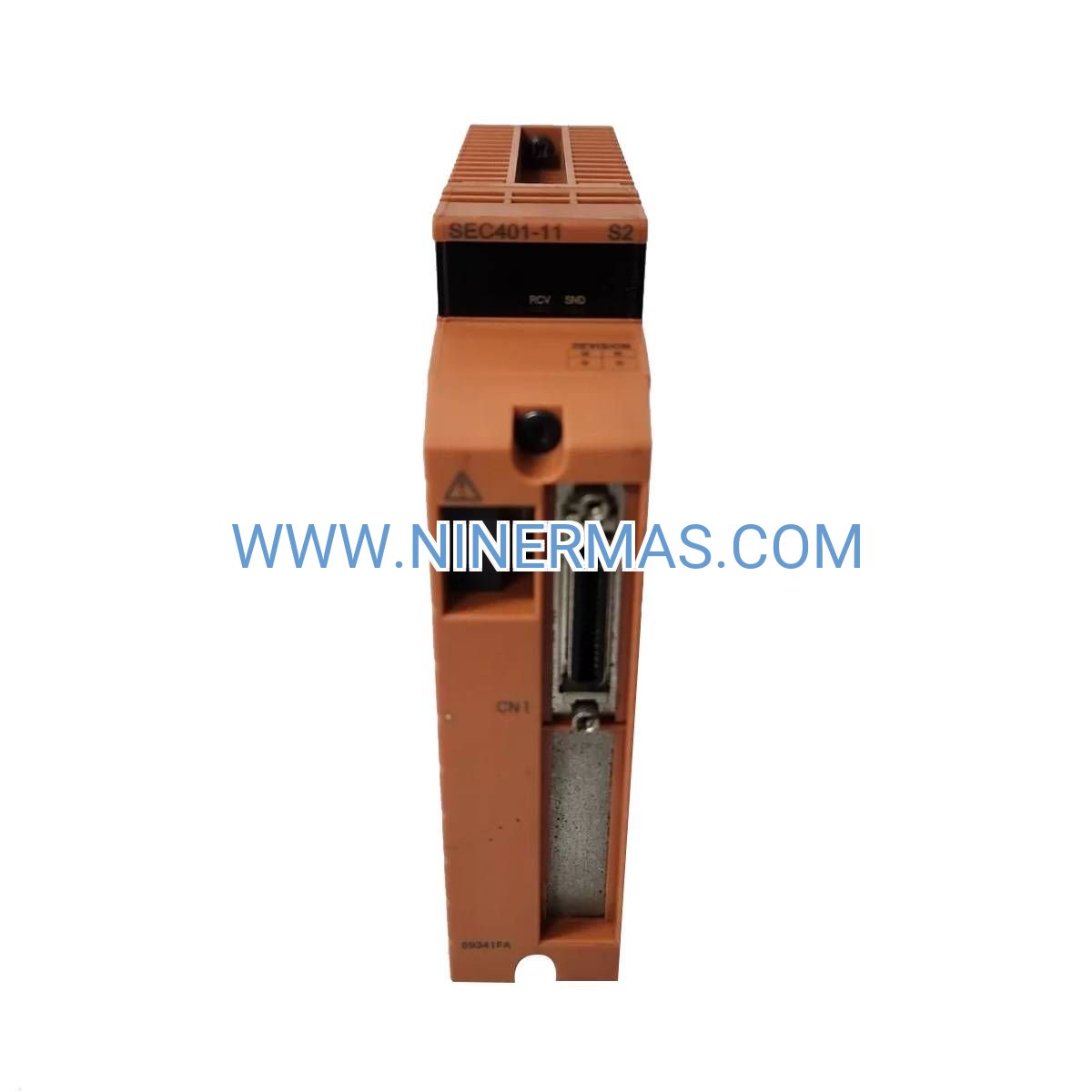

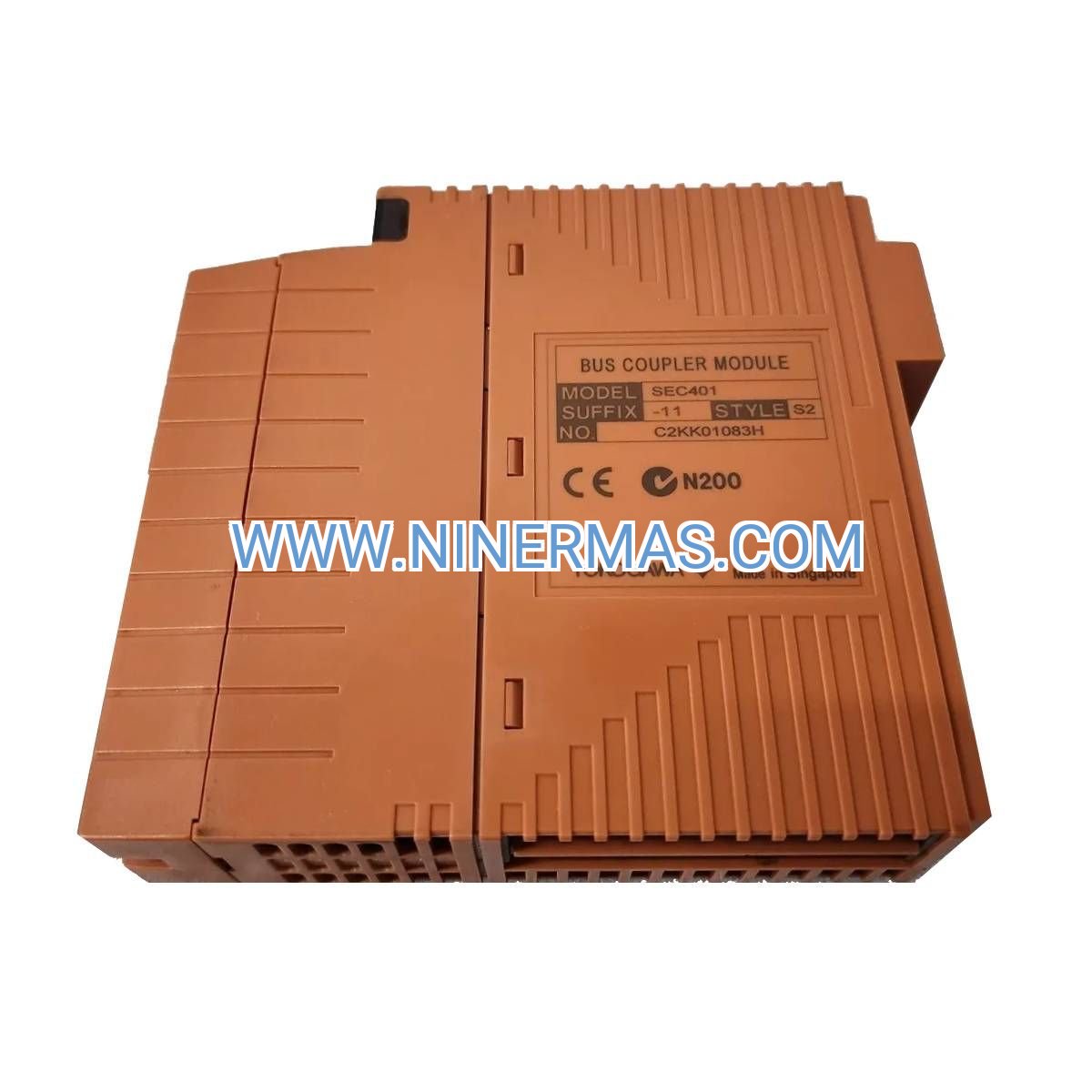

SEC401-11 S2 ESB Bus Coupler Module (Industrial-Grade DCS Communication Gateway)

The SEC401-11 S2 represents Yokogawa's advanced solution for establishing robust communication pathways within distributed control architectures. This ESB (Enhanced Serial Bus) coupler module functions as the central nervous system for industrial networks, orchestrating data flow between field instrumentation and supervisory control layers with deterministic precision. Built for environments where millisecond-level response times and zero-downtime operation define success, this module transforms complex multi-point networks into cohesive, manageable control ecosystems.

Industrial facilities face mounting pressure to integrate legacy equipment with modern SCADA platforms while maintaining operational continuity. The SEC401-11 S2 bridges this gap through its dual-architecture design, supporting both established Yokogawa protocols and contemporary industrial Ethernet standards. Process engineers gain the flexibility to expand I/O capacity without overhauling existing infrastructure, while maintenance teams benefit from hot-swap capabilities that eliminate costly production interruptions during routine servicing.

What sets this coupler apart is its intelligent bandwidth allocation—128 Mbps throughput ensures headroom for future sensor additions, advanced analytics integration, and real-time historian connectivity. Whether coordinating safety-instrumented systems in chemical plants or synchronizing distributed pumping stations across water treatment facilities, the SEC401-11 S2 delivers the reliability and scalability that mission-critical operations demand.

Core Features & Benefits

→ High-Throughput Data Backbone: 128 Mbps transmission capacity eliminates communication bottlenecks, supporting up to 9 networked units per segment while maintaining sub-10ms latency for time-sensitive control loops.

→ Fault-Tolerant Redundancy: Dual-channel architecture automatically switches to backup pathways during primary link failures, ensuring uninterrupted operation in critical infrastructure applications with 99.99% uptime requirements.

→ Plug-and-Produce Installation: DIN rail mounting with auto-configuration protocols reduces commissioning time by 60% compared to traditional fieldbus couplers—technicians simply snap modules into place and power on.

→ Diagnostic Intelligence: Multi-color LED status indicators provide instant visibility into network health, transmission errors, and power anomalies, accelerating troubleshooting from hours to minutes.

→ Energy-Optimized Design: Low-power circuitry consumes 40% less energy than comparable couplers, reducing heat generation in densely packed control cabinets while lowering operational costs.

→ Wide Environmental Range: Operates reliably across 0°C to 55°C (32°F to 131°F), withstanding temperature fluctuations in non-climate-controlled industrial enclosures without performance degradation.

Application Scenarios

✓ Chemical Processing Plants: Coordinate analog input modules, valve positioners, and safety shutdown systems across multi-reactor facilities. The SEC401-11 S2's redundant communication ensures that emergency stop signals reach all zones simultaneously, even during partial network failures—critical for preventing runaway reactions.

✓ Oil & Gas Production Facilities: Link remote wellhead controllers, separator units, and pipeline monitoring stations across expansive field networks. The module's extended temperature tolerance handles outdoor installations in desert and arctic climates, while its 128 Mbps bandwidth supports real-time flow metering and leak detection analytics.

✓ Power Generation Stations: Integrate turbine control systems, boiler management units, and emissions monitoring equipment into unified DCS architectures. Hot-swappable design allows replacement during scheduled maintenance windows without taking generators offline, preserving revenue-generating uptime.

✓ Water Treatment Infrastructure: Synchronize distributed pumping stations, filtration control panels, and chemical dosing systems across municipal networks. The coupler's scalability supports phased expansion as treatment capacity grows, avoiding costly forklift upgrades.

✓ Pharmaceutical Manufacturing: Maintain validated communication pathways for batch control systems, clean-room environmental monitors, and serialization equipment. Deterministic data transmission ensures audit trail integrity for FDA 21 CFR Part 11 compliance.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SEC401-11 S2 when your application requires proven ESB protocol compatibility with existing Yokogawa DCS installations. For greenfield projects or systems demanding higher node counts, evaluate the SEC401-51 variant. If your network spans harsh environments with extreme vibration or electromagnetic interference, consider pairing with shielded cable assemblies and surge protection modules. Always verify that total network load remains below 80% of the 128 Mbps capacity to maintain optimal response times during peak data bursts.

Extended Functions

IoT Gateway Integration: The SEC401-11 S2 supports bridging to industrial IoT platforms through optional protocol converters, enabling cloud-based predictive maintenance analytics and remote diagnostics without compromising OT network security.

Advanced Timestamping: Built-in precision clock synchronization ensures that all networked devices maintain microsecond-level time alignment—essential for sequence-of-events recording and coordinated control actions across distributed systems.

Customization Options: Factory-configurable firmware allows tailoring of communication parameters, timeout thresholds, and redundancy behavior to match specific application requirements. Contact our engineering team for pre-programmed modules that reduce on-site commissioning effort.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to Yokogawa-certified application engineers for integration assistance, network design consultation, and troubleshooting support via phone, email, and remote desktop sessions.

Documentation Package: Each module includes installation manual, wiring diagrams, configuration software, and compliance certificates. CAD drawings and 3D STEP models available for download to streamline panel design.

Frequently Asked Questions

Q: How does the SEC401-11 S2 interface with third-party PLC systems?
A: While optimized for Yokogawa DCS environments, the module supports standard industrial protocols through gateway devices. For direct PLC integration, consider using protocol converters that translate ESB signals to Modbus RTU, PROFIBUS, or EtherNet/IP formats.

Q: What is the maximum cable distance between networked SEC401-11 units?
A: Using recommended shielded twisted-pair cable, reliable communication extends up to 500 meters (1,640 feet) between adjacent modules. For longer distances, deploy fiber optic media converters to maintain signal integrity across multi-kilometer spans.

Q: Can this coupler reduce energy consumption in existing control systems?
A: Yes—the SEC401-11 S2's low-power design typically reduces cabinet cooling requirements by 15-20% when replacing older coupler models, translating to measurable HVAC cost savings in large control rooms with dozens of modules.

Q: What installation clearances are required for proper heat dissipation?
A: Maintain minimum 10mm (0.4 inch) spacing on both sides of the module when mounting in densely populated DIN rail assemblies. Ensure adequate airflow through cabinet ventilation to prevent ambient temperatures from exceeding the 55°C maximum rating.

Q: Does the module support remote firmware updates for security patches?
A: Firmware updates require local connection via configuration software and USB interface. This design choice prevents unauthorized remote access while allowing controlled updates during scheduled maintenance windows with full audit logging.

Q: How quickly can technicians replace a failed module during production?
A: Hot-swap capability enables replacement in under 2 minutes without powering down the network. The redundant channel maintains communication during the swap, ensuring zero data loss and uninterrupted control loop operation.

Take the Next Step

Ready to enhance your DCS network reliability? Our industrial automation specialists are standing by to discuss your specific application requirements, recommend optimal network topologies, and provide detailed integration support. Contact us today for technical datasheets, compatibility verification, and volume pricing for multi-site deployments.
