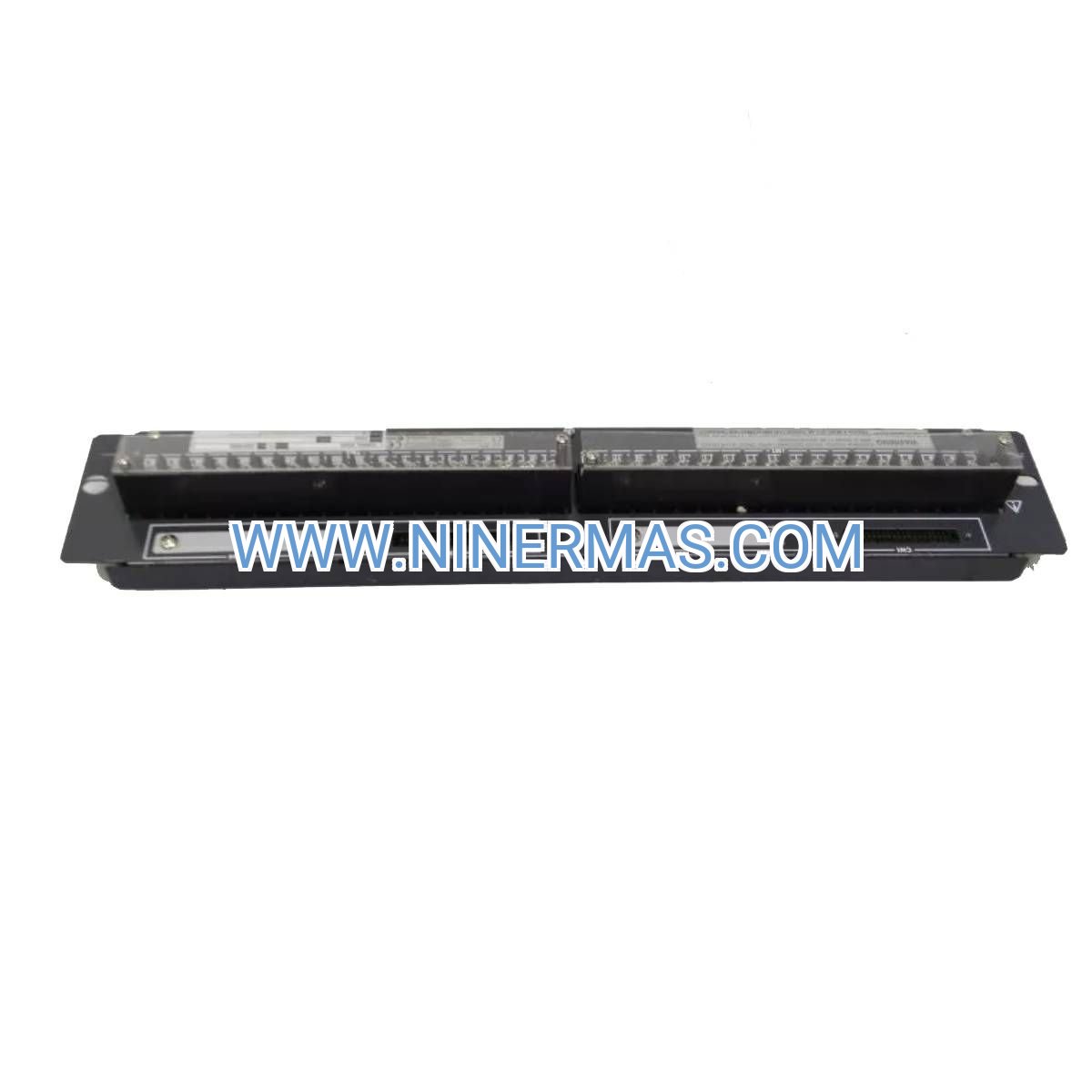

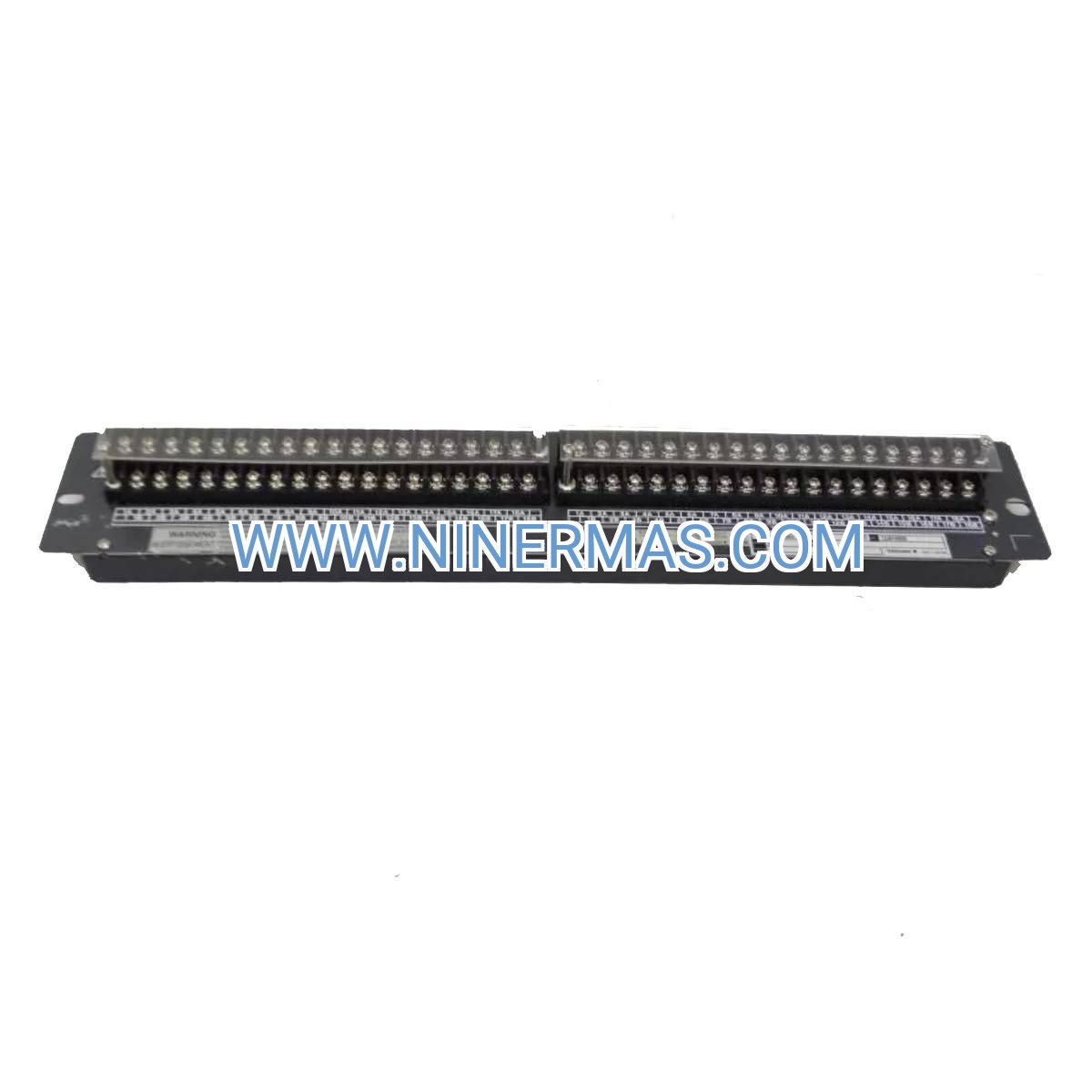

SNB10D-215/CN2N Safety Node Unit (Industrial-Grade ProSafe-RS Interface)

The SNB10D-215/CN2N represents Yokogawa's next-generation safety networking solution, purpose-built for mission-critical process control environments where system uptime and functional safety cannot be compromised. This safety node unit serves as the intelligent communication backbone for distributed safety I/O modules within ProSafe-RS architectures, delivering deterministic data exchange with sub-100ms cycle times across hazardous area installations.

Designed for industries where safety integrity level (SIL) 3 compliance is mandatory—including petrochemical refineries, offshore oil platforms, and power generation facilities—this node unit eliminates single points of failure through dual-redundant power architecture and hot-swappable maintenance capabilities. Process engineers and safety system integrators rely on the SNB10D-215/CN2N to maintain continuous protection during planned maintenance windows and unexpected component failures.

With support for up to 13 networked safety nodes per segment and comprehensive self-diagnostic capabilities, this unit enables scalable safety instrumented system (SIS) deployments that adapt to evolving process safety requirements while maintaining full compliance with IEC 61508 and IEC 61511 standards.

Core Features & Benefits

→ Deterministic Safety Communication Protocol
ProSafe-RS proprietary bus technology guarantees predictable scan cycles under 100ms, ensuring emergency shutdown sequences execute within specified safety response times. Critical for applications where milliseconds determine the difference between controlled shutdown and catastrophic failure.

→ Dual-Redundant Power Architecture
Accepts both 100-240V AC and 24V DC inputs simultaneously, automatically switching to backup power source during primary supply failures. Eliminates safety system downtime during electrical maintenance or utility power disturbances—reducing unplanned shutdown events by up to 40%.

→ Hot-Swappable Maintenance Design
Replace or expand node units without de-energizing the safety network, enabling proactive component replacement based on predictive diagnostics rather than reactive failure response. Maintenance teams report 30-50% reduction in safety system downtime compared to legacy architectures.

→ Integrated Health Monitoring
Real-time diagnostics track communication integrity, power supply status, and module connectivity through multi-color LED indicators and digital status reporting. Early fault detection prevents degraded-mode operation and supports condition-based maintenance strategies.

✓ Scalable Network Topology
Linear and star network configurations support up to 13 safety nodes per segment, accommodating complex multi-zone safety logic without performance degradation. Automatic node addressing simplifies commissioning and reduces configuration errors.

✓ Wide Operating Temperature Range
-20°C to +60°C operational capability ensures reliable performance in extreme environments—from Arctic offshore platforms to Middle Eastern desert refineries—without supplemental climate control.

Typical Application Scenarios

Emergency Shutdown Systems (ESD) – Multi-Zone Refineries
In large-scale refining operations, the SNB10D-215/CN2N coordinates distributed safety I/O across process units, enabling zone-based isolation during emergency conditions. When hazardous gas detection triggers in the alkylation unit, the safety node ensures simultaneous valve closure, pump shutdown, and ventilation activation across affected zones while maintaining normal operation in unaffected areas. This selective shutdown capability prevents unnecessary production losses while maintaining personnel safety.

Burner Management Systems (BMS) – Industrial Boilers
Power generation facilities deploy this safety node to interface flame scanners, fuel valve actuators, and air flow sensors in coordinated startup and shutdown sequences. The deterministic communication ensures proper purge cycles complete before ignition attempts, preventing explosive atmospheres. Operators report 99.8% successful light-off rates with zero unsafe ignition attempts since implementing ProSafe-RS architecture.

Fire & Gas Detection Networks – Offshore Platforms
Distributed across multiple deck levels, SNB10D-215/CN2N units connect toxic gas detectors, flame sensors, and deluge system actuators in zone-based protection schemes. When H2S concentrations exceed threshold limits in the production module, the safety network initiates local alarms, activates ventilation, and prepares emergency shutdown sequences—all within 2-second response windows mandated by offshore safety regulations.

High Integrity Pressure Protection Systems (HIPPS) – Pipeline Operations
In wellhead and pipeline applications where overpressure events demand sub-second response, this safety node enables rapid communication between pressure transmitters and emergency isolation valves. The <100ms scan cycle ensures HIPPS logic executes fast enough to prevent pressure relief valve activation, eliminating costly production shutdowns and environmental releases.

Turbine Overspeed Protection – Combined Cycle Power Plants
Gas turbine protection systems utilize the SNB10D-215/CN2N to coordinate speed sensors, trip solenoids, and auxiliary system interlocks. During overspeed events, the safety node's deterministic communication ensures all protection layers activate in proper sequence, preventing catastrophic turbine failure while maintaining grid stability.

Technical Parameters & Selection Guide

Selection Recommendations: For applications requiring more than 13 safety nodes, implement multiple network segments with separate ProSafe-RS controllers. When integrating with existing Yokogawa DCS infrastructure, verify compatibility with current Centum VP or CENTUM CS 3000 versions. For offshore or marine applications, specify conformal coating option for enhanced corrosion resistance.

Extended Functions

Remote Diagnostics Integration: When paired with Yokogawa's Exaquantum plant information management system (PIMS), the SNB10D-215/CN2N streams diagnostic data to centralized monitoring dashboards, enabling corporate-level visibility into safety system health across multiple facilities. Predictive analytics identify degrading communication links before they impact safety availability.

Cybersecurity Hardening: ProSafe-RS network architecture provides inherent isolation from standard control networks, reducing attack surface for safety-critical functions. Optional secure configuration tools enforce role-based access control and audit logging for compliance with IEC 62443 industrial cybersecurity standards.

Custom I/O Mapping: Advanced users can leverage flexible I/O assignment capabilities to optimize network bandwidth utilization, grouping high-priority safety functions on dedicated node units while consolidating lower-criticality monitoring points. This optimization reduces overall system cost while maintaining safety performance.

Delivery & Service Assurance

Lead Time: Standard configuration units ship within 3-5 business days from regional distribution centers. Custom-configured or project-specific orders require 4-6 weeks for factory programming and testing. Expedited delivery available for emergency replacement scenarios.

Warranty Coverage: 24-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty programs available for critical applications requiring guaranteed replacement within 24 hours.

Technical Support: Access to Yokogawa's global support network includes 24/7 emergency hotline, remote diagnostic assistance, and on-site commissioning support. Regional service centers stock replacement modules for rapid failure response.

Documentation Package: Each unit ships with installation manual, wiring diagrams, ProSafe-RS configuration guide, SIL certification documents, and material traceability certificates. Digital documentation library includes CAD drawings, 3D STEP models, and sample logic programs.

Frequently Asked Questions

Q: How does the SNB10D-215/CN2N interface with existing DCS systems?
A: The safety node communicates exclusively with ProSafe-RS safety controllers (SSC/SCP series), which then interface to Yokogawa DCS platforms via dedicated safety communication modules. This architecture maintains complete separation between safety and control functions as required by IEC 61511, while enabling coordinated operation through secure data exchange protocols.

Q: What is the maximum cable distance between safety nodes?
A: ProSafe-RS network supports up to 1000 meters total cable length per segment using shielded twisted-pair cable. Individual node-to-node distances can reach 500 meters with proper cable specification and termination. For installations exceeding these limits, implement fiber optic media converters or additional network segments.

Q: Can I mix different safety node models on the same network?
A: Yes, the SNB10D-215/CN2N is fully compatible with other ProSafe-RS node variants (SNB10D-225, SNB10D-445 series) on the same network segment. However, all nodes must run compatible firmware versions—consult the ProSafe-RS compatibility matrix before mixing hardware generations.

Q: What energy efficiency improvements does this safety node provide?
A: Compared to legacy relay-based safety systems, the SNB10D-215/CN2N reduces panel space requirements by 60% and power consumption by approximately 40%. The dual-redundant power design eliminates the need for separate UPS systems for each I/O module, further reducing total energy footprint and cooling requirements.

Q: How do I verify SIL 3 compliance during installation?
A: Each safety node ships with factory SIL certification documentation. During commissioning, use the ProSafe-RS configuration software to run automated diagnostic tests that verify communication integrity, power redundancy, and fault detection capabilities. Annual proof testing procedures are documented in the safety manual to maintain SIL 3 certification throughout the system lifecycle.

Q: Is remote monitoring and configuration supported?
A: The ProSafe-RS engineering workstation can connect remotely via secure VPN for read-only monitoring and diagnostic data retrieval. Configuration changes require local connection with physical key-switch authorization to prevent unauthorized safety logic modifications—a requirement for maintaining SIL certification and cybersecurity compliance.

Take the Next Step

Ready to upgrade your safety instrumented system with proven ProSafe-RS technology? Our application engineers are available to review your specific safety requirements, recommend optimal node configurations, and provide detailed project quotations. Contact us today for technical consultation and competitive pricing on the SNB10D-215/CN2N safety node unit.

Request a Quote: Email your project specifications to sale@ninermas.com or call +0086 187 5021 5667 to speak with a safety system specialist.
