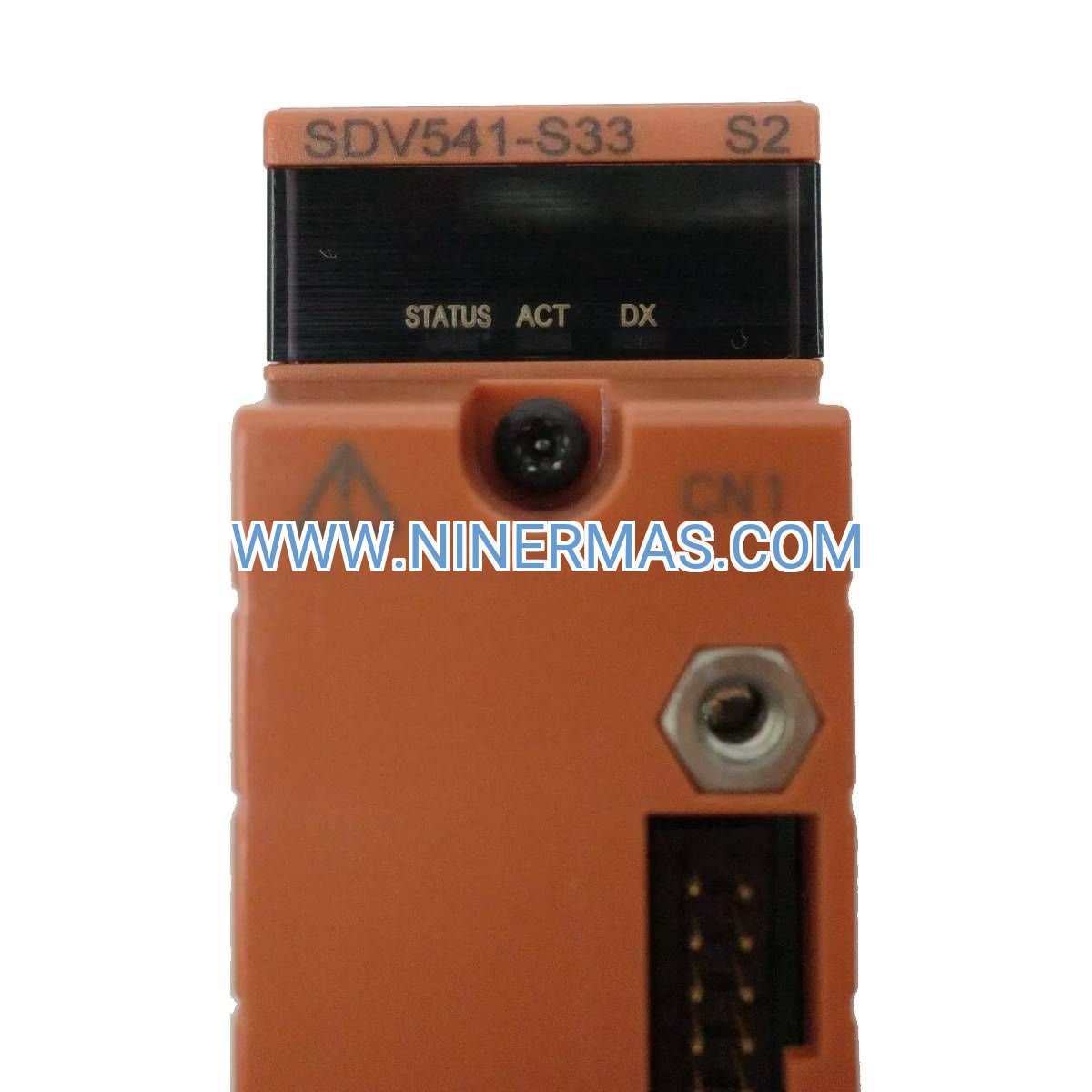

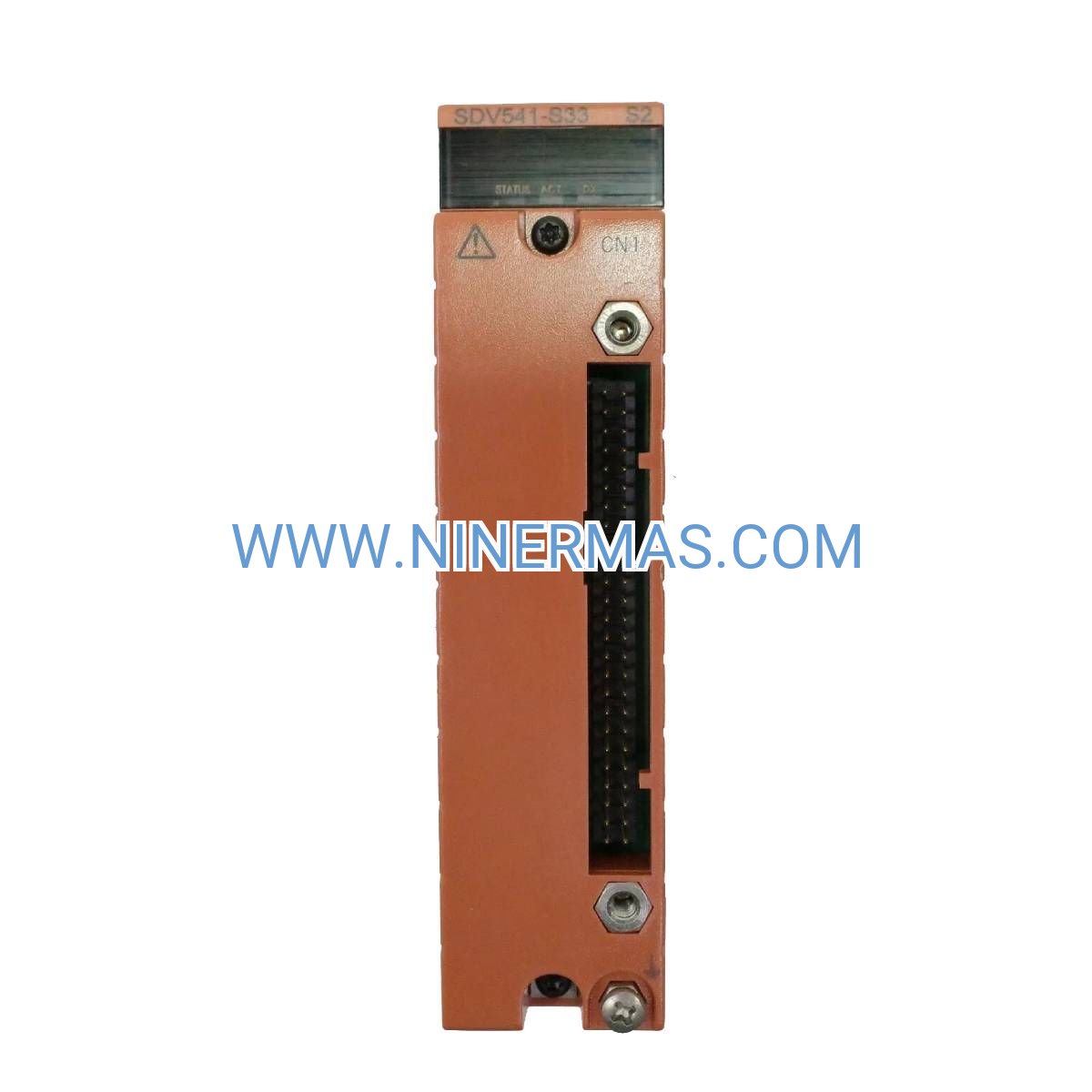

SDV541-S33 S2 Digital Output Module (Industrial-Grade ESB Bus I/O)

The SDV541-S33 S2 represents Yokogawa's advanced approach to distributed digital output control, combining 16 independent channels with ESB bus architecture for mission-critical industrial automation. Designed for process industries requiring fail-safe operation, this S2-revision module delivers sub-2-millisecond response times while maintaining electrical isolation that protects against voltage transients and ground loops in harsh plant environments.

Industrial facilities face constant pressure to minimize downtime while maximizing control precision. The SDV541-S33 S2 addresses these challenges through hot-swappable design, conformal-coated circuitry, and channel-level diagnostics that identify faults before they cascade into system failures. Whether you're managing valve manifolds in chemical processing, coordinating pump sequences in water treatment, or controlling safety interlocks in power generation, this module provides the reliability foundation your operations demand.

With proven compatibility across Yokogawa CENTUM VP and ProSafe-RS platforms, the SDV541-S33 S2 integrates seamlessly into both new installations and legacy system upgrades. Each 0.5A output channel handles standard industrial loads—solenoid valves, indicator lamps, relay coils—while module-level isolation ensures signal integrity even in electrically noisy environments. The result: predictable control performance that reduces maintenance calls and extends mean time between failures.

Key Features & Technical Advantages

→ 16 Independent Output Channels
Each channel operates autonomously with 24VDC switching capability up to 0.5A, supporting diverse field devices from pilot valves to status indicators without cross-channel interference.

→ Sub-2ms Response Time
Ultra-fast actuation ensures time-critical sequences execute precisely, essential for batch processing, emergency shutdown systems, and high-speed packaging lines.

→ Module-Level Electrical Isolation
Protects control logic from field-side voltage spikes, ground potential differences, and electromagnetic interference common in heavy industrial settings.

→ Enhanced S2 Diagnostics
Real-time fault reporting identifies short circuits, open loads, and power anomalies at the channel level, reducing troubleshooting time by up to 60% compared to non-diagnostic modules.

→ Hot-Swappable Architecture
Replace modules during operation without system shutdown or process interruption, critical for continuous manufacturing and 24/7 operations.

→ ESB Bus High-Speed Communication
Integrates directly with Yokogawa's Enhanced System Bus for deterministic data exchange, supporting both simplex and redundant controller configurations.

Industrial Application Scenarios

✓ Chemical Processing & Petrochemical Plants
Control multi-zone valve manifolds for reactor feed systems, where precise sequencing prevents cross-contamination and ensures batch consistency. The module's isolation protects against voltage transients from large motor starters and VFDs operating nearby.

✓ Power Generation Facilities
Manage breaker status indication, turbine auxiliary systems, and cooling tower fan control. Redundant ESB bus support ensures uninterrupted operation during controller failover events, maintaining grid stability.

✓ Water & Wastewater Treatment
Coordinate pump sequencing logic, chemical dosing valve control, and alarm annunciation across distributed lift stations. Conformal coating withstands high-humidity environments and corrosive gas exposure.

✓ Pharmaceutical Manufacturing
Execute clean-in-place (CIP) valve sequences and sterile transfer operations where FDA 21 CFR Part 11 compliance requires audit-trail diagnostics and deterministic control timing.

✓ Oil & Gas Upstream Production
Operate wellhead safety shutdown valves, separator level control, and flare system interlocks in remote locations where temperature extremes (-40°C to +70°C) challenge standard I/O modules.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SDV541-S33 S2 when your application requires more than 8 digital outputs with diagnostic feedback. For higher channel density (32+ points), consider the ADV551 series. If your system uses Vnet/IP instead of ESB bus, specify the equivalent ADV-series module. Always verify power budget—each module draws approximately 3W from the backplane supply.

Extended Capabilities & System Integration

Redundancy Support: Deploy in dual-redundant configurations with automatic failover, ensuring zero control interruption during controller maintenance or unexpected failures.

IIoT Connectivity: Integrate with Yokogawa's Exaquantum PIMS or third-party SCADA systems via OPC UA for real-time performance monitoring and predictive maintenance analytics.

Customization Options: Available with extended temperature ratings (-55°C to +85°C) for extreme environments, and SIL2/SIL3 certification for safety instrumented systems when paired with ProSafe-RS controllers.

Delivery Timeline & Service Commitment

Standard Lead Time: 4-6 weeks for stock items; 8-12 weeks for factory-configured modules with custom firmware or certifications.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year service agreements available with priority RMA processing.

Technical Support: Access to Yokogawa-certified engineers for integration assistance, configuration file review, and troubleshooting support via phone, email, and remote desktop sessions.

Documentation Package: Includes installation manual, wiring diagrams, configuration software, and sample ladder logic for common control sequences.

Frequently Asked Questions

Q: How does the SDV541-S33 S2 interface with existing CENTUM CS3000 systems?
A: The module connects via ESB bus using standard SB301 interface cards. For CS3000 systems, you'll need an ESB-to-Vnet gateway (EC402 series) to bridge communication protocols. Configuration is handled through the same engineering tools as native CS3000 I/O.

Q: What is the maximum cable distance between the module and field devices?
A: With 24VDC outputs at 0.5A, maintain cable runs under 100 meters using 18 AWG wire to prevent excessive voltage drop. For longer distances, use local relay amplifiers or consider 4-20mA signal conversion.

Q: Can this module reduce energy consumption compared to relay-based output systems?
A: Yes—solid-state outputs eliminate coil holding current (typically 2-5W per relay), reducing panel heat load by 30-80W per module. This also extends backplane power supply lifespan and lowers cooling requirements.

Q: What installation requirements must be met for hot-swap functionality?
A: Ensure the ESB bus is configured for online module replacement in the system settings. Use proper ESD grounding when handling modules, and verify the replacement module's firmware revision matches the existing configuration to avoid version conflicts.

Q: Does the S2 revision support remote monitoring of output channel health?
A: Absolutely—the S2 diagnostic engine reports channel status, load current, and fault conditions to the host controller every scan cycle (typically 10-100ms). Integrate these tags into your HMI for real-time visibility or configure alarms for proactive maintenance.

Q: How do I select between the SDV541 and ADV551 output modules?
A: Choose SDV541 for ESB bus systems (CENTUM VP/ProSafe-RS) requiring 16 channels with module isolation. Select ADV551 for higher density (32 channels) or when using Vnet/IP communication. Both offer similar diagnostic capabilities and hot-swap support.

Take the Next Step

Ready to enhance your distributed control system with proven Yokogawa I/O technology? Contact our industrial automation specialists for application-specific recommendations, pricing, and delivery timelines. We provide configuration support, integration assistance, and post-installation commissioning services to ensure seamless deployment.

Request a Quote: Email sale@ninermas.com with your system details
Technical Consultation: Call +0086 187 5021 5667 (Asia-Pacific hours)
Documentation: Download datasheets and CAD models from our resource library
